Description

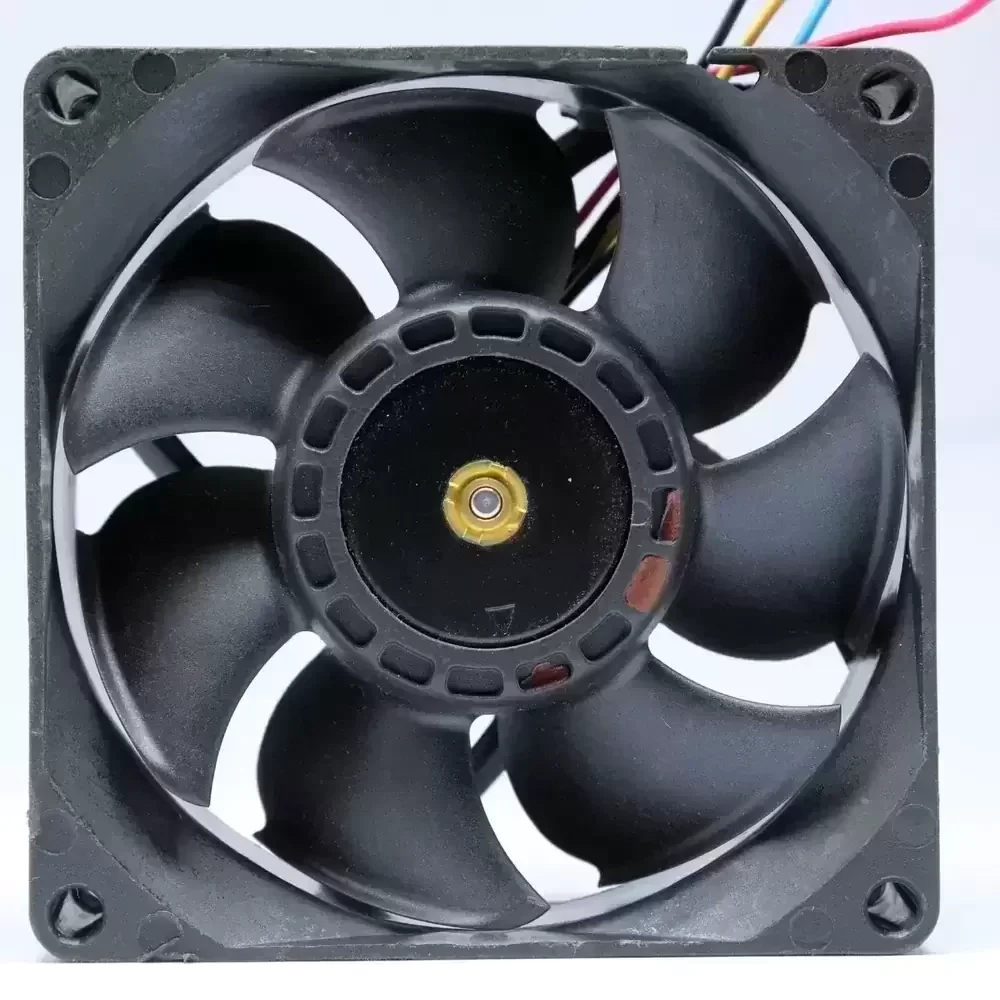

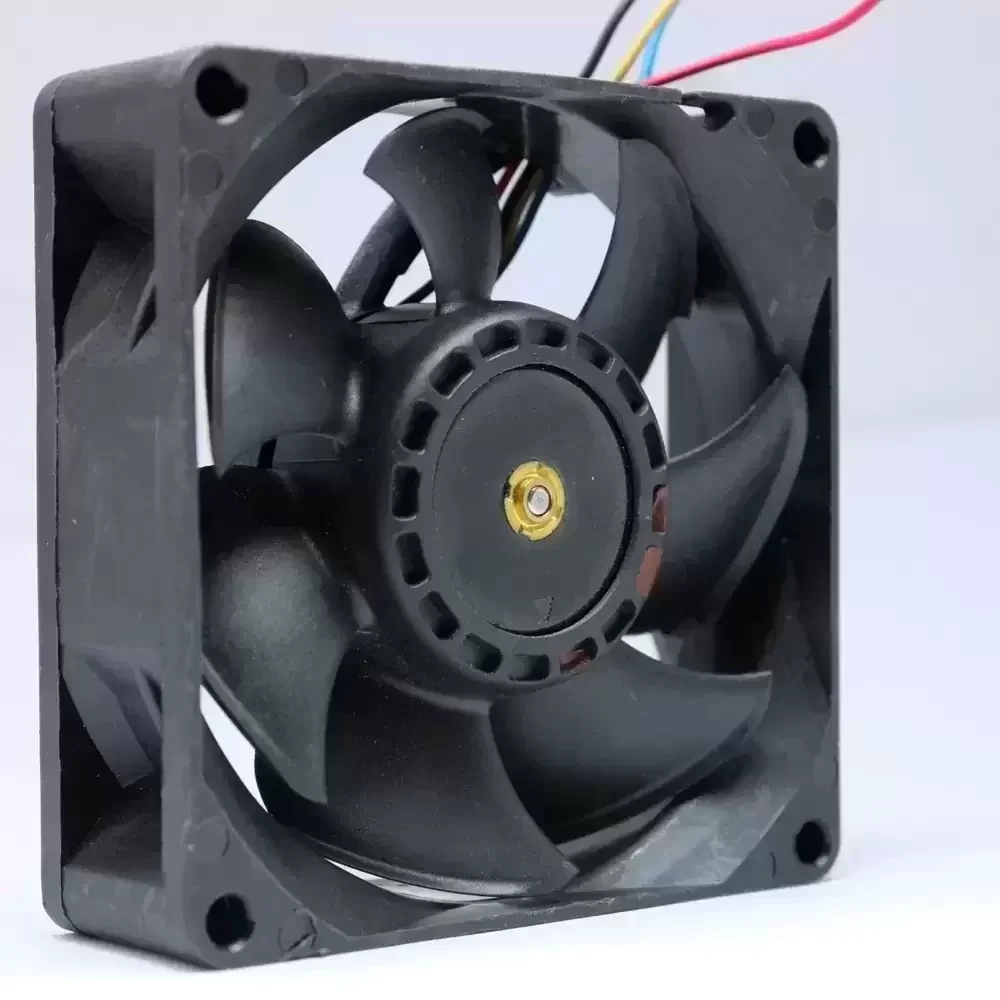

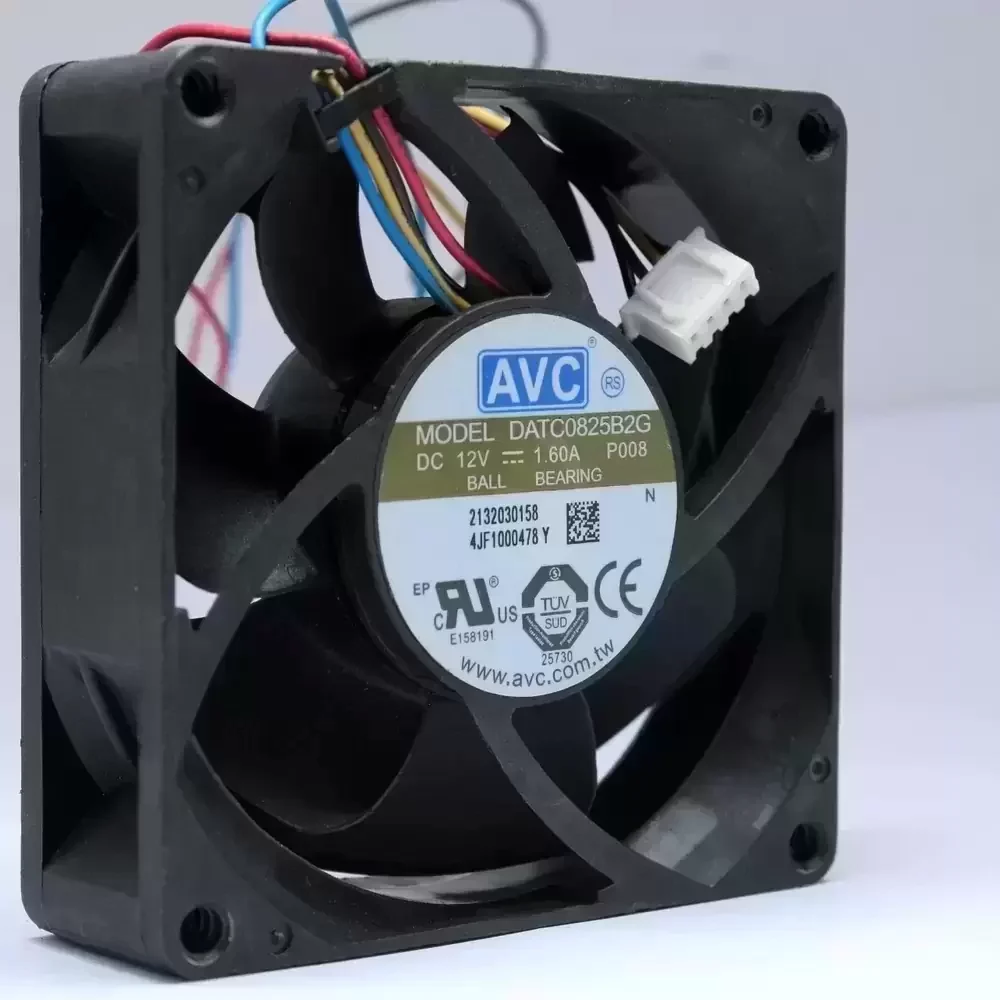

The AVC DATC0825B2G-P008 is a high-performance DC axial fan engineered for mission-critical thermal management applications requiring exceptional airflow and static pressure. Operating on a 12VDC platform with a significant current draw of 1.60A, this unit delivers robust cooling power suitable for high-density electronic environments. The fan features a durable dual ball bearing architecture, which ensures superior structural rigidity and extends operational lifespan even under continuous high-speed rotation. Its aerodynamic impeller design is optimized to reduce thermal impedance while maintaining high volumetric efficiency. Integrated 4-wire PWM speed control allows for precise thermal regulation, enabling the system to adjust fan speed dynamically based on real-time temperature data to balance cooling performance with energy consumption.
Model Number: DATC0825B2G-P008
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 1.60 A
Power Consumption: 19.2 W
Dimensions: 80 x 80 x 25 mm
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Interface
Connector: Standard 4-Pin Header
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Mounting Orientation: Any
Operating Temperature: -10°C to +70°C
Application: High Static Pressure Server Cooling
The DATC0825B2G-P008 is specifically designed for deployment in enterprise-grade hardware such as 1U and 2U server racks, blade chassis, and high-performance workstations where space is limited but heat dissipation requirements are extreme. The high static pressure capabilities of the DATC0825B2G-P008 make it ideal for forcing air through dense heatsinks and restricted enclosures found in telecommunications equipment and industrial automation power supplies.
