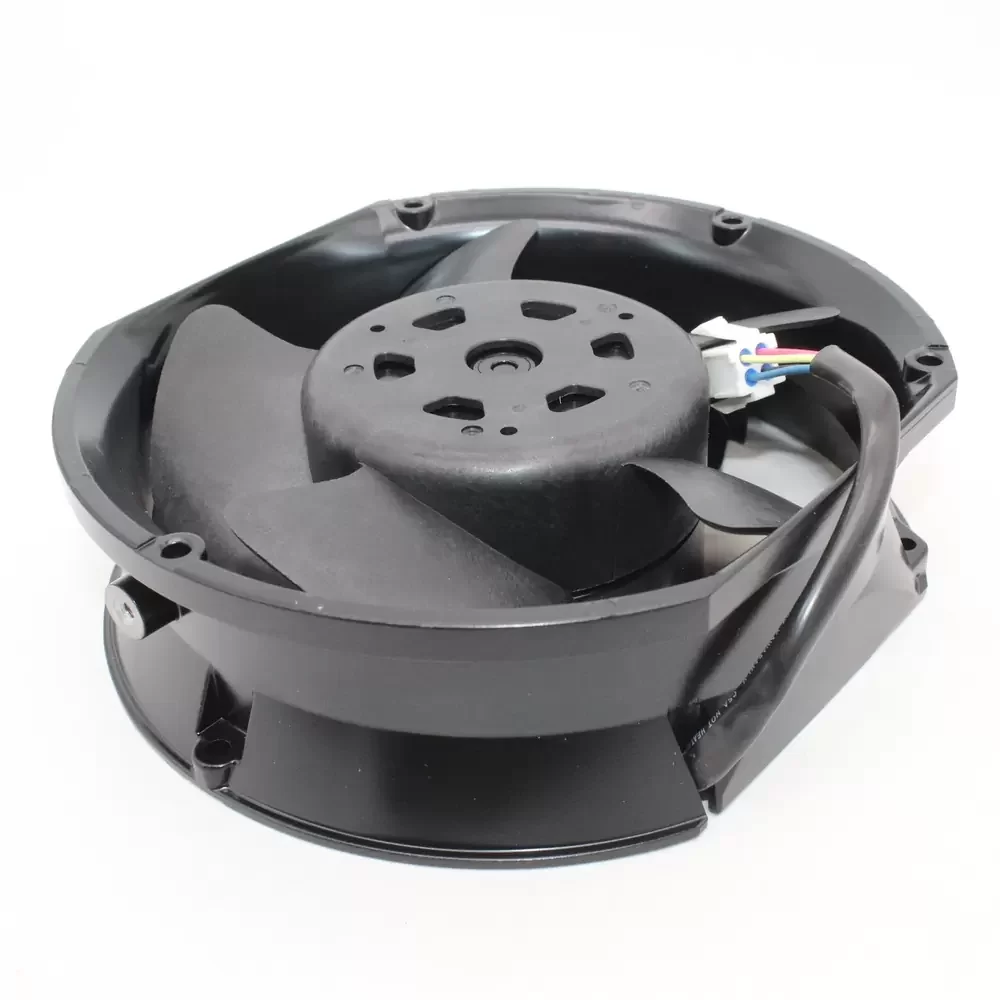

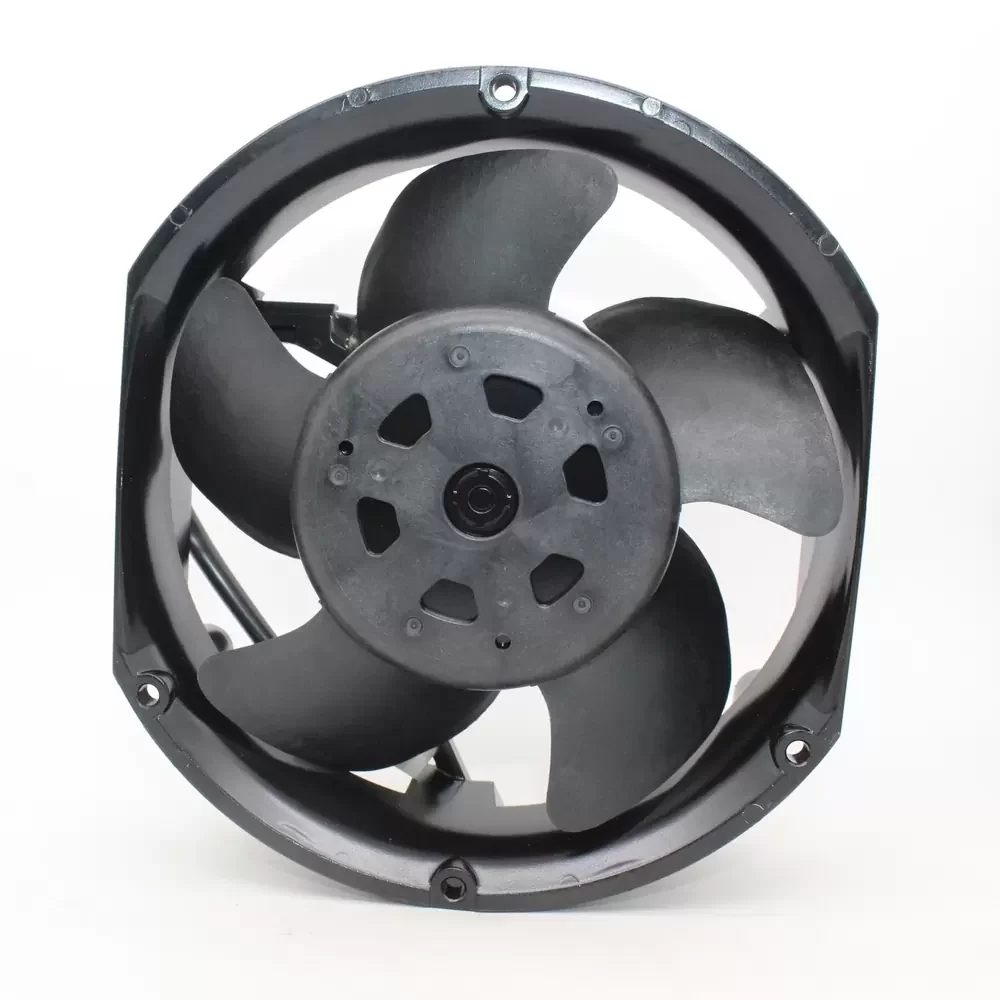

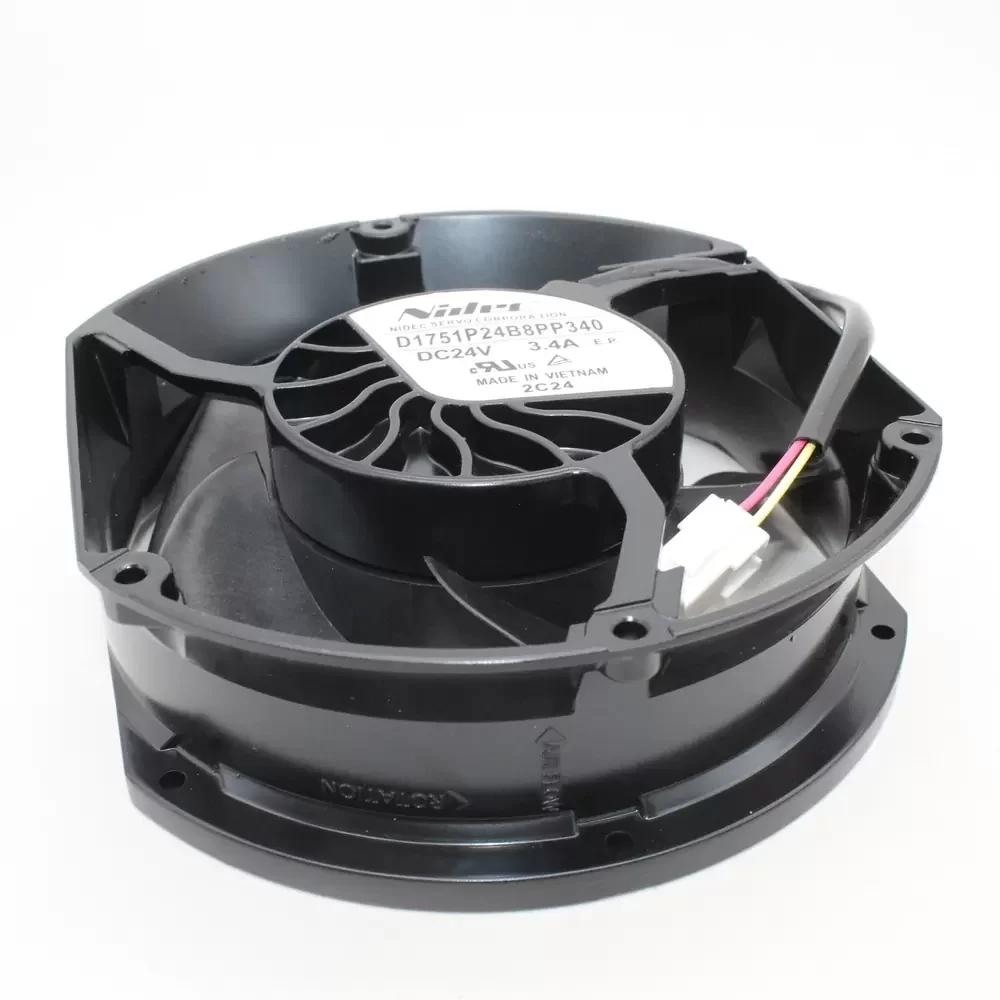

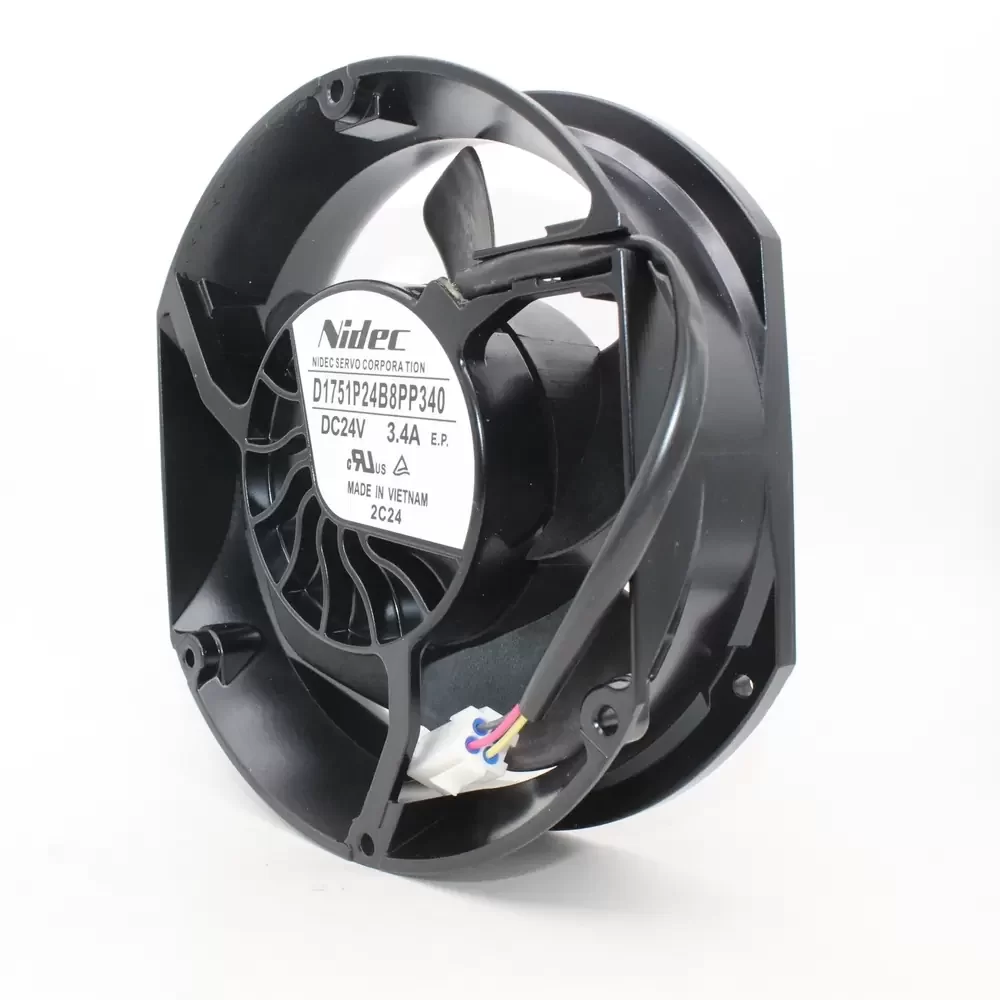

D1751P24B8PP340 Nidec 24V 3.4A High Speed Axial Cooling Fan

Description

The Nidec D1751P24B8PP340 is a robust industrial axial fan engineered for high-static pressure applications. Featuring a durable aluminum die-cast frame and dual ball bearings, this 24V DC fan delivers exceptional cooling performance with a current draw of 3.4A, making it ideal for demanding thermal management in power electronics and variable frequency drives.

Manufacturer: Nidec Corporation
Model Number: D1751P24B8PP340
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 3.4A
Input Power: 81.6 W
Nominal Speed: 5300 RPM
Max. Air Flow: 360.00 CFM (611.6 m³/h / 10.19 m³/min)
Max. Static Pressure: 32.50 mmH₂O (318.7 Pa / 1.28 inH₂O)
Bearing Type: Maintenance-Free Dual Ball Bearing
Frame Dimensions: 172mm x 150mm x 51mm (Oval)
Frame Material: Aluminum Die-Cast with Black Coating
Impeller Material: Reinforced Plastic (UL94V-0)
Noise Level: 68.0 dB(A)
Life Expectancy: 70,000 Hours at 40°C
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Safety Certifications: UL, cUL, TUV, CE
Weight: 850 g

This high-capacity cooling fan is specifically engineered for heavy-duty industrial environments requiring rapid heat dissipation. It is widely utilized in variable frequency drives, specifically serving as a replacement component for ABB inverter cooling systems where sustained airflow is critical. The D1751P24B8PP340 excels in server cabinets, telecommunications equipment, and large-scale power supply units, ensuring operational stability by effectively managing thermal loads in high-density electronic enclosures.

Updated: 2026-02-26 23:25

Additional information

Shipping Weight	1 kg
