Description

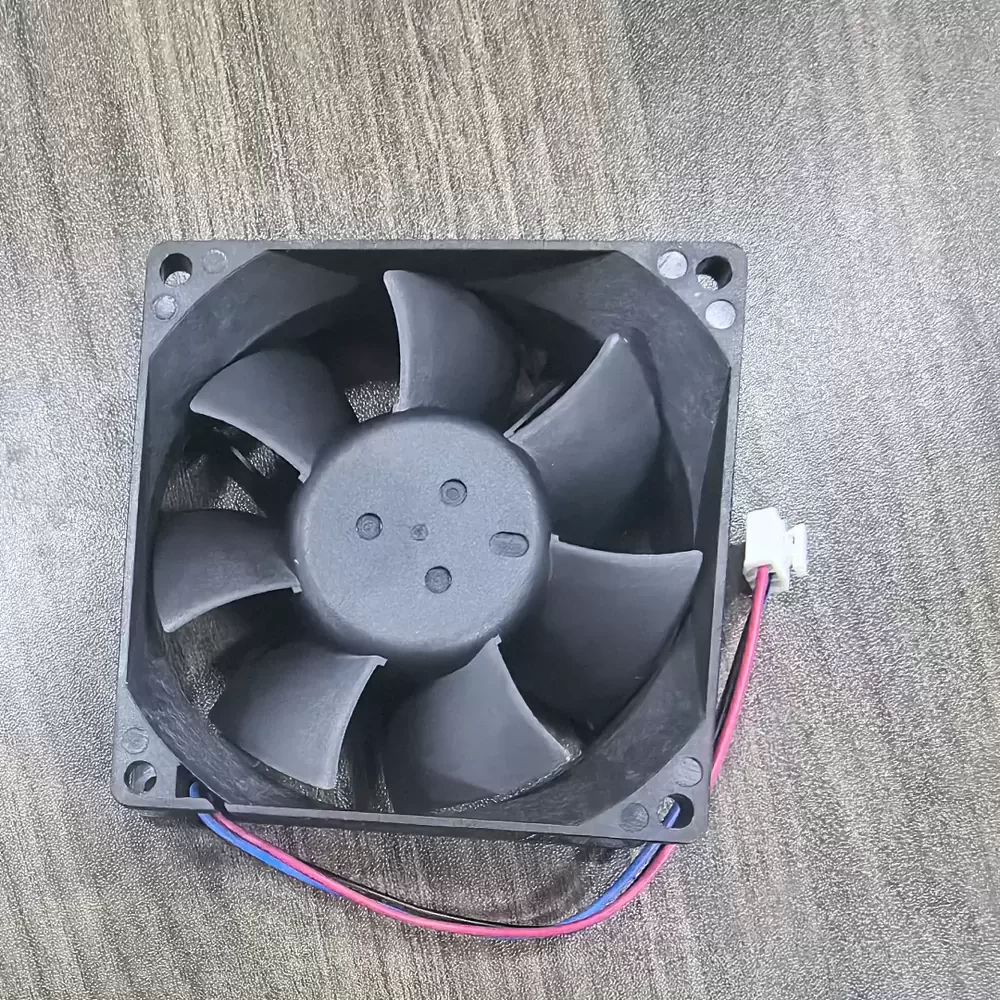

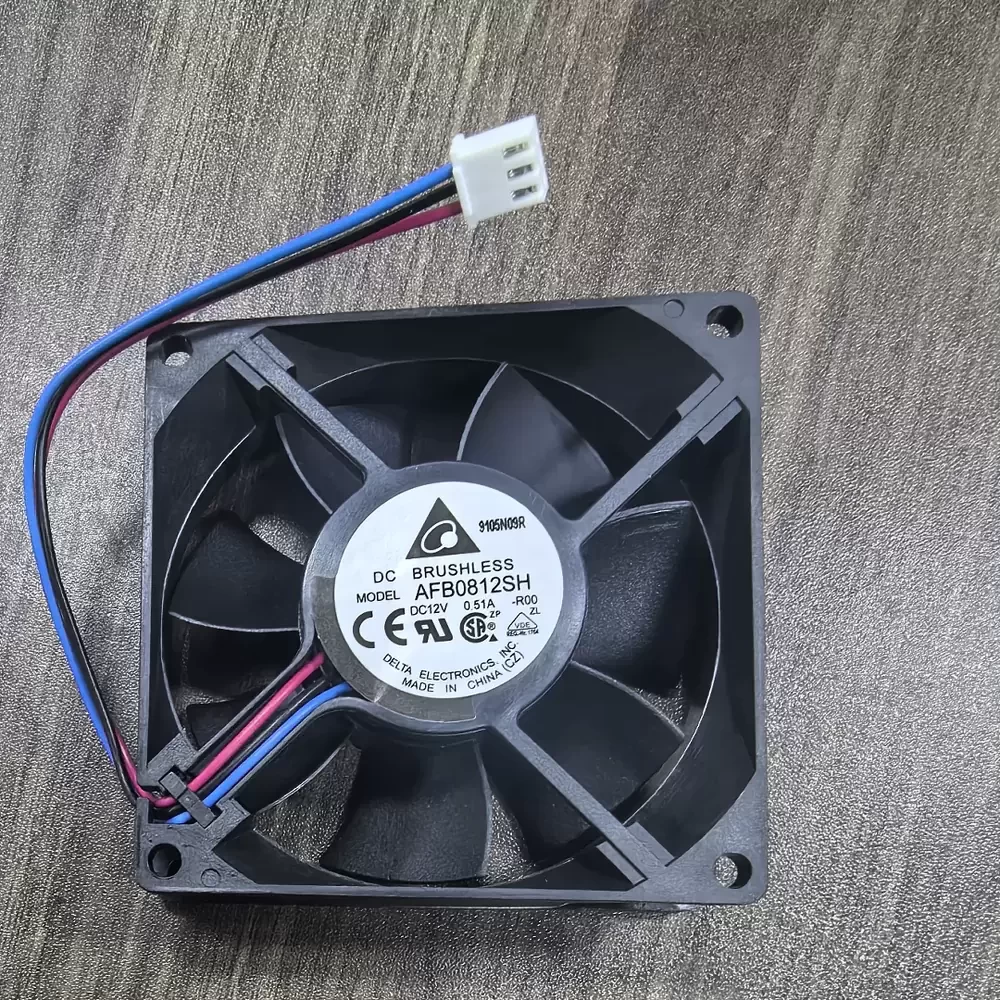

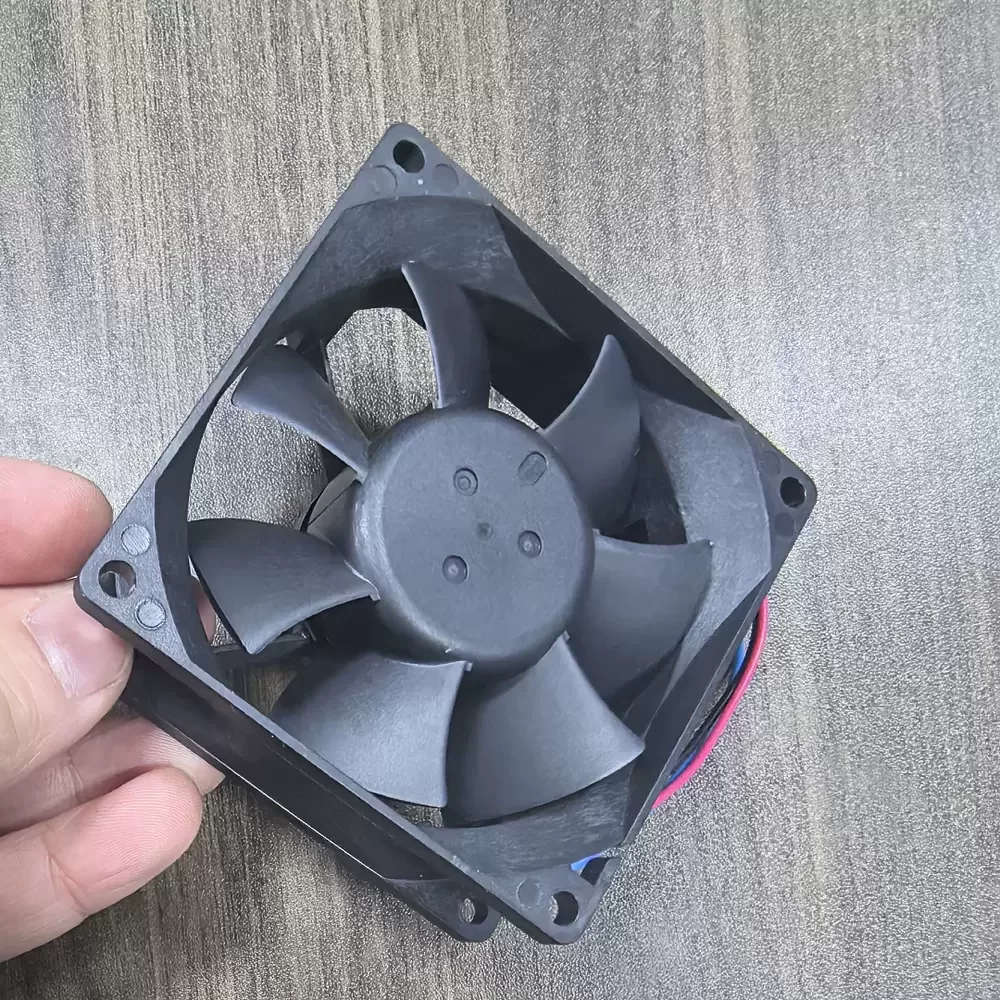

The Delta AFB0812SH-R00 is a precision-engineered DC Axial Fan designed for critical thermal management applications requiring high static pressure and consistent airflow. Utilizing advanced 2-Ball Bearing technology, this unit ensures reduced friction and extended operational longevity under continuous load. The impeller features an optimized aerodynamic profile constructed from reinforced thermoplastic UL94V-0, delivering superior structural rigidity and minimizing thermal impedance. Engineered with a specialized R00 Rotation Detector sensor, the AFB0812SH-R00 provides active feedback for system monitoring, making it an ideal solution for industrial environments where reliability and component density are paramount.
Model Number: AFB0812SH-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.51 A
Power: 6.12 W
Rated Speed: 4000 RPM
Bearing Type: 2-Ball Bearing
Max. Air Flow: 46.62 CFM (79.21 m³/h / 1.32 m³/min)
Max. Static Pressure: 6.78 mmH₂O (66.49 Pa / 0.27 inH₂O)
Dimensions: 80 x 80 x 25.4 mm
Weight: 80 g
Life Expectancy: 70,000 Hours at 40°C
Sensor Output: R00 (Rotation Detector / Locked Rotor Alarm)
Noise Level: 40.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Locked Rotor Protection, Polarity Protection
This high-performance cooling solution is specifically engineered for deployment in demanding industrial sectors, including variable frequency drives, server chassis, and telecommunications enclosures. The AFB0812SH-R00 excels in environments requiring efficient heat dissipation from dense electronic components, ensuring system stability in automation control panels and power supply units. By integrating the AFB0812SH-R00 into critical infrastructure, operators benefit from its robust fault detection capabilities, safeguarding sensitive equipment such as CNC machinery and medical instrumentation from thermal overload.
