Description

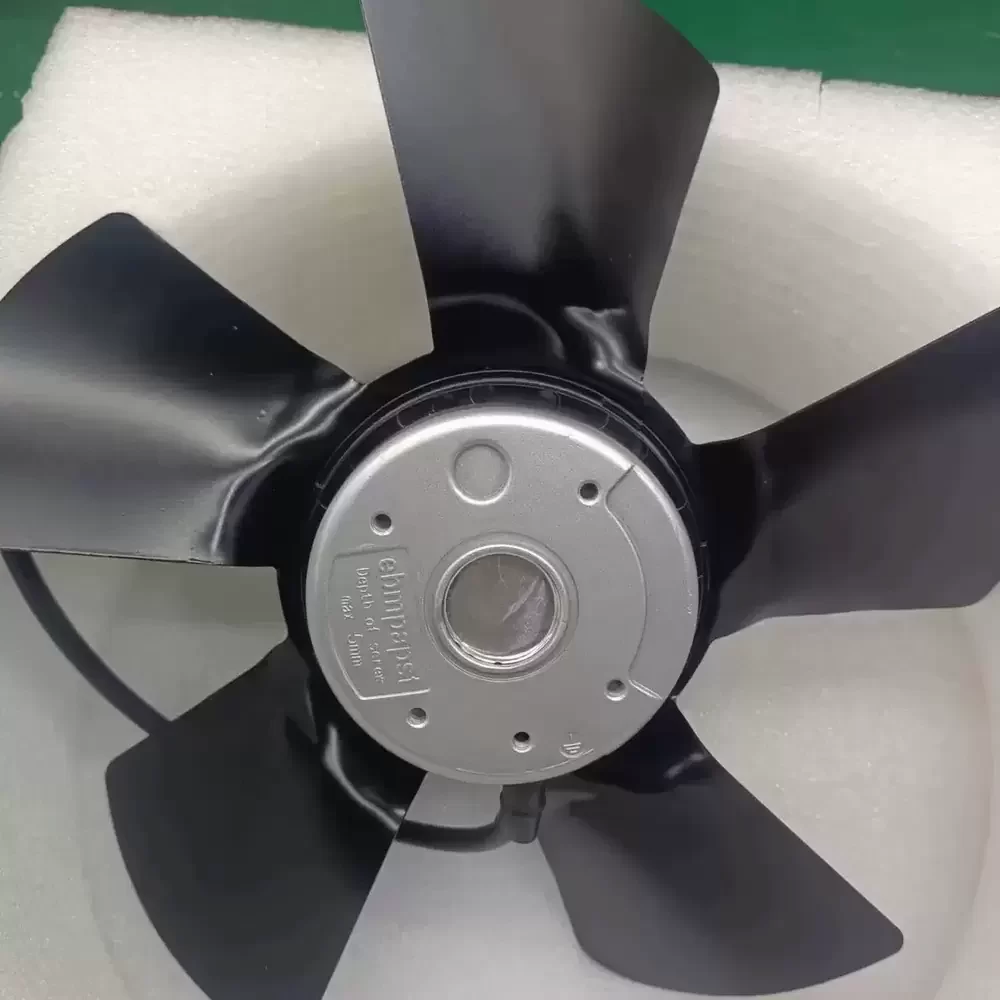

The ebmpapst W2D270-EB26-07 is a robust AC axial fan engineered for demanding industrial thermal management and high-load ventilation systems. Driven by the reliable M2D068-CF external rotor motor, this unit integrates a high-efficiency aerodynamic profile with a 5-blade sheet steel impeller, coated in black for superior corrosion resistance. The assembly ensures optimal structural rigidity and minimized vibration transmission during operation. Designed with a maintenance-free ball bearing system, it delivers consistent airflow while maintaining low thermal impedance. The fan features an integrated guard grille for safety and is specifically optimized for continuous duty cycles in variable frequency drive cooling applications, ensuring reliable heat dissipation under varying load conditions and electrical frequencies.
Model Number: W2D270-EB26-07
Brand: ebmpapst
Product Type: AC Axial Fan
Motor Type: M2D068-CF (External Rotor)
Phase: 3-Phase
Rated Voltage: 400 / 480 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.26 A (50Hz) / 0.32 A (60Hz)
Power Consumption: 150 W (50Hz) / 235 W (60Hz)
Rated Speed: 2480 RPM (50Hz) / 2850 RPM (60Hz)
Blade Diameter: 270mm
Bearing Type: Ball Bearing
Max. Air Flow: 1050 m³/h (Approximate)
Impeller Material: Sheet Steel (Coated Black)
Housing Material: Sheet Steel (Coated Black)
Air Flow Direction: Intake over struts (V)
Insulation Class: B
Ingress Protection: IP44
Mounting: Integrated Guard Grille
Weight: 2.8 kg
Operating Temperature: -25°C to +60°C
Motor Protection: Thermal Overload Protector (TOP)
Compliance: CE, RoHS
This high-performance cooling solution is primarily utilized in industrial automation and power electronics sectors. The W2D270-EB26-07 is frequently deployed in variable frequency drive (VFD) cabinets and large-scale inverter systems to maintain optimal operating temperatures for sensitive components. Additionally, the W2D270-EB26-07 serves as a critical thermal regulation component in control panel ventilation, renewable energy power converters, and heavy-duty transformer cooling arrays, where consistent airflow and long-term reliability are paramount for system stability.
