Description

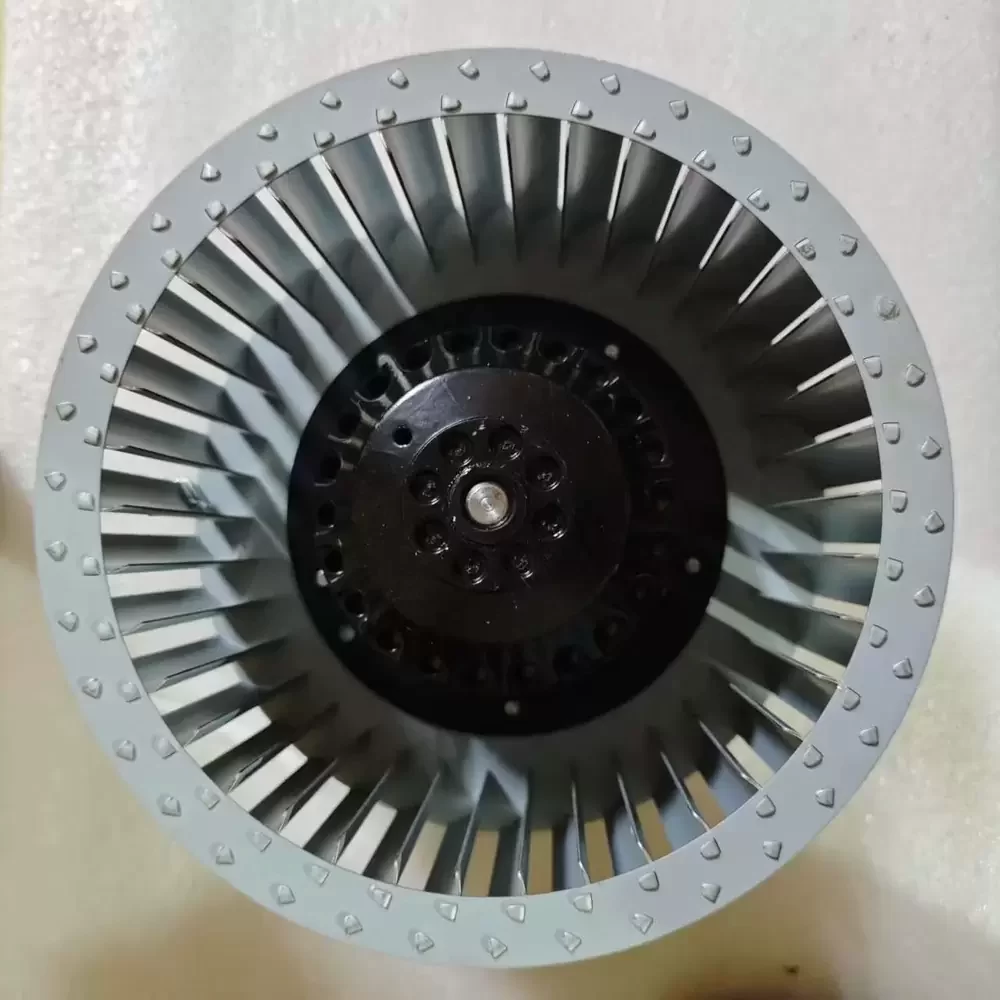

The AFL F4E200-102A-AM0A is a precision-engineered Single Inlet Forward Curved Centrifugal Fan designed for demanding industrial air movement applications. Utilizing a robust single-phase asynchronous external rotor motor, this unit delivers consistent torque and thermal stability under continuous operation. The 200mm impeller is aerodynamically optimized to minimize turbulence while maximizing static pressure capabilities within a compact footprint. Constructed with high-grade materials to ensure structural rigidity, the motor features an IP54 ingress protection rating, safeguarding internal components against dust and splashing water. This architecture ensures low thermal impedance and extended service life, making it a reliable solution for complex ventilation systems requiring high-efficiency AC motor technology.
Model Number: F4E200-102A-AM0A
Brand: AFL
Product Type: Forward Curved Centrifugal Fan (Single Inlet)
Motor Technology: Single-Phase Asynchronous External Rotor Motor
Rated Voltage: 110/115 VAC
Frequency: 60 Hz
Rated Current: 1.45 A
Power Input: 160 W
Rated Speed: 1650 RPM
Capacitor: 16 uF / 500 V
Impeller Diameter: 200 mm
Ingress Protection: IP54
Termination: 4 Lead Wires
Bearing Type: Ball Bearing
Mounting Orientation: Any
The F4E200-102A-AM0A is engineered for critical cooling and ventilation scenarios, including industrial control cabinets, clean room filtration systems, and telecommunications base stations. Its high-efficiency motor design allows the F4E200-102A-AM0A to operate effectively in heat exchangers and duct fans where consistent airflow and pressure are paramount for system reliability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
