Description

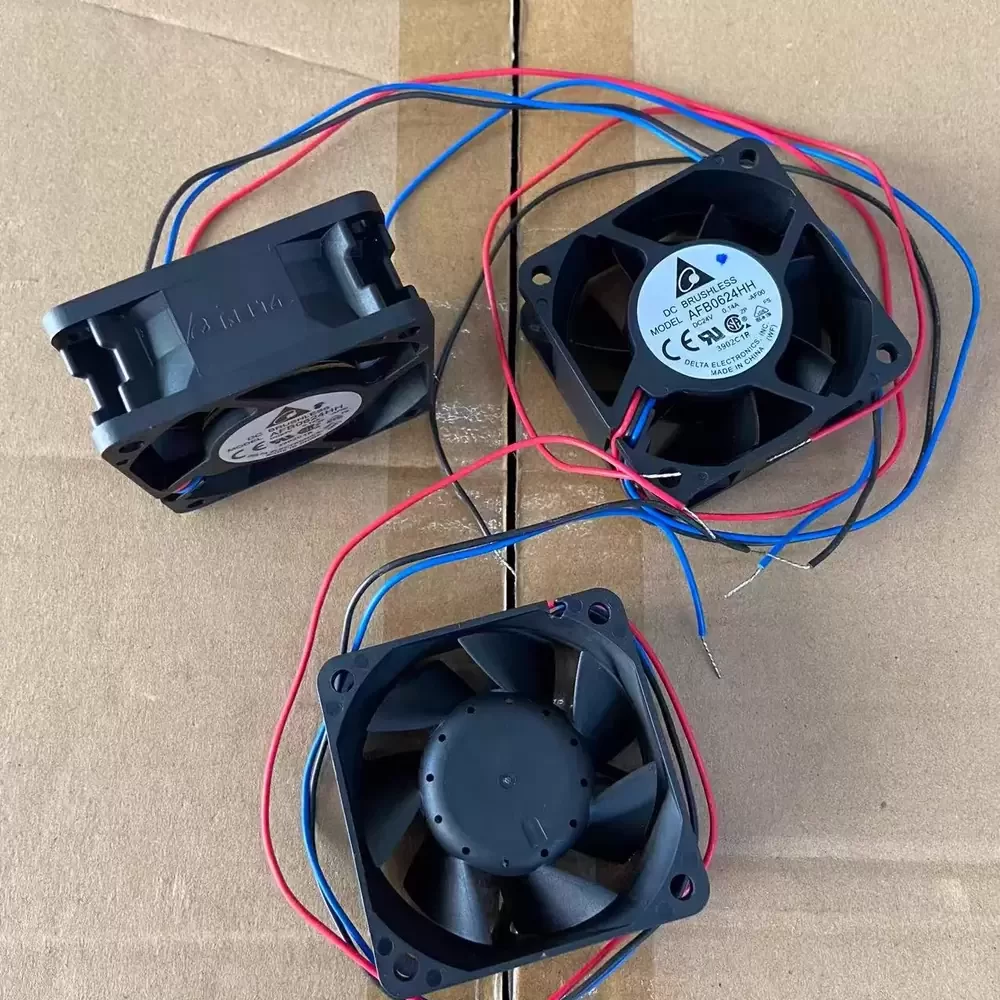

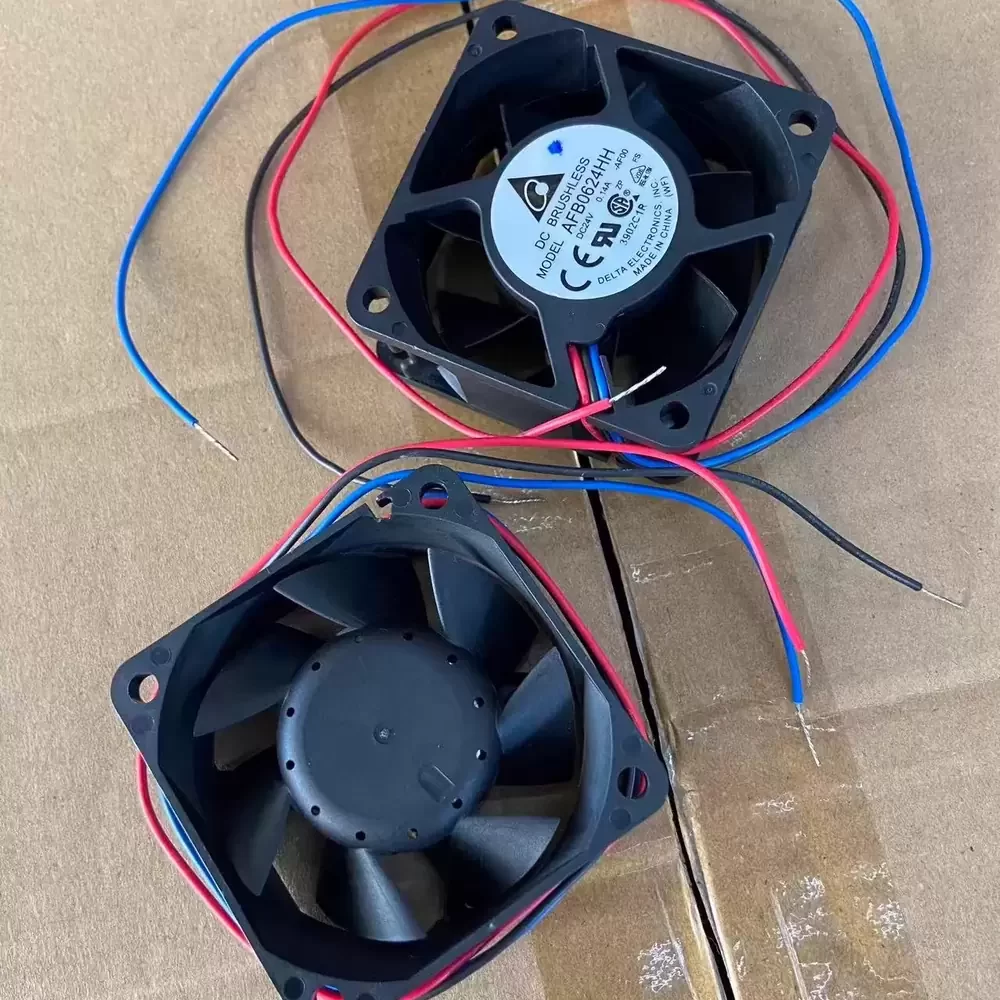

The Delta FB0624HH-AF00 is a DC Axial Fan engineered for precision thermal management in industrial environments. Utilizing advanced DC brushless motor technology and a robust dual ball bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. The integrated tachometer signal allows for real-time speed monitoring, making it a critical component for feedback-controlled cooling systems.
Model Number: FB0624HH-AF00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.14 A
Power Input: 3.36 W
Rated Speed: 5000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 27.55 CFM (46.8 m³/h / 0.78 m³/min)
Max. Static Pressure: 7.35 mmH₂O (72.08 Pa / 0.29 inH₂O)
Dimensions: 60x60x25 mm
Weight: 82 g
Noise Level: 36.5 dB-A
Life Expectancy: 70,000 Hours at 40°C
Termination: 3-Wire Leads
Output Signal: Frequency Generator (Tachometer)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, cUL, TUV, VDE
The FB0624HH-AF00 is specifically designed for mission-critical applications requiring reliable forced convection cooling, such as telecommunications equipment, server rack power supplies, and industrial automation control panels. Its compact 60mm footprint allows for seamless integration into restricted spaces within CNC machinery and medical diagnostic devices. By providing consistent airflow and speed feedback, the FB0624HH-AF00 ensures optimal operating temperatures for sensitive electronic components, preventing thermal throttling and hardware failure in 24/7 operational environments.
