Description

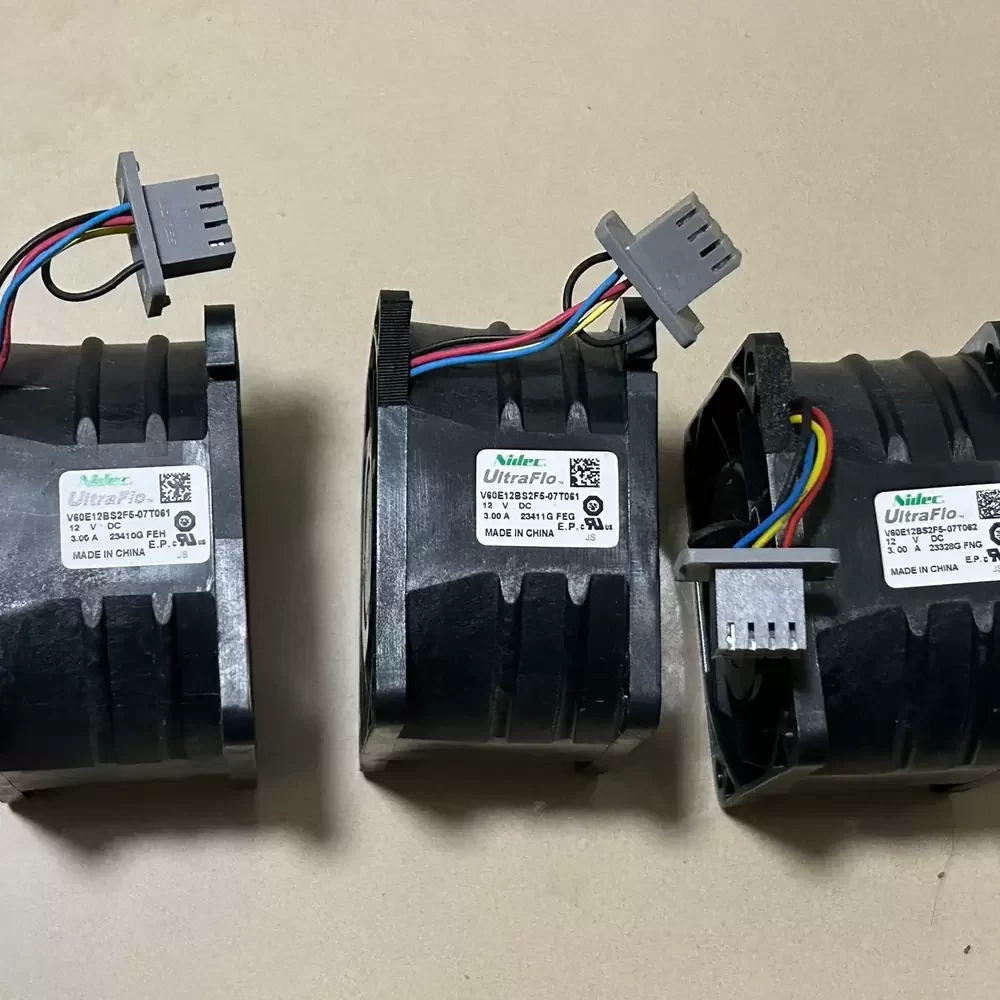

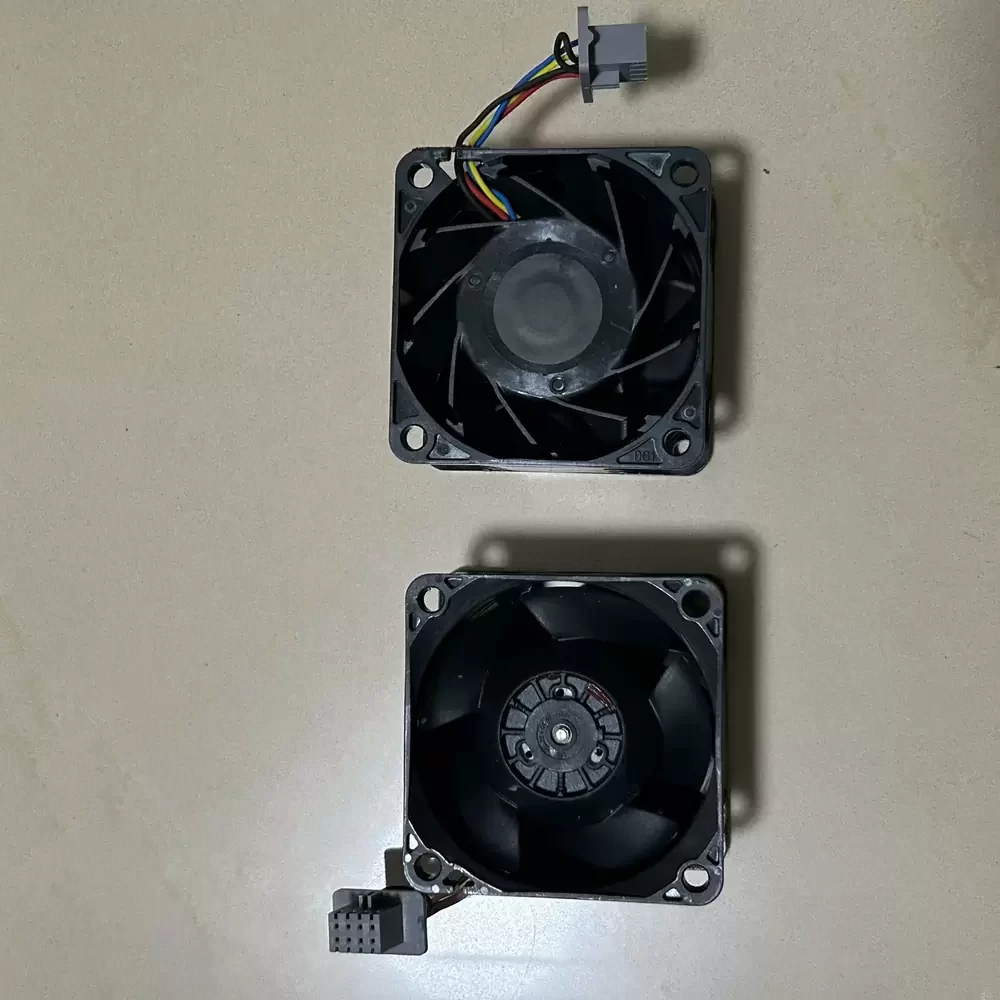

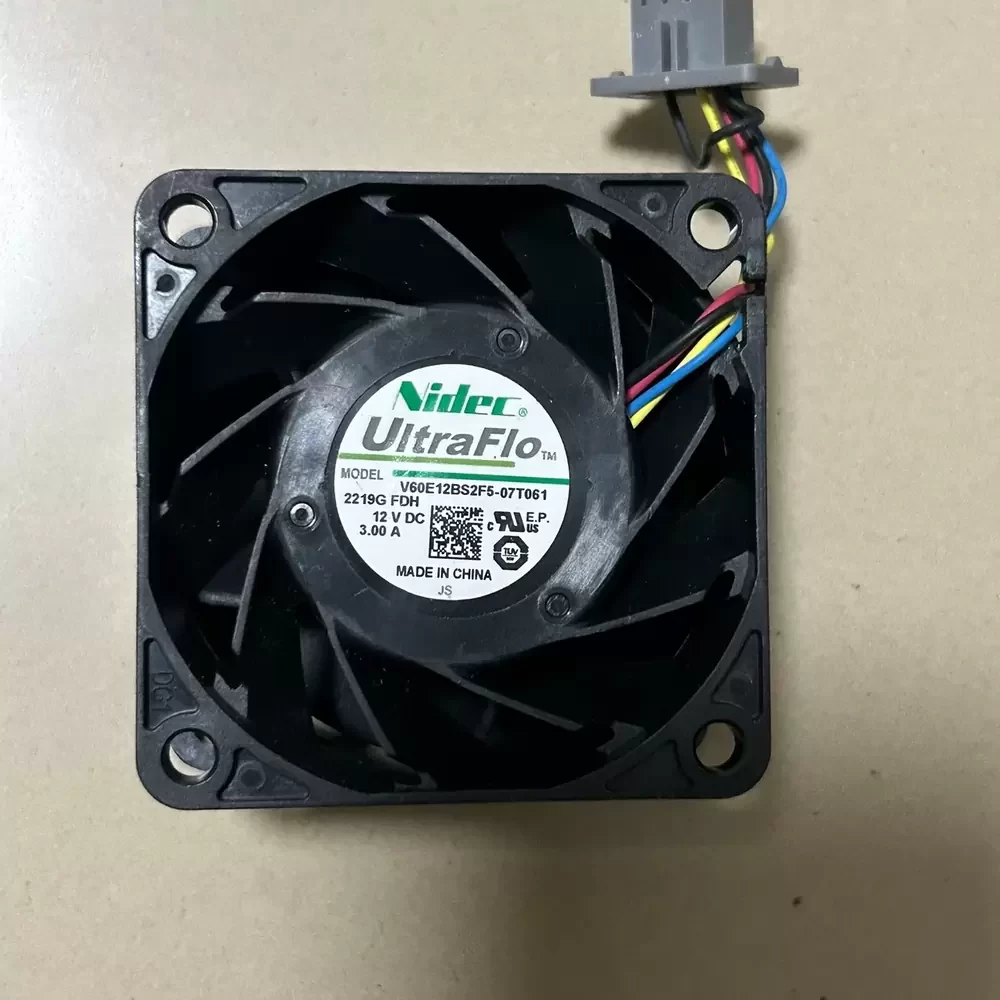

The Nidec V60E12BS2F5-07T061 is a high-performance Axial Fan engineered for mission-critical thermal management within dense electronic enclosures. Part of the distinguished UltraFlo series, this unit features an advanced aerodynamic impeller design that maximizes airflow throughput while maintaining exceptional structural rigidity under high-velocity rotation. The motor assembly is driven by a robust 12VDC architecture, drawing 3.00A to generate significant static pressure, making it ideal for overcoming high system impedance. Utilizing Nidec’s precision bearing technology, the fan ensures reduced thermal impedance and long-term operational reliability. The chassis is constructed to meet rigorous industrial standards, providing a durable solution for applications requiring rapid heat dissipation and continuous duty cycles.
Model Number: V60E12BS2F5-07T061
Brand: Nidec
Product Type: DC Axial Fan
Series: UltraFlo
Rated Voltage: 12VDC
Operating Voltage Range: 10.2 – 13.8 VDC
Rated Current: 3.00 A
Input Power: 36.0 W
Rated Speed: 14500 RPM
Max. Air Flow: 68.5 CFM (116.4 m³/h / 1.94 m³/min)
Max. Static Pressure: 2.85 inH₂O (710 Pa / 72.4 mmH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 60 x 60 x 38 mm
Frame Material: Reinforced PBT (UL94V-0)
Impeller Material: Reinforced PBT (UL94V-0)
Termination: 4-Wire Leads
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (FG Signal)
Ingress Protection: IP20
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 64.5 dB(A)
Weight: 130 g
Life Expectancy: 70,000 Hours at 40°C
This heavy-duty cooling component is specifically designed for integration into high-density server racks and enterprise computing hardware. The V60E12BS2F5-07T061 is particularly effective in 1U and 2U chassis configurations where back-pressure is significant due to tightly packed components and heatsinks. Furthermore, the V60E12BS2F5-07T061 is widely deployed in telecommunications infrastructure, network switches, and industrial automation equipment, ensuring critical systems remain within safe thermal operating limits.
