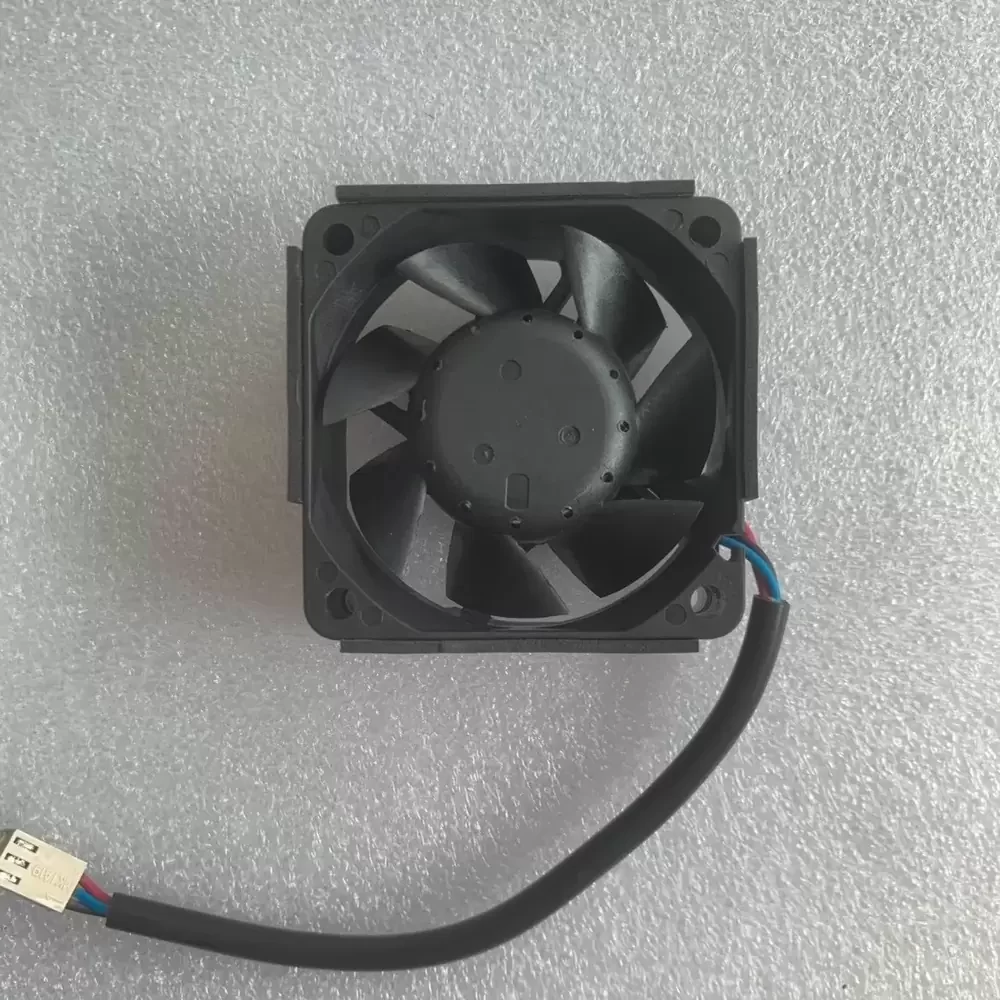

AFB0624EH-4J44 Delta 24V 0.36A 60x60x25mm DC Axial Fan

Description

Delta AFB0624EH-4J44 is a 60 x 60 x 25 mm axial cooling fan operating at 24 VDC with a rated current of 0.36 A and 8.64 W power consumption. The unit features a dual ball bearing system and a plastic PBT (UL 94V-0) impeller and frame construction. It delivers an airflow of 1.086 m³/min (38.35 CFM) and a static pressure of 13.81 mmH2O at a rotational speed of 6800 RPM. The electrical interface consists of a 3-wire lead configuration for power and signal output, with an acoustic noise level of 46.5 dB-A.

AFB0624EH-4J44 Specifications
Model: AFB0624EH-4J44
Brand: Delta Electronics
Frame Size: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.36 A
Input Power: 8.64 W
Rated Speed: 6800 RPM
Maximum Airflow: 1.086 m³/min (38.35 CFM)
Maximum Static Pressure: 13.81 mmH2O (0.544 inH2O)
Acoustic Noise: 46.5 dB-A
Bearing Type: Dual Ball Bearing
Material (Frame/Impeller): Plastic (UL 94V-0)
Lead Wire: 3-wire
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 80 g
Safety Approvals: UL, TUV, CE

AFB0624EH-4J44 Applications
Primary applications include integration into industrial frequency inverters, CNC machine tool control cabinets, and telecommunications power supply modules. Deployed within server rack cooling systems and high-density electronic enclosures requiring high static pressure thermal management.
