MGT9212HR-W25B Protechnic 92x25mm 12VDC 0.25A 4-Wire Fan

Description

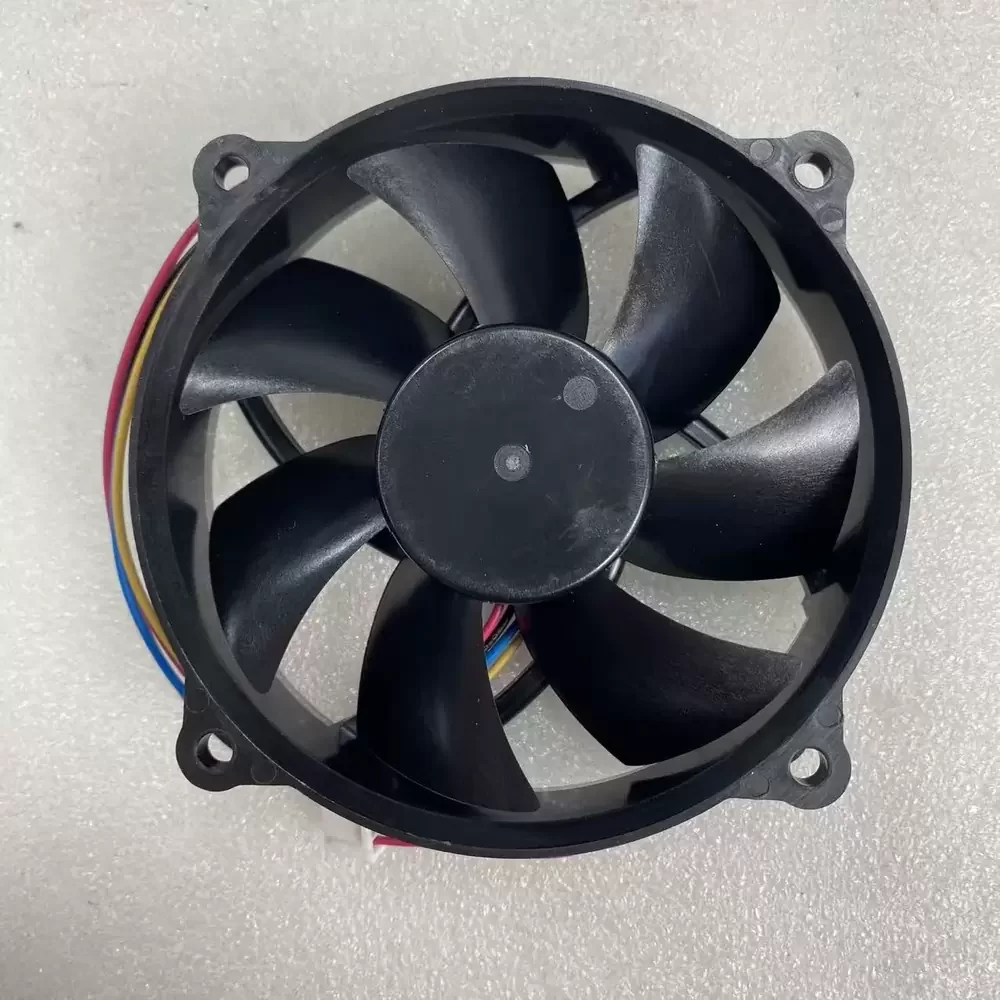

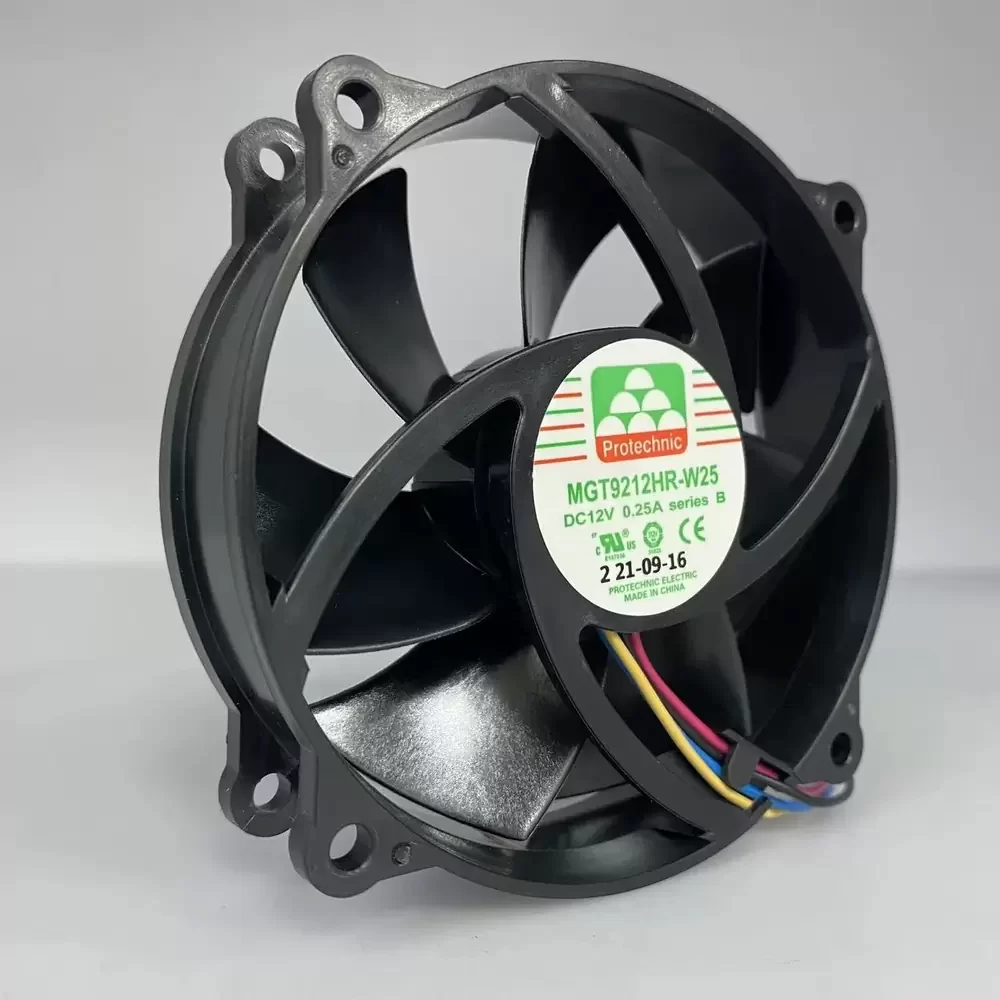

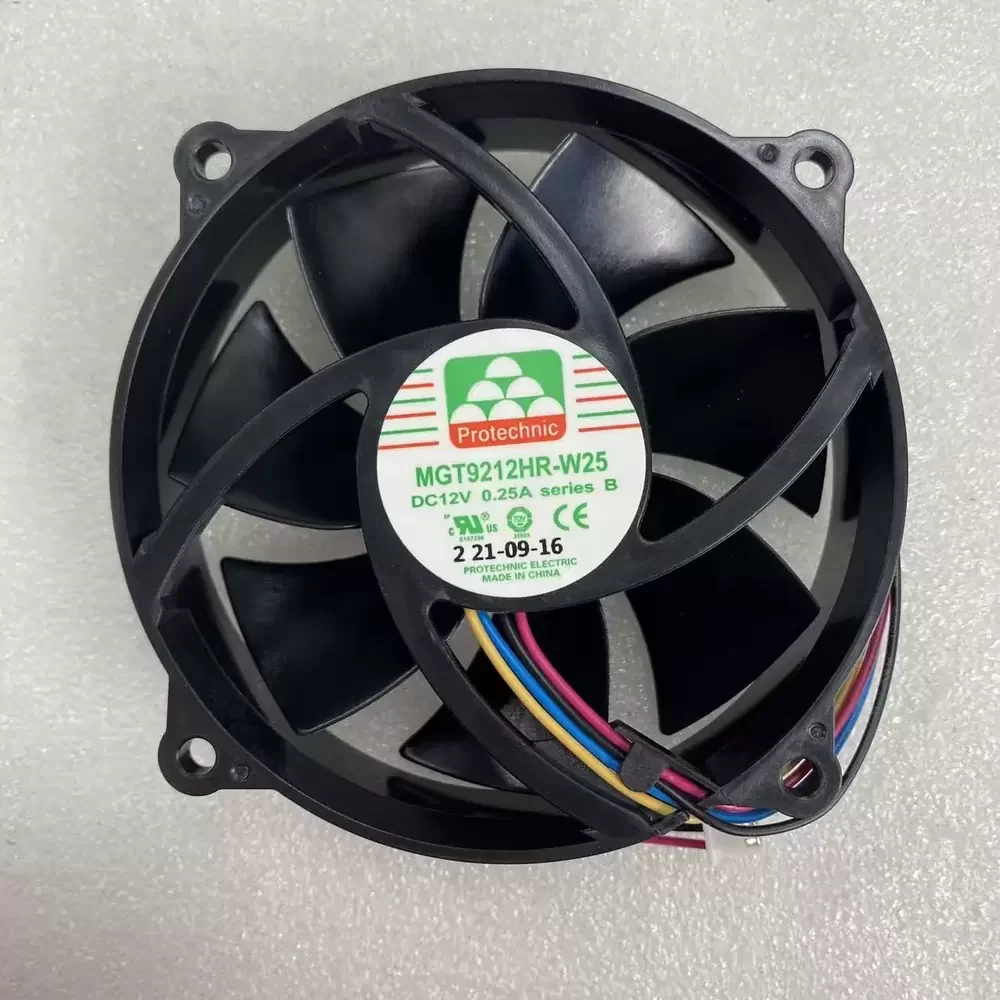

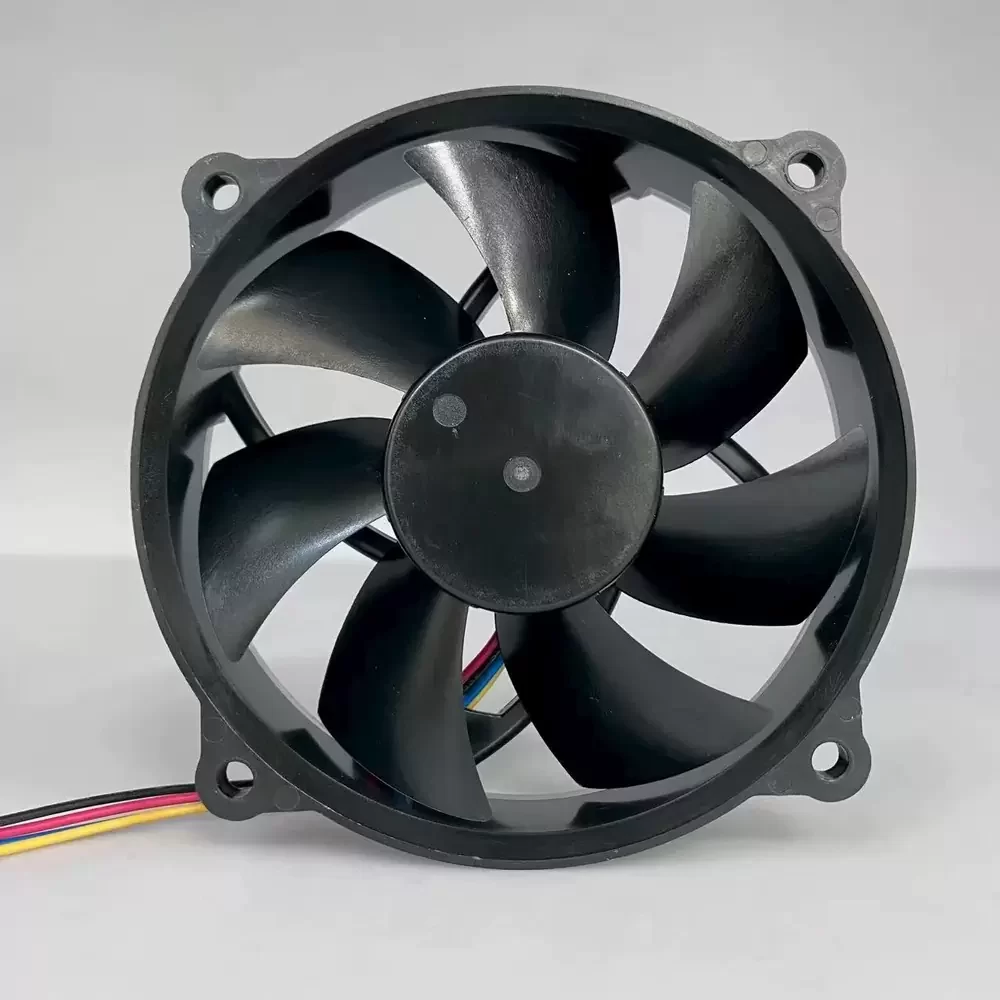

Protechnic MGT9212HR-W25B 92 x 92 x 25 mm 12 VDC 0.25 A 52.5 CFM axial cooling fan. This unit features a high-performance dual ball bearing system housed within a glass-fiber reinforced PBT plastic frame and 7-blade impeller, both rated UL 94V-0 for flame retardancy. The brushless DC motor incorporates a 4-wire interface supporting pulse width modulation (PWM) for variable speed control and a frequency generator (FG) signal for tachometer monitoring. The mechanical design is optimized for high static pressure and long-term operational stability in vertical or horizontal orientations.

MGT9212HR-W25B Specifications
Model: MGT9212HR-W25B
Brand: Protechnic Electric
Frame Size: 92 x 92 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.8 VDC
Rated Current: 0.25 A
Input Power: 3.0 W
Rated Speed: 2850 RPM
Maximum Airflow: 52.5 CFM
Static Pressure: 3.81 mmH2O
Noise Level: 34.0 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-wire (Red: +, Black: -, Yellow: FG, Blue: PWM)
Material: PBT Thermoplastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 95 g
Safety Certifications: UL, TUV, CE

MGT9212HR-W25B Applications
Primary applications include integration into server rack chassis, desktop CPU heatsinks, and industrial power supply units. Deployed within telecommunications switching equipment and medical diagnostic imaging systems requiring active thermal regulation via PWM feedback loops.
