Description

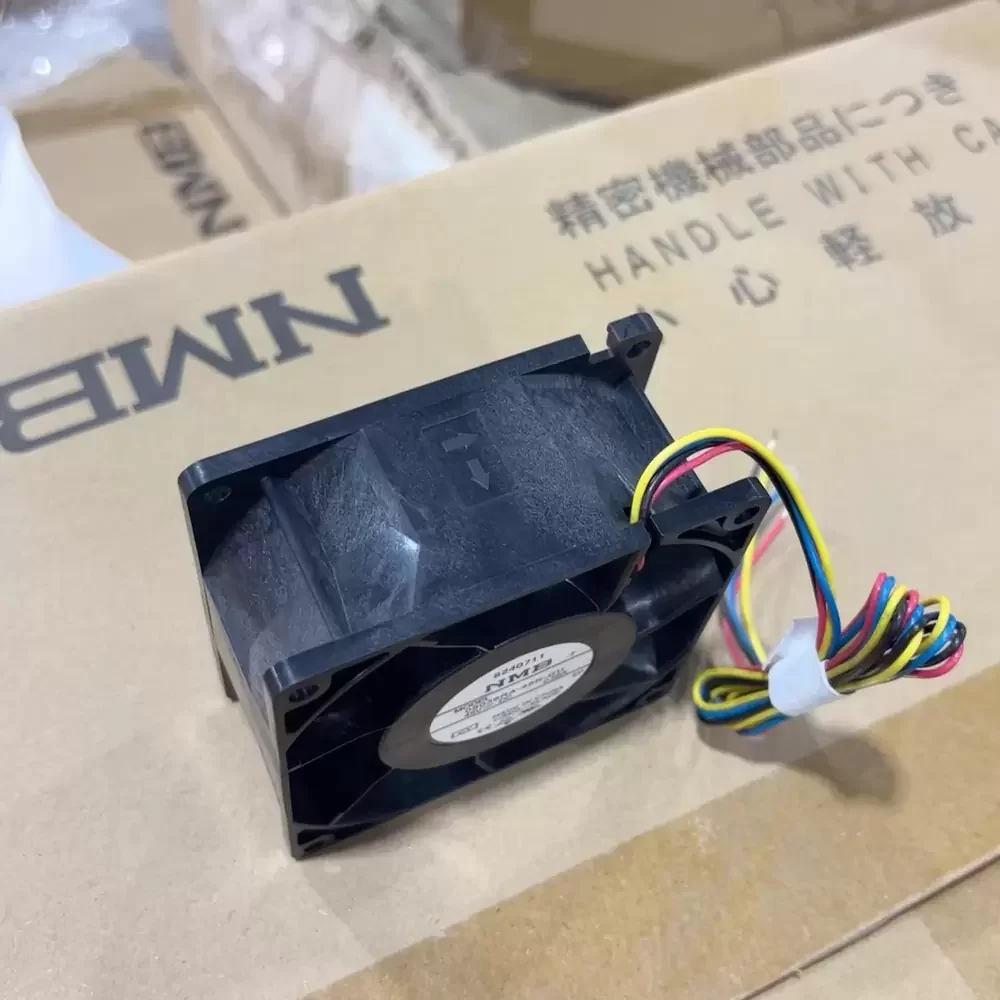

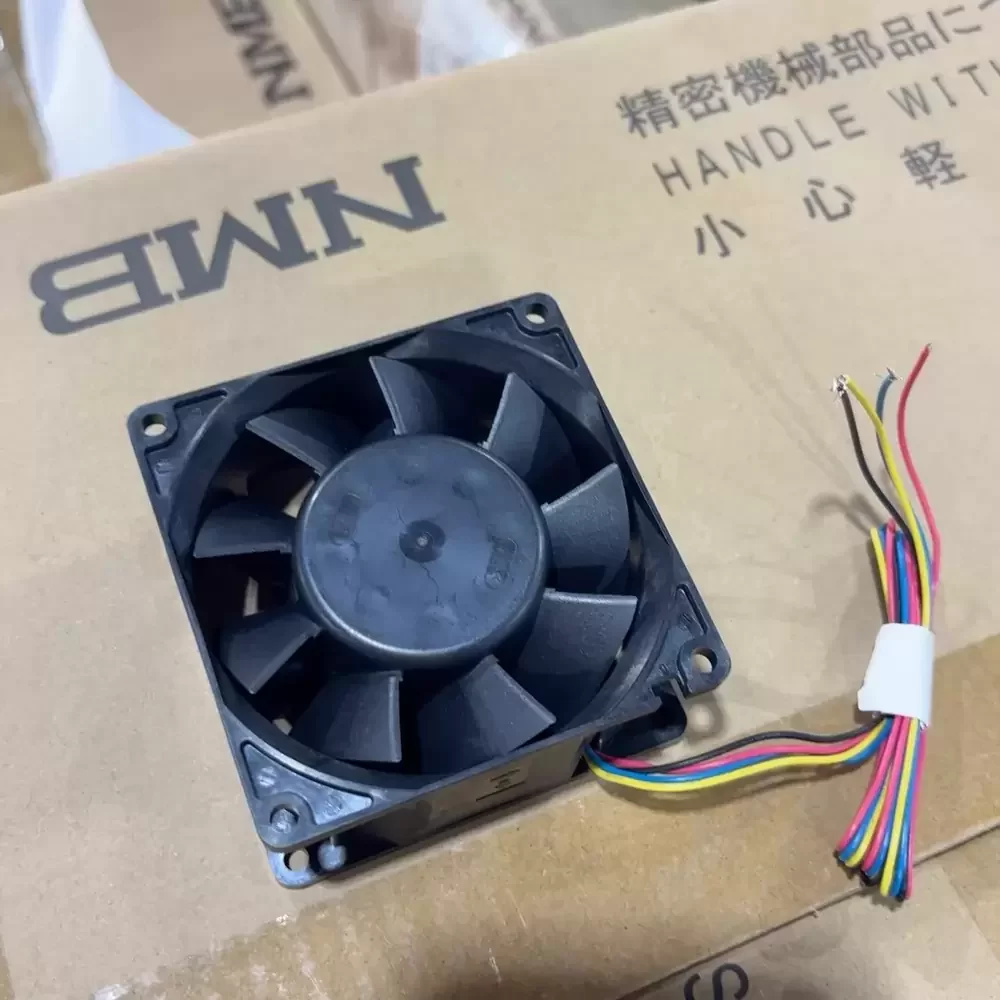

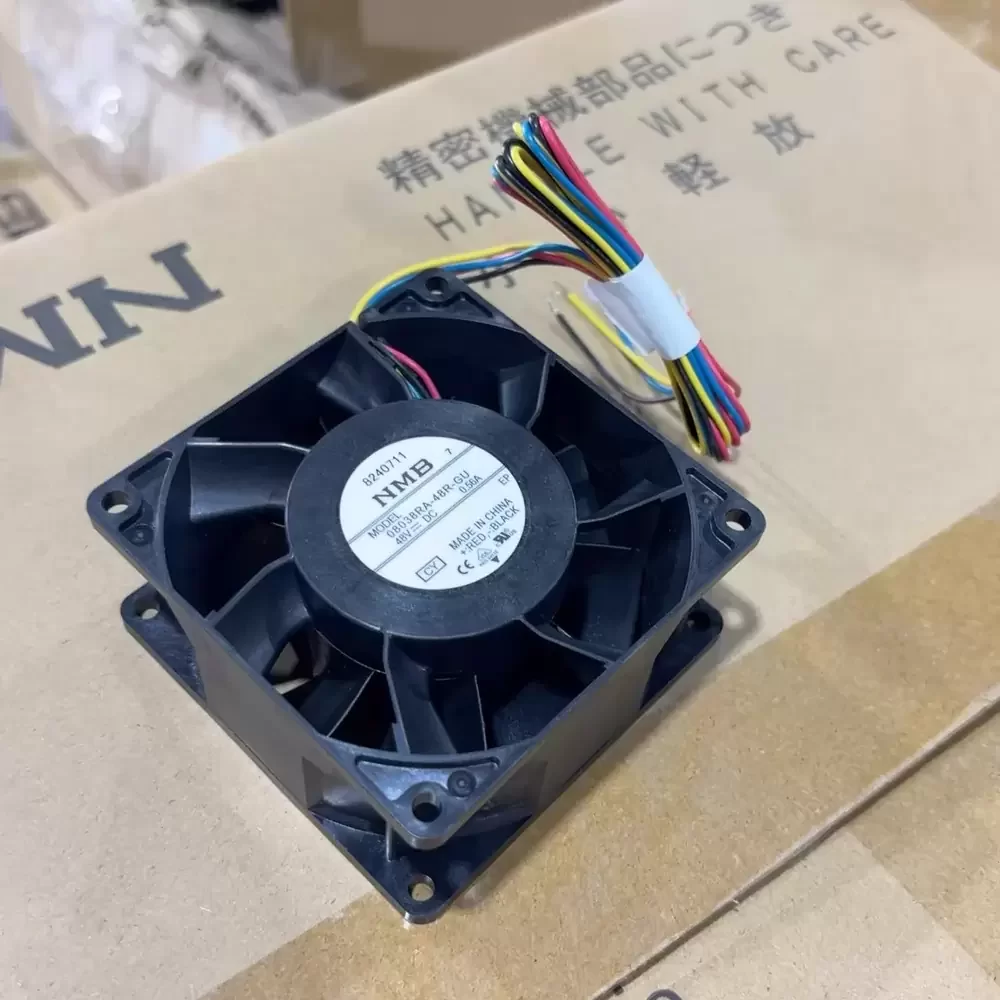

The NMB 08038RA-44R-GU-CY is a high-performance DC axial fan engineered for demanding industrial thermal management. Utilizing advanced brushless DC motor technology, this unit operates at a nominal 48VDC, delivering exceptional structural rigidity through its reinforced PBT plastic housing. The aerodynamic impeller design is optimized to minimize thermal impedance while maximizing static pressure, ensuring efficient heat dissipation in high-density environments. Equipped with a sophisticated bearing architecture, the 08038RA-44R-GU-CY offers long-term reliability and stable rotational speeds. Its four-wire configuration supports precise speed control and monitoring, making it an ideal solution for mission-critical cooling applications requiring granular thermal regulation.
Model Number: 08038RA-44R-GU-CY
Brand: NMB
Product Type: Axial Fan
Rated Voltage: 48VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.56A
Power: 26.88W
Rated Speed: 8000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 102.4 CFM (174.0 m³/h / 2.90 m³/min)
Max. Static Pressure: 32.6 mmH₂O (320 Pa / 1.28 inH₂O)
Dimensions: 80x80x38mm
Weight: 210g
Life Expectancy: 70,000 Hours
Speed Control: PWM Control, Tachometer Output
Ingress Protection: IP54 Equivalent
Insulation Class: Class E
Noise Level: 58.0 dB(A)
Housing Material: Plastic (Black) UL94V-0
Blade Material: Plastic (Black) UL94V-0
Termination: 4-Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The 08038RA-44R-GU-CY is specifically designed for high-stress environments such as industrial frequency inverters and power supply units. Its robust construction allows the 08038RA-44R-GU-CY to maintain consistent airflow in dense server racks and telecommunications infrastructure. Additionally, this model is frequently integrated into CNC machinery and medical diagnostic equipment where reliable thermal regulation is paramount for system longevity.
