Description

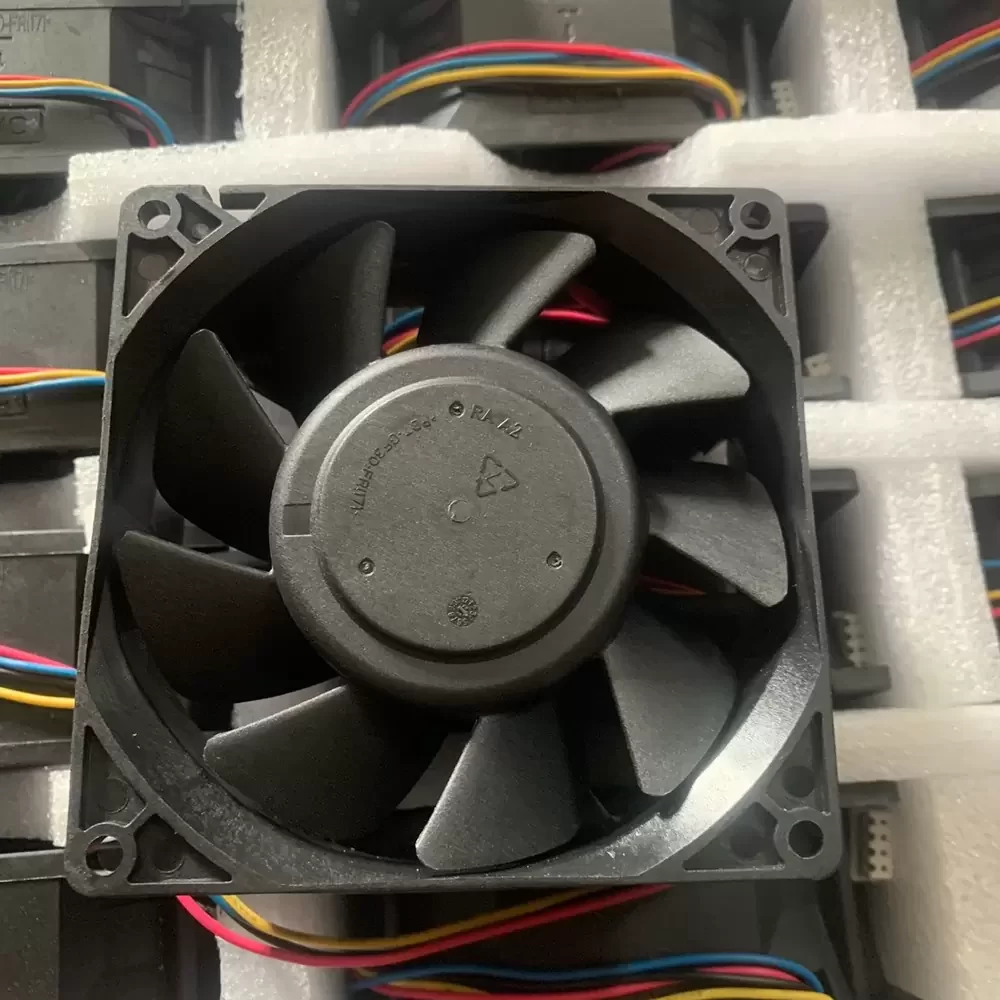

The AVC DCTA0938B8H-P001 is a DC Axial Fan engineered for high-demand industrial thermal management. Utilizing a brushless DC motor and dual ball bearing architecture, this unit ensures exceptional structural rigidity and minimized thermal impedance under continuous operation. Its aerodynamic impeller design is optimized for high static pressure, making it ideal for dense electronic environments. The 4-wire configuration supports precise PWM speed control and tachometer feedback, allowing for intelligent system integration and energy efficiency. Built with UL94V-0 flame-retardant materials, it maintains reliable performance in rigorous environments where cooling consistency is critical.
Model Number: DCTA0938B8H-P001
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.38A
Power: 18.24W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 110.5 CFM (187.7 m³/h / 3.13 m³/min)
Max. Static Pressure: 18.5 mmH₂O (181.4 Pa / 0.73 inH₂O)
Dimensions: 92x92x38mm
Weight: 210g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Control, Tachometer Output
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 56.0 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Mounting Orientation: Any
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The DCTA0938B8H-P001 is primarily deployed in high-performance frequency inverters and industrial power supplies where heat dissipation is paramount. Its robust construction allows the DCTA0938B8H-P001 to excel in server rack cooling, telecommunications infrastructure, and CNC machine control cabinets. This fan is also suitable for medical imaging equipment and automated manufacturing systems that require reliable, long-term thermal regulation.
