Description

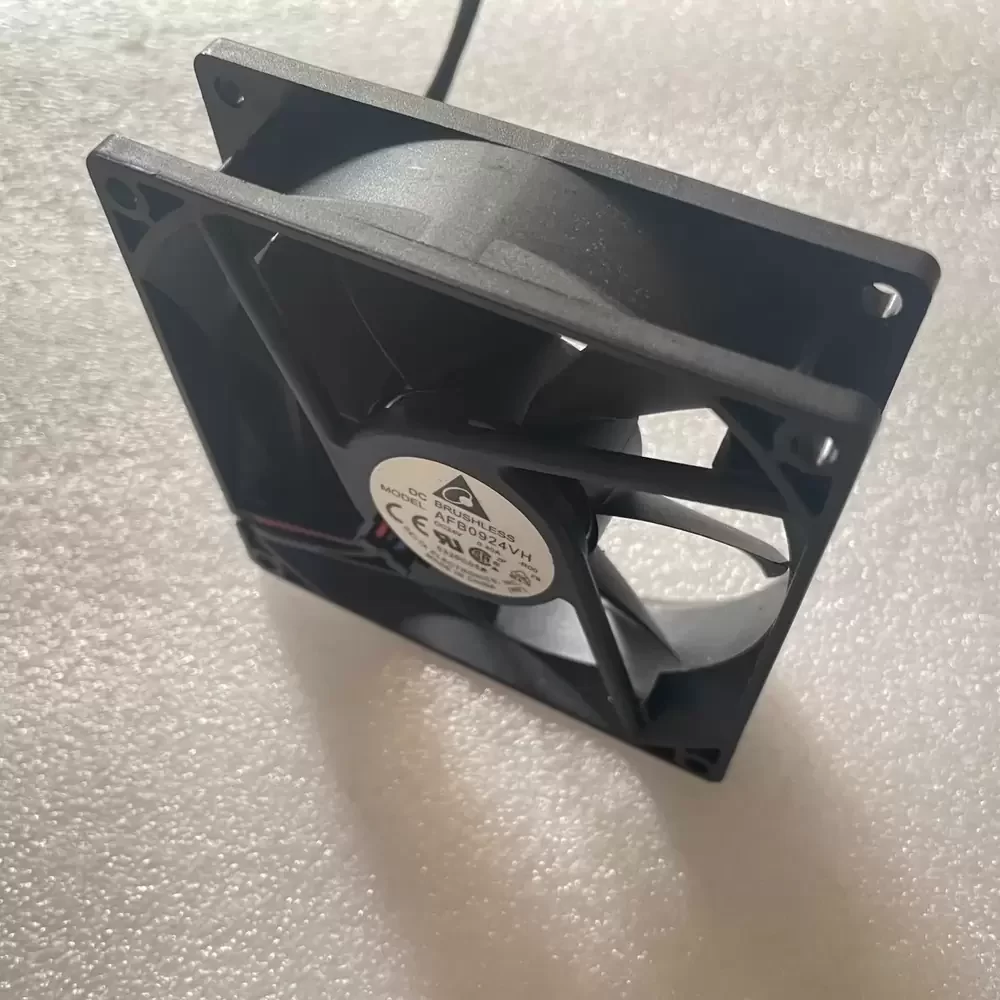

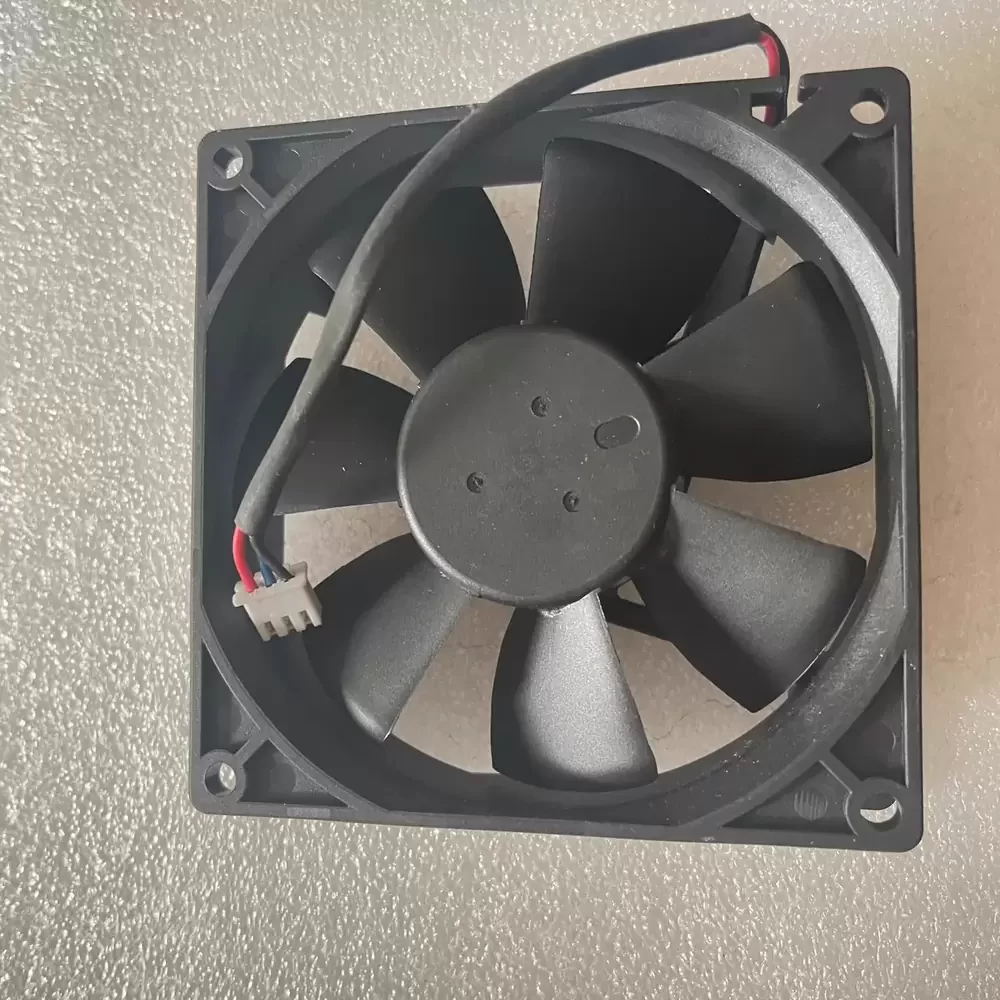

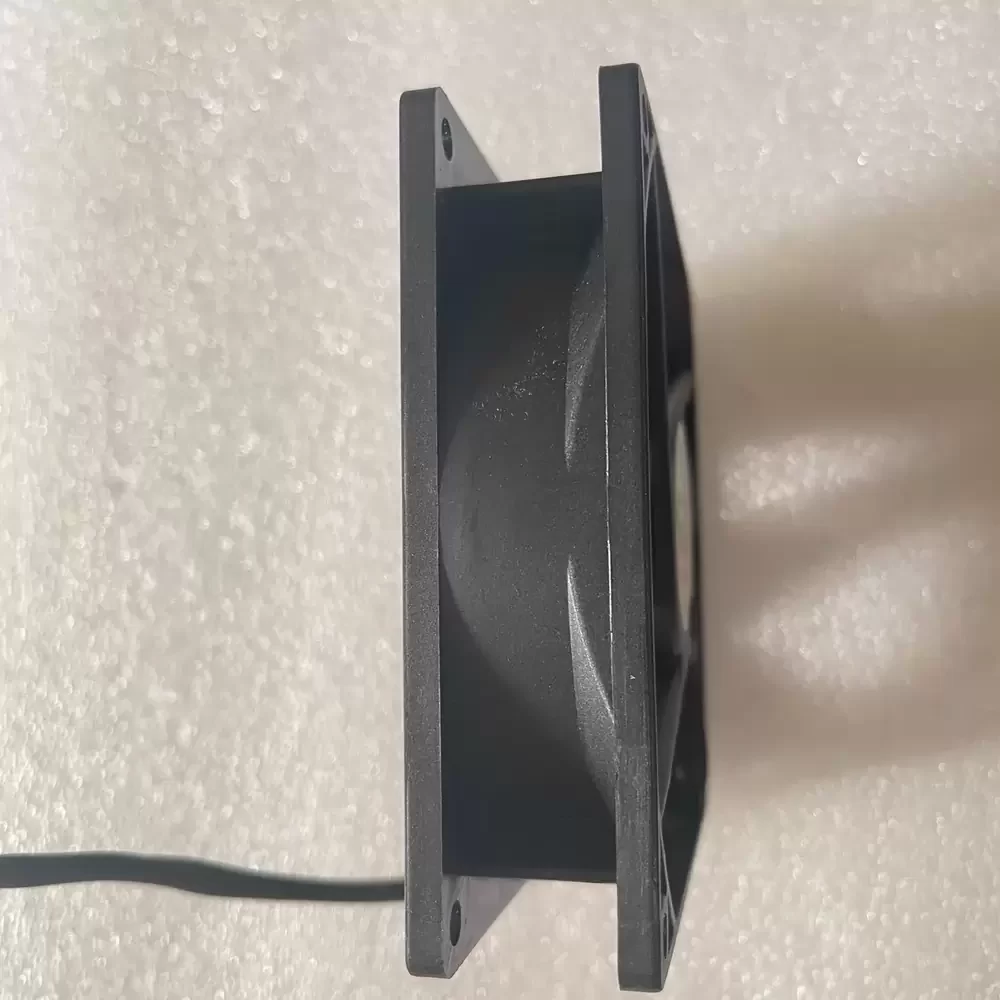

The Delta AFB0924VH-R00 is a high-efficiency DC axial fan engineered for demanding industrial environments. Utilizing advanced brushless DC motor technology and a precision dual ball bearing architecture, this unit ensures exceptional structural rigidity and long-term reliability. Its aerodynamic impeller design is optimized to minimize thermal impedance while maximizing airflow throughput in high-backpressure systems. The inclusion of an R00 locked rotor sensor provides critical system feedback, ensuring operational safety. Designed for continuous duty, the AFB0924VH-R00 maintains stable performance across a wide voltage range, making it an ideal solution for thermal management in power electronics and automated control systems.
Model Number: AFB0924VH-R00
Brand: Delta
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.40A
Power: 9.60W
Rated Speed: 3800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 67.80 CFM (1.920 m³/min)
Max. Static Pressure: 7.67 mmH₂O (75.22 Pa / 0.302 inH₂O)
Noise Level: 45.0 dB-A
Dimensions: 92x92x25mm
Weight: 120g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: R00 Locked Rotor Alarm
Termination: 3 Lead Wires
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CSA, VDE, CE
The AFB0924VH-R00 is specifically designed for integration into high-performance frequency inverters and industrial power supplies where consistent thermal regulation is mandatory. In server rack configurations and telecommunications enclosures, the AFB0924VH-R00 provides the necessary static pressure to overcome dense internal components. Its robust construction also makes it suitable for CNC machinery and medical diagnostic equipment, ensuring that sensitive electronics remain within optimal operating temperatures during peak load cycles.
