Description

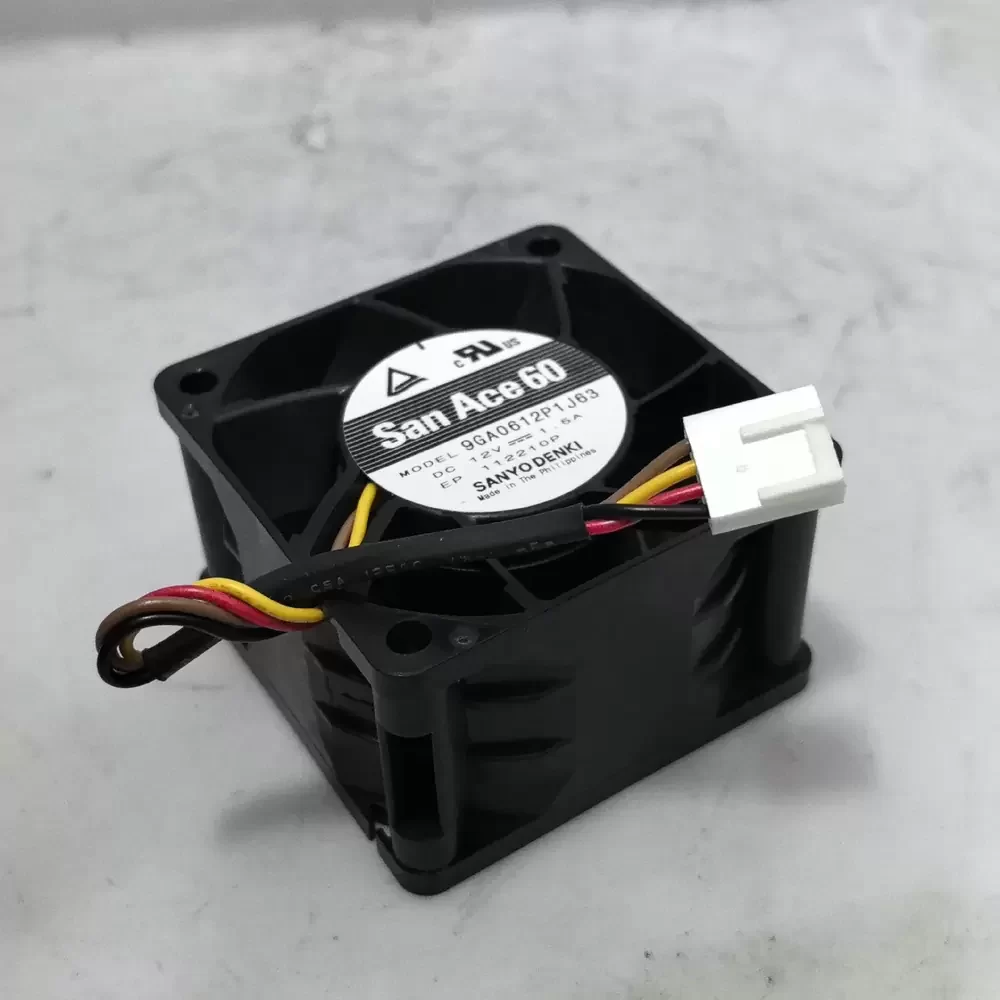

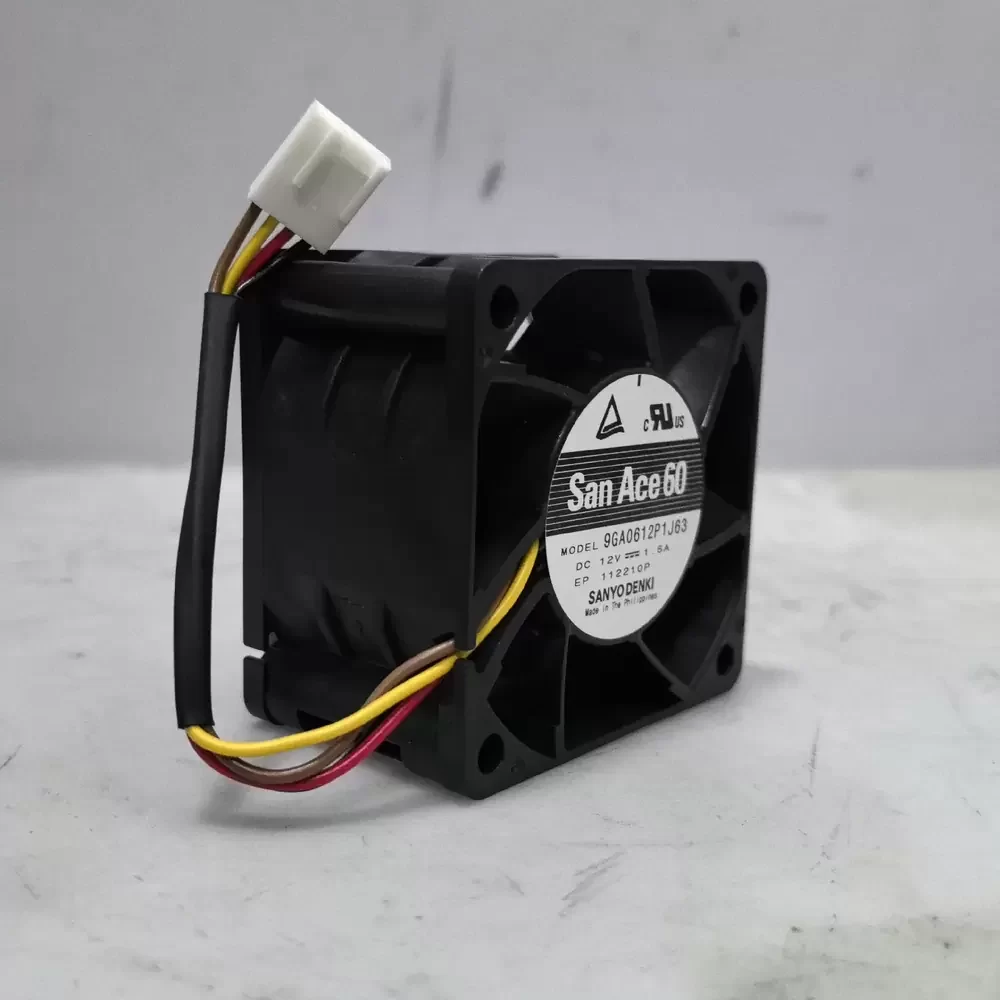

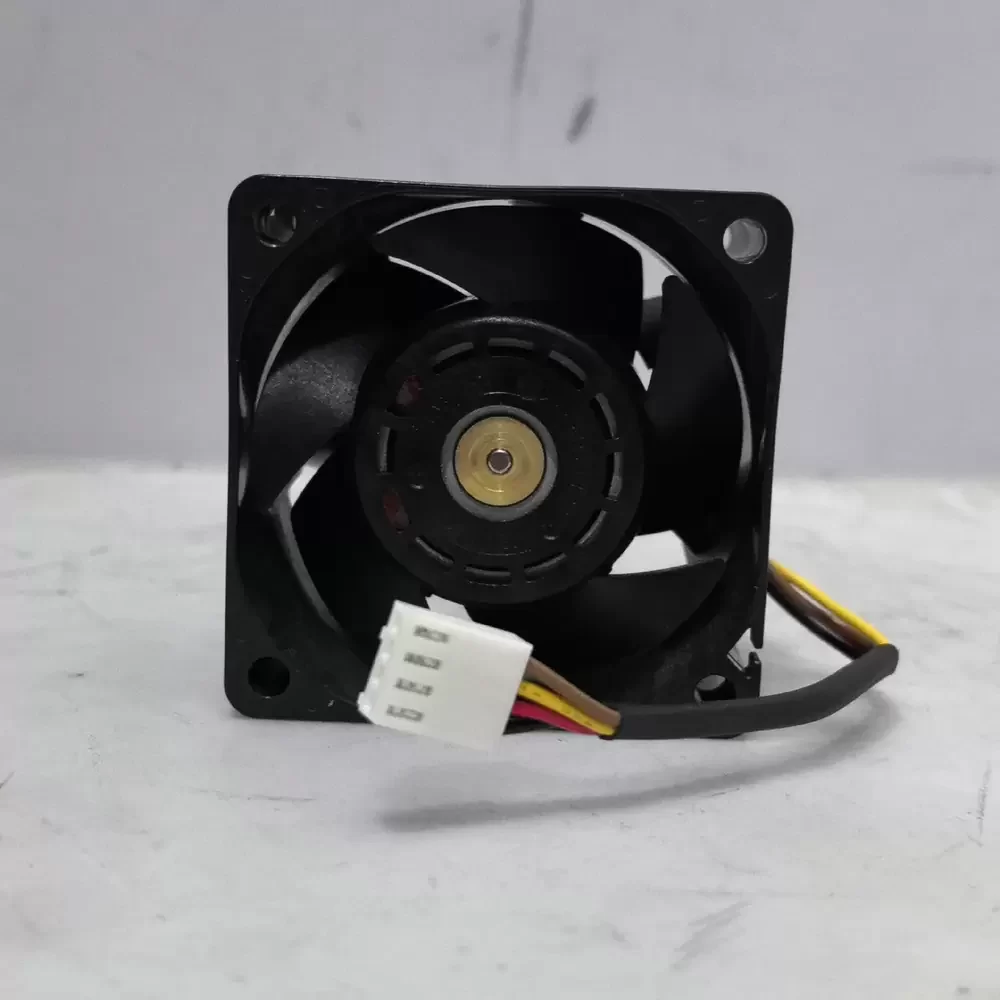

The Sanyo Denki 9GA0612P1J63 is a specialized high-static pressure DC Axial Fan from the renowned San Ace 60 GA series, engineered for applications requiring superior aerodynamic efficiency and thermal management. Designed with a dense impeller geometry and a precision-wound brushless DC motor, this unit optimizes airflow against high system impedance, significantly reducing thermal impedance in densely packed enclosures. The structural rigidity of the frame, combined with a robust dual ball bearing architecture, ensures operational stability and longevity even under continuous high-speed rotation. This model integrates Pulse Width Modulation (PWM) signal control, allowing for dynamic speed adjustment to balance cooling performance with energy consumption.
Model Number: 9GA0612P1J63
Brand: Sanyo Denki (San Ace)
Product Type: DC Axial Fan
Series: San Ace 60 GA
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 1.5 A
Rated Input Power: 18.0 W
Rated Speed: 15400 RPM
Max. Air Flow: 62.5 CFM (1.77 m³/min)
Max. Static Pressure: 55.1 mmH₂O (540 Pa / 2.17 inH₂O)
Dimensions: 60 x 60 x 38 mm
Bearing Type: Dual Ball Bearing
Noise Level: 56 dB(A)
Speed Control: PWM Control
Sensor: Pulse Sensor (Tachometer)
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20°C to +70°C
Life Expectancy: 40,000 Hours (at 60°C)
Termination: Lead Wires (Red +, Black -, Yellow Sensor, Brown PWM)
Ingress Protection: IP Ratings available (consult spec sheet)
Mounting Orientation: Any
The 9GA0612P1J63 is specifically designed for high-density electronic environments where back pressure is a critical factor. Primary deployment scenarios include 1U and 2U server racks, high-performance power supply units, and telecommunications equipment requiring forced-air cooling through restrictive chassis. Additionally, the 9GA0612P1J63 is frequently utilized in industrial automation systems and medical instrumentation where reliable thermal dissipation is mandatory for component safety and performance stability.
