Description

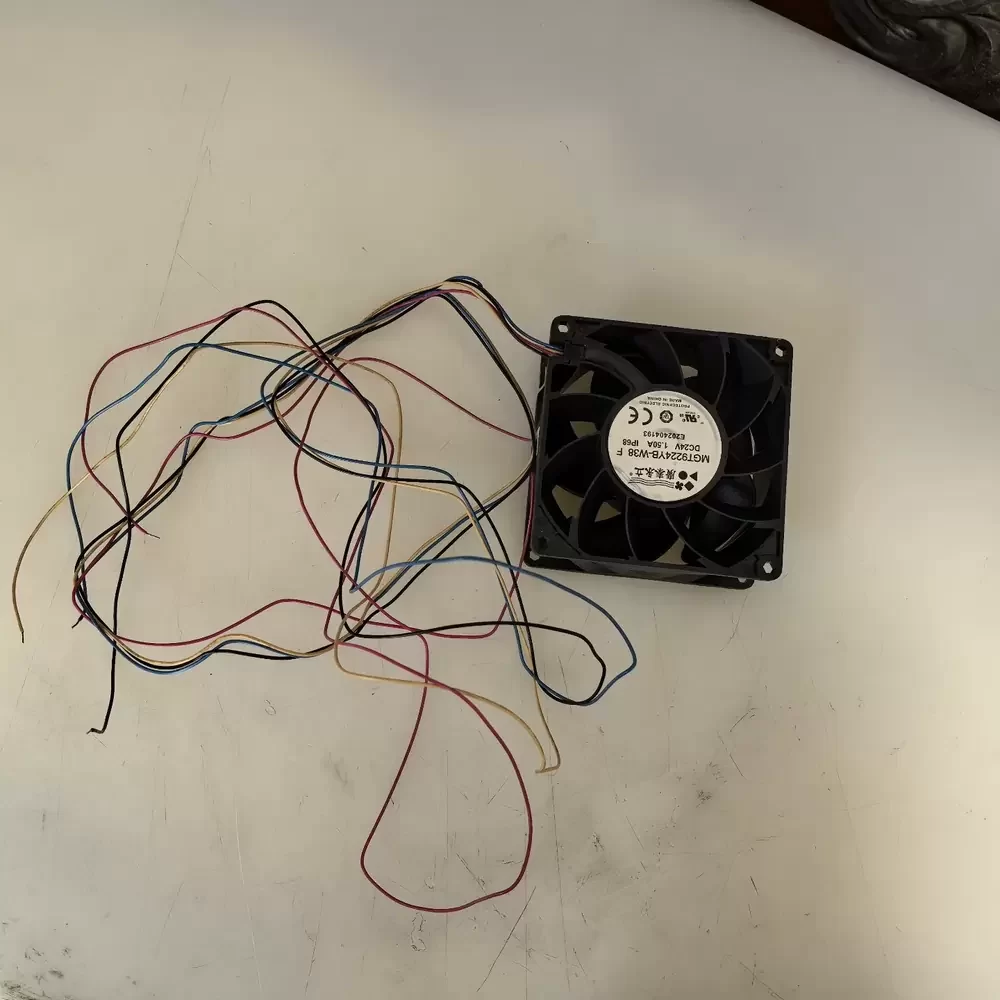

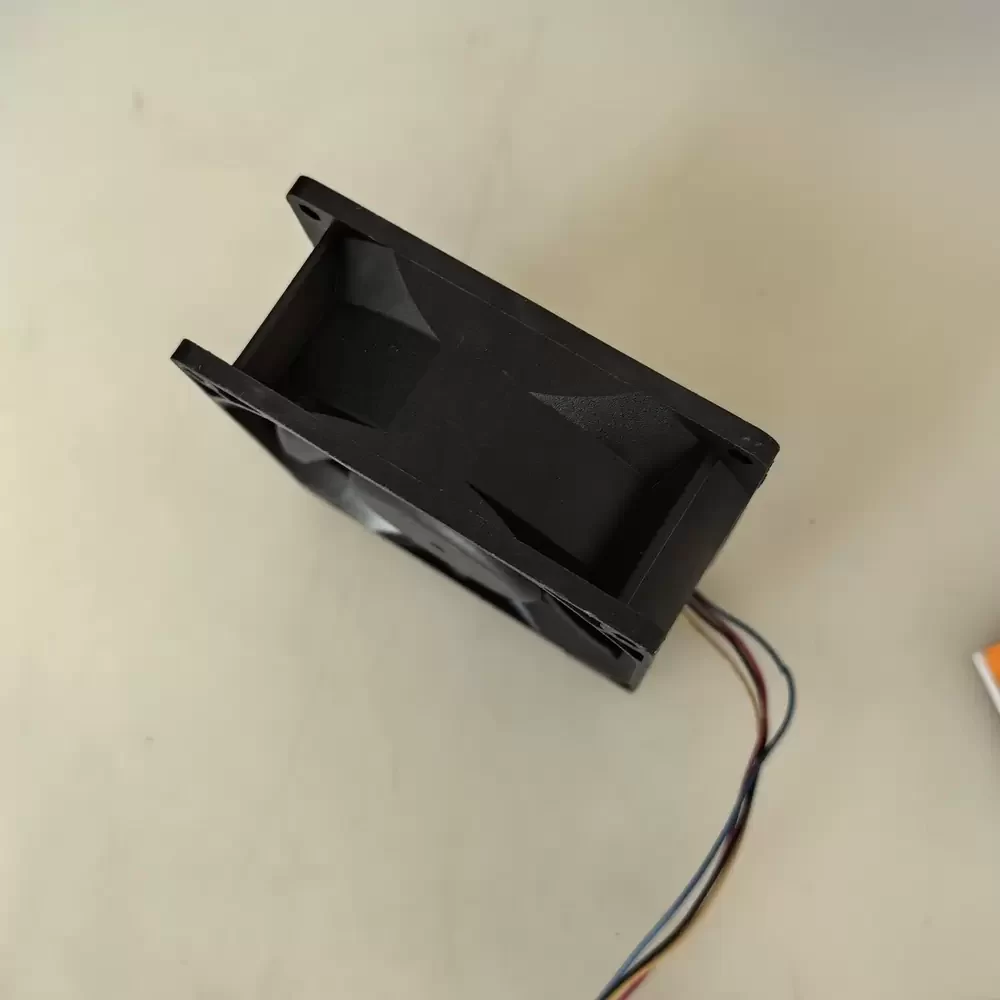

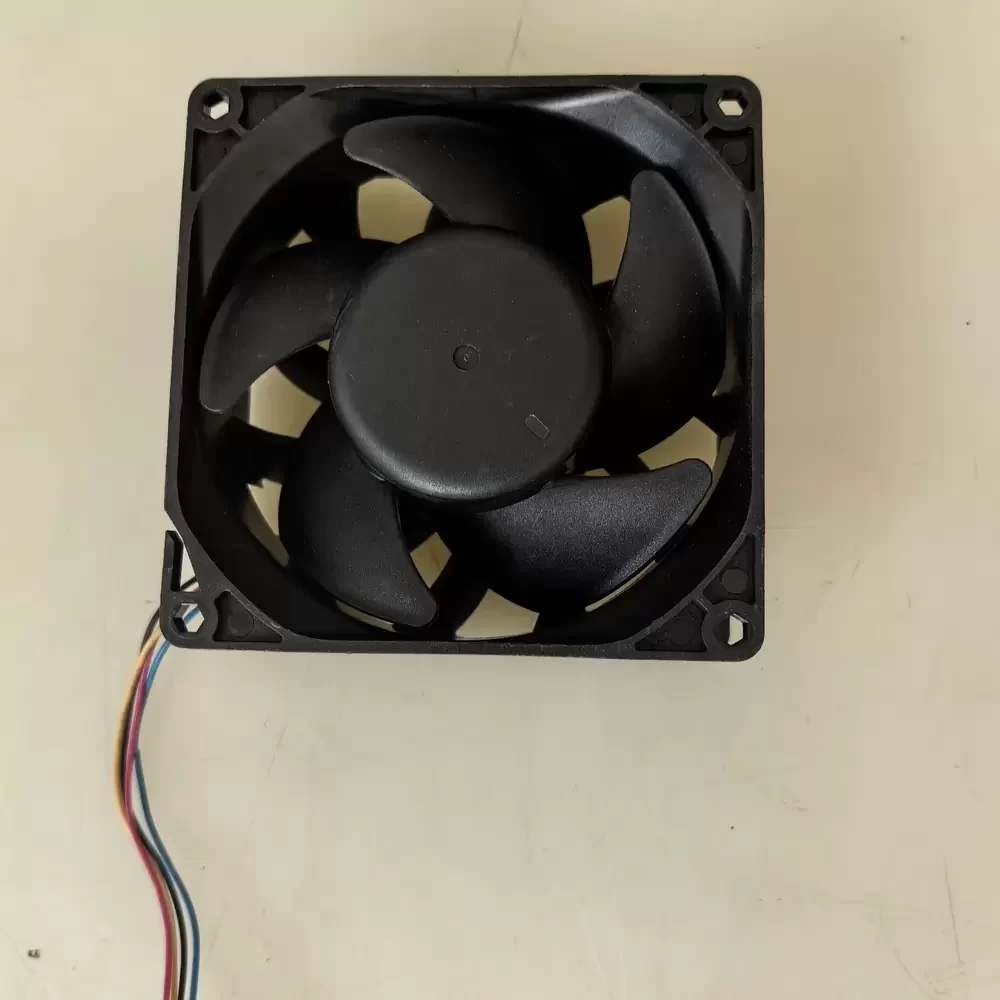

The Protechnic MGT9224YB-W38F is a high-performance DC Axial Fan engineered for mission-critical thermal management in demanding environments. Utilizing advanced motor technology and a robust five-blade aerodynamic design, this unit optimizes airflow while maintaining structural rigidity under high rotational speeds. The integration of an IP68-rated ingress protection system ensures complete resistance to dust and water submersion, significantly reducing thermal impedance in outdoor or industrial settings. Its sophisticated bearing architecture is designed for continuous operation, providing a stable cooling solution for high-density electronic enclosures.
Model Number: MGT9224YB-W38F
Brand: Protechnic
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.50A
Power: 36.0W
Rated Speed: High Speed
Bearing Type: Dual Ball Bearing
Max. Air Flow: High Volume
Max. Static Pressure: High Pressure
Dimensions: 92x92x38mm
Weight: Standard Industrial Weight
Life Expectancy: 70,000 Hours at 40C
Ingress Protection: IP68
Speed Control: 4-Wire (PWM and Tachometer)
Termination: 1.5m Lead Wires
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Number of Blades: 5
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10C to +70C
Certifications: CE, RoHS, UL
The Protechnic MGT9224YB-W38F is specifically designed for integration into high-density server racks, telecommunications base stations, and industrial CNC machinery where moisture resistance is critical. Given its IP68 rating, the MGT9224YB-W38F excels in outdoor power supplies and medical imaging equipment that require frequent sanitization or exposure to the elements. The extended 1.5-meter lead wires allow for flexible installation in large-scale industrial cabinets, ensuring the MGT9224YB-W38F provides consistent thermal regulation for sensitive electronic components.
