Description
The Mitsubishi MMF-06D24DS-FC2 is a precision-engineered DC Axial Fan designed by Melco Technorex for critical thermal management applications. Utilizing advanced brushless DC motor technology, this unit optimizes airflow dynamics to minimize thermal impedance within high-density electronic enclosures. The chassis is constructed for superior structural rigidity, ensuring stable operation under continuous loads. Its aerodynamic blade profile reduces turbulence-induced noise while maintaining consistent static pressure, making it an ideal solution for industrial and computing environments requiring reliable heat dissipation and long-term durability.

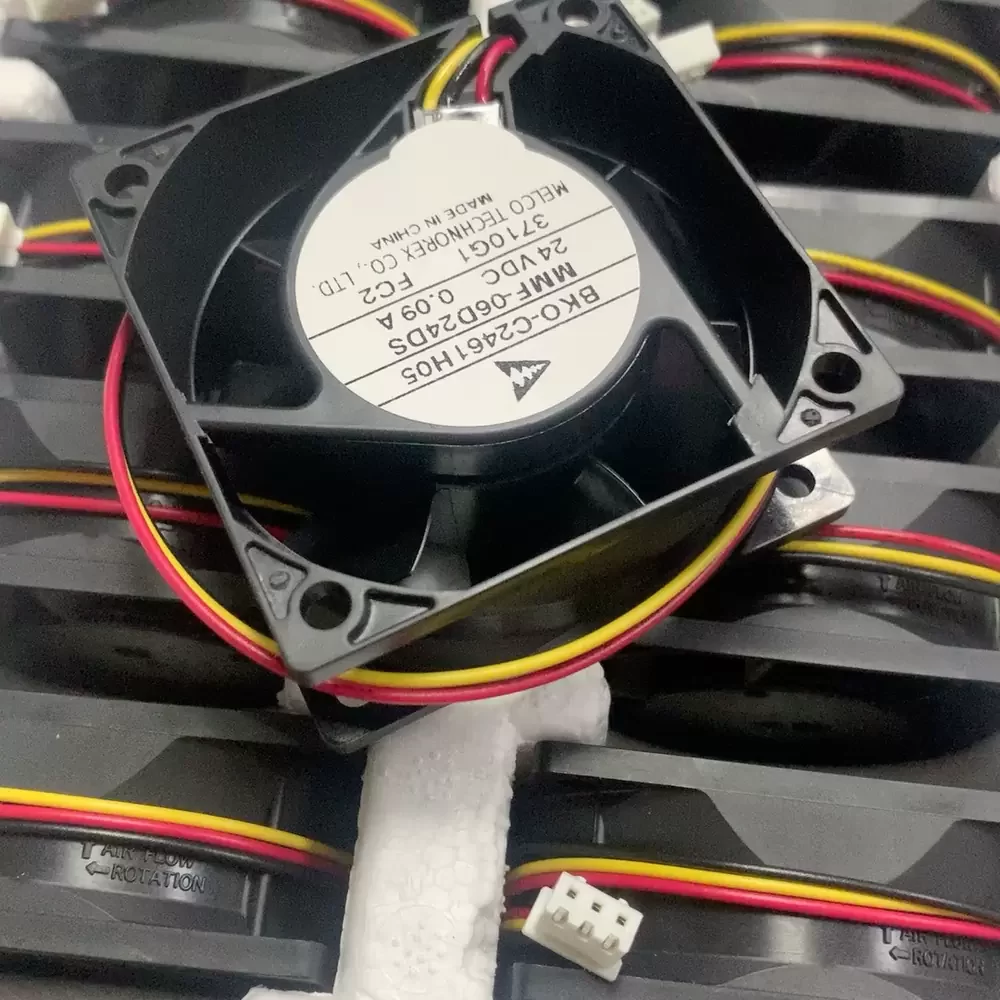

Model Number: MMF-06D24DS-FC2
OEM Part Number: BKO-C2461H05
Brand: Mitsubishi (Melco Technorex)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.09 A
Input Power: 2.16 W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 19.4 CFM (33.0 m³/h / 0.55 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.1 Pa / 0.19 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 65 g
Life Expectancy: 60,000 Hours at 40°C
Sensor Output: Tachometer (Frequency Generator)
Noise Level: 31 dBA
Housing Material: Reinforced Plastic (UL94V-0)
Impeller Material: Reinforced Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead
Mounting Orientation: Any
Designed for versatility, the MMF-06D24DS-FC2 serves as a critical component in maintaining optimal operating temperatures for sensitive electronics. Commonly integrated into server racks, industrial automation control panels, and precision medical instrumentation, this fan ensures component longevity. The MMF-06D24DS-FC2 is particularly effective in compact computer chassis and power supply units where space is limited but airflow requirements are stringent, preventing thermal throttling in high-performance processors and drive arrays.
