Description

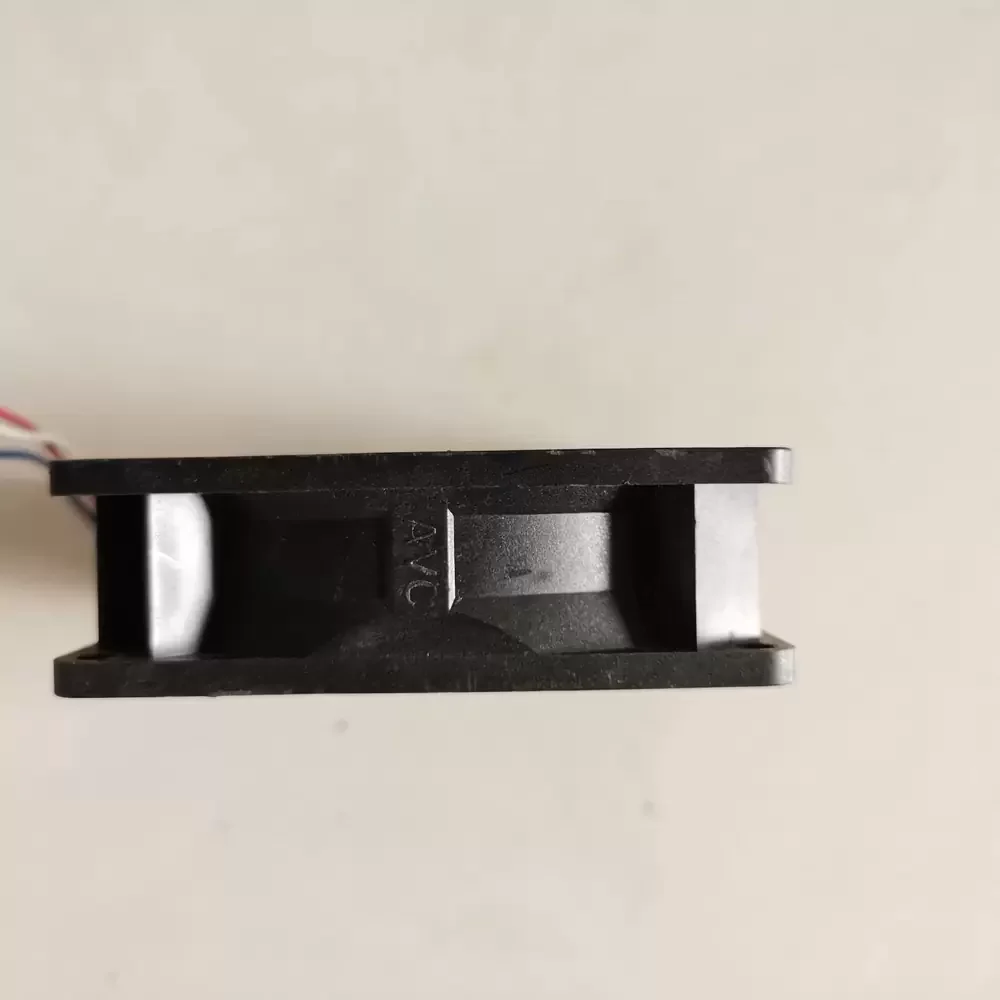

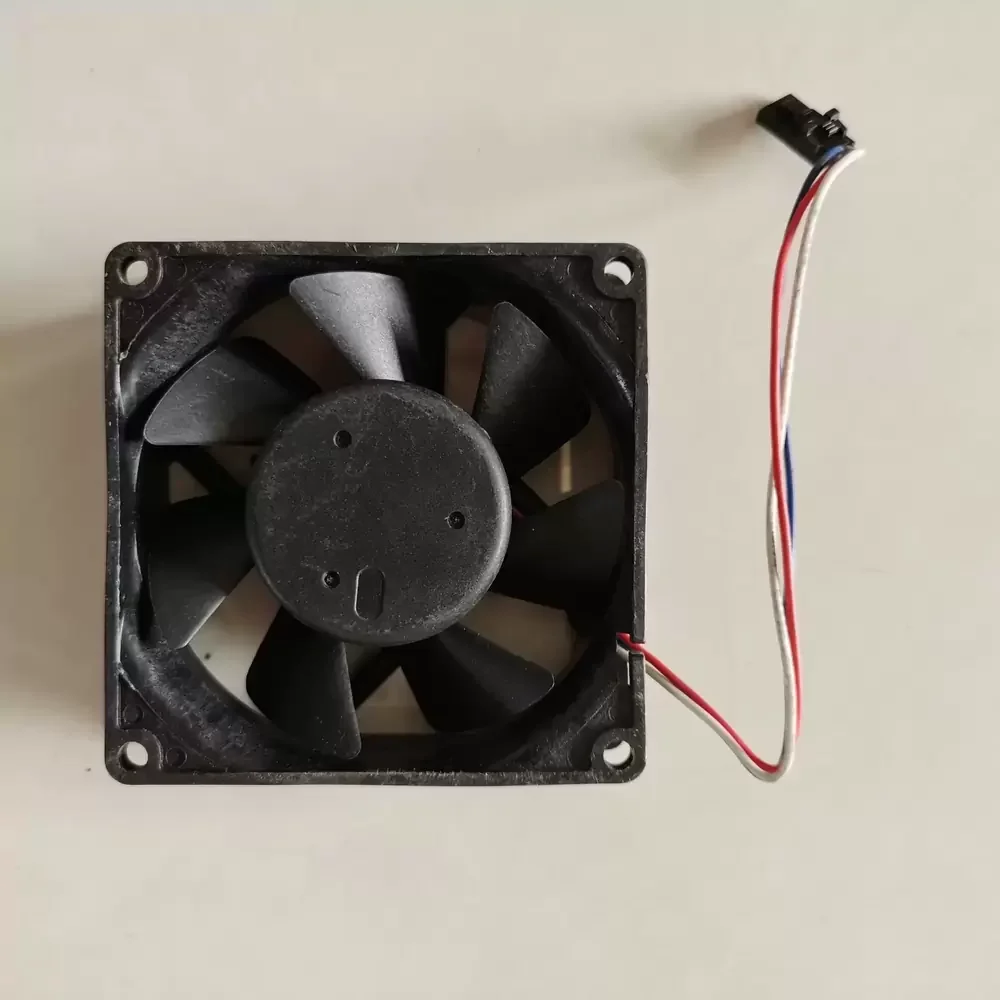

The AVC DA08025B48H-S046 is a precision-engineered DC axial fan designed for critical thermal management in high-density industrial environments. Utilizing advanced brushless DC motor technology paired with a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes static pressure capabilities while maintaining efficient airflow throughput, effectively reducing thermal impedance within enclosed chassis. Constructed with structural rigidity in mind, the frame resists vibration-induced resonance, making it an ideal solution for systems requiring reliable heat dissipation and stable performance metrics over extended lifecycles.
Model Number: DA08025B48H-S046
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.09 A
Power: 4.32 W
Rated Speed: 3600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 42.0 CFM (71.36 m³/h / 1.19 m³/min)
Max. Static Pressure: 5.60 mmH₂O (54.92 Pa / 0.22 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 80 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 36.0 dBA
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Safety Approvals: CE, UL, TUV
Designed for versatility in industrial cooling, the DA08025B48H-S046 excels in maintaining optimal operating temperatures for server racks and telecommunication cabinets. Its high-voltage profile makes it particularly suitable for 48V telecom power systems and industrial control units where consistent airflow is paramount. Engineers frequently deploy the DA08025B48H-S046 in CNC machinery electronics and medical instrumentation, ensuring that sensitive components remain within safe thermal limits during continuous operation.
