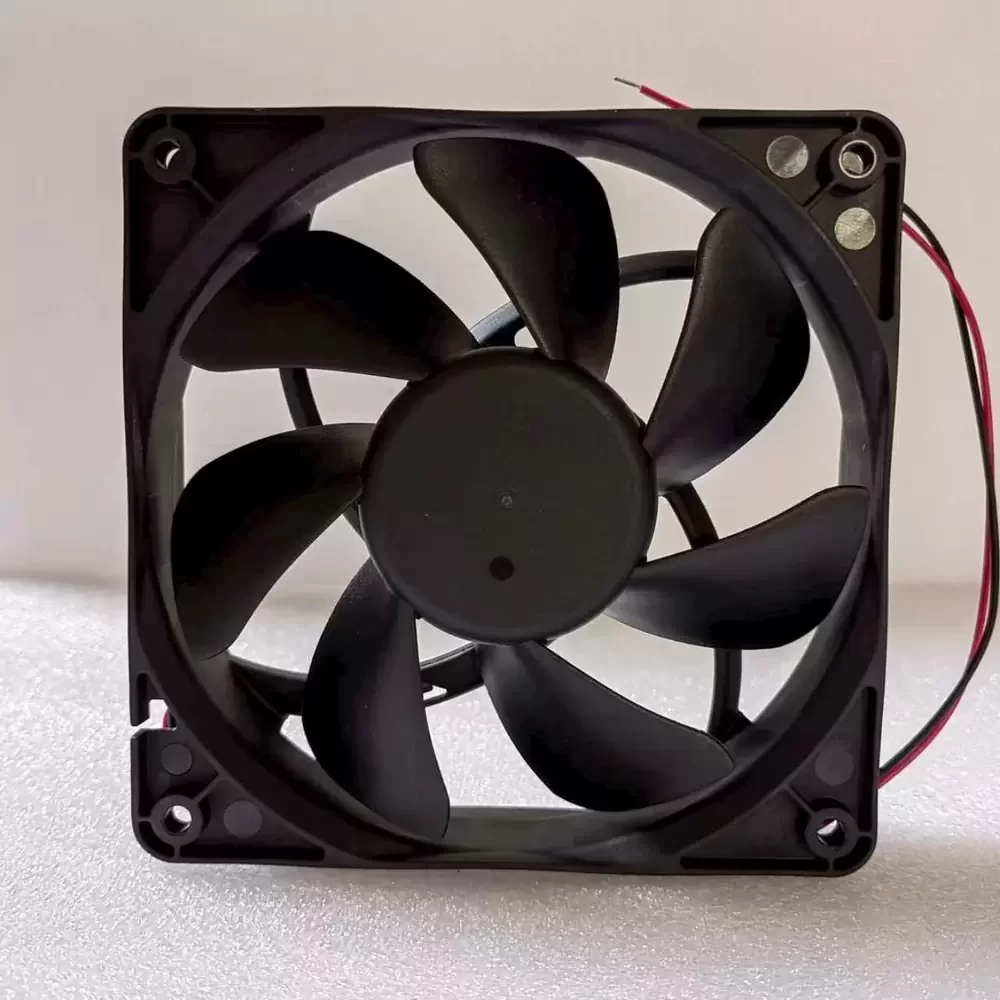

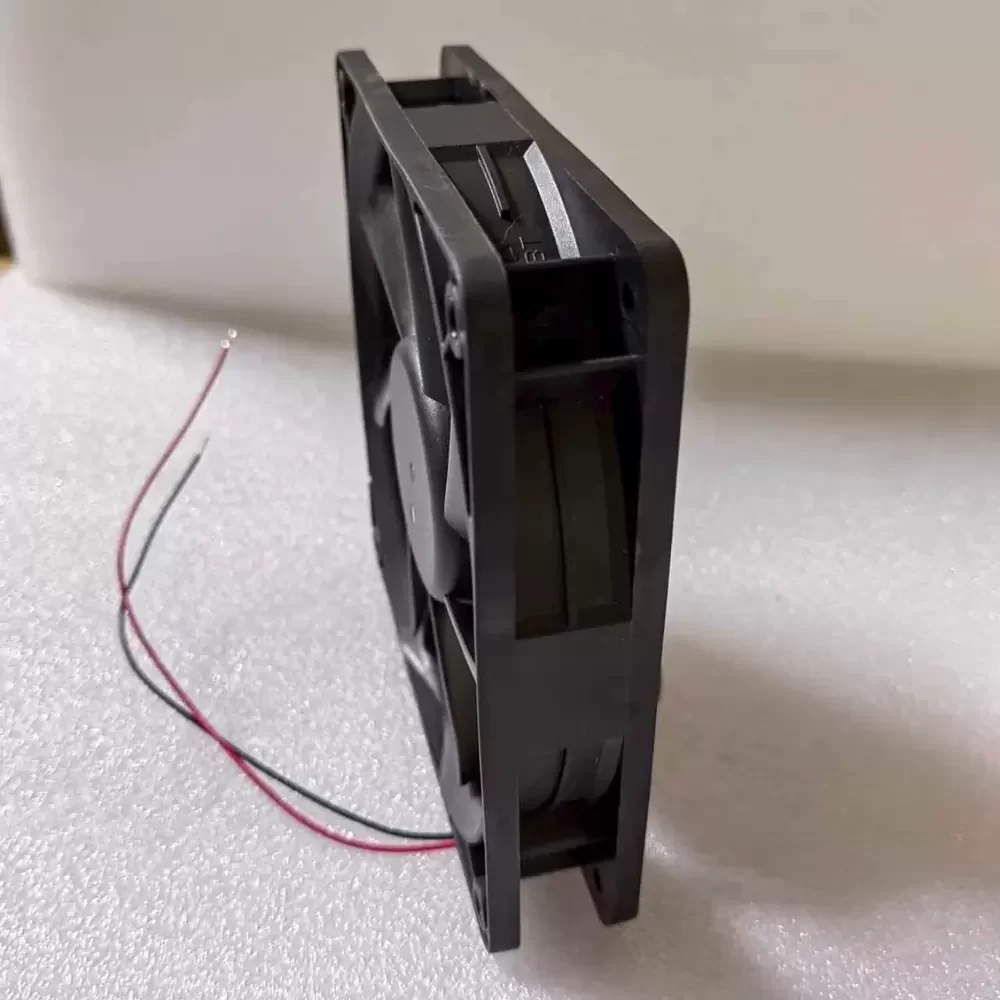

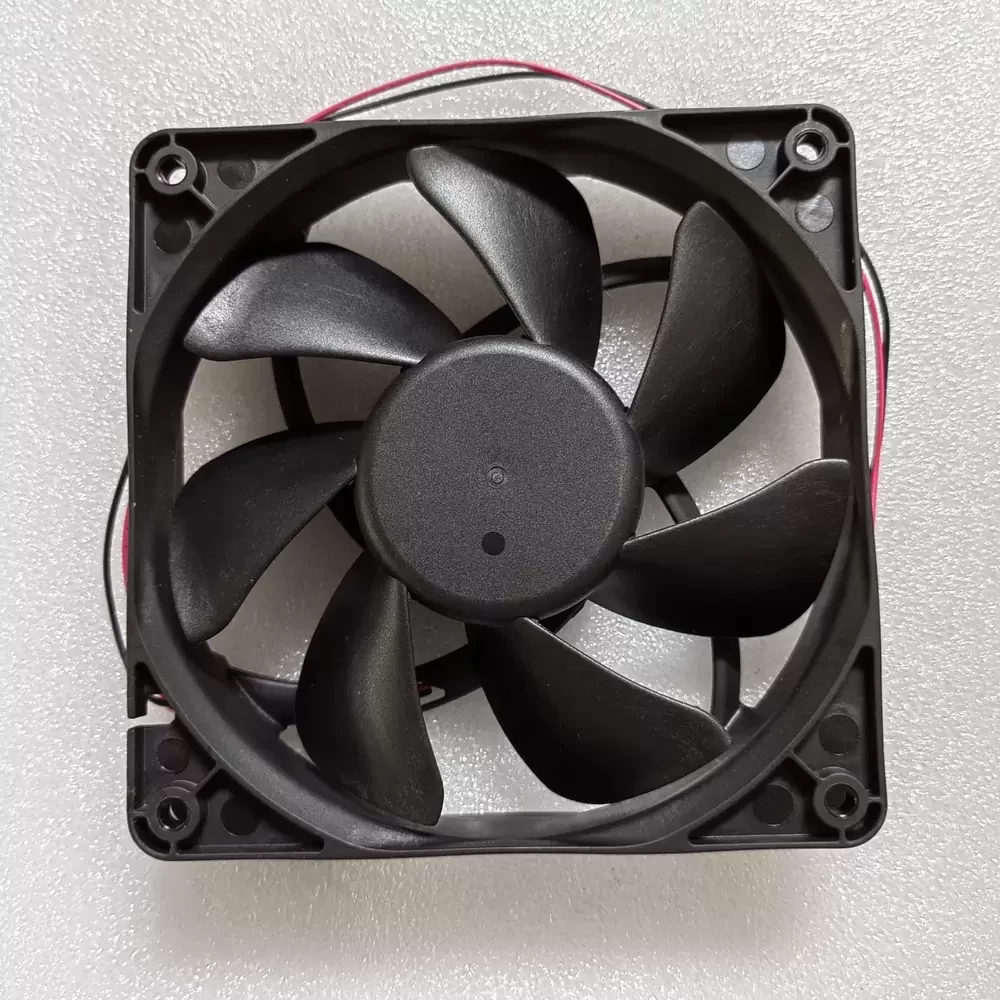

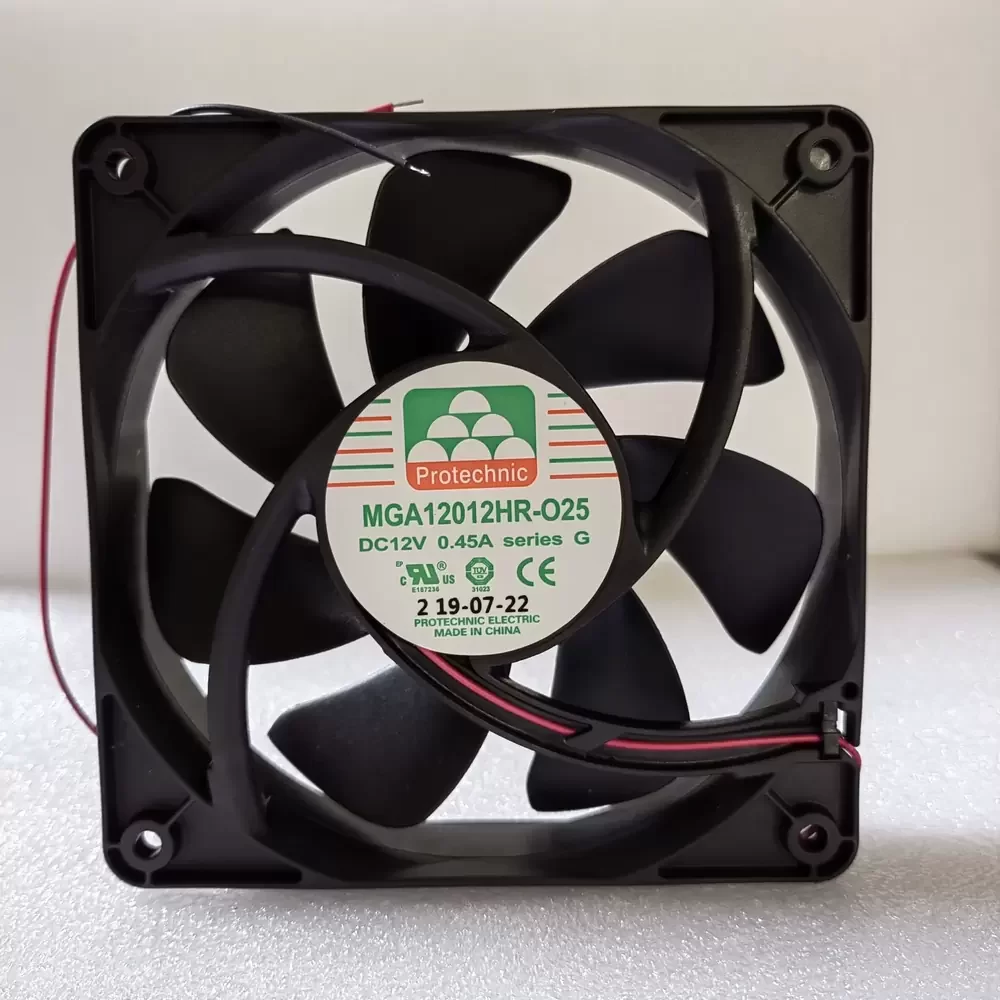

MGA12012HR-025G Protechnic 12VDC 0.45A 120x120x25mm Fan

Description

Protechnic MGA12012HR-025G 120 x 120 x 25 mm 12 VDC 0.45 A 88.5 CFM axial fan utilizes a dual ball bearing motor for high-velocity thermal management. The unit is constructed with a glass-fiber reinforced PBT plastic frame and impeller meeting UL 94V-0 flammability standards. It operates at a nominal speed of 3100 RPM, generating a static pressure of 7.11 mm-H2O. The electrical interface is a 2-wire lead wire configuration with brushless DC commutation and impedance protection.

MGA12012HR-025G Specifications
Model: MGA12012HR-025G
Brand: Protechnic Electric
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.2 to 13.8 VDC
Rated Current: 0.45 A
Input Power: 5.4 W
Rated Speed: 3100 RPM
Maximum Airflow: 88.5 CFM
Maximum Static Pressure: 0.28 in-H2O (7.11 mm-H2O)
Noise Level: 42.5 dBA
Bearing Type: Dual Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 2-Wire Lead (Red/Black)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 Hours at 40 °C
Motor Protection: Impedance Protected
Weight: 160 g

MGA12012HR-025G Applications
Primary applications include integration into server rack enclosures, industrial power supply units, and telecommunications switching equipment. Deployed within CNC machine control cabinets and medical diagnostic imaging systems requiring high-static pressure thermal management.
