Description

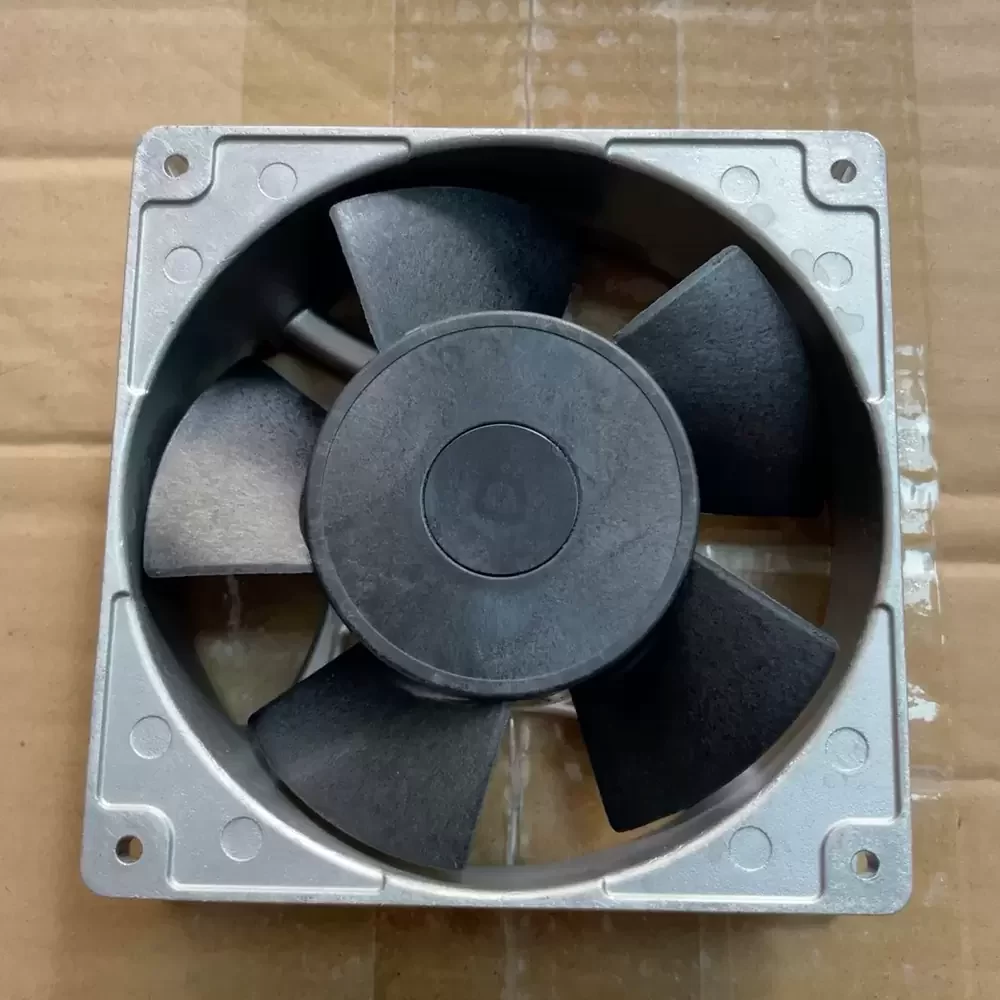

The Sanyo Denki 109S008 is a robust AC Axial Fan engineered for rigorous industrial thermal management applications. Featuring a high-durability aluminum die-cast frame, this unit offers exceptional structural rigidity and heat dissipation properties essential for environments like welding automation. The motor assembly utilizes precision ball bearings to ensure longevity and consistent performance under continuous operation. Designed with optimized blade aerodynamics, the 109S008 delivers high static pressure while maintaining operational stability, making it a critical component for maintaining thermal equilibrium in sensitive electronic enclosures and heavy machinery.
Model Number: 109S008
Brand: Sanyo Denki
Series: San Ace 120
Product Type: AC Axial Fan
Rated Voltage: 220 VAC
Frequency: 50/60 Hz
Input Power: 12.0 W
Rated Current: 0.07 A
Rated Speed: 2700 RPM
Max. Air Flow: 95.3 CFM (2.7 m³/min)
Max. Static Pressure: 6.8 mmH₂O (66.6 Pa / 0.27 inH₂O)
Dimensions: 120x120x38mm
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (UL94V-1)
Noise Level: 42 dB(A)
Life Expectancy: 25,000 Hours (at 60°C)
Operating Temperature: -30°C to +60°C
Storage Temperature: -30°C to +70°C

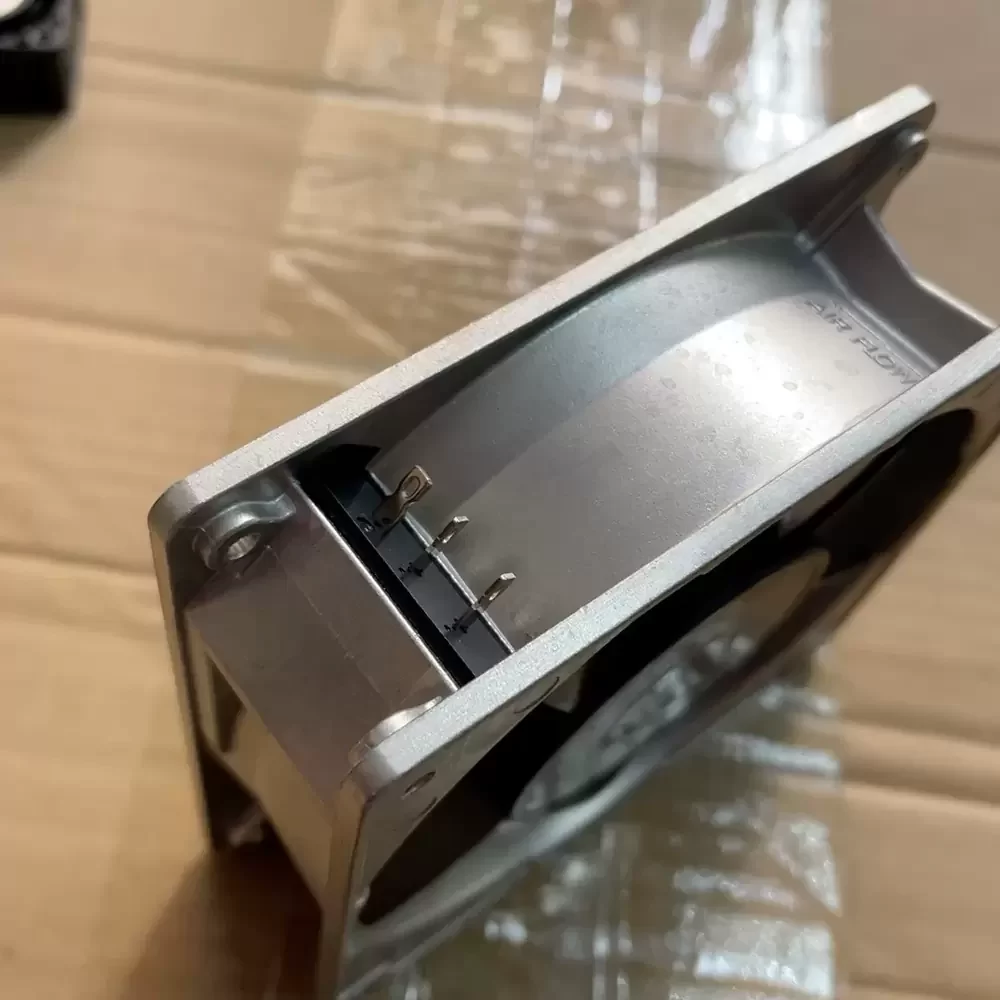

Termination: 2-Wire / Terminals
Dielectric Strength: 1500 VAC for 1 minute
Insulation Resistance: 10MΩ at 500VDC
Motor Protection: Impedance Protection
Weight: 550 g
The 109S008 is specifically calibrated for high-demand industrial environments, including the cooling of power electronics within Panasonic welding robots and similar automation equipment. Its robust aluminum construction ensures reliability in areas subject to vibration and thermal stress. Integrators frequently deploy the 109S008 in server racks, CNC control cabinets, and telecommunications infrastructure where consistent airflow is non-negotiable for system longevity.
