Description

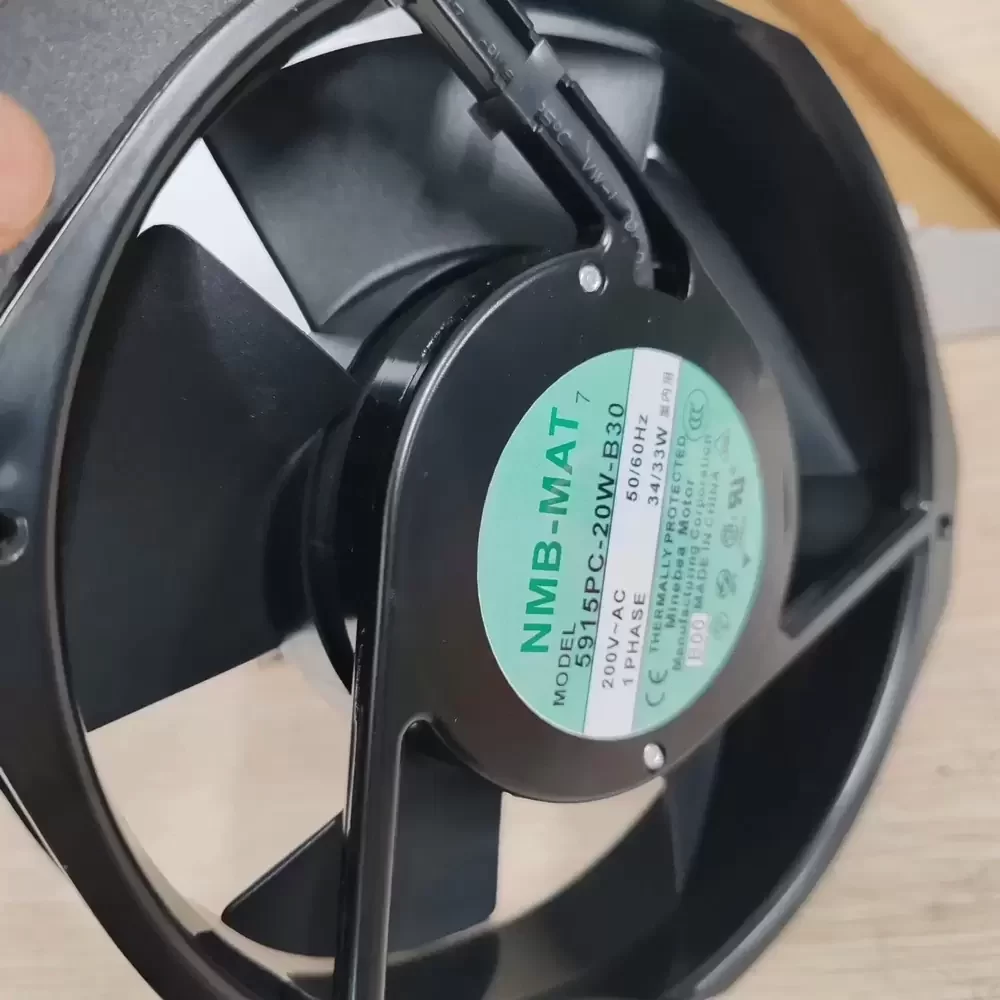

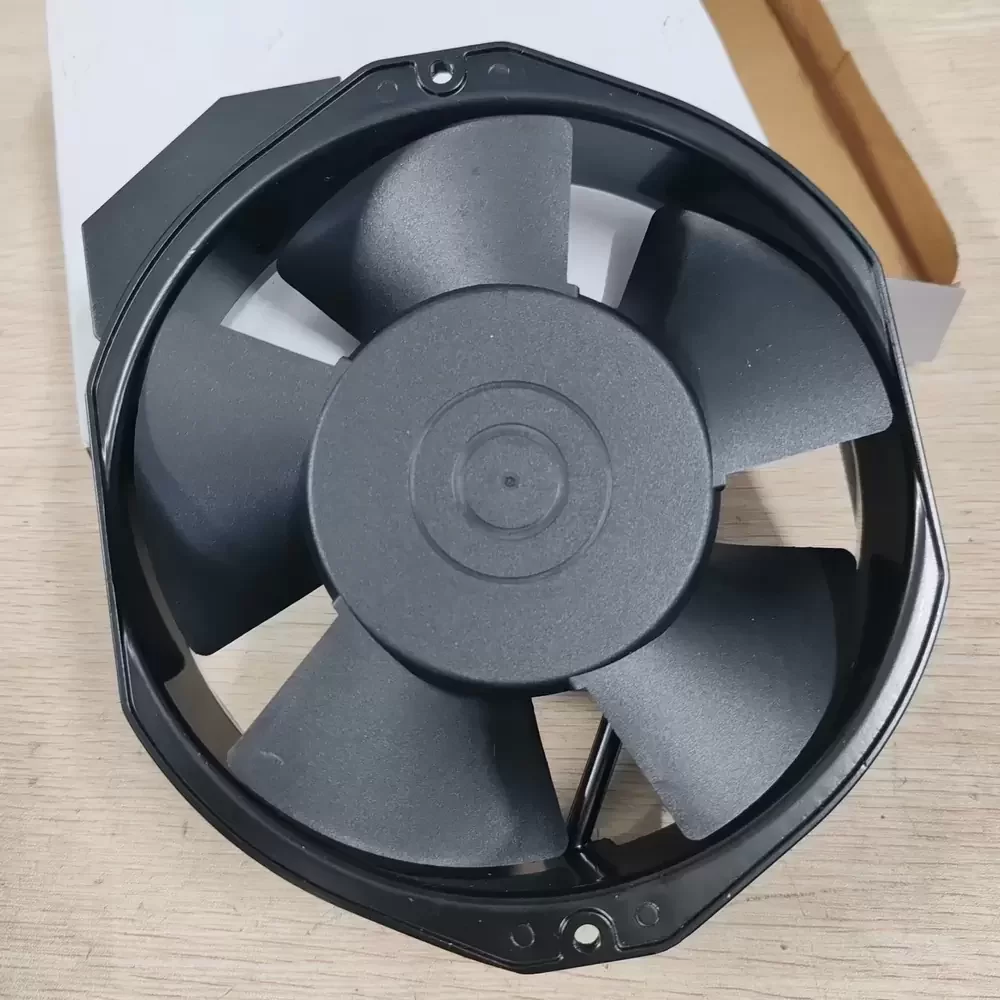

The NMB 5915PC-20W-B30-B00 is a high-capacity AC Axial Fan engineered for demanding thermal management in industrial environments. Utilizing a robust shaded pole motor architecture and a precision dual ball bearing system, this unit ensures low thermal impedance and exceptional structural rigidity under continuous duty cycles. The aerodynamic impeller design is optimized for high static pressure and volumetric airflow, while the die-cast aluminum housing provides superior heat dissipation and mechanical integrity. This model is specifically designed to maintain stable cooling performance in high-impedance systems where reliability and long-term service life are critical operational requirements.

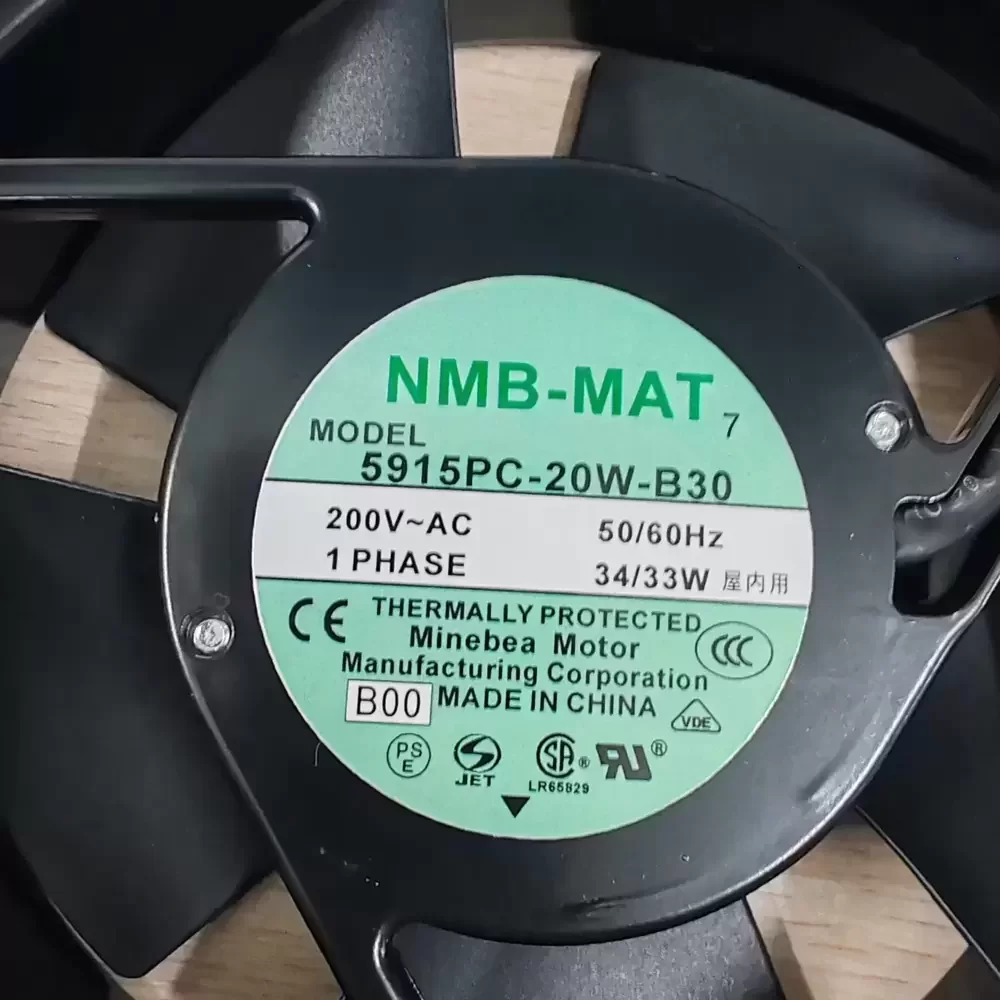

Model Number: 5915PC-20W-B30-B00
Brand: NMB (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 200VAC
Voltage Range: 180.0 – 220.0 VAC
Phase: Single Phase
Frequency: 50/60Hz
Rated Current: 0.210 / 0.190 A
Power: 34.0 / 33.0 W
Rated Speed: 2700 / 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 176.5 / 212.0 CFM (5.0 / 6.0 m³/min)
Max. Static Pressure: 137.2 / 186.2 Pa (0.55 / 0.75 inH₂O)
Noise Level: 52 / 56 dB(A)
Dimensions: 172 x 150 x 38 mm
Weight: 800g
Housing Material: Aluminum (Black Paint)
Blade Material: Plastic (UL94V-0)
Insulation Resistance: 100M Ohm min. at 500VDC
Dielectric Withstand Voltage: AC 1800V 1s
Operating Temperature: -10 to +70 Celsius
Storage Temperature: -40 to +70 Celsius
Life Expectancy: 50,000 Hours (25 Celsius)
Termination: Lead Wires
Protection: Thermal Protection
Certifications: UL, CSA, VDE, CE
The 5915PC-20W-B30-B00 is extensively utilized in large-scale industrial enclosures and telecommunications infrastructure where high-density heat dissipation is required. Integration of the 5915PC-20W-B30-B00 into server racks, power supply cabinets, and CNC machinery ensures consistent airflow and prevents component overheating. Its rugged construction makes it suitable for medical imaging equipment and automated control systems that demand the specific performance profile of the 5915PC-20W-B30-B00.
