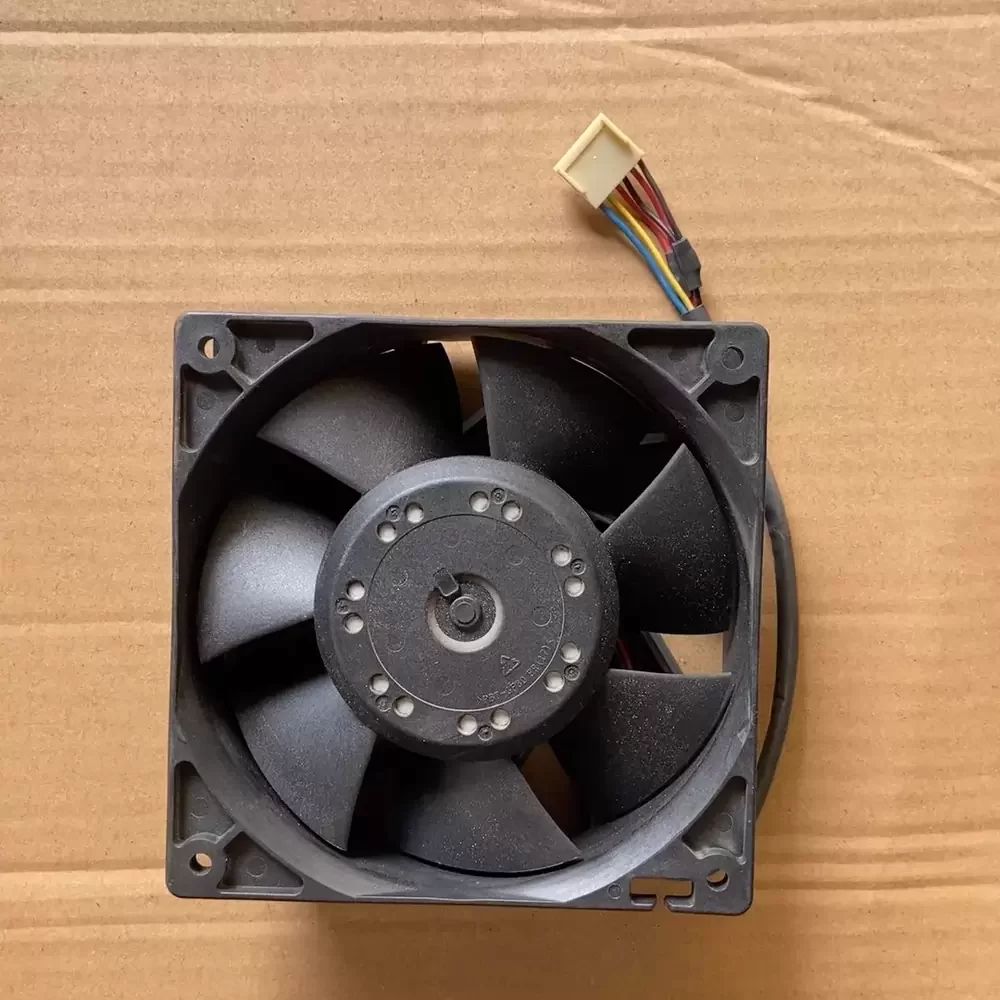

PFC0381BX-D090-S99 SUNON 12VDC 120x120x38mm Cooling Fan

Description

SUNON PFC0381BX-D090-S99 120 x 120 x 38 mm 12 VDC 52.44 W cooling fan delivering a maximum airflow of 285 CFM. This high-performance thermal management unit features a durable plastic frame and impeller, operating at a maximum speed of 8000 RPM with an acoustic profile of 63.5 dBA. The internal mechanism utilizes a dual ball bearing system (model 3B2100QVS) for extended operational longevity and reduced mechanical friction. It integrates a 6-wire interface with full PWM support for precise rotational speed control and tachometer monitoring.

PFC0381BX-D090-S99 Specifications
Model Number: PFC0381BX-D090-S99
Sunon Spec Number: D12037330G-01
Brand: SUNON
Product Category: DC Brushless Cooling Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 12 VDC
Power Consumption: 52.44 W
Maximum Speed: 8000 RPM
Maximum Airflow: 285 CFM
Noise Level: 63.5 dBA
Interface: 6-Wire
Control: PWM Supported
Bearing Type: Dual Ball Bearing (3B2100QVS)
Material: Plastic Frame and Impeller
Current Type: DC
Form Factor: 12038
Compatible Equipment: Gigabyte G431-MM0

PFC0381BX-D090-S99 Applications
Primary applications include integration into high-density server racks, industrial control equipment, and telecommunications base stations requiring aggressive thermal dissipation. Deployed within CNC machine tool control panels and enterprise-grade chassis systems to maintain optimal operating temperatures under continuous heavy loads.
