Description

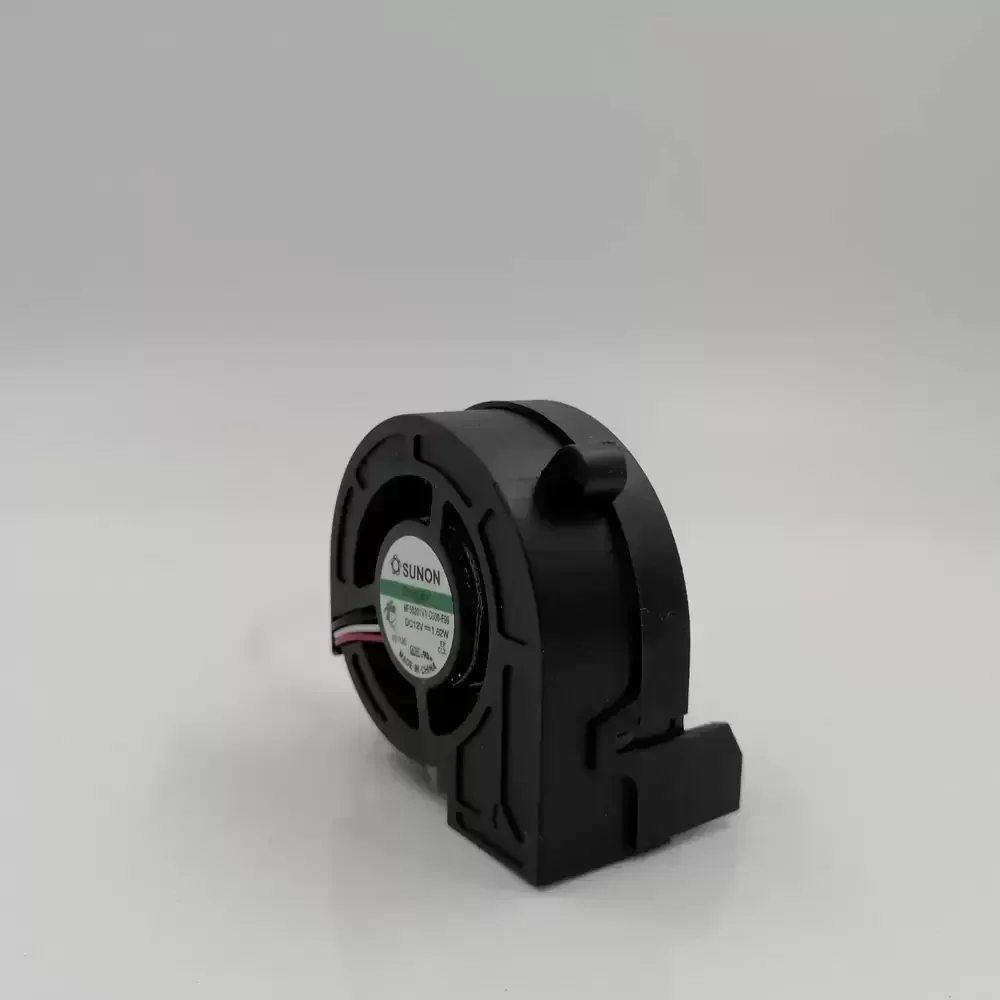

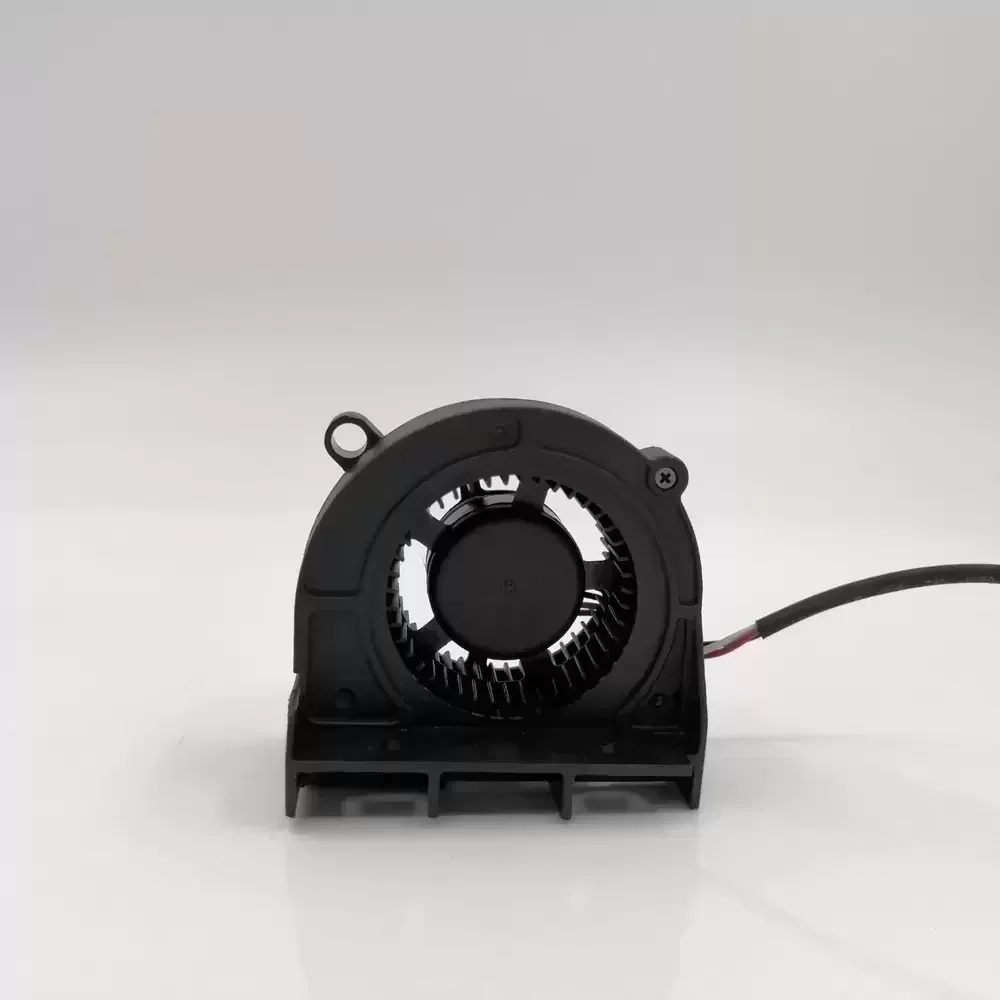

The SUNON MF50201V1-C000-F99 is a precision-engineered DC axial fan utilizing proprietary MagLev (Magnetic Levitation) motor technology. Designed to eliminate friction between the shaft and bearing, this unit features a Vapo bearing system that significantly enhances structural rigidity and extends operational lifespan. The aerodynamic impeller geometry is optimized to minimize thermal impedance while maintaining consistent airflow in high-static pressure environments. With a power rating of 1.62W, it delivers efficient thermal management for compact electronic assemblies, ensuring reliability through reduced mechanical wear and superior rotational stability.
Model Number: MF50201V1-C000-F99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.135 A
Power Consumption: 1.62 W
Rated Speed: 5800 RPM ± 15%
Bearing Type: MagLev (Vapo)
Max. Air Flow: 17.0 CFM (28.8 m³/h / 0.48 m³/min)
Max. Static Pressure: 0.23 inH₂O (5.84 mmH₂O / 57.3 Pa)
Dimensions: 50x50x20mm
Weight: 33.0 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 29.0 dBA
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP5X (Dust Protected)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead
Safety Approvals: UL, CUR, TUV, CE
Motor Protection: Auto Restart / Polarity Protection
The MF50201V1-C000-F99 is specifically engineered for compact thermal solutions requiring high reliability, such as portable projectors and multimedia devices. Its magnetic levitation system makes the MF50201V1-C000-F99 ideal for noise-sensitive environments including home theater systems, medical instrumentation, and precision optical equipment. Additionally, this model serves effectively in network switches and small form-factor industrial automation controllers where space constraints demand efficient airflow without compromising component longevity.
