Description

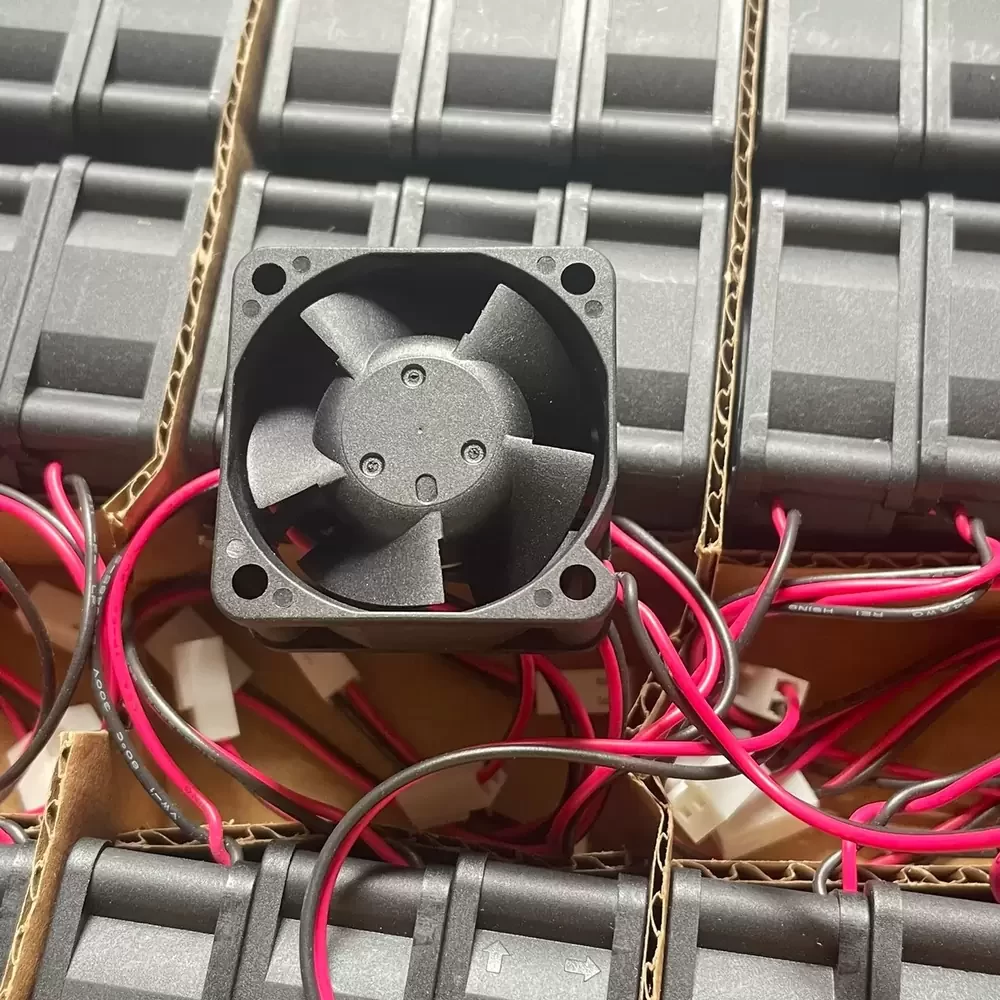

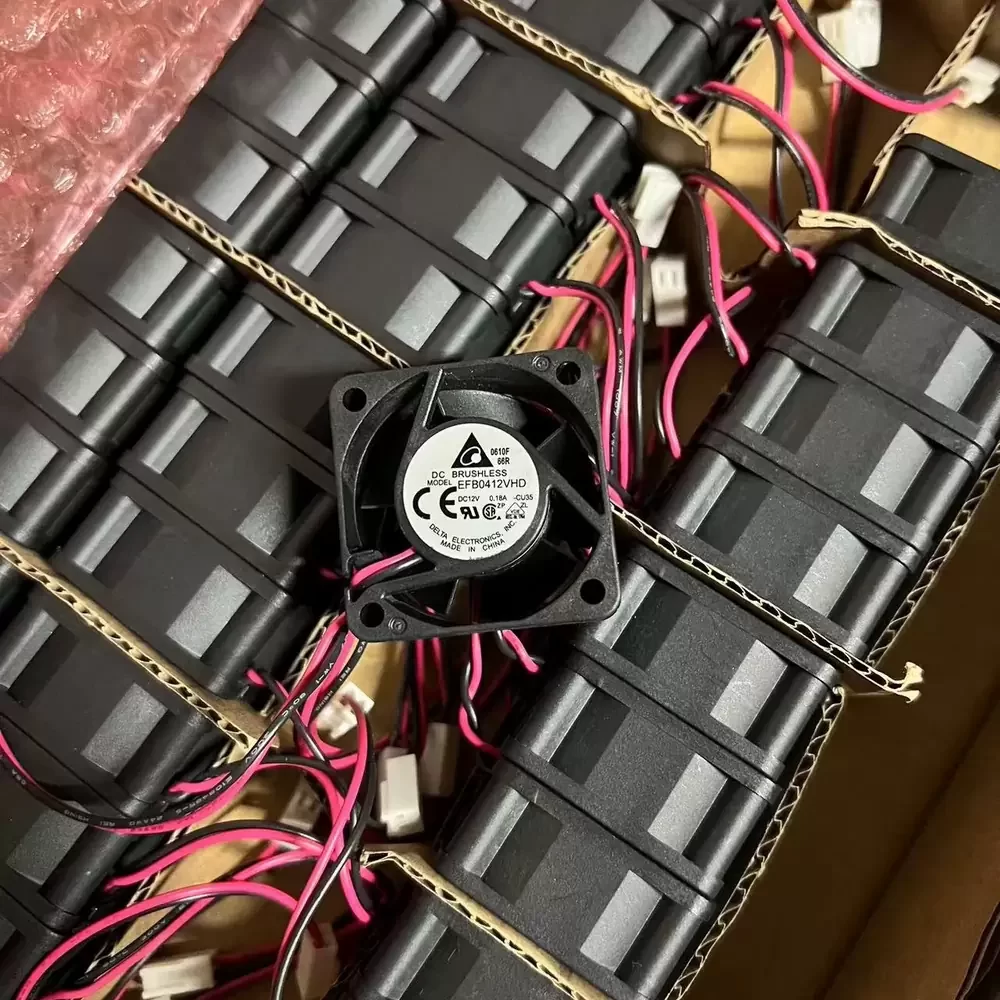

The Delta EFB0412VHD-CU35 is a high-performance Axial Fan engineered for critical thermal management in compact electronic environments. Featuring advanced DC brushless motor technology and a robust ball bearing architecture, this unit delivers superior airflow dynamics while maintaining exceptional structural rigidity. The aerodynamic impeller design minimizes turbulence and acoustic noise, effectively reducing thermal impedance in high-density applications. Designed for continuous operation, the fan ensures reliable cooling performance, making it an essential component for maintaining system stability in demanding industrial and IT infrastructures.
Model Number: EFB0412VHD-CU35
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.18 A
Input Power: 2.16 W
Rated Speed: 9000 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 10.10 CFM (17.16 m³/h)
Max. Static Pressure: 0.42 inH₂O (10.7 mmH₂O)
Noise Level: 32.5 dB-A
Dimensions: 40 x 40 x 20 mm
Termination: 2-Wire Lead
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Weight: 33 g
Ingress Protection: IP5X
The EFB0412VHD-CU35 is specifically optimized for space-constrained hardware such as 1U rack-mount servers and high-speed network switches. Its compact 40mm footprint allows for seamless integration into telecommunications equipment, industrial automation controllers, and precision medical devices. By delivering concentrated airflow, the EFB0412VHD-CU35 effectively dissipates heat from sensitive components, ensuring operational continuity in mission-critical systems.
