Description

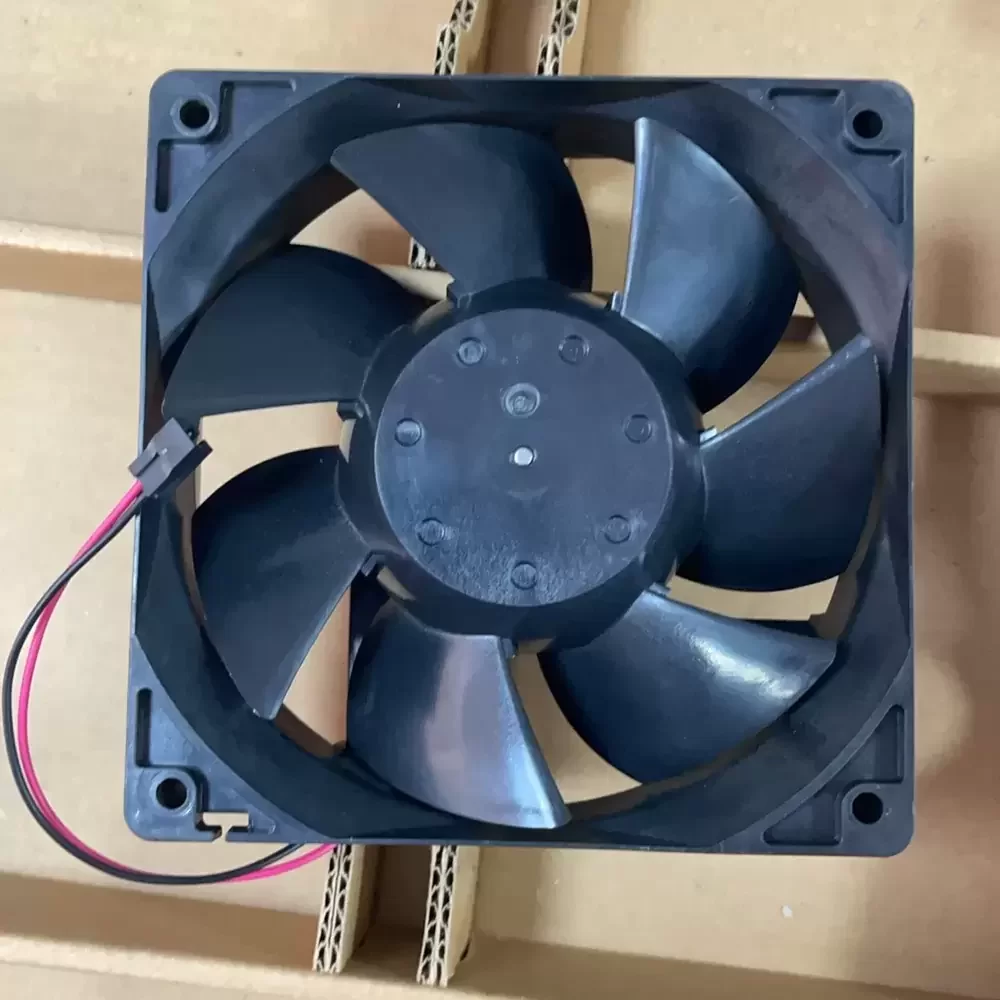

The Mitsubishi MMF-12D24DS-CN1 is a high-efficiency Axial Fan engineered for rigorous industrial thermal management. Designed with advanced aerodynamic impeller geometry, this unit optimizes airflow while minimizing acoustic resonance. It features a robust DC motor architecture paired with a precision bearing system, ensuring low thermal impedance and extended operational longevity. The structural rigidity of the frame supports stable operation in high-vibration environments, making it an ideal solution for critical cooling applications requiring consistent static pressure and volumetric flow rates.
Model Number: MMF-12D24DS-CN1
Brand: Mitsubishi Electric
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.36 A
Power: 8.64 W
Rated Speed: 3250 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 8.2 mmH₂O (80.4 Pa / 0.32 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 270 g
Life Expectancy: 60000 Hours @ 40°C
Noise Level: 44 dBA
Termination: 3-Wire with Connector
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, CSA, TUV
This cooling unit is specifically engineered for thermal regulation in variable frequency drives and heavy-duty industrial electronics. The MMF-12D24DS-CN1 provides critical airflow to dissipate heat generated by IGBT modules and power capacitors within server cabinets and CNC control panels. Additionally, the MMF-12D24DS-CN1 is suitable for telecommunications equipment and medical instrumentation where reliable continuous operation is paramount to prevent thermal shutdown.
