Description

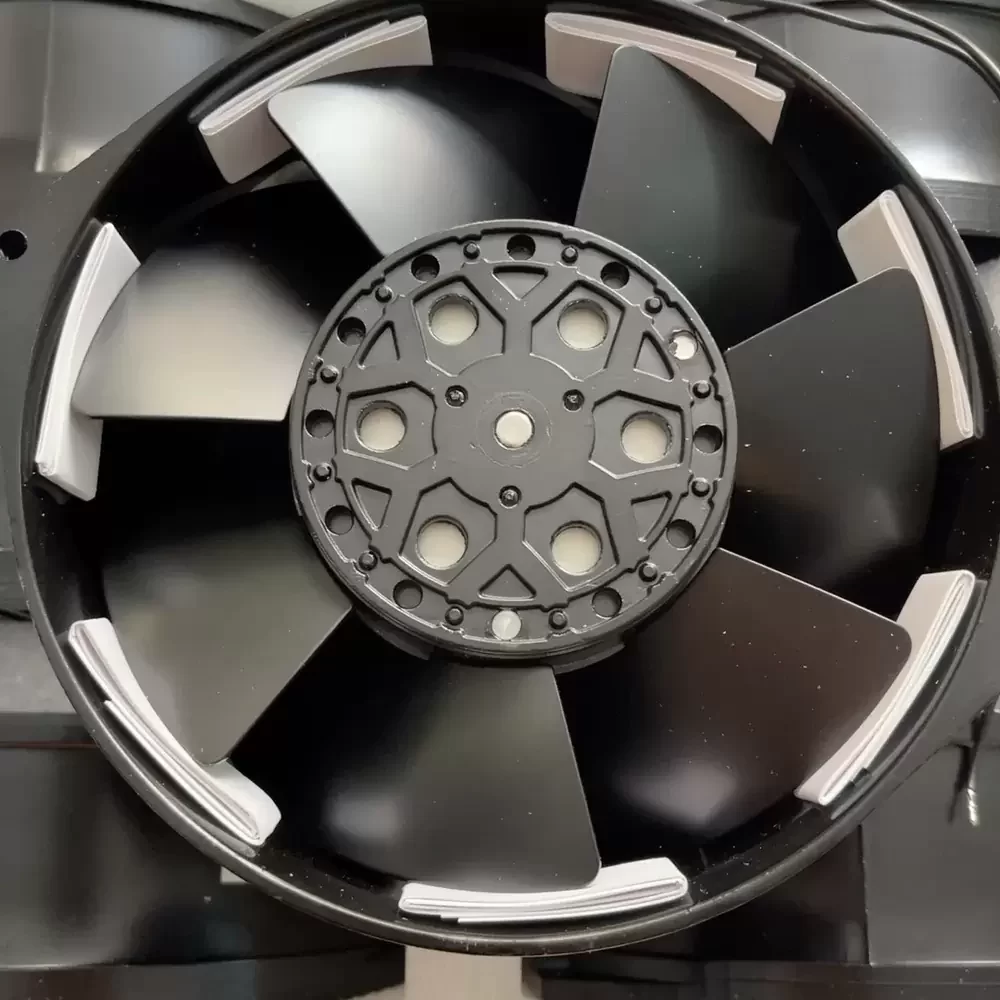

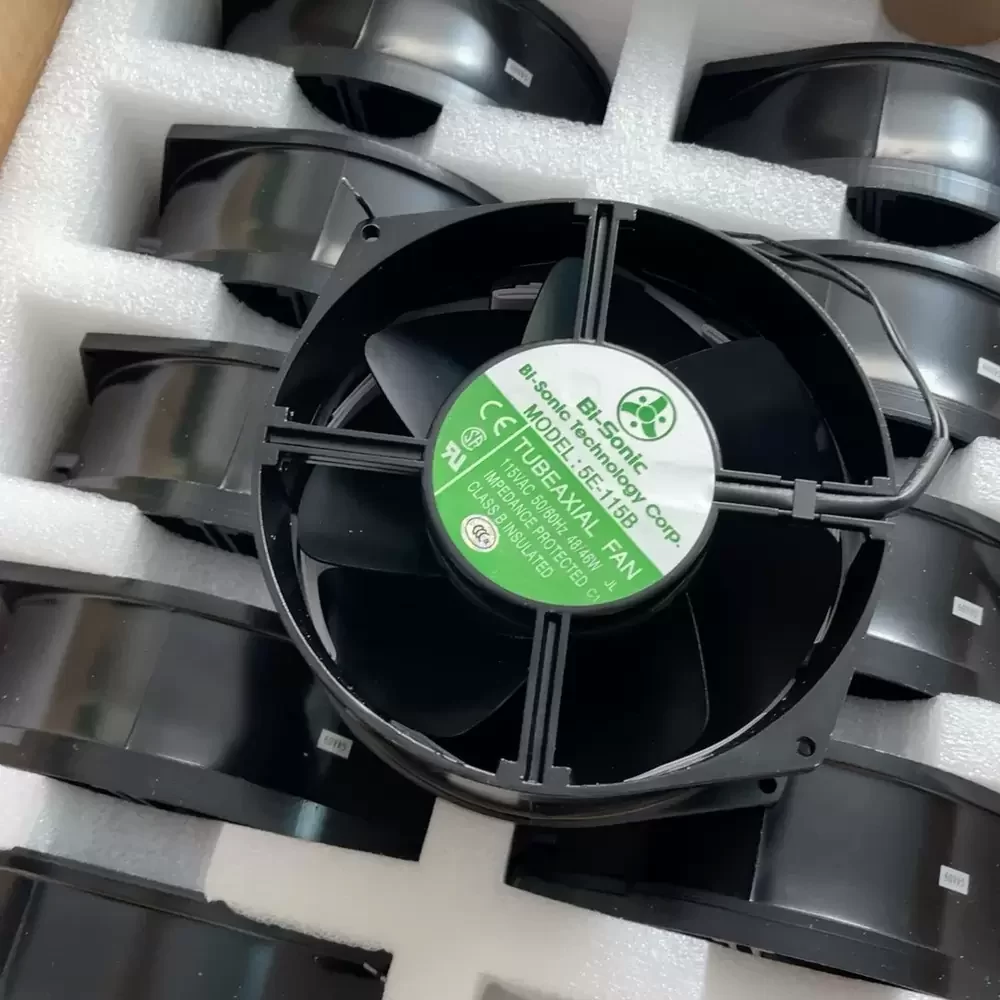

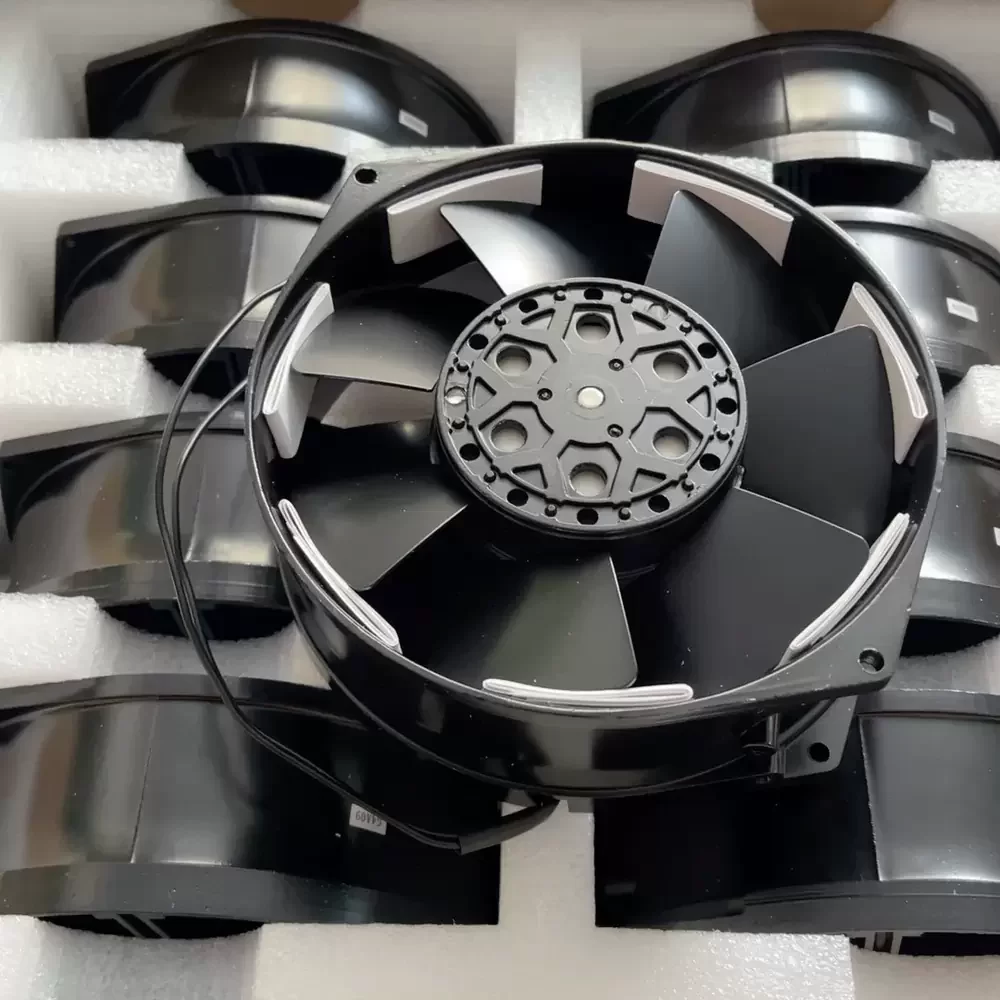

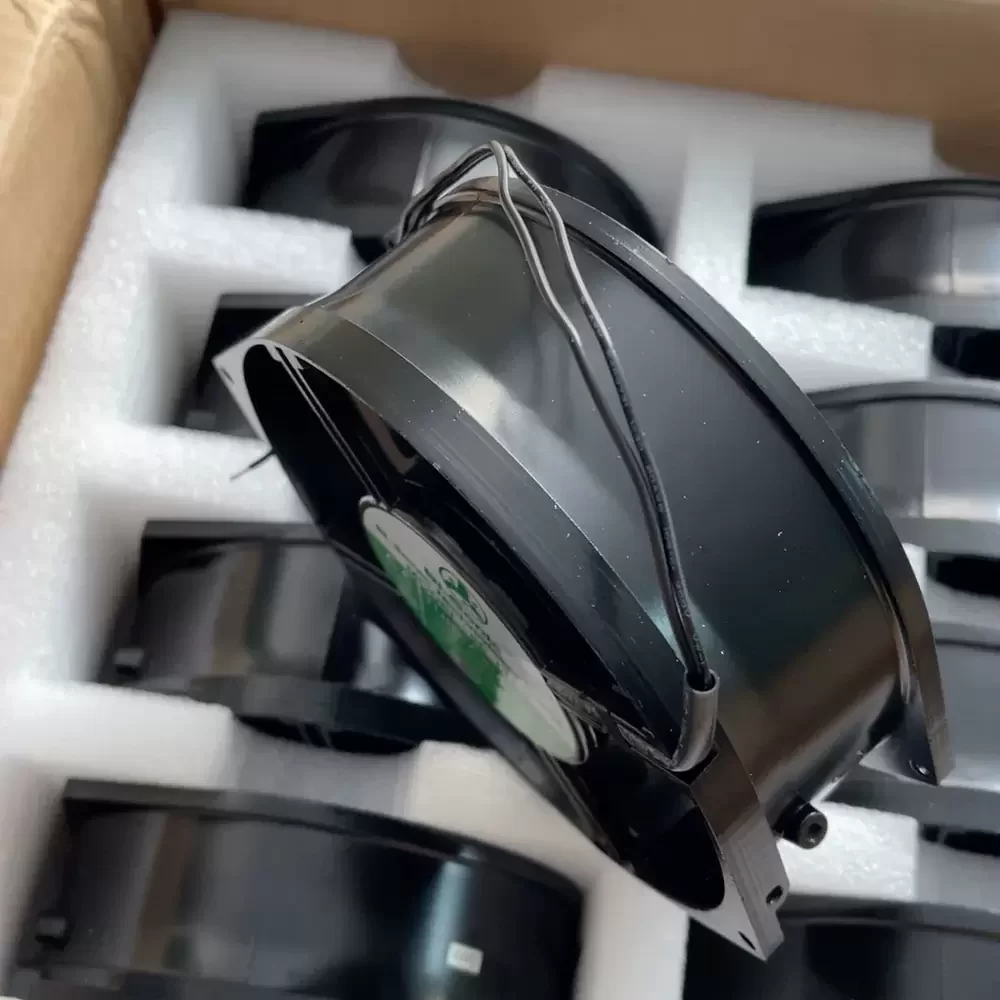

The Bi-Sonic 5E-115B is a robust AC Axial Fan engineered for demanding industrial environments requiring superior thermal management. This unit features a precision-balanced metal impeller driven by a high-efficiency AC induction motor, ensuring consistent airflow delivery under significant static pressure loads. The construction utilizes a die-cast aluminum housing which provides exceptional structural rigidity and effective heat dissipation, lowering the overall thermal impedance of the system. Equipped with durable ball bearings, the 5E-115B is designed to withstand elevated operating temperatures while maintaining mechanical stability, making it an ideal solution for continuous duty cycles in harsh operational conditions.
Model Number: 5E-115B
Brand: Bi-Sonic
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50 / 60 Hz
Power Input: 48 / 46 W
Rated Speed: 2800 / 3100 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 210 / 235 CFM (356 / 399 m³/h)
Max. Static Pressure: 0.55 / 0.65 inH₂O (137 / 162 Pa)
Dimensions: 172 x 150 x 51 mm
Housing Material: Aluminum Die-Cast
Impeller Material: Metal
Termination: Terminals
Operating Temperature: -30°C to +75°C
Life Expectancy: 50,000 Hours at 25°C
Weight: 890 g
Safety Approval: UL, CUL, TUV, CE
Phase: Single Phase
Motor Type: Capacitor-Run Induction Motor
The 5E-115B is specifically calibrated for integration into high-density industrial equipment where reliability is paramount. Common deployment scenarios include cooling large-scale power supply units, ventilation for server racks, and thermal regulation in CNC machinery control cabinets. The all-metal construction of the 5E-115B allows it to operate effectively in environments with higher ambient temperatures, such as welding equipment or industrial automation enclosures, ensuring critical components remain within safe thermal operating limits.
