Description

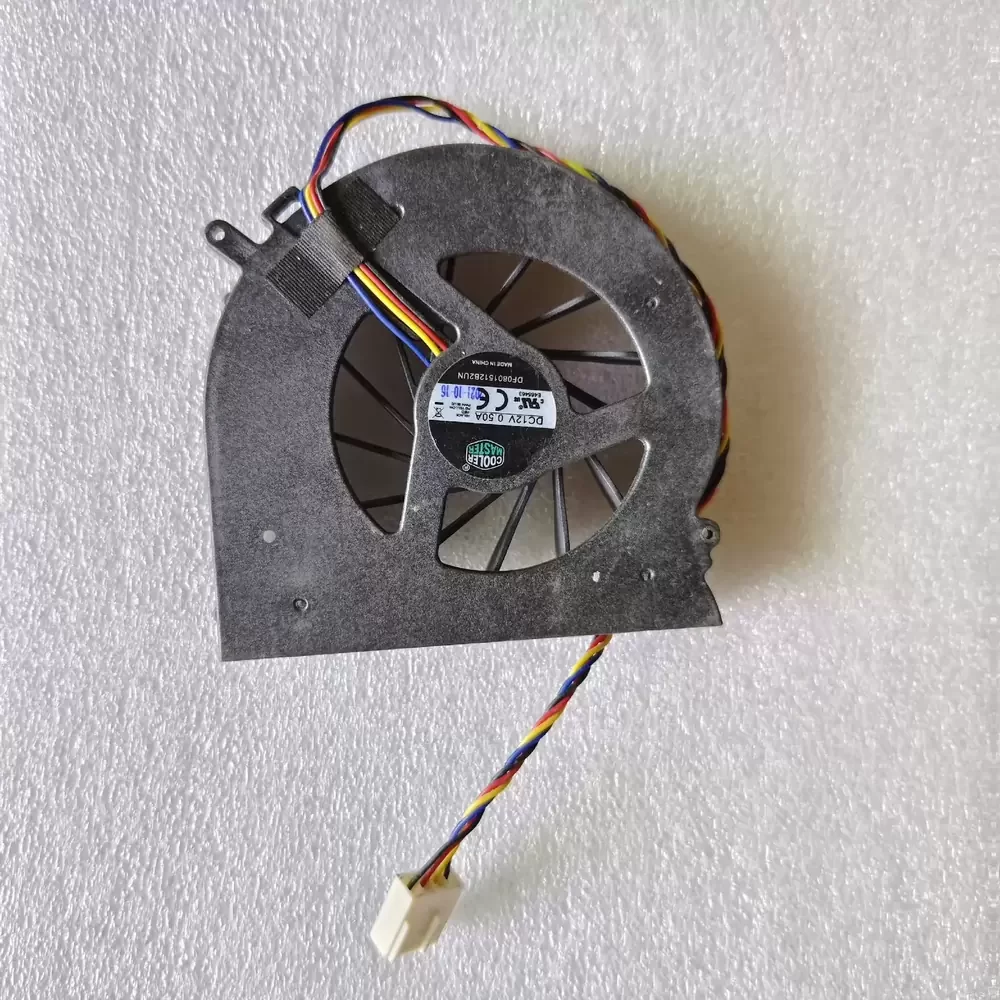

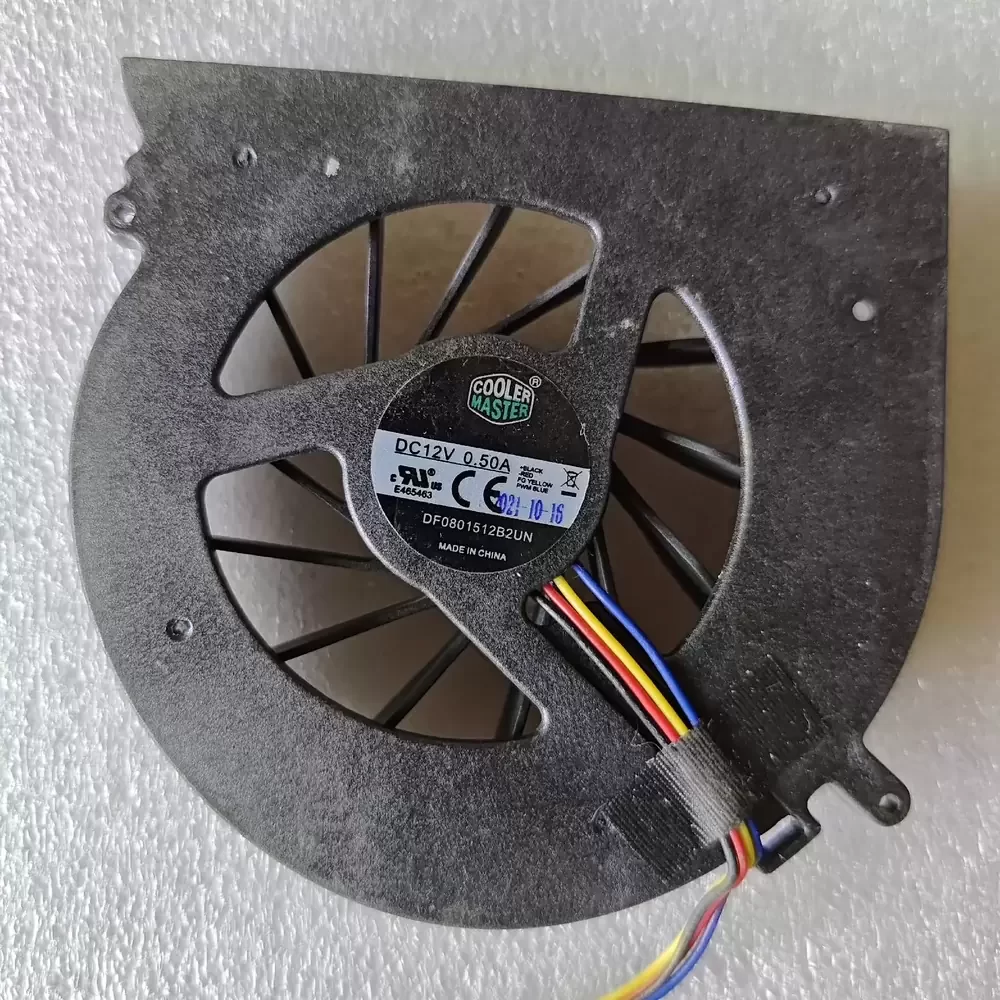

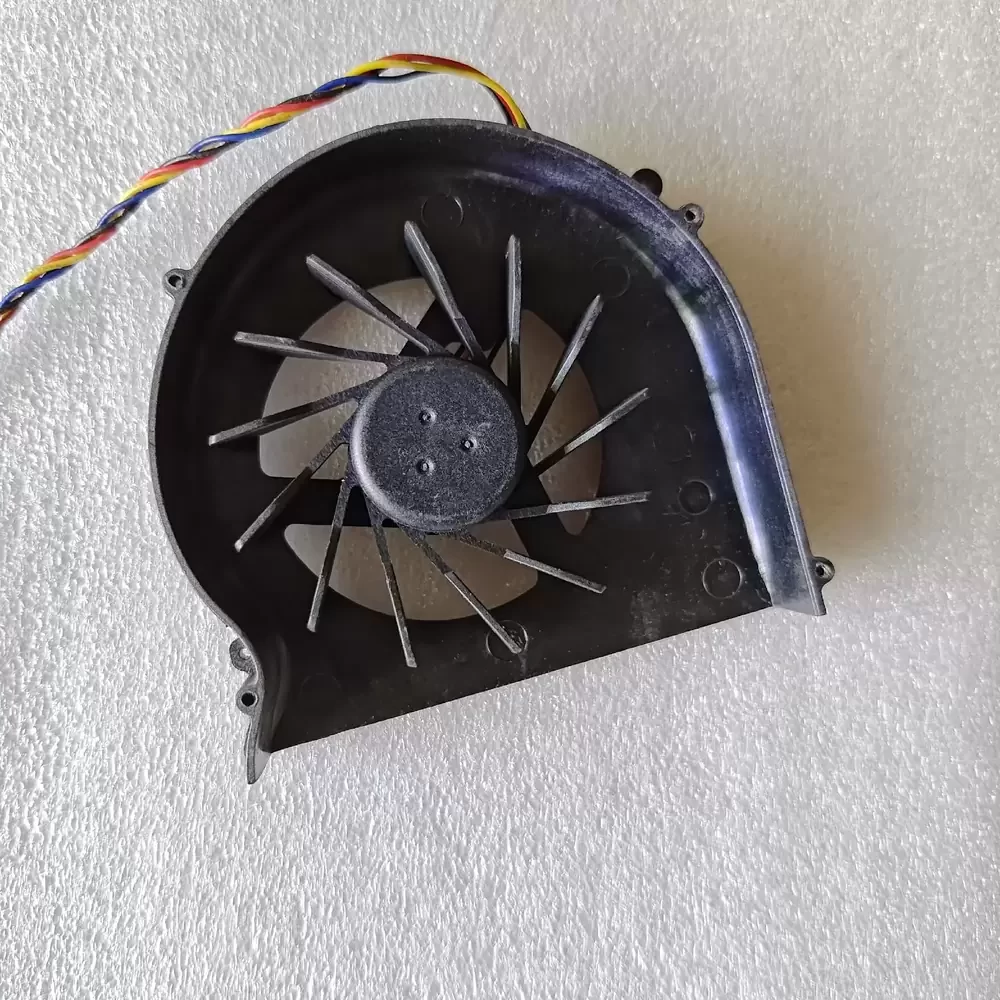

Cooler Master DF0801512B2UN is a 12VDC 80x80x15mm Axial Fan optimized for high-density thermal management in compact enclosures where space is at a premium. This unit features a high-efficiency DC brushless motor and a precision dual ball bearing architecture designed to minimize thermal impedance and maximize structural rigidity under continuous operation. Operating at a rated current of 0.50A, it delivers significant static pressure to overcome internal resistance in cramped chassis. The integrated 4-wire PWM control allows for dynamic speed adjustment, reaching up to 3800 RPM to balance acoustic profiles with cooling demands. It serves as a critical component for maintaining system stability in industrial and all-in-one computing environments.
Model Number: DF0801512B2UN
Brand: Cooler Master
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.50 A
Power: 6.0 W
Rated Speed: 3800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 35.4 CFM (60.1 m³/h / 1.00 m³/min)
Max. Static Pressure: 4.52 mmH₂O (44.3 Pa / 0.18 inH₂O)
Dimensions: 80 x 80 x 15 mm
Weight: 65 g
Life Expectancy: 70,000 hours at 40°C
Speed Control: 4-wire PWM
Noise Level: 36.5 dB(A)
Housing/Blade Material: PBT Plastic (UL94V-0)
Termination: 4-pin Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL
DF0801512B2UN Applications
1. All-in-One (AIO) Desktop Systems: Low-profile 15mm depth allows for integration into slim chassis like the Tsinghua Tongfang V53, serving as a high-reliability replacement fan.
2. Industrial PC (IPC) Enclosures: High static pressure capability ensures effective heat dissipation across densely packed internal components and small-form-factor motherboards.
3. 1U/2U Server Rack Cooling: PWM-driven speed control enables precise thermal regulation in noise-sensitive edge computing environments where overcoming system impedance is critical.
