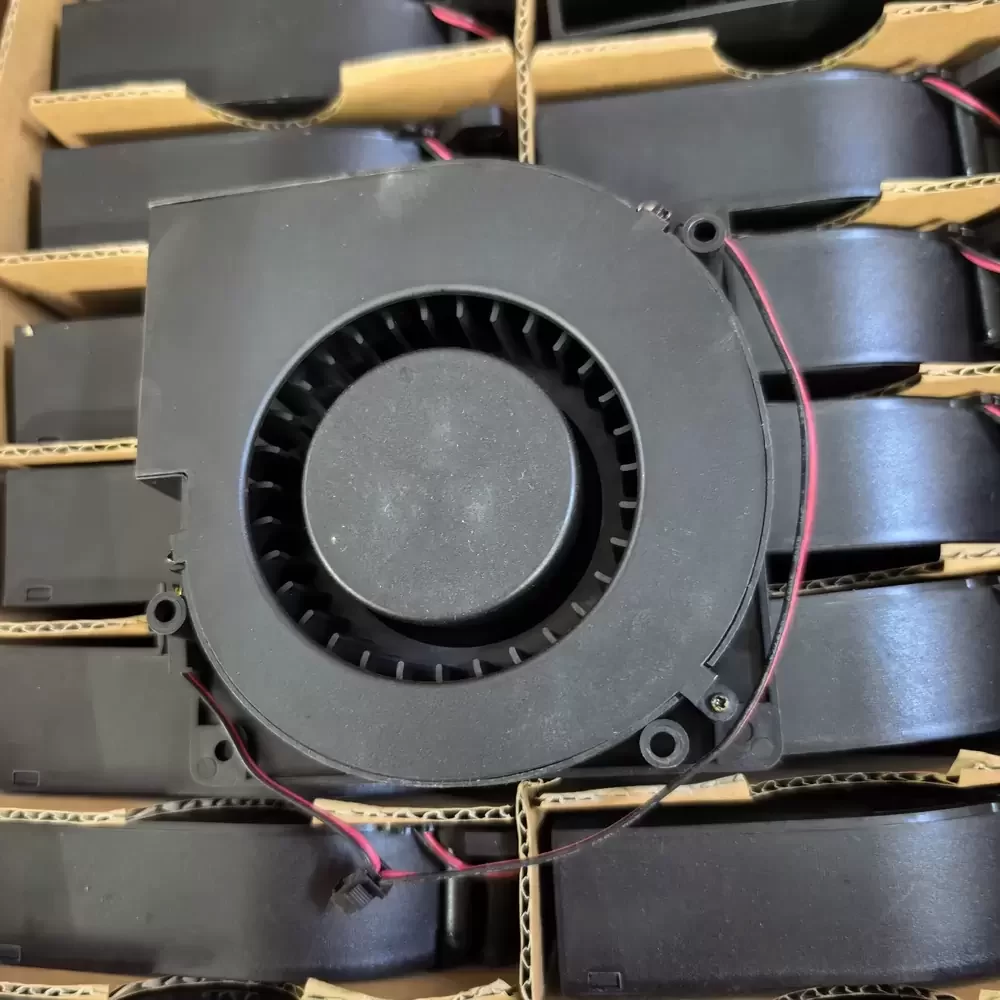

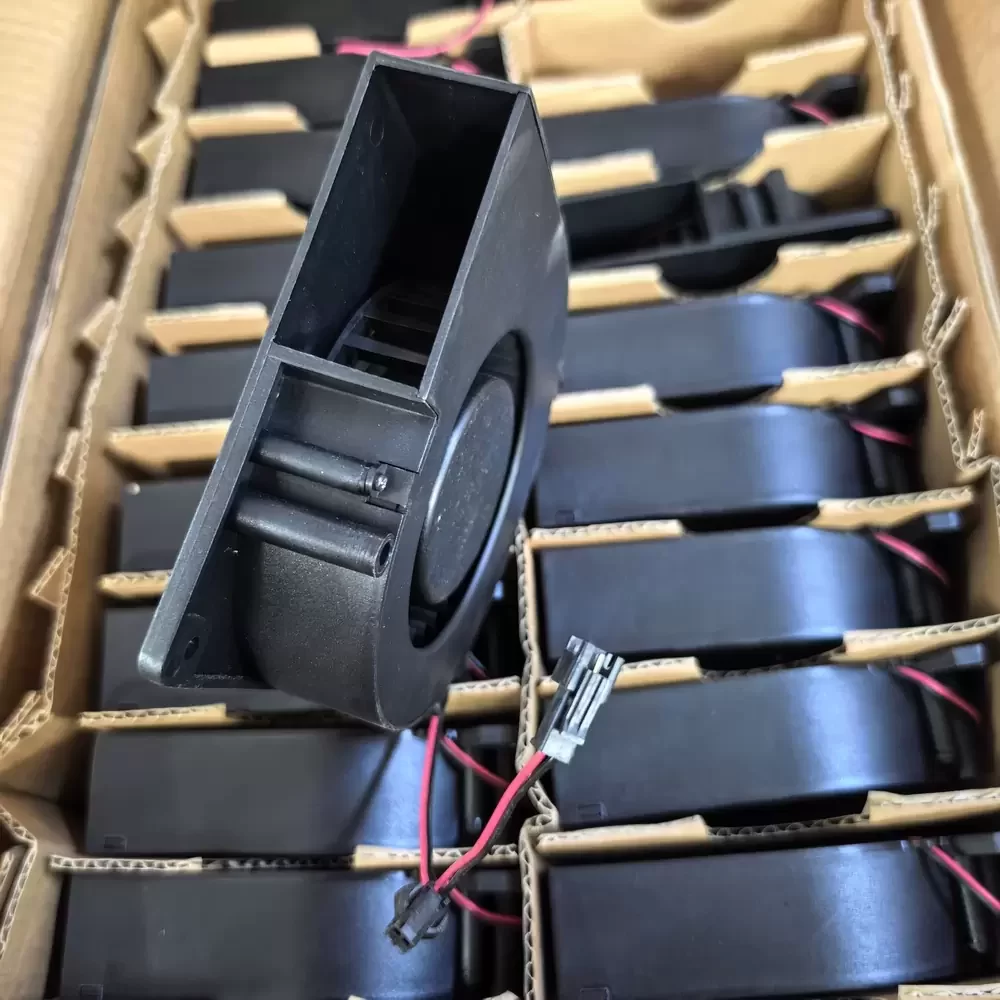

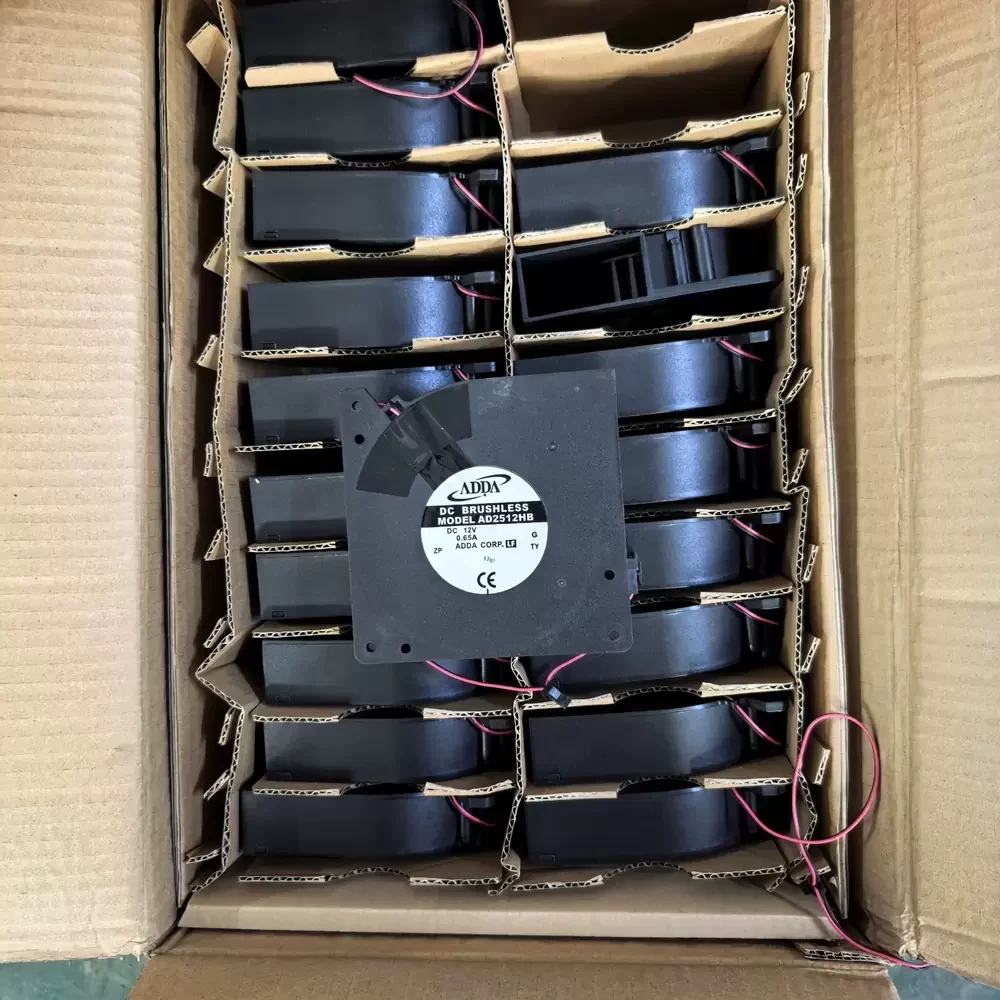

AD2512HB ADDA 12VDC 0.65A 120x120x32mm DC Blower Fan

Description

ADDA AD2512HB 120 x 120 x 32 mm 12 VDC 7.8 W 25.2 CFM centrifugal blower fan features a dual ball bearing system and a glass-filled PBT housing and impeller rated to UL 94V-0 flammability standards. The internal motor is a brushless DC design with auto-restart and polarity protection, delivering a rotational speed of 2500 RPM. It generates a maximum static pressure of 0.640 InAq through a side-discharge centrifugal configuration.

AD2512HB Specifications
Model: AD2512HB
Brand: ADDA
Category: DC Blower Fan
Frame Size: 120 x 120 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 0.65 A
Input Power: 7.8 W
Rated Speed: 2500 RPM
Maximum Airflow: 25.2 CFM
Maximum Static Pressure: 0.640 InAq
Noise Level: 51.0 dBA
Bearing Type: Dual Ball Bearing
Housing Material: Glass-filled PBT (UL 94V-0)
Impeller Material: Glass-filled PBT (UL 94V-0)
Termination: 2-Wire Lead Wires
Wire Color: Red (+), Black (-)
Operating Temperature: -10 to +75 °C
Storage Temperature: -40 to +75 °C
Weight: 276 g
Safety Approvals: CE, TUV, UL, CUL
Motor Protection: Auto Restart, Polarity Protection
Life Expectancy: 50,000 Hours at 25 °C

AD2512HB Applications
Primary applications include integration into server rack enclosures, industrial power supply cooling units, and telecommunications base station heat exchangers. Deployed within CNC control cabinets and medical diagnostic imaging equipment requiring high-impedance thermal management.
