Description

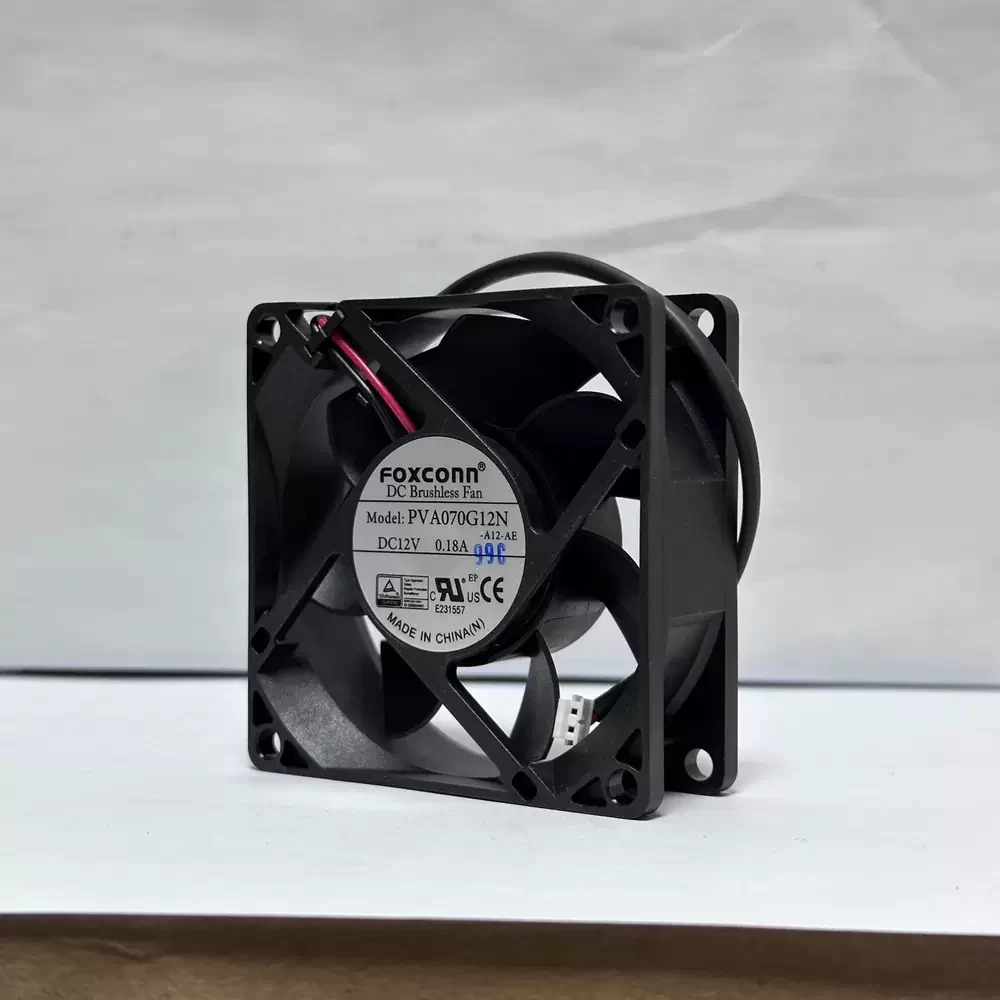

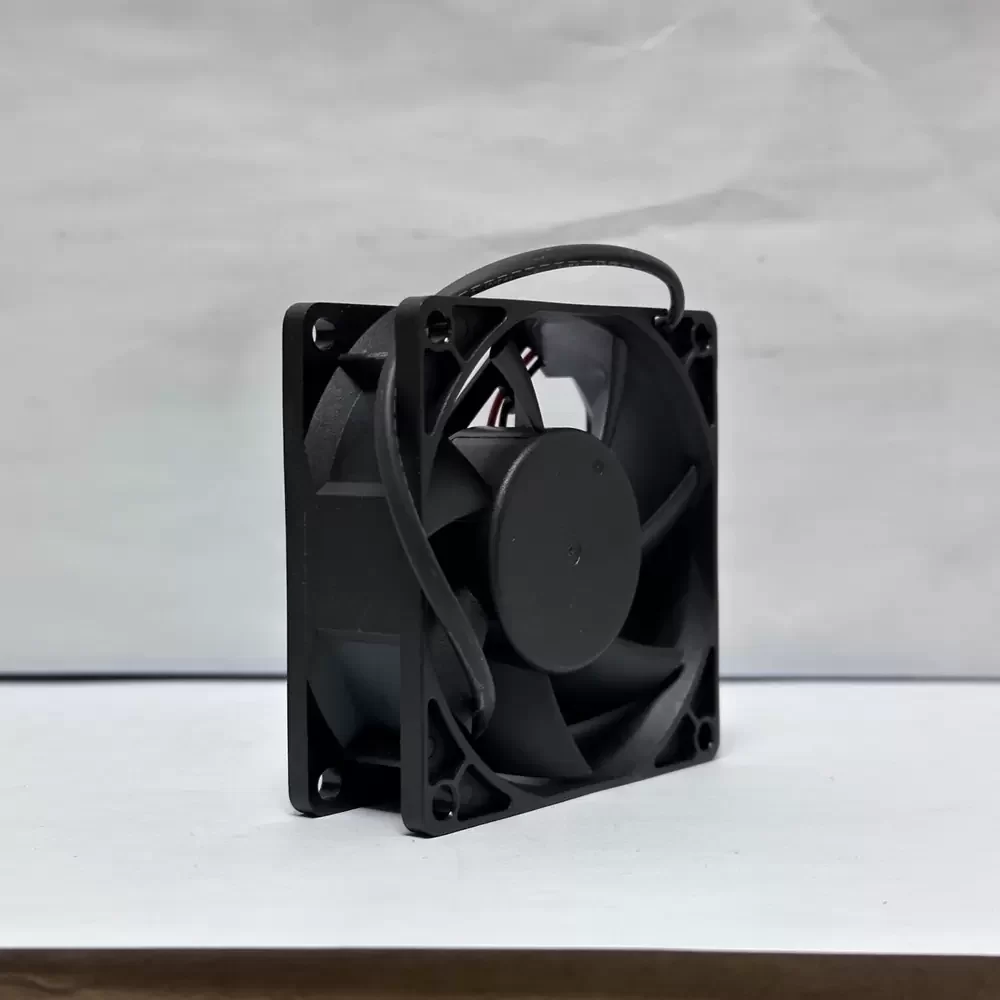

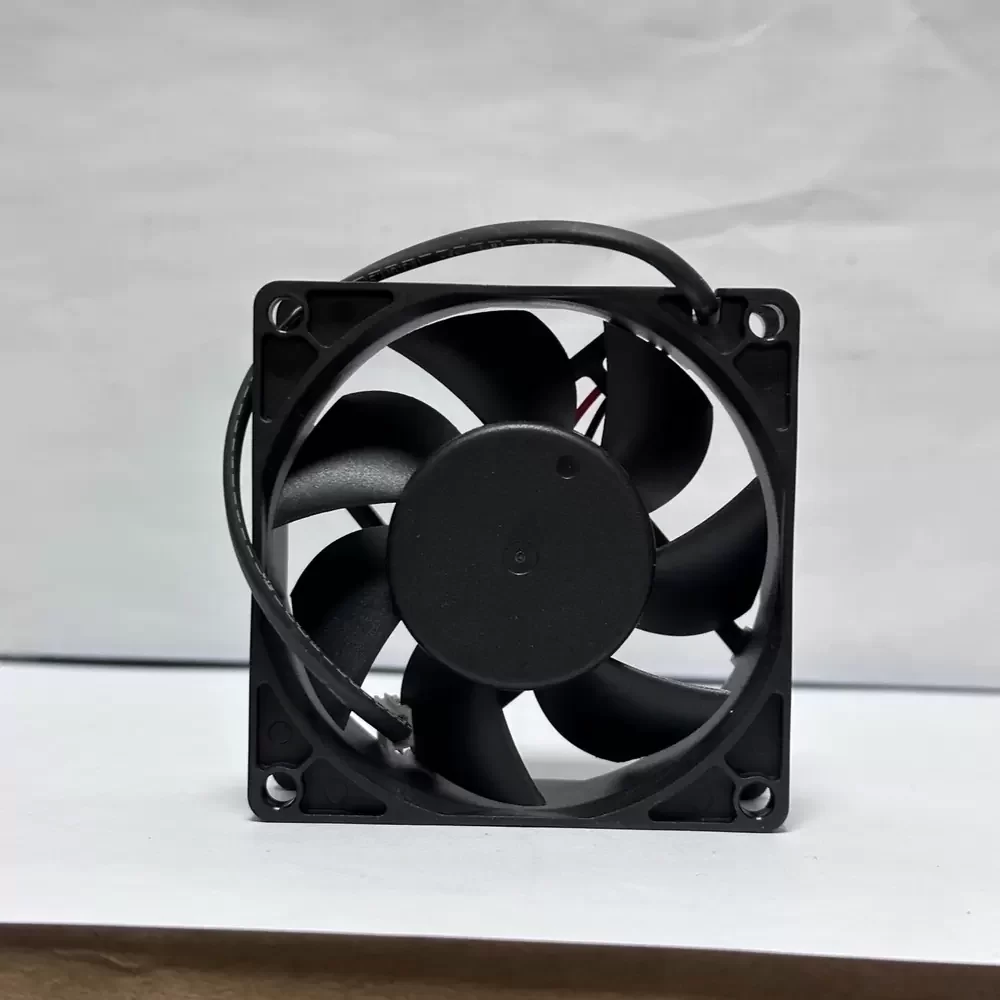

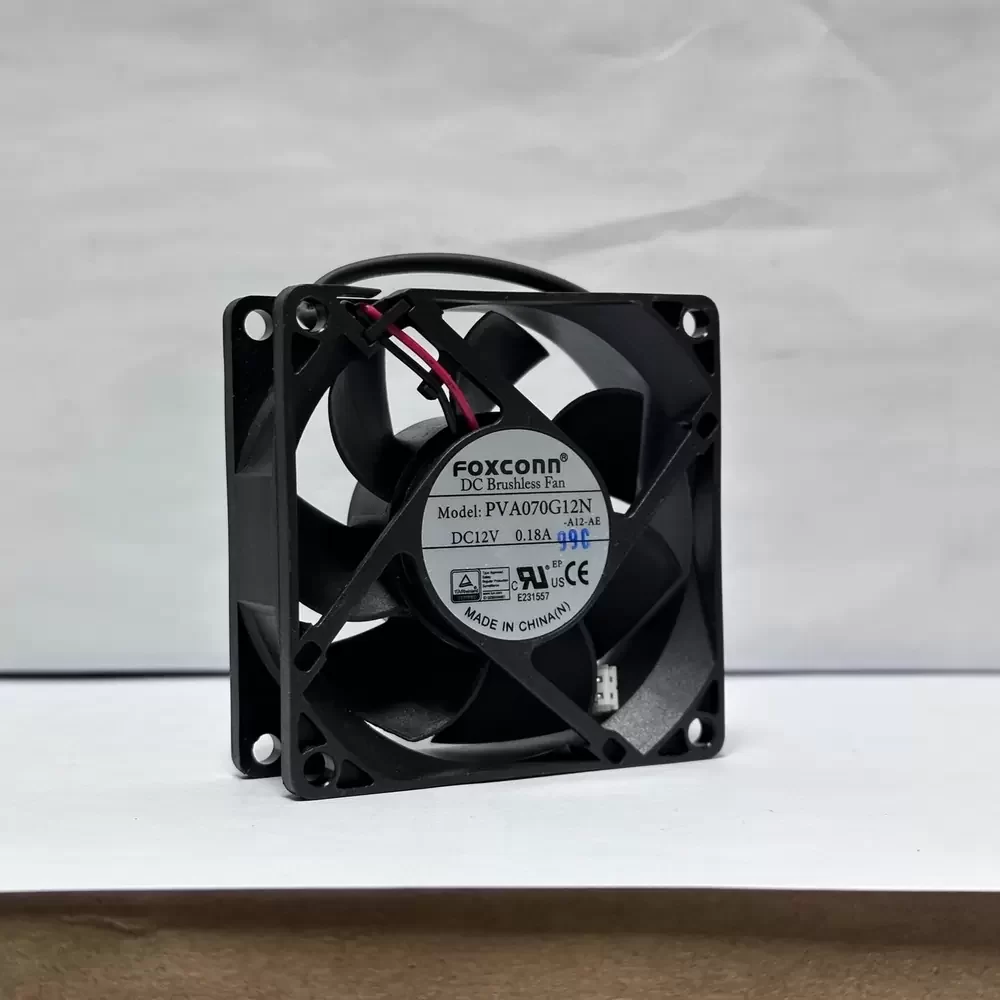

The FOXCONN PVA070G12N-A12-AE is a compact DC axial cooling fan measuring 70 x 70 x 25 mm, operating at a nominal voltage of 12 VDC with a current draw of 0.18 A. This unit features a fluid dynamic bearing system and a 2-wire interface for simplified power connection. The structural frame and impeller are constructed from high-durability thermoplastic, providing a maximum airflow of 20 CFM and a static pressure rating suitable for chassis-mounted thermal management. The internal motor is designed for continuous operation with a rated service life of 50,000 hours at standard ambient temperatures, maintaining a noise emission level of 28 dBA.
PVA070G12N-A12-AE Specifications
Model Number: PVA070G12N-A12-AE
Brand: FOXCONN
Category: DC Axial Fan
Dimensions: 70 x 70 x 25 mm
Nominal Voltage: 12 VDC
Operating Current: 0.18 A
Power Consumption: 2.16 W
Airflow: 20 CFM
Noise Level: 28 dBA
Bearing Type: Fluid Bearing
Interface: 2-wire (2-pin)
Fan Life: 50,000 hours
Frame Material: Plastic PBT
Impeller Material: Plastic PBT
Weight: 0.06 kg
PVA070G12N-A12-AE Applications
Primary applications include integration into industrial frequency inverter cooling systems, server chassis power supply units, and telecommunications equipment enclosures. Deployed within CNC control cabinets and compact electronic workstations to maintain thermal stability of internal circuit components.
