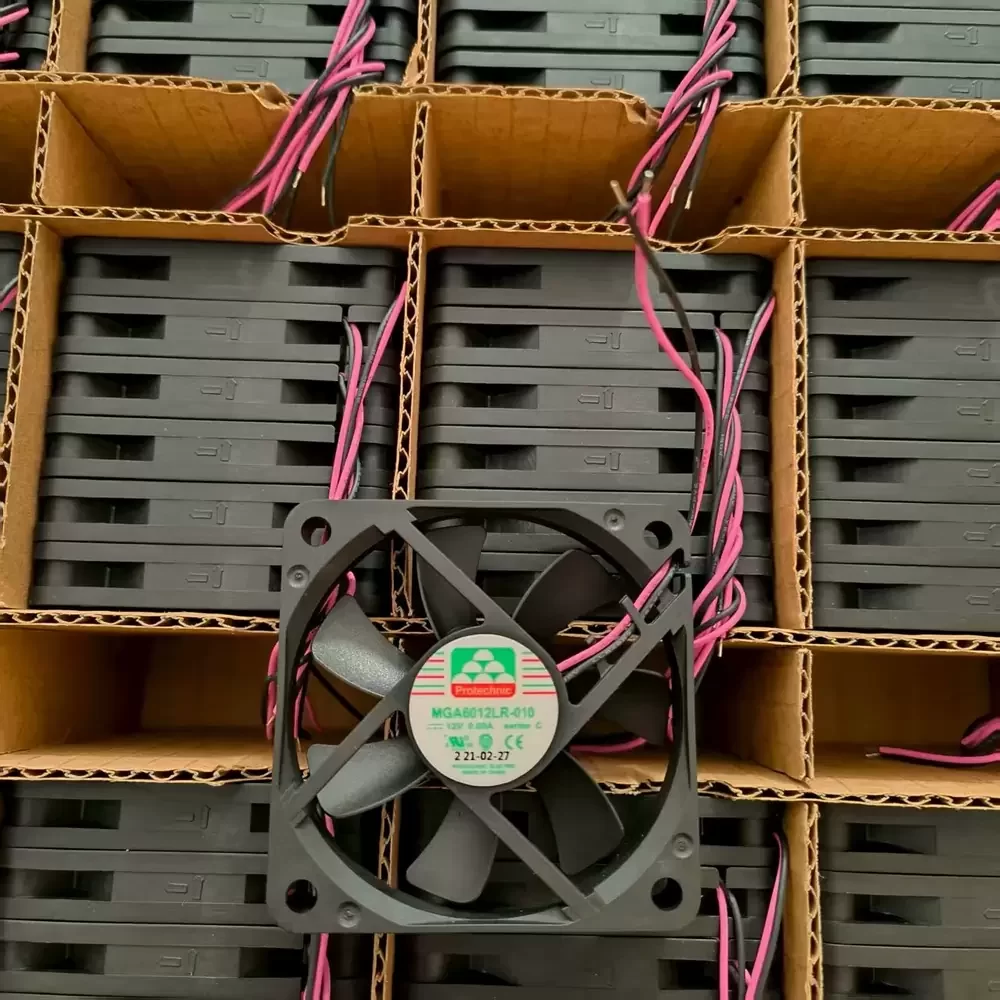

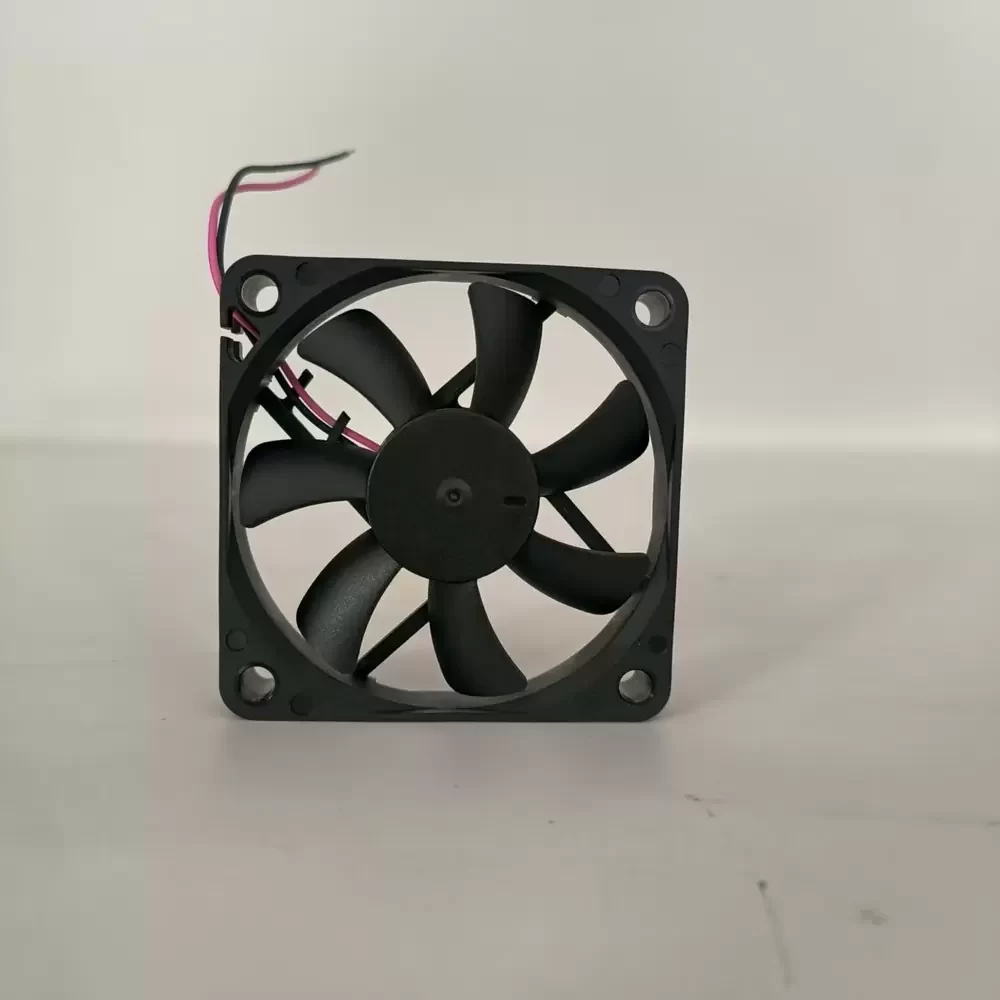

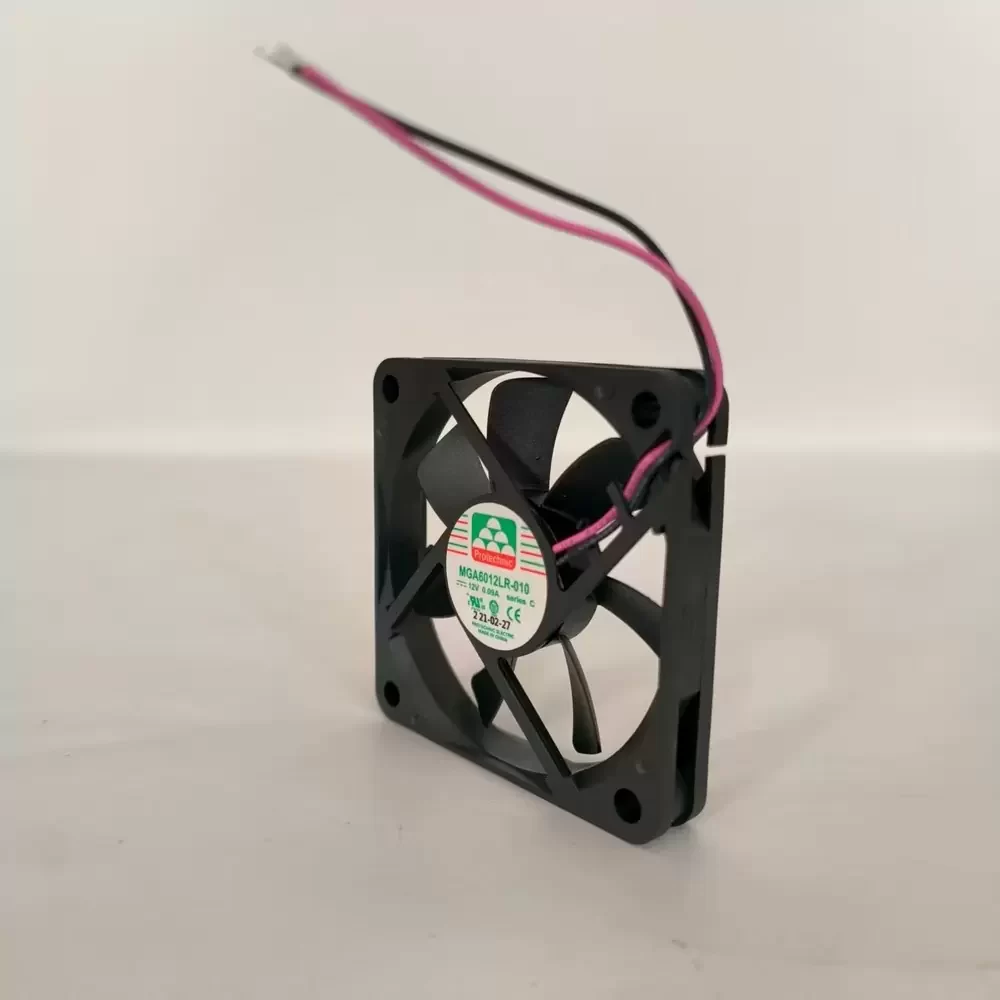

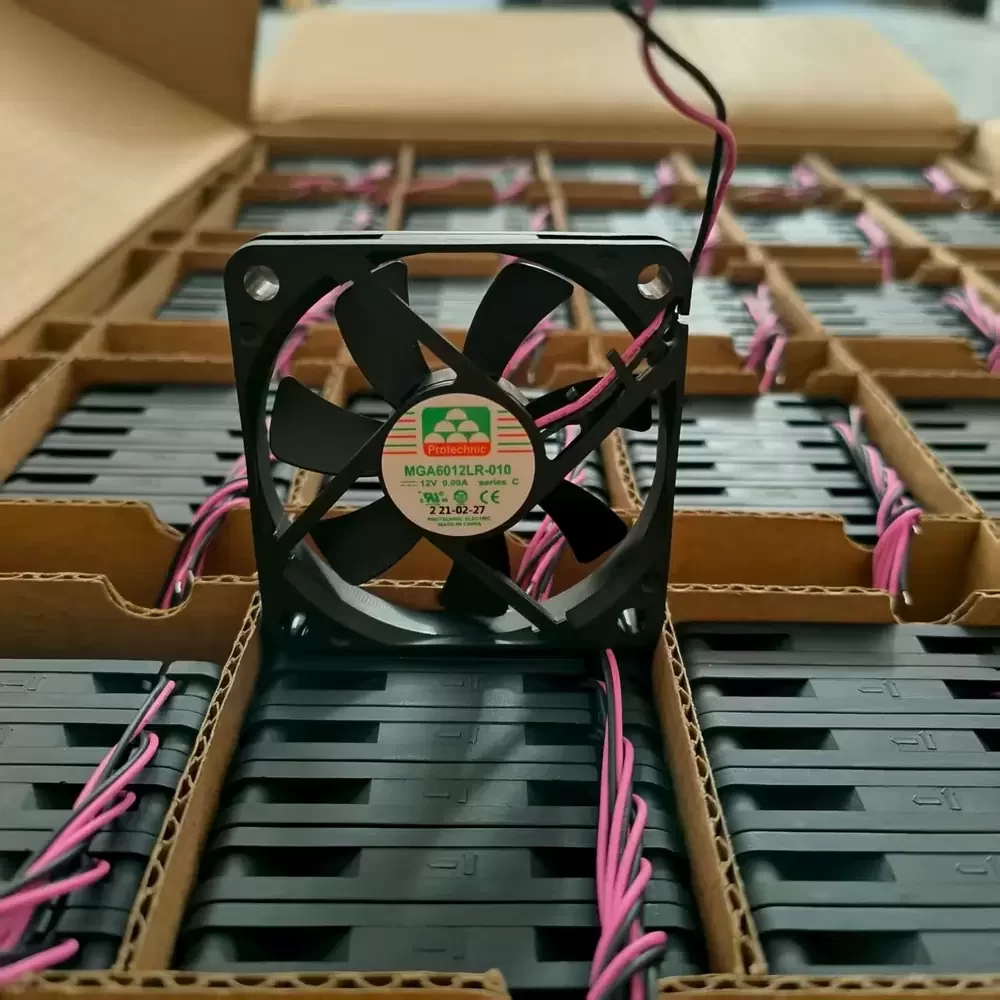

MGA6012LR-010 Protechnic 12VDC 0.09A 60x60x10mm Axial Fan

Description

Protechnic MGA6012LR-010 is a 60 x 60 x 10 mm axial DC fan operating at 12 VDC with a rated current of 0.09 A and power consumption of 1.08 W. The unit features a low-profile 10 mm depth housing constructed from UL 94V-0 rated thermoplastic PBT. It utilizes a 2-wire lead wire interface and a high-reliability sleeve bearing system designed for low-noise operation. The internal motor is a brushless DC design with impedance protection and auto-restart functionality.

MGA6012LR-010 Specifications
Model: MGA6012LR-010
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 60 x 60 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.2 to 13.8 VDC
Rated Current: 0.09 A
Input Power: 1.08 W
Rated Speed: 3500 RPM
Maximum Airflow: 14.2 CFM
Static Pressure: 2.1 mmH2O
Noise Level: 23.5 dBA
Bearing Type: Sleeve Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 2-Wire Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 25 g
Safety Approvals: UL, TUV, CE

MGA6012LR-010 Applications
Primary applications include integration into compact PC chassis, network switch enclosures, and industrial power supply units requiring low-profile thermal solutions. Deployed within medical diagnostic equipment, DVR surveillance systems, and small-form-factor embedded controllers for localized component cooling.
