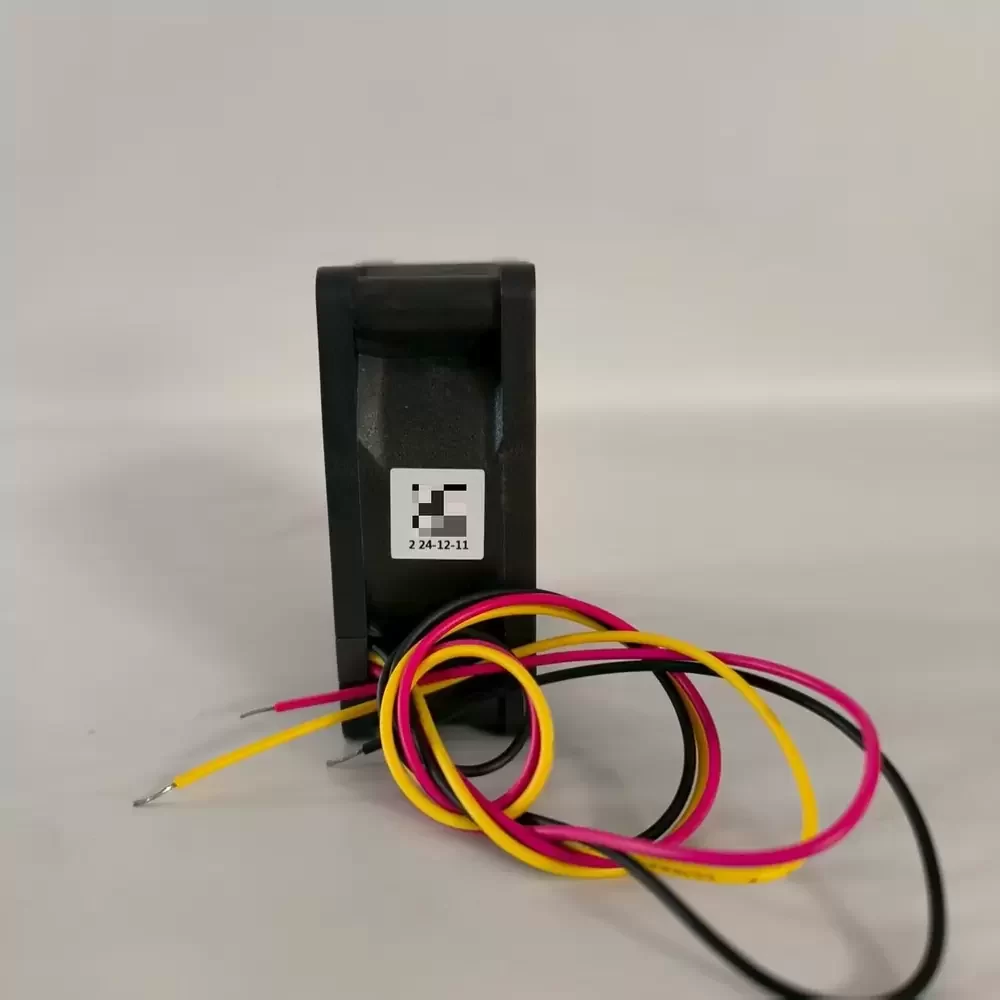

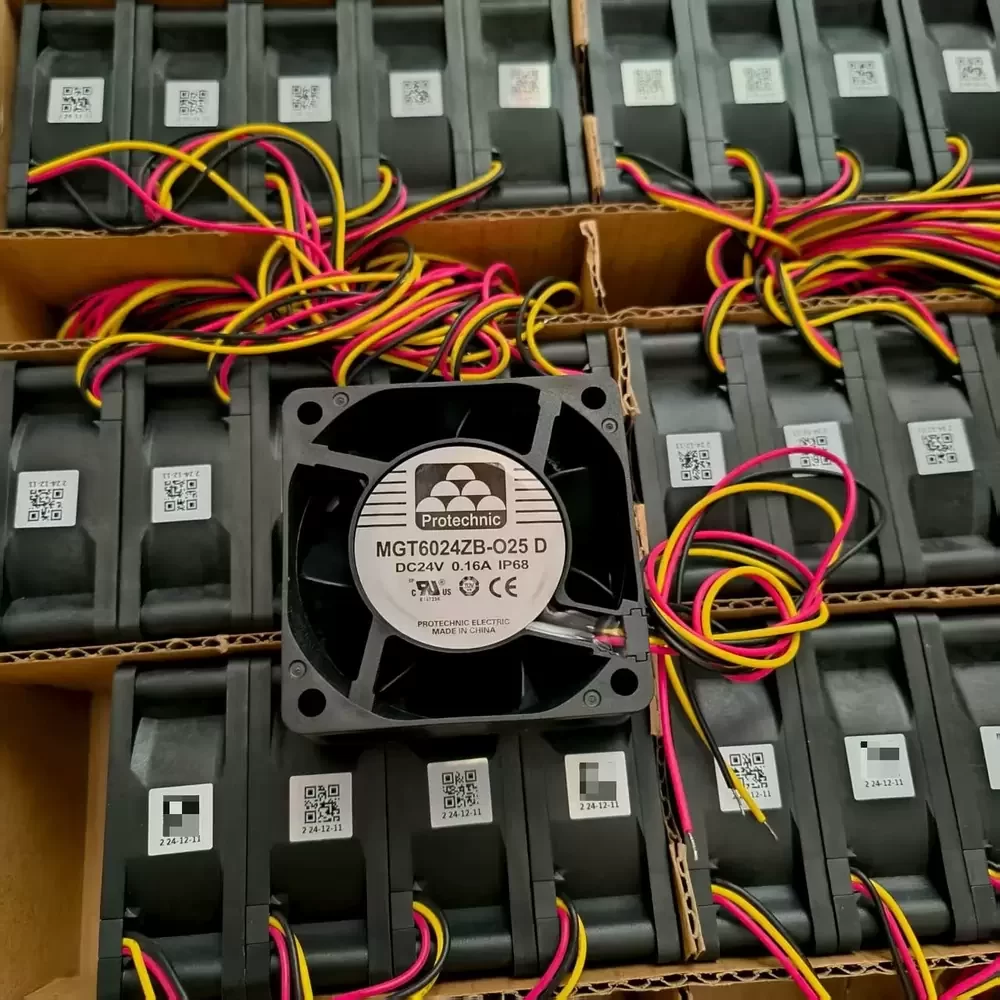

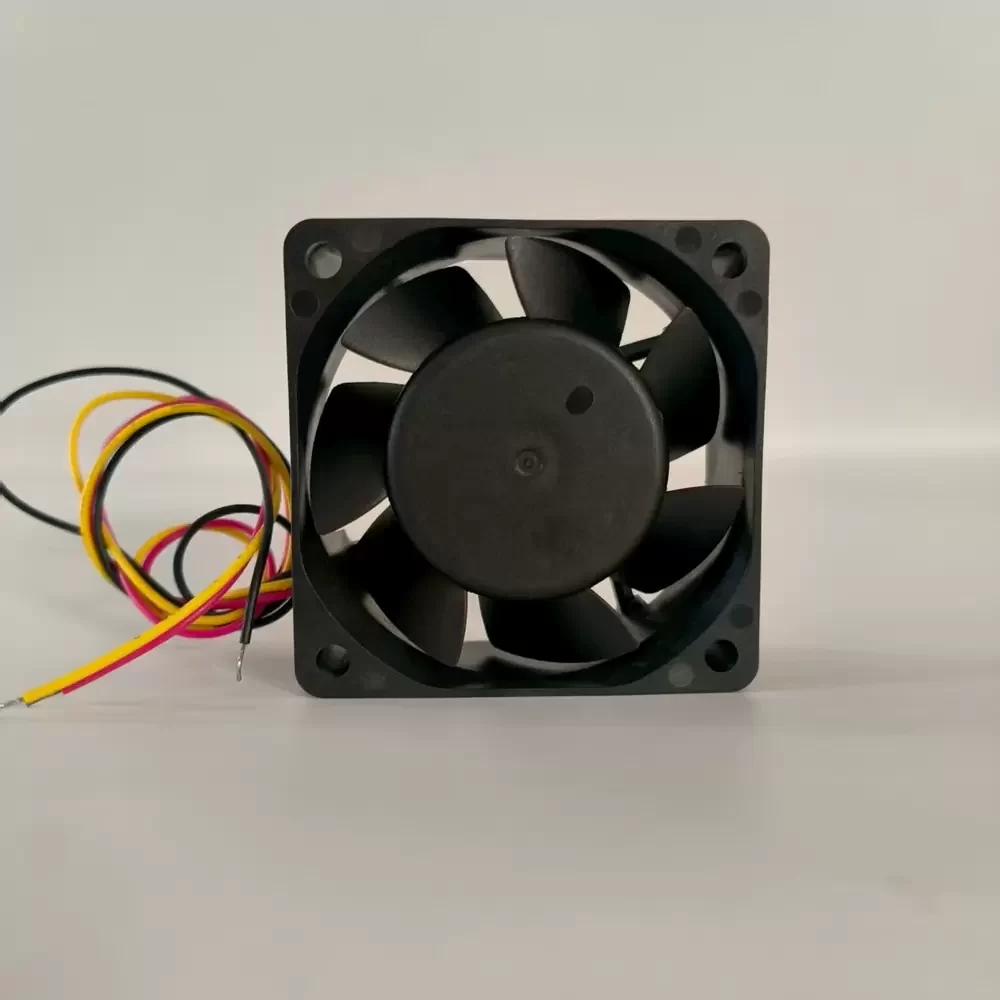

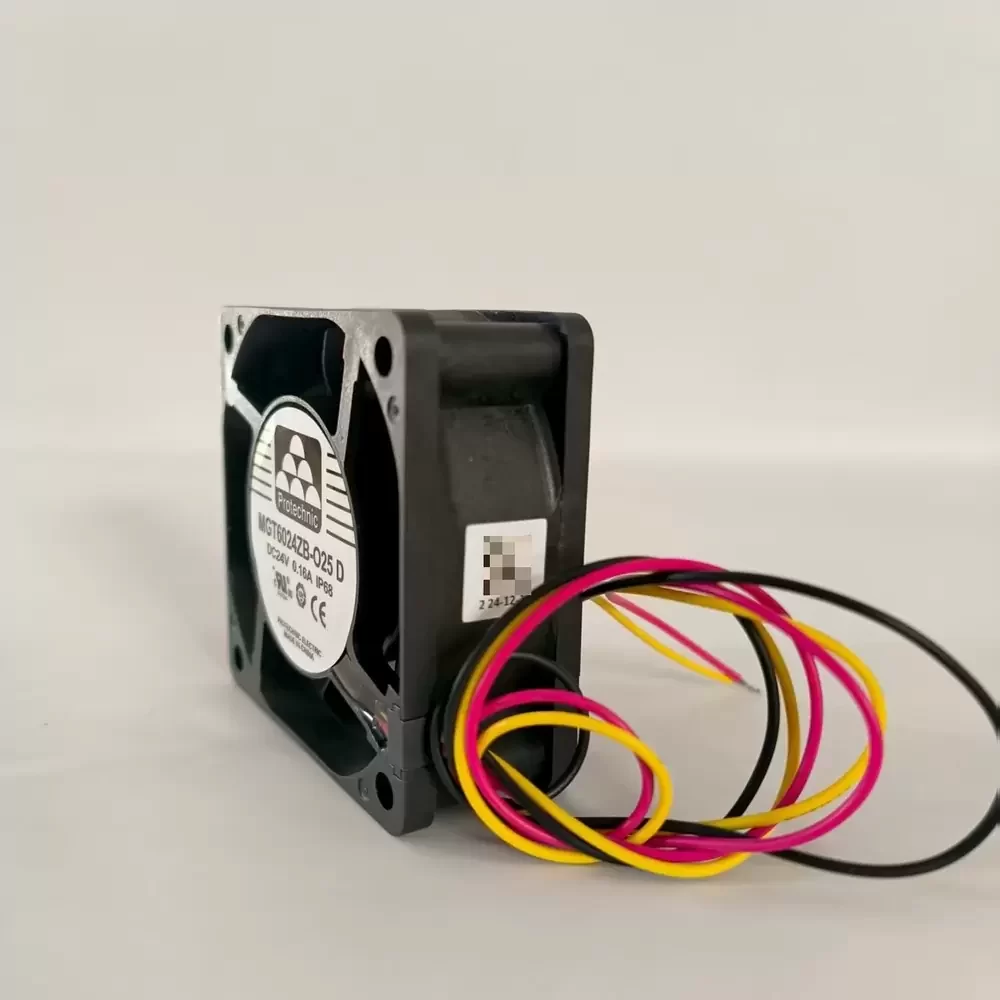

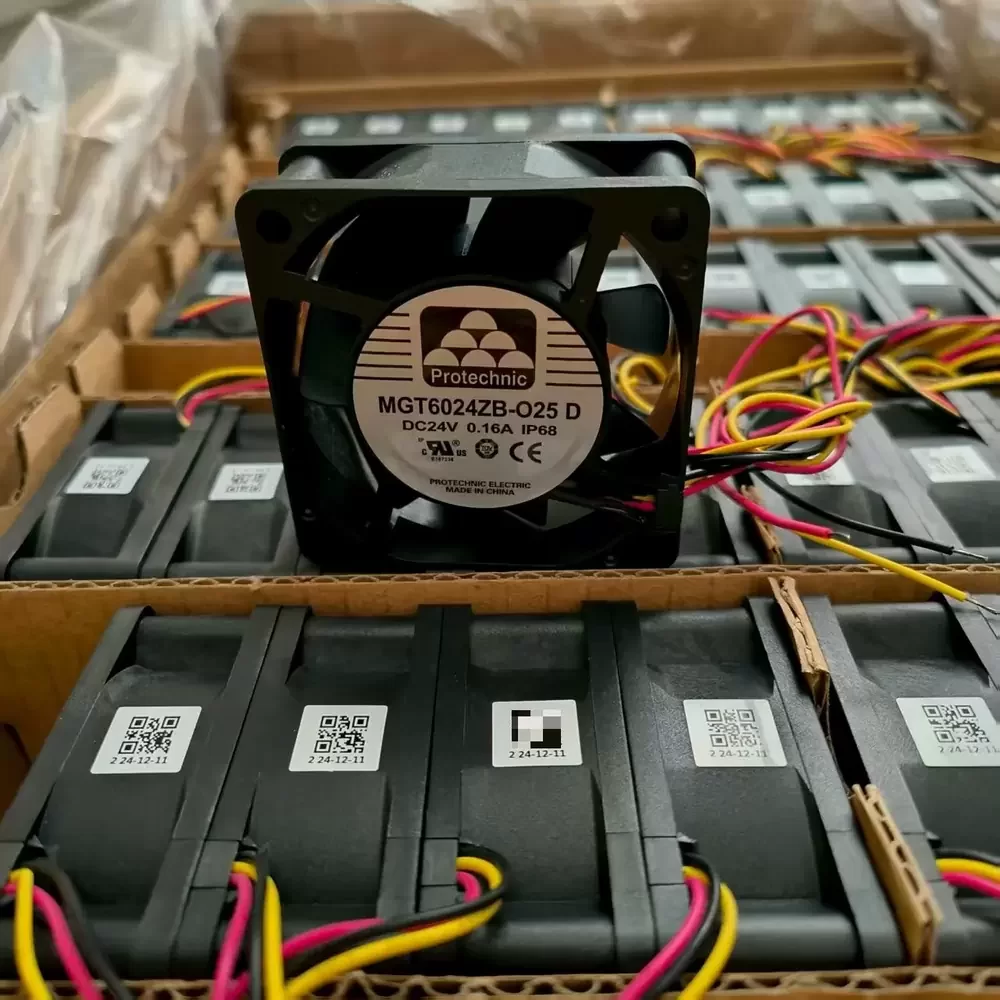

MGT6024ZB-O25D Protechnic 24VDC 60x60x25mm Axial Fan

Description

The Protechnic MGT6024ZB-O25D is a high-performance 60 x 60 x 25 mm axial cooling fan operating at a nominal 24 VDC with a rated current of 0.16 A. This industrial-grade component features a robust dual ball bearing system and a high-speed motor capable of delivering approximately 24.93 CFM of airflow. The unit is constructed with a UL 94V-0 rated PBT plastic frame and impeller, ensuring structural integrity under thermal stress. Its internal motor architecture includes automatic restart and locked current protection, while the IP68 rating provides complete protection against dust ingress and long-term immersion in water, making it suitable for demanding environmental conditions.

MGT6024ZB-O25D Specifications
Model Number: MGT6024ZB-O25D
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 to 27.6 VDC
Rated Current: 0.16 A
Input Power: 3.84 W
Rated Speed: 4800 RPM
Maximum Airflow: 24.93 CFM
Static Pressure: 0.268 inch H2O
Noise Level: 33.6 dB(A)
Bearing Type: Dual Ball Bearing
Ingress Protection: IP68
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Life Expectancy: 70,000 hours at 40 °C
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Weight: 63 g
Safety Approvals: UL, TUV, CE

MGT6024ZB-O25D Applications
Primary applications include integration into high-density server rack enclosures, industrial PLC control cabinets, and telecommunications base station power supplies. Deployed within CNC machine tool electronics and ruggedized outdoor inverter systems requiring IP68-rated moisture and dust resistance.
