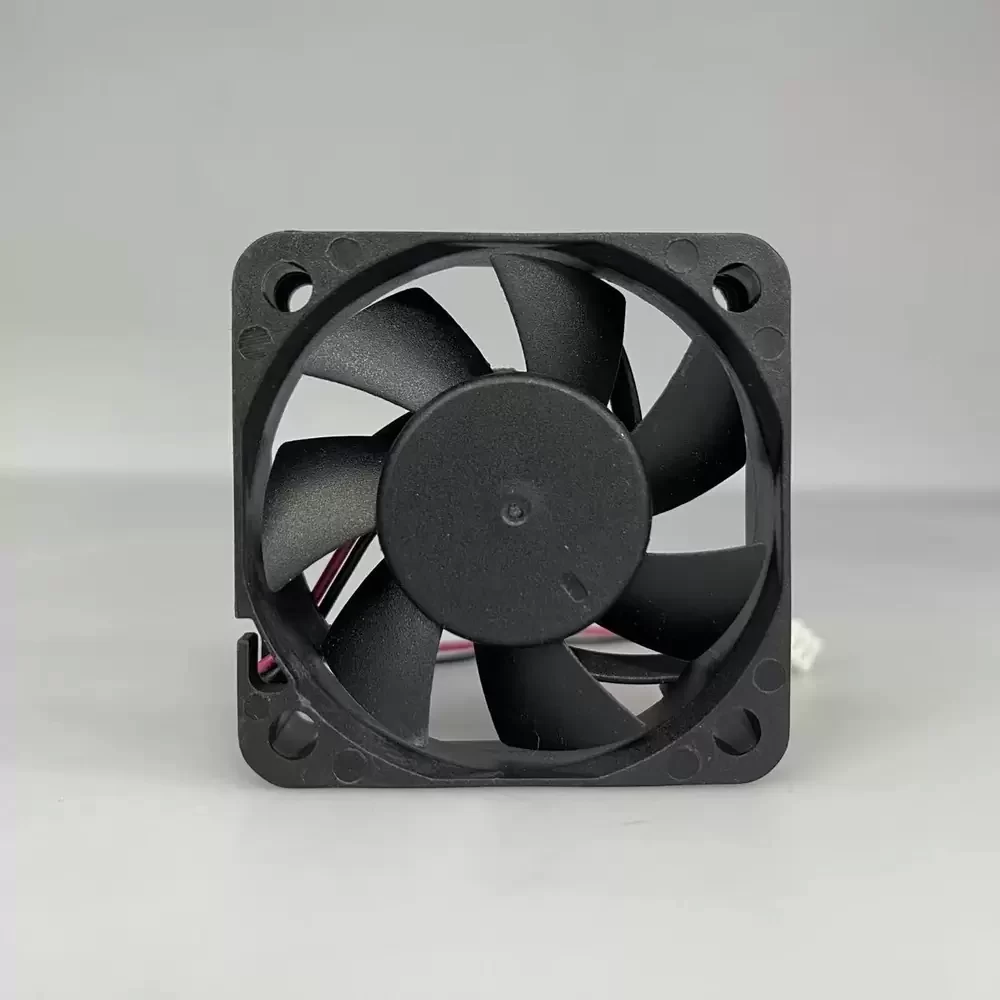

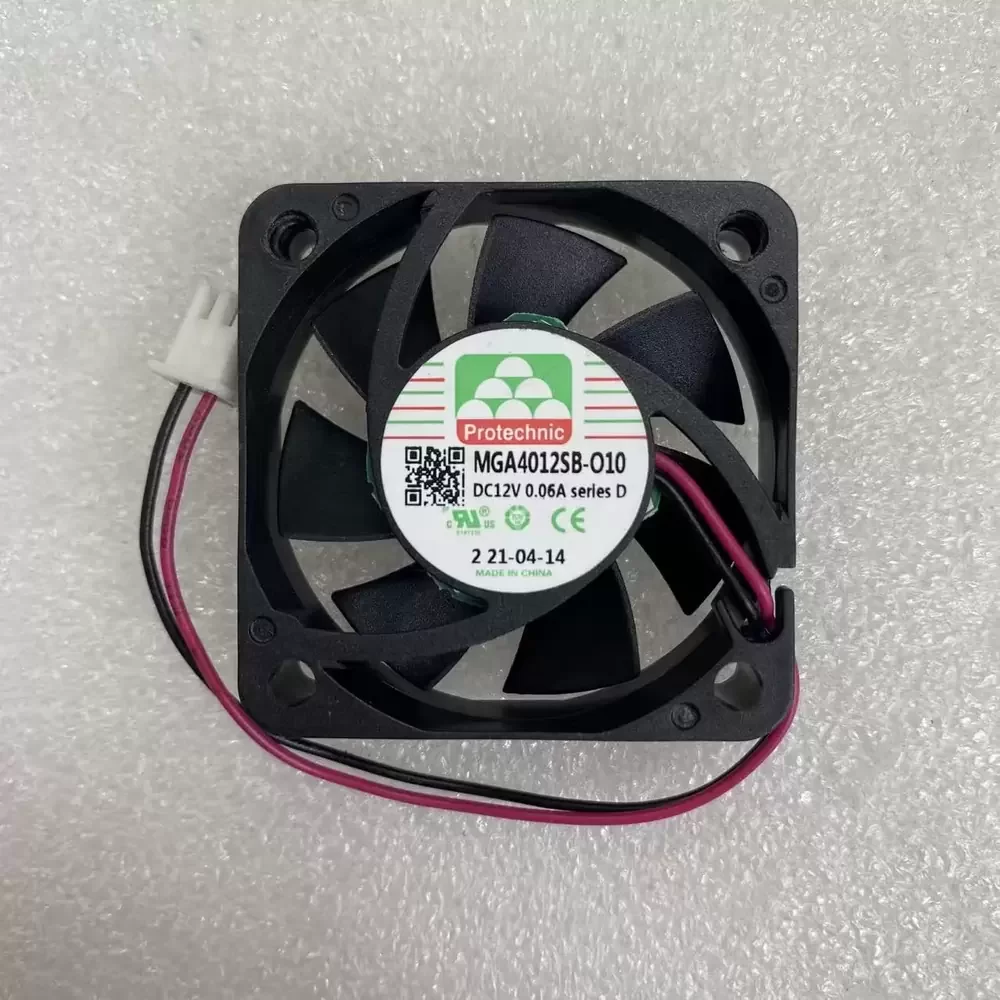

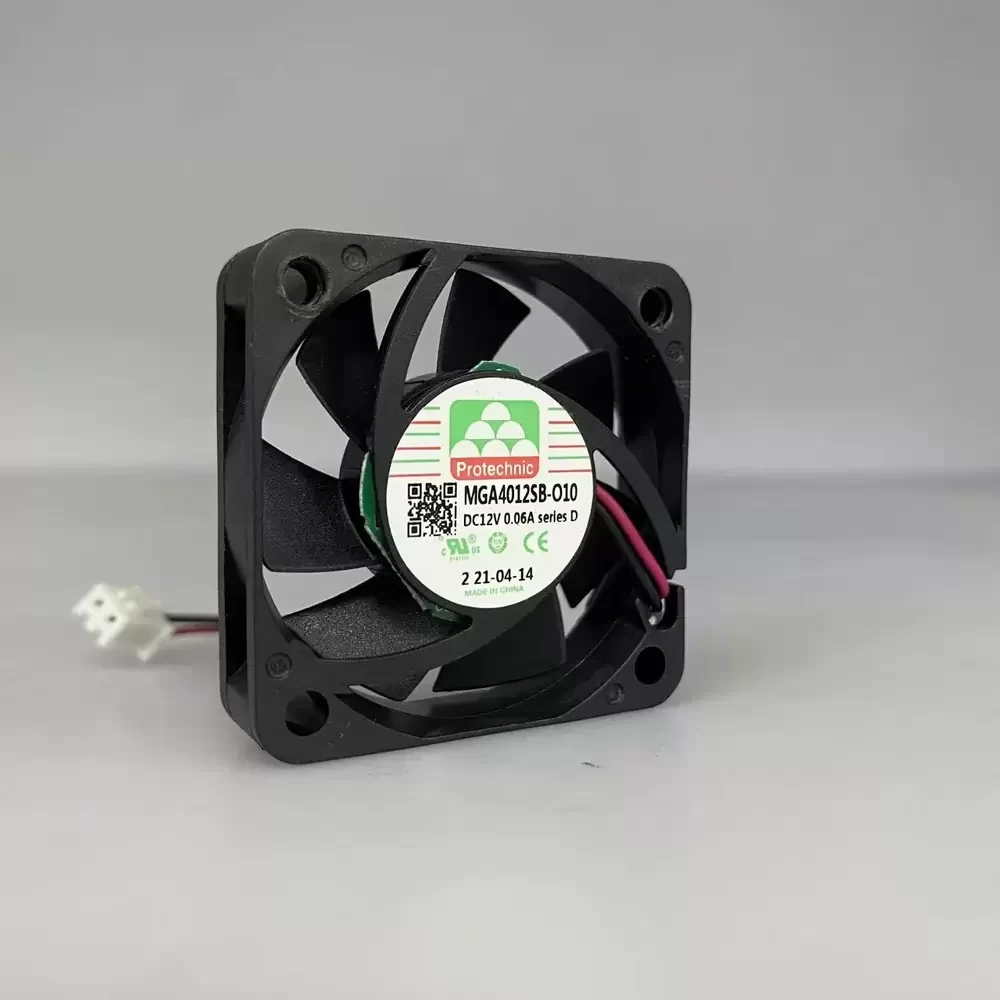

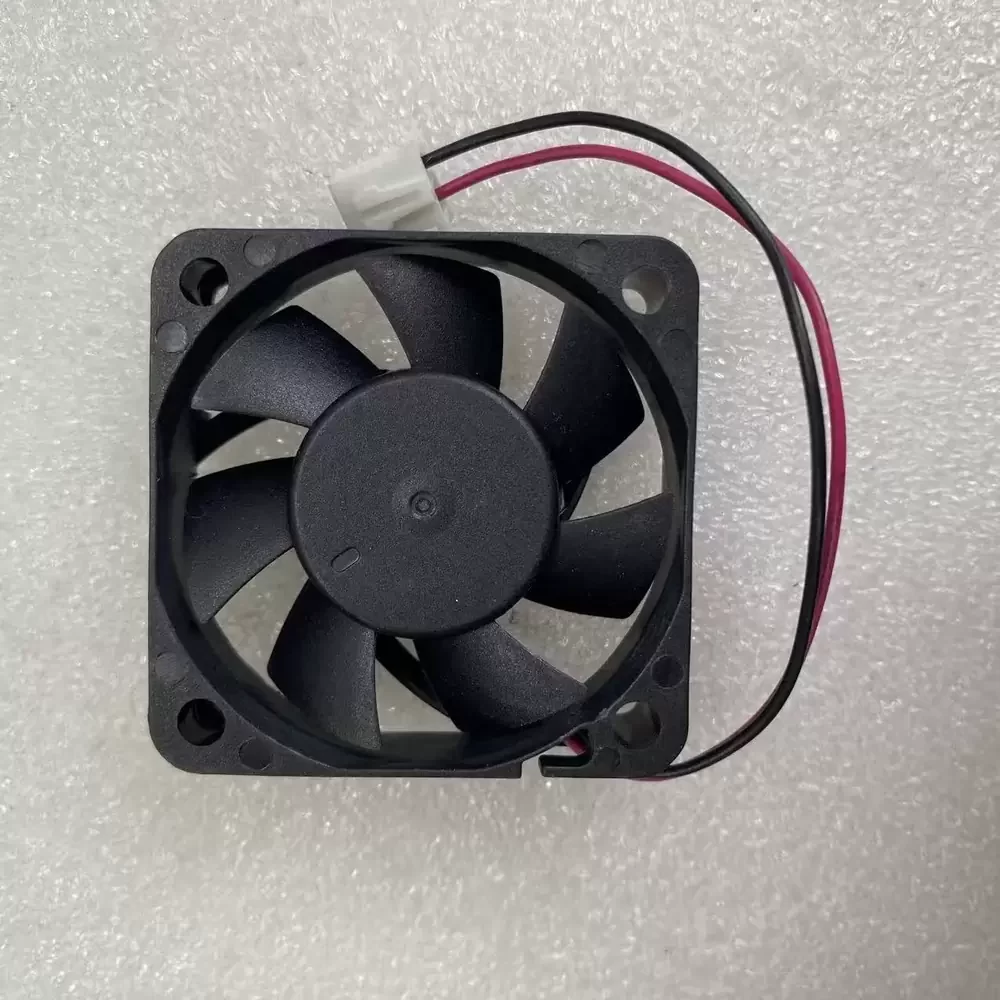

MGA4012SB-O10 Protechnic 12VDC 40x40x10mm Cooling Fan

Description

Protechnic MGA4012SB-O10 is a 40 x 40 x 10 mm axial cooling fan operating at 12 VDC with a 0.06 A current draw. It features a precision ball bearing system and a 2-wire interface for power connection. The housing and impeller are constructed from UL 94V-0 rated thermoplastic PBT. The internal motor utilizes a brushless DC design with auto-restart protection and polarity protection.

MGA4012SB-O10 Specifications
Model: MGA4012SB-O10
Brand: Protechnic
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.2 to 13.8 VDC
Rated Current: 0.06 A
Input Power: 0.72 W
Rated Speed: 5000 RPM
Maximum Airflow: 5.8 CFM
Static Pressure: 0.12 in H2O
Noise Level: 22 dBA
Bearing Type: Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 2-wire Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 15 g
Life Expectancy: 50,000 hours at 40 °C
Approvals: CE, TUV, UL

MGA4012SB-O10 Applications
Primary applications include integration into network switch enclosures, server power supply units, and compact desktop computer chassis. Deployed within telecommunications hardware and industrial control panels requiring localized thermal management for internal circuitry.
