Description

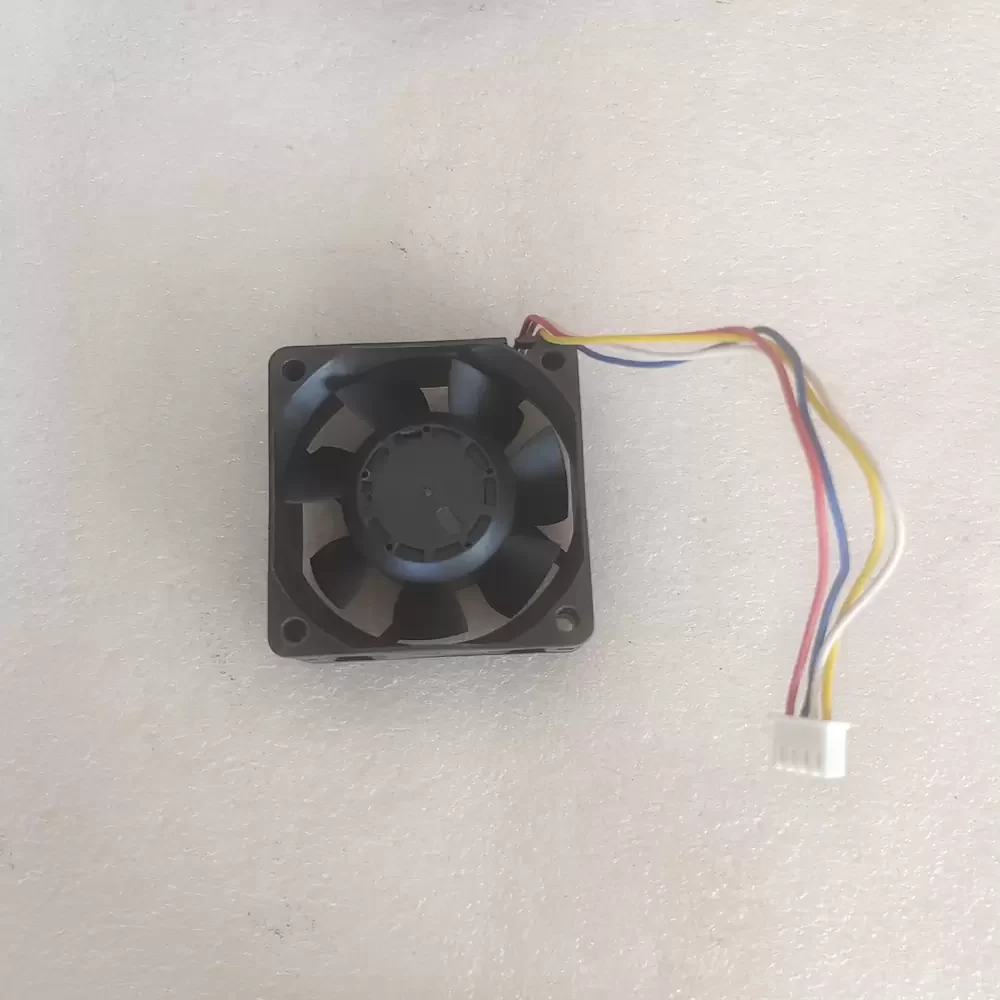

The AVC DATA0625B8H-P001 is a precision-engineered DC axial fan designed for high-reliability industrial and server cooling applications. Operating at a nominal 48VDC, this unit utilizes advanced double ball bearing architecture to ensure minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design is optimized to balance airflow against static pressure, effectively managing thermal impedance in dense electronic enclosures. Featuring a 4-wire interface, likely supporting PWM speed control and tachometer signal output, it allows for dynamic thermal management. The robust frame construction ensures structural rigidity, minimizing vibration-induced noise while maintaining consistent performance in demanding environments requiring efficient heat dissipation.
Model Number: DATA0625B8H-P001
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 56.0 VDC
Rated Current: 0.16 A
Power Consumption: 7.68 W
Dimensions: 60 x 60 x 25 mm
Bearing Type: Double Ball Bearing
Rated Speed: 6800 RPM
Max. Air Flow: 38.5 CFM (65.41 m³/h / 1.09 m³/min)
Max. Static Pressure: 14.2 mmH₂O (139.2 Pa / 0.56 inH₂O)
Noise Level: 44.5 dB(A)
Termination: 4-Wire Lead
Wire Function: Red (+), Black (-), Yellow (FG/Tach), Blue (PWM)
Frame Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP40
Safety Approvals: UL, CUL, TUV, CE
Weight: 68 g
The DATA0625B8H-P001 is specifically engineered for high-density server racks and telecommunications equipment where 48VDC power backplanes are standard. Its compact 60mm form factor allows the DATA0625B8H-P001 to fit seamlessly into 1U and 2U chassis, providing critical airflow to heatsinks and power supply units. Additionally, this model is suitable for industrial automation controllers, network switches, and rectifier modules requiring reliable, long-term thermal regulation.
