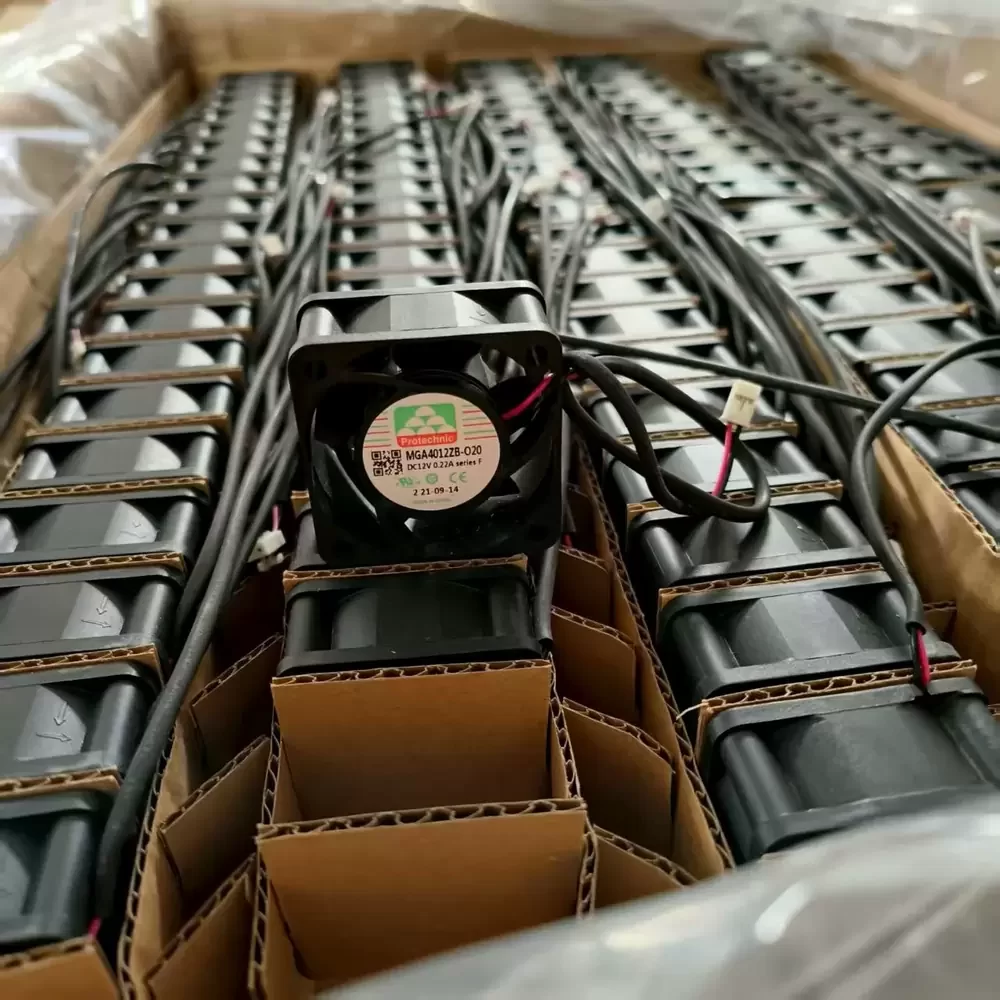

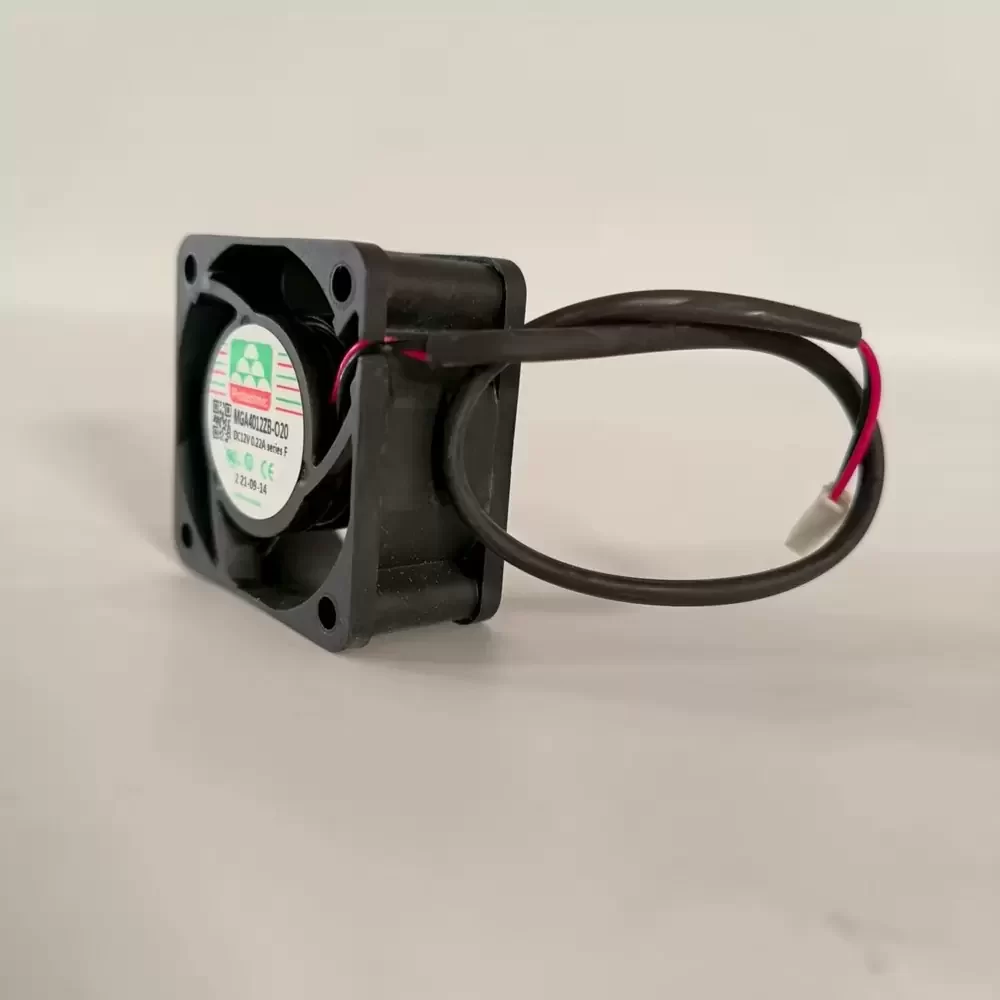

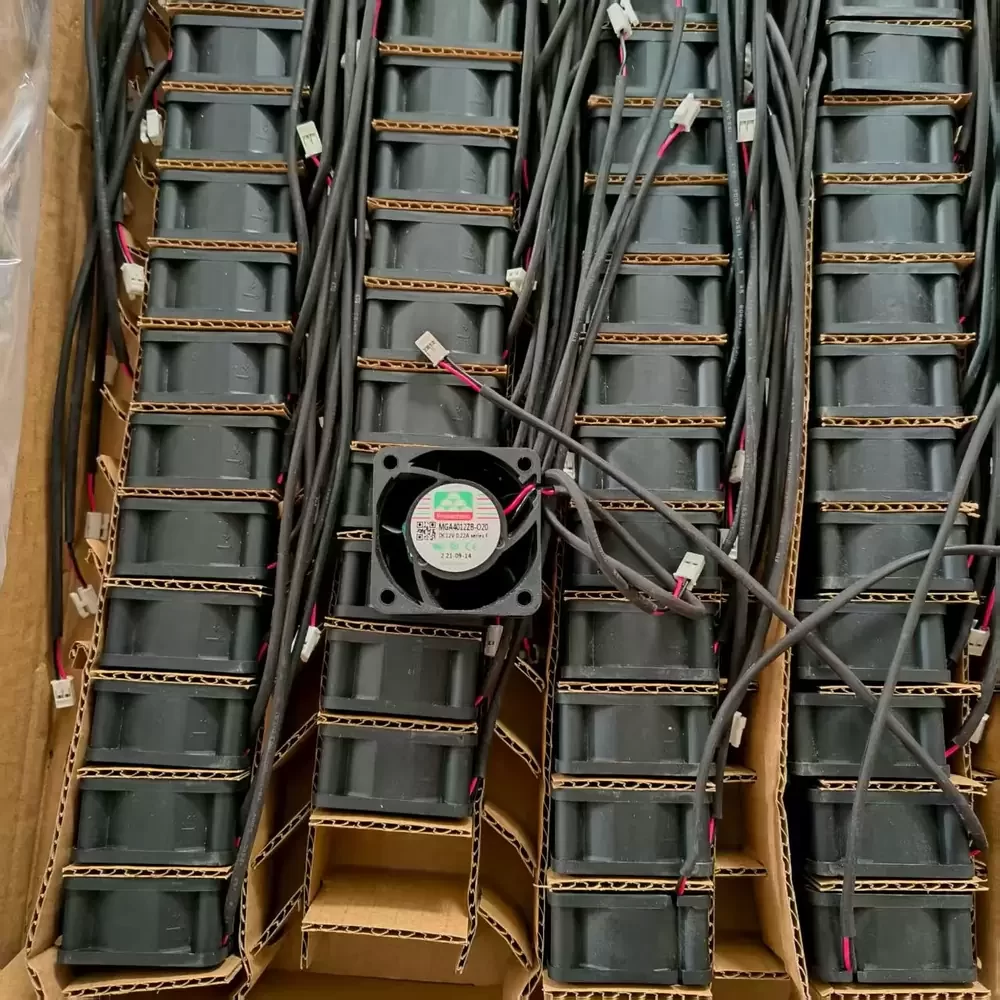

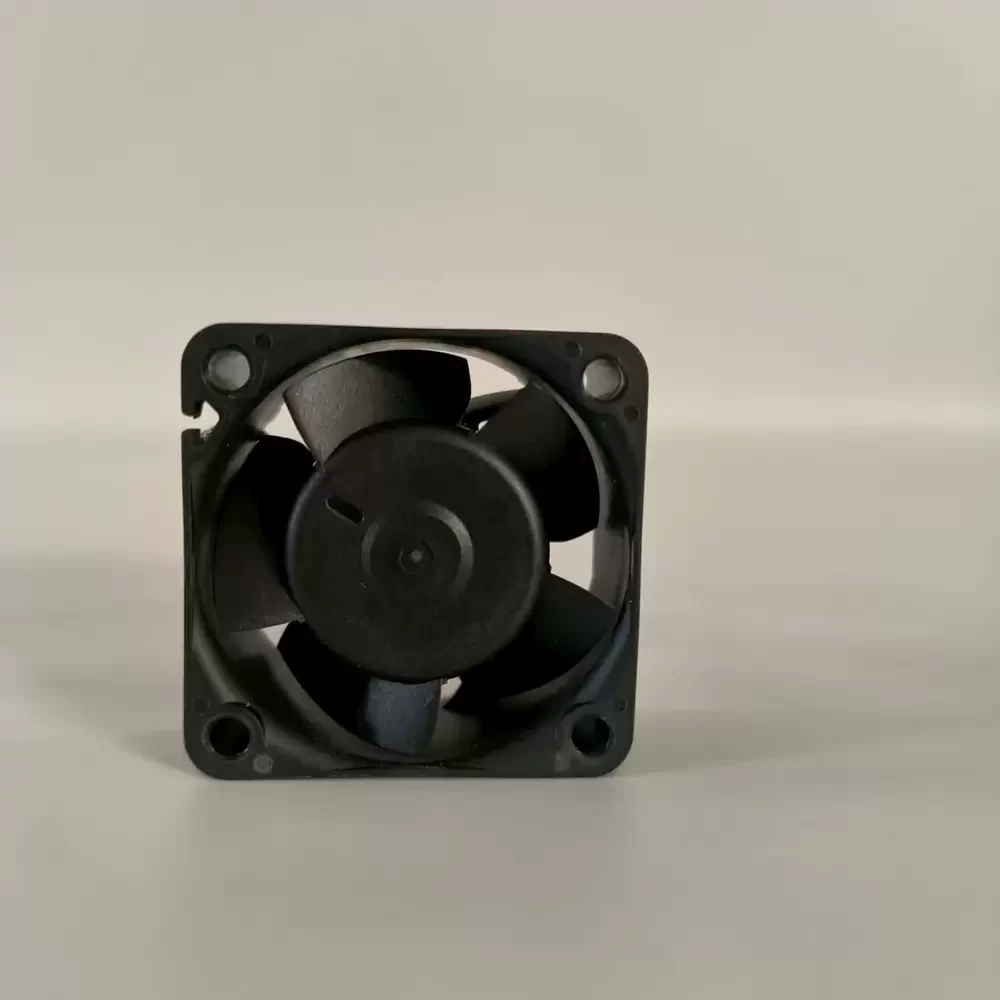

MGA4012ZB-O20 Protechnic 12VDC 0.22A 40x40x20mm Cooling Fan

Description

Protechnic MGA4012ZB-O20 40 x 40 x 20 mm 12 VDC 0.22 A 9.98 CFM axial cooling fan is a high-performance thermal management component. The unit features a robust dual ball bearing system and a 2-wire interface for simplified power connection. Constructed with UL 94V-0 rated thermoplastic PBT for both the frame and impeller, it incorporates internal mechanisms for automatic restart and locked current protection.

MGA4012ZB-O20 Specifications
Model Number: MGA4012ZB-O20
Brand: Protechnic (Magic)
Category: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12 VDC
Operating Voltage: 6.0 to 13.8 VDC
Rated Current: 0.22 A
Input Power: 2.64 W
Airflow: 9.98 CFM
Bearing Type: Dual Ball Bearing
Material: PBT Plastic (UL 94V-0)
Termination: 2-Wire (Red/Black)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Life Expectancy: 70,000 hours at 40 °C
Protection: Locked Rotor Protection, Auto Restart
Certifications: UL, TUV, CE

MGA4012ZB-O20 Applications
Primary applications include integration into server chassis, industrial power supply units, and telecommunications networking hardware. Deployed within compact electronic enclosures and high-density rack-mount equipment requiring consistent thermal management.
