Description

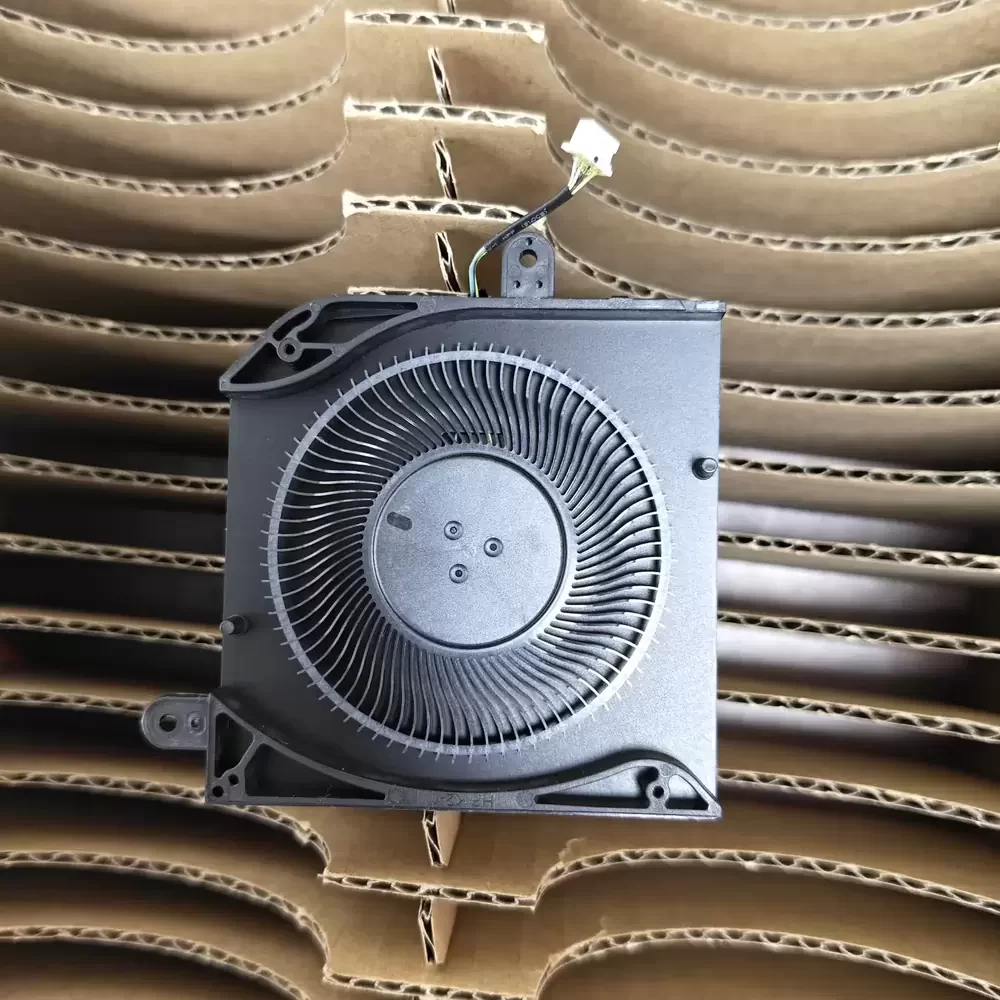

SUNON EG50050S1-CJ02-S9A is a 5VDC 50mm Blower optimized for high-density thermal management in ultra-compact mobile computing environments. Engineered specifically for the Dell Latitude 5430 integrated ADL cooling module, this blower utilizes advanced DC brushless motor technology to minimize thermal impedance within restricted airflow paths. The aerodynamic impeller design is balanced to maintain structural rigidity at high rotational speeds, ensuring consistent 4.4CFM throughput. Operating at a rated current of 0.40A, this unit provides the necessary static pressure to overcome the internal resistance of dense heat pipe fins, effectively preventing thermal throttling in professional-grade laptops.
Model Number: EG50050S1-CJ02-S9A
Brand: SUNON
Product Type: Blower (Centrifugal Fan)
Rated Voltage: 5 VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.40 A
Power: 2.0 W
Max. Air Flow: 4.4 CFM
Dimensions: 50 x 50 x 5 mm
Bearing Type: MagLev / Vapo Bearing System
Termination: 4-Pin Connector
Speed Control: PWM (Pulse Width Modulation)
Feedback: Tachometer / Frequency Generator
Part Number: 0KRX8F
Compatibility: Dell Latitude 5430 Series
Material: UL94V-0 Thermoplastic PBT
Protection: Auto-Restart, Locked Rotor Protection
EG50050S1-CJ02-S9A Applications
1. Dell Latitude 5430 ADL Thermal Modules: Direct replacement fan designed to match the specific pressure-to-flow curve required for Alder Lake processor cooling in slim-chassis laptops.
2. Ultra-Thin Mobile Workstations: Ideal for overcoming high system impedance in 5mm height-restricted enclosures where traditional axial fans cannot provide sufficient directional airflow.
