Description

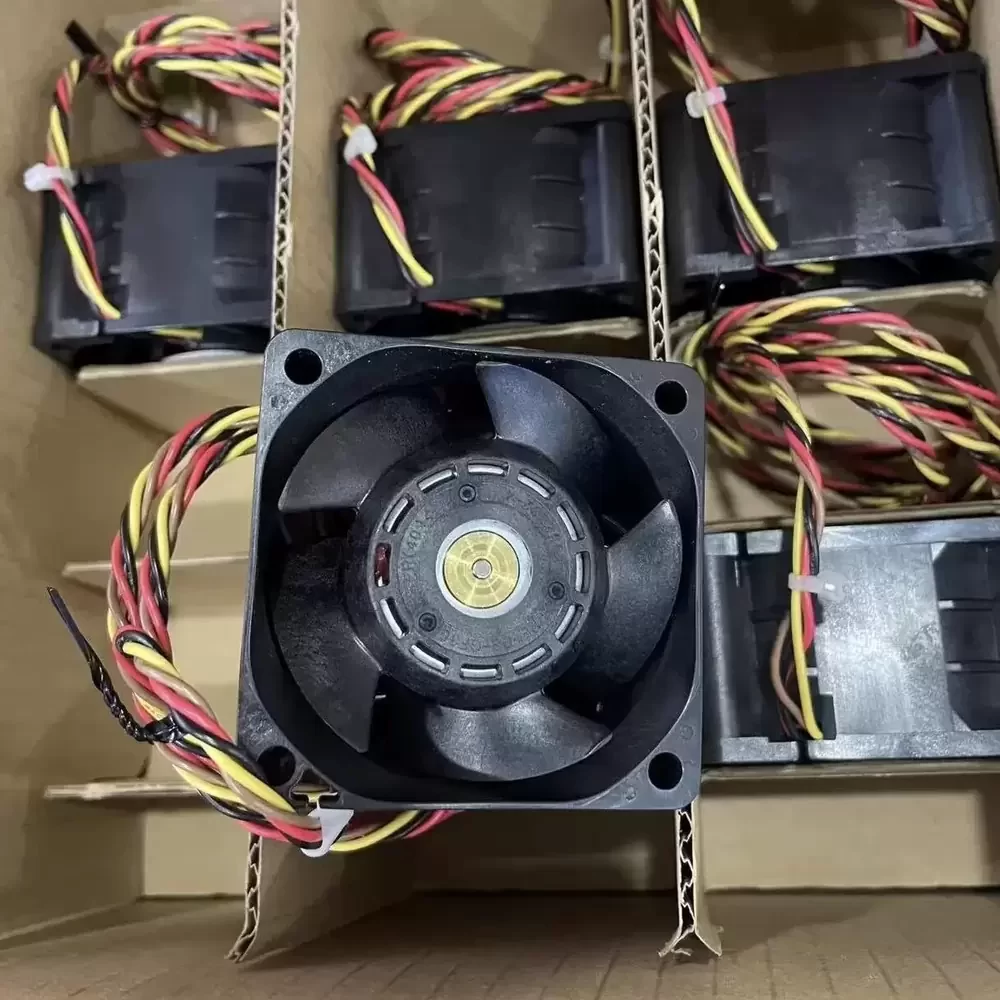

The Sanyo Denki 9HV0612P1J006 is a high-static pressure DC Axial Fan engineered for mission-critical cooling applications requiring exceptional airflow density and aerodynamic efficiency. Part of the elite San Ace 60 9HV series, this unit features a specialized impeller and frame design that significantly reduces thermal impedance while maintaining structural rigidity under high-velocity operation. Utilizing a precision dual ball bearing architecture, it ensures long-term reliability and consistent rotational stability. The integrated PWM control functionality allows for dynamic speed modulation, optimizing the balance between acoustic performance and cooling capacity in demanding industrial environments.
Model Number: 9HV0612P1J006
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 60 (9HV Type)
Rated Voltage: 12VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 2.7 A
Power Consumption: 32.4 W
Rated Speed: 17500 RPM
Max. Air Flow: 67.4 CFM (1.91 m³/min)
Max. Static Pressure: 1000 Pa (4.02 inH₂O)
Dimensions: 60 x 60 x 38 mm
Bearing Type: Dual Ball Bearing
Noise Level: 64.0 dB(A)
Life Expectancy: 40,000 Hours (at 60°C)
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (RPM Sensor)
Termination: 4-Wire Lead
Frame Material: Plastics (Flammability: UL94V-0)
Impeller Material: Plastics (Flammability: UL94V-0)
Operating Temperature: -20 to +70 °C
Mounting Orientation: Any
Ingress Protection: Standard
The 9HV0612P1J006 is specifically optimized for high-density electronic enclosures where back pressure is a significant factor, such as 1U and 2U server racks, RAID arrays, and telecommunications equipment. Its compact 60mm form factor combined with extreme static pressure capabilities makes the 9HV0612P1J006 an ideal solution for forced-air cooling in precision medical devices, industrial power supplies, and high-performance network switches.
