Description

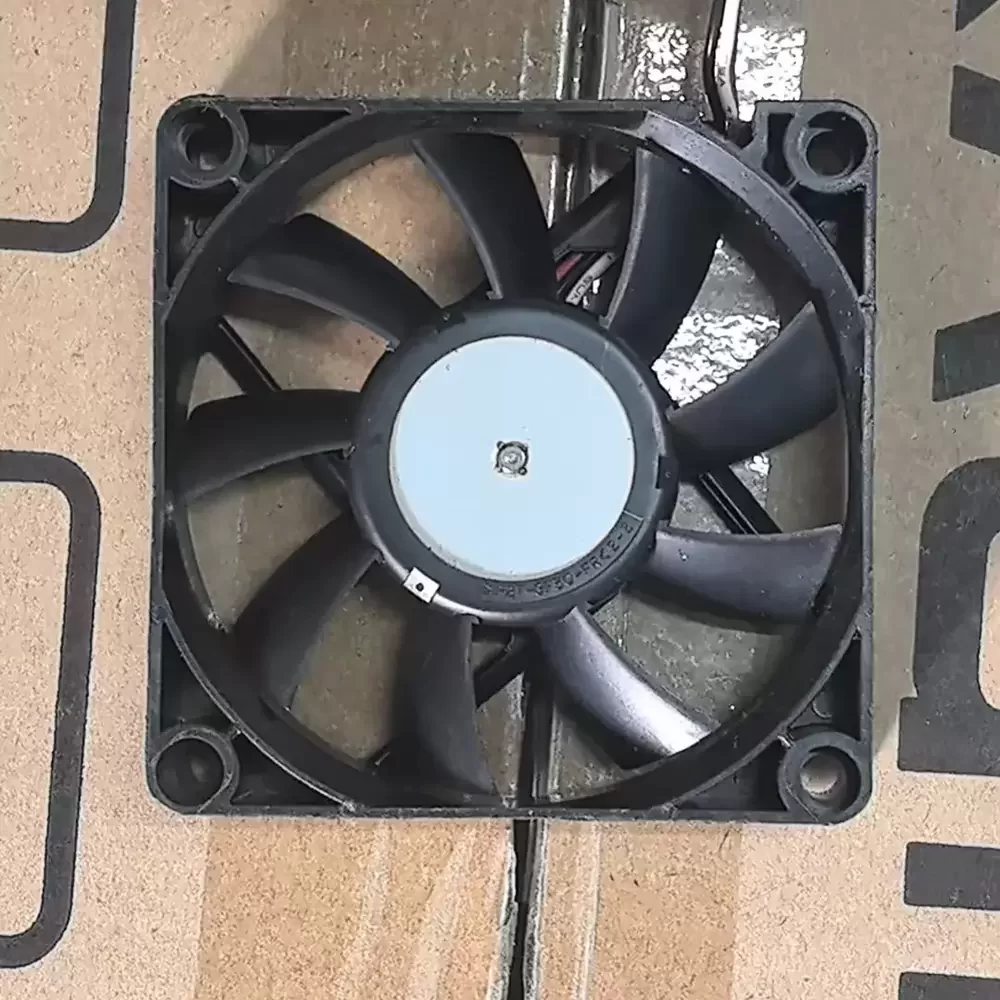

NMB 2806KL-04W-B39 features a 70 mm x 70 mm x 15 mm physical footprint, operates at a nominal 12 VDC with a 0.17 A current draw, and delivers a primary output of 25.5 CFM. The structural assembly utilizes a durable plastic frame and impeller, housing a maintenance-free dual ball bearing mechanism designed for a 60,000-hour life expectancy at 25 °C. Performance metrics include a power consumption of 2.04 W, a rotational speed of 3600 RPM, and a static pressure rating of 33.0 Pa, while generating 33.0 dBA of acoustic noise. The electrical interface is configured with a 3-wire, 3-pin connector that provides tachometer output for precise speed monitoring.
2806KL-04W-B39 Specifications
Model Number: 2806KL-04W-B39
Brand: NMB Technologies
Product Category: DC Axial Fan
Frame Dimensions: 70 mm x 70 mm x 15 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 6.0 VDC to 13.8 VDC
Nominal Current: 0.17 A
Input Power: 2.04 W
Rotational Speed: 3600 RPM
Maximum Airflow: 25.5 CFM
Maximum Static Pressure: 33.0 Pa
Acoustic Noise Level: 33.0 dBA
Bearing System: Double Ball Bearing
Termination: 3-Wire Leads with 3-Pin Connector
Sensor Output: Tachometer
Life Expectancy: 60,000 Hours at 25 °C
Frame Material: Plastic
Impeller Material: Plastic
Mass: 60 g
Motor Type: Brushless DC Motor
2806KL-04W-B39 Applications
Primary applications include integration into projector cooling systems, server power supplies, and CPU thermal management modules. Deployed within industrial control panels, networking devices, and telecommunications equipment to maintain optimal operating temperatures for sensitive electronic components.
