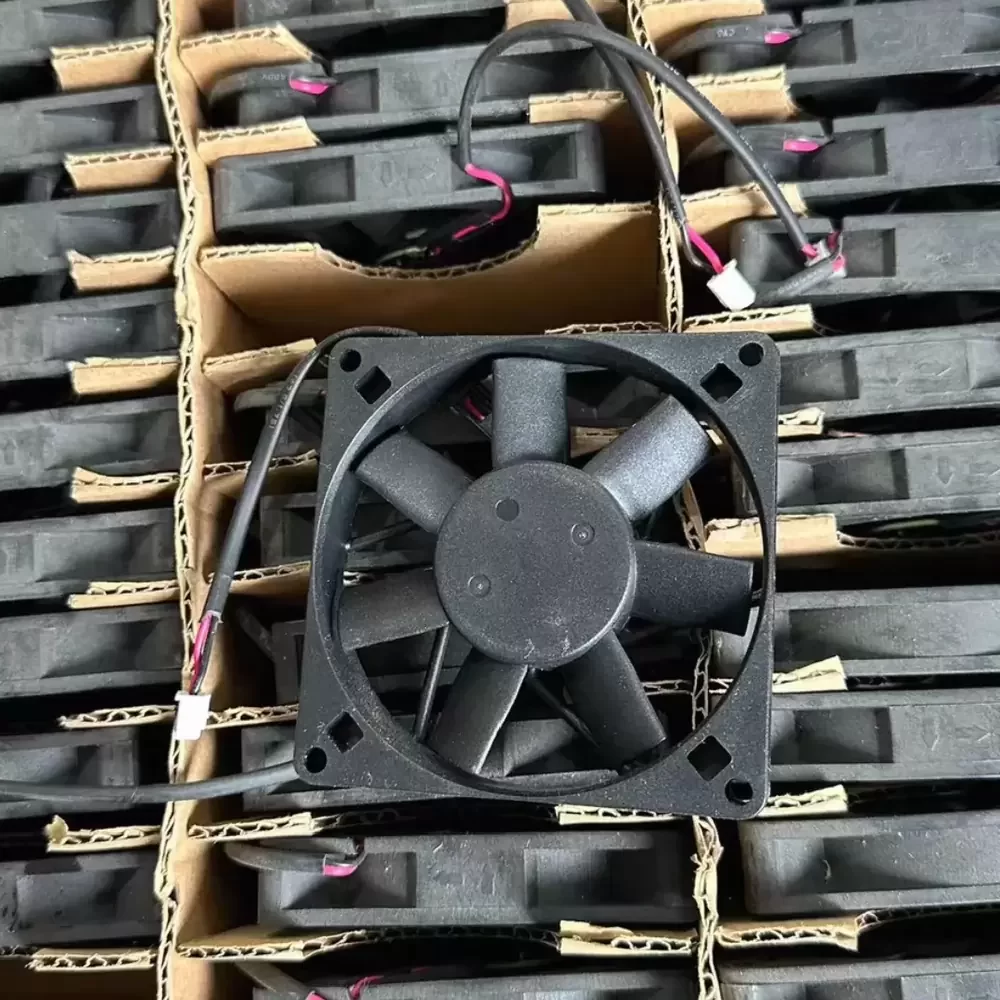

AD0812VB-D71 ADDA 12VDC 0.40A 80x80x15mm Axial Fan

Description

ADDA AD0812VB-D71 80 x 80 x 15 mm axial cooling fan operating at 12 VDC with a 0.40 A nominal current draw. The unit is constructed with a UL94V-0 rated plastic frame and impeller, utilizing a precision ball bearing system for extended operational longevity. It interfaces via a standard 2 wire UL1007 AWG 24 lead configuration, providing efficient thermal dissipation within a compact 63 g form factor.

AD0812VB-D71 Specifications
Model Number: AD0812VB-D71
Brand: ADDA
Product Category: DC Axial Cooling Fan
Nominal Voltage: 12 VDC
Rated Current: 0.40 A
Dimensions: 80 x 80 x 15 mm
Bearing Type: Ball Bearing
Connection Type: 2 Wires
Wire Gauge: UL1007 AWG 24
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 63 g
Life Expectancy: 70,000 Hours
Motor Protection: Impedance / Polarity Protected
Safety Approvals: CE, UL, cUL, TUV

AD0812VB-D71 Applications
Primary applications include integration into compact power supply units, telecom base station enclosures, and industrial control panels. Deployed within CNC machinery control boxes and automated test equipment where space-constrained heat dissipation is required.
