Description

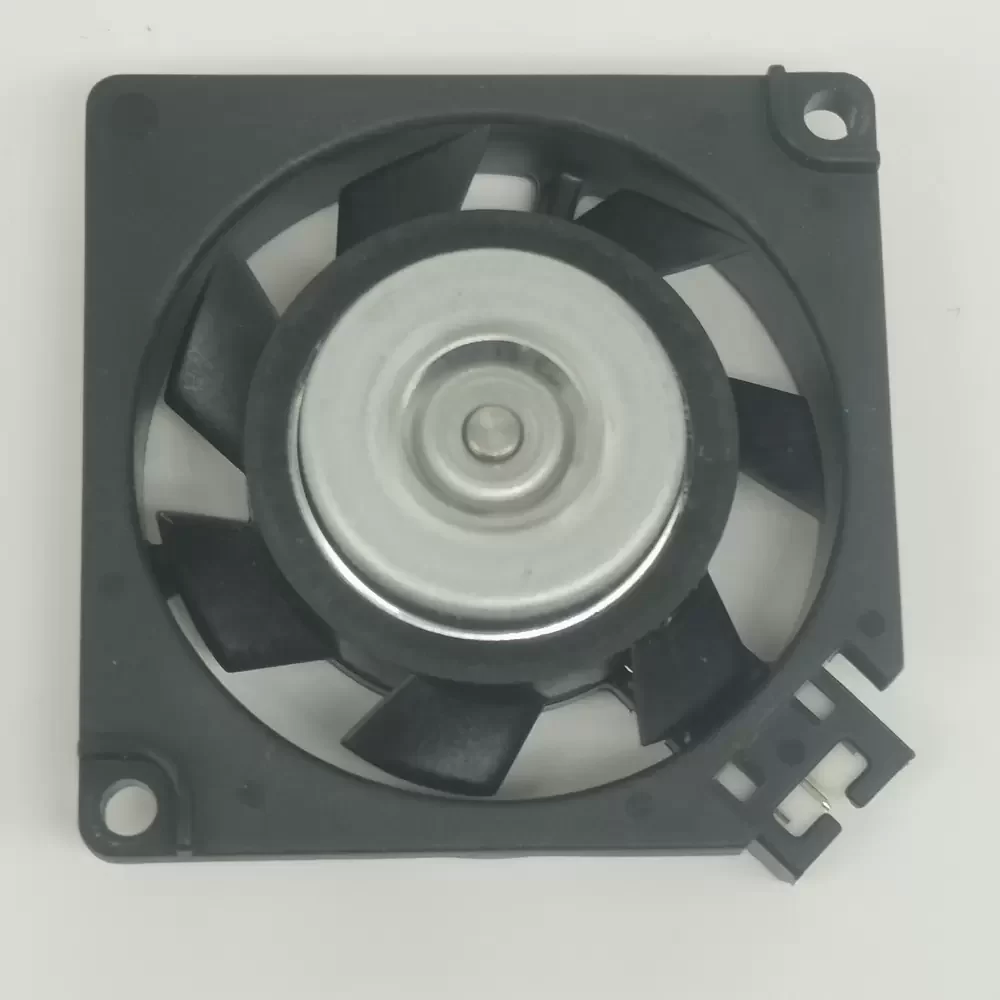

The Sanyo Denki 109P4405H8016 is a precision-engineered Axial Fan designed for high-density electronic cooling applications. Part of the renowned San Ace series, this unit utilizes a highly efficient DC motor architecture coupled with a robust dual ball bearing system to ensure operational longevity and reduced thermal impedance. The aerodynamic blade geometry is optimized to deliver consistent airflow while maintaining structural rigidity under continuous operation. Engineered for reliability, the 109P4405H8016 provides superior thermal management for sensitive components requiring stable 5VDC power input.
Model Number: 109P4405H8016
Brand: Sanyo Denki
Series: San Ace 40 (109P Type)
Product Type: DC Axial Fan
Rated Voltage: 5 VDC
Operating Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.14 A
Input Power: 0.70 W
Rated Speed: 6800 RPM
Max. Air Flow: 7.4 CFM (0.21 m³/min)
Max. Static Pressure: 4.9 mmH₂O (48 Pa)
Dimensions: 40 x 40 x 28 mm
Bearing Type: Dual Ball Bearing
Noise Level: 28 dBA
Frame Material: Plastics (UL94V-0)
Impeller Material: Plastics (UL94V-0)
Motor Protection: Current Blocking Function, Reverse Polarity Protection
Insulation Resistance: 10M Ohms min. at 500VDC
Dielectric Strength: 500VAC for 1 minute
Operating Temperature: -10 to +70 Degrees Celsius
Storage Temperature: -30 to +70 Degrees Celsius
Life Expectancy: 40,000 Hours (60C) / 70,000 Hours (40C)
Termination: Lead Wire (Red +, Black -, Yellow Sensor)
Weight: 50 g
The 109P4405H8016 is frequently integrated into compact industrial enclosures, medical instrumentation, and telecommunications equipment where space is at a premium. Its compact 40mm form factor allows the 109P4405H8016 to be mounted in high-density server racks and power supply units, ensuring critical components remain within safe thermal operating limits during continuous duty cycles.
