Description

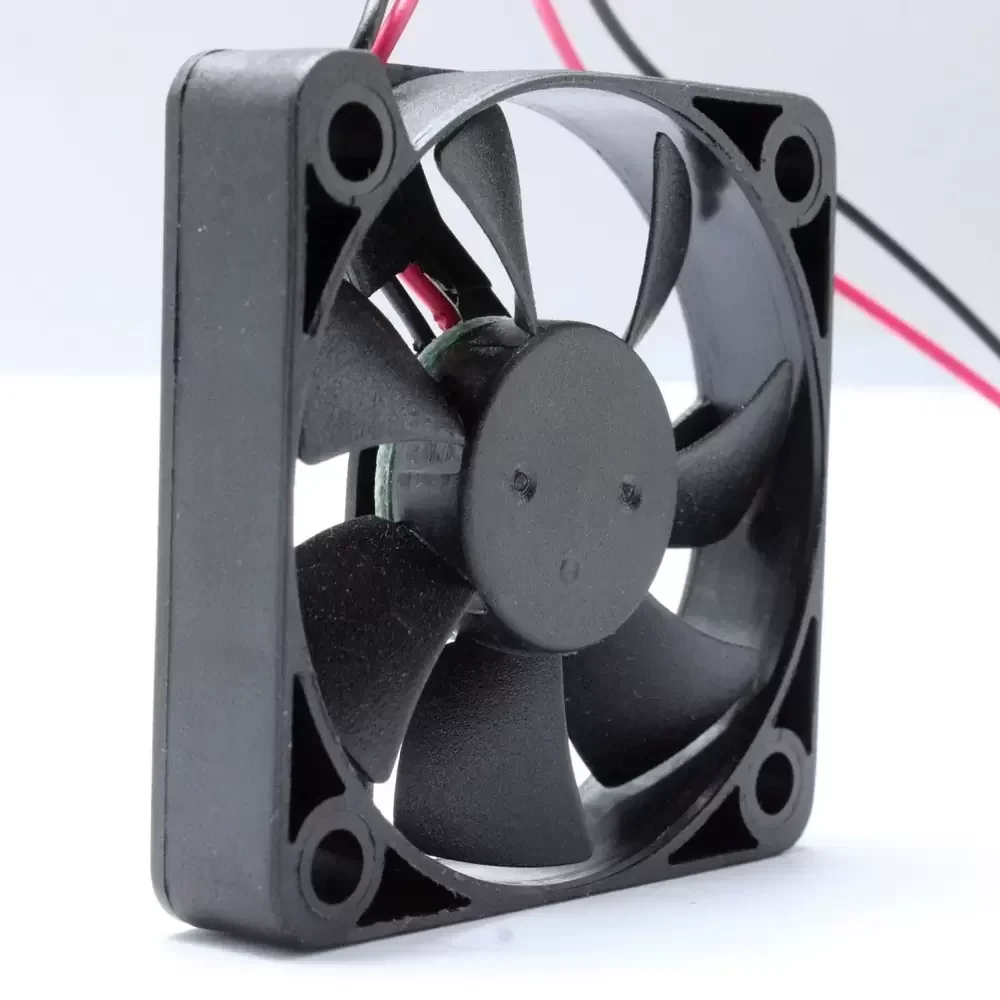

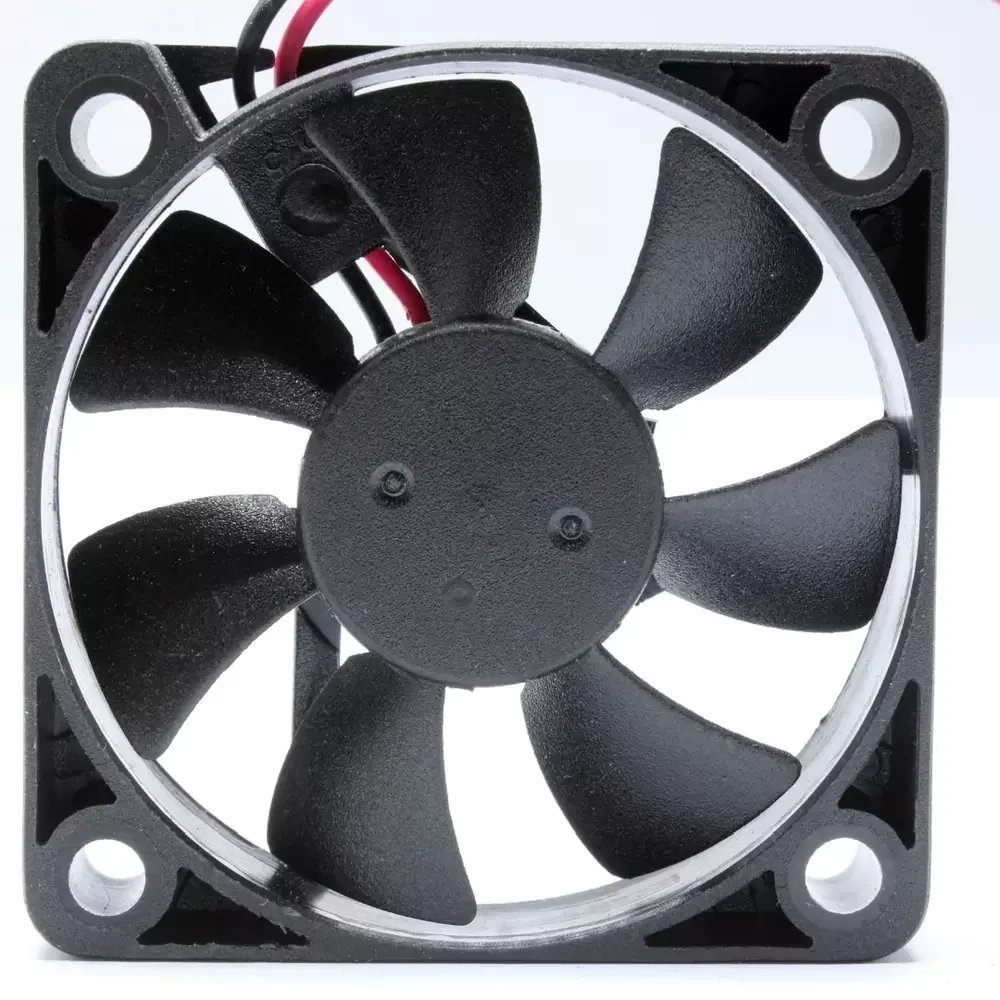

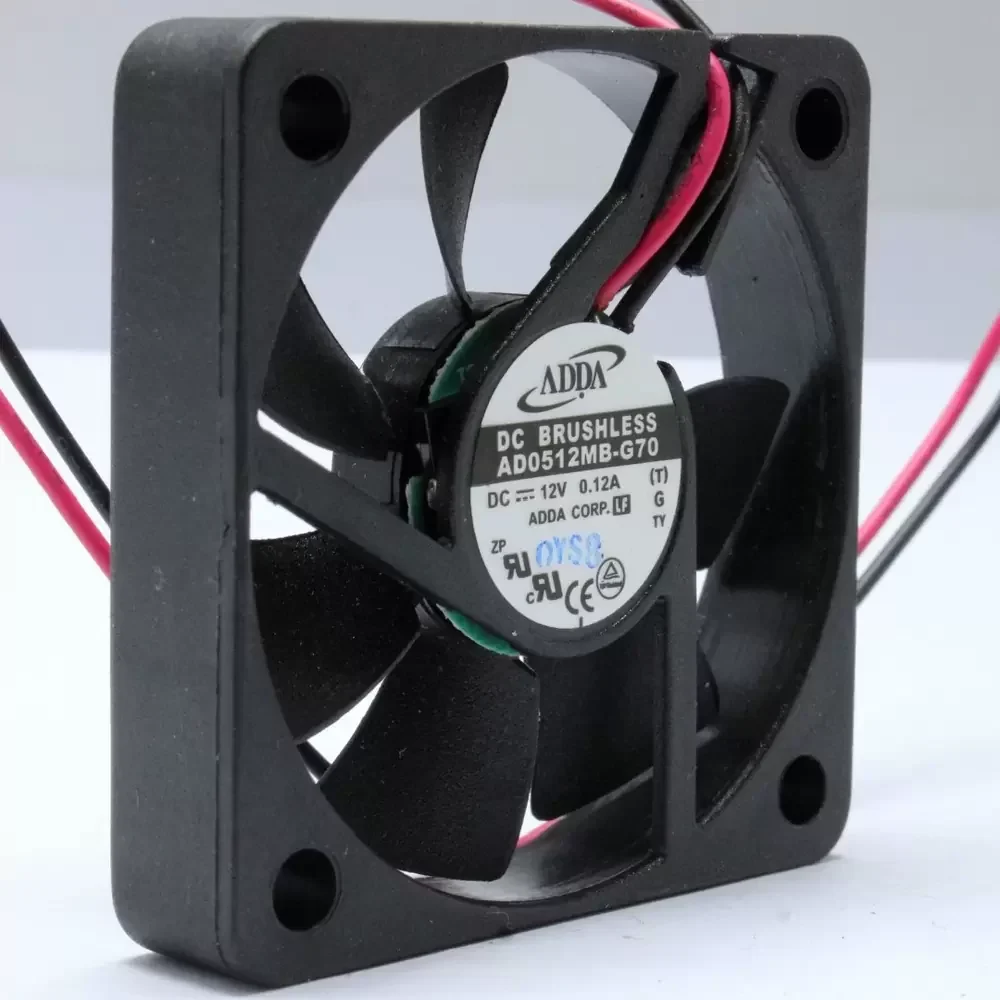

The ADDA AD0512MB-G70 is a precision-engineered DC axial fan designed for applications requiring reliable thermal management within compact spatial constraints. Utilizing an advanced brushless DC motor architecture paired with a robust double ball bearing system, this unit ensures minimal friction and extended operational longevity compared to sleeve bearing alternatives. The aerodynamic impeller design optimizes airflow efficiency while maintaining a low acoustic profile, effectively reducing thermal impedance in sensitive electronic assemblies. Constructed with high-grade PBT thermoplastic, the housing offers superior structural rigidity and flame resistance, making it suitable for continuous industrial operations.
Model Number: AD0512MB-G70
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.12 A
Input Power: 1.44 W
Rated Speed: 4800 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 11.0 CFM (18.6 m³/h / 0.31 m³/min)
Max. Static Pressure: 2.79 mmH₂O (27.4 Pa / 0.11 inH₂O)
Dimensions: 50x50x10mm
Weight: 20 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 26.0 dB(A)
Termination: 2-Wire Lead (Red +, Black -)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, CUL, TUV, CE
The AD0512MB-G70 is specifically engineered for high-density electronic environments where space is at a premium but airflow cannot be compromised. Common deployment scenarios include CPU cooling in compact embedded systems, chipset cooling on industrial motherboards, and ventilation for small form-factor power supplies. The AD0512MB-G70 is also frequently utilized in network appliances and telecommunications equipment to prevent thermal throttling, ensuring consistent performance in 24/7 operational cycles.
