3RT2018-2AP01 Siemens 230VAC 7.5kW 16A S00 Power Contactor

Description

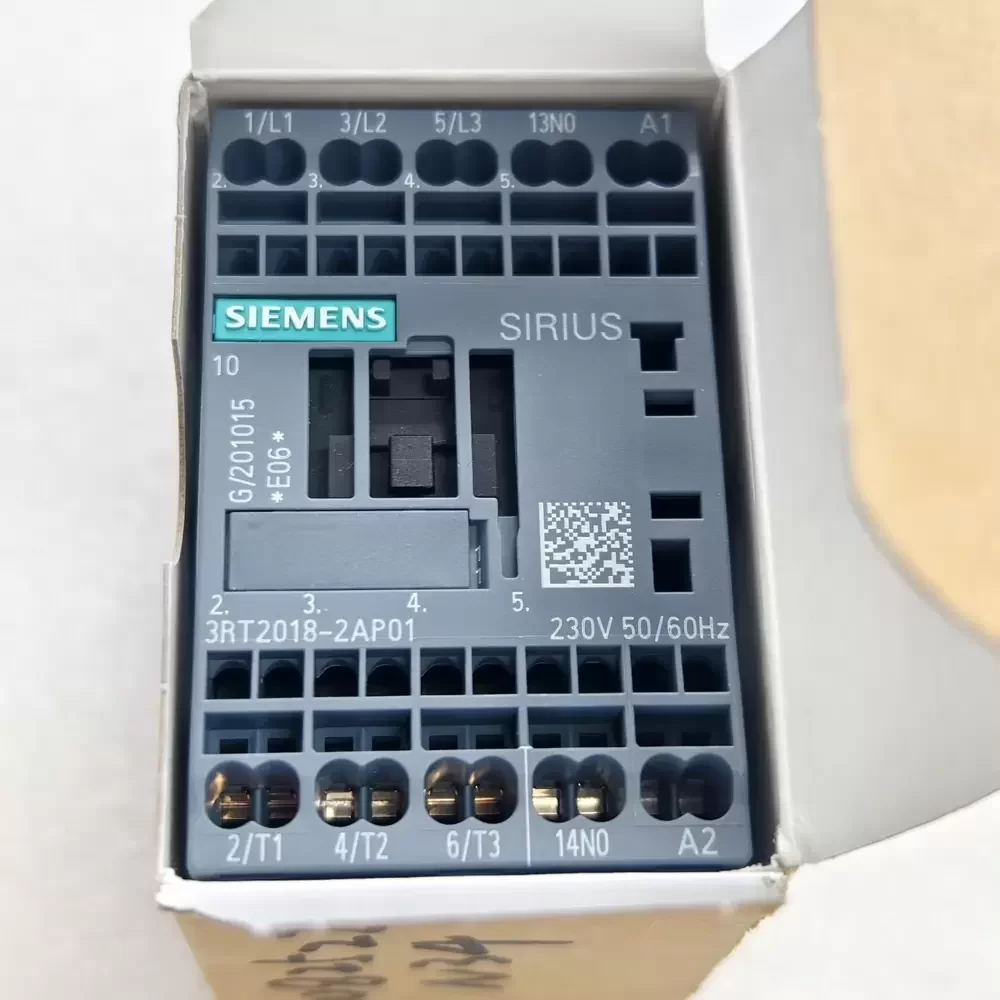

Siemens 3RT2018-2AP01 is a size S00 power contactor measuring 70 mm x 45 mm x 73 mm with a 230 V AC 50/60 Hz coil and 7.5 kW power rating at 400 V. The unit features three main NO contacts and one auxiliary NO contact housed in an IP20 rated enclosure. It utilizes spring-type terminals for vibration-resistant wiring and is designed for a mechanical service life of 30,000,000 cycles. The internal architecture includes a climate-proof design suitable for ambient temperatures ranging from -25 °C to +60 °C.

3RT2018-2AP01 Specifications
Model Number: 3RT2018-2AP01
Brand: Siemens
Product Series: SIRIUS 3RT2
Product Category: Power Contactor
Size: S00
Number of Poles: 3 poles
Main Contacts: 3 NO
Auxiliary Contacts: 1 NO
Control Supply Voltage: 230 V AC
Frequency: 50/60 Hz
Operational Current (AC-3, 400 V): 16 A
Operational Power (AC-3, 400 V): 7.5 kW
Operational Current (AC-1, 690 V): 22 A
Insulation Voltage: 690 V
Surge Voltage Resistance: 6 kV
Protection Class: IP20
Connection Type: Spring-type terminals (Cage Clamp)
Mounting Type: Screw and snap-on mounting onto 35 mm standard rail
Dimensions (H x W x D): 70 mm x 45 mm x 73 mm
Net Weight: 0.254 kg
Ambient Operating Temperature: -25 to +60 °C
Mechanical Service Life: 30,000,000 cycles
Certifications: CE, UL, CSA, CCC, EAC

3RT2018-2AP01 Applications
Primary applications include integration into motor control centers, automated assembly lines, and HVAC pump systems. Deployed within industrial control cabinets for the switching of resistive loads and three-phase induction motors in conveyor technology and packaging machinery.
