Description

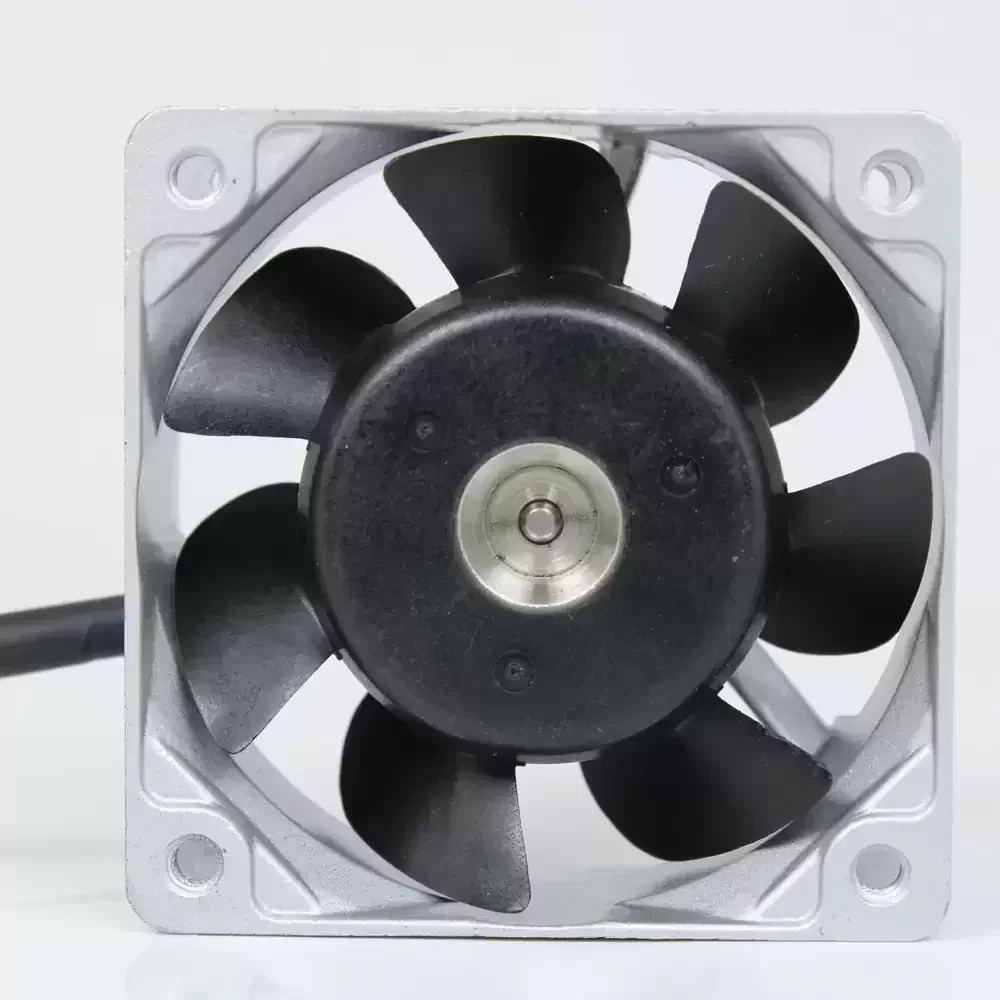

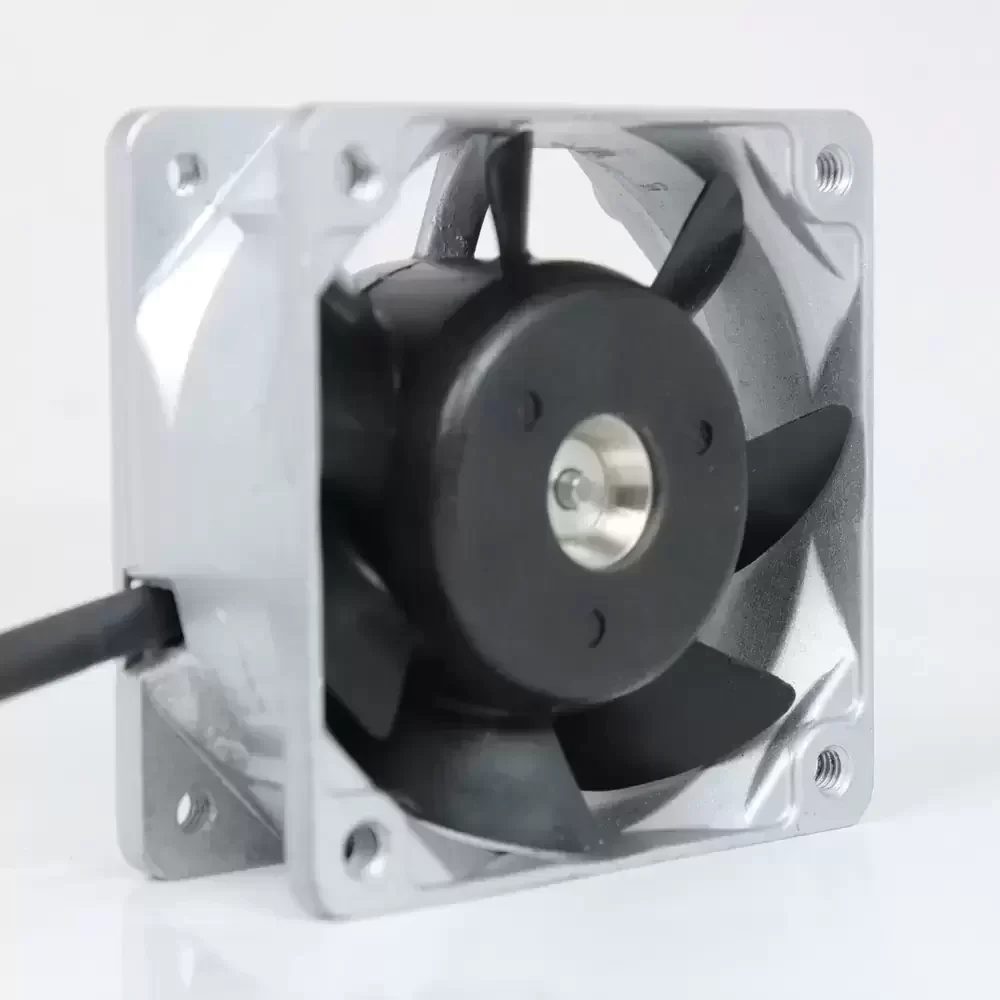

The Sanyo Denki 109L0648G4D01 is a precision-engineered Axial Fan designed for high-reliability industrial applications requiring extended operational lifespans. Part of the renowned San Ace 60L series, this unit features a robust aluminum frame construction that enhances structural rigidity and thermal dissipation properties. Utilizing advanced DC motor technology and high-quality dual ball bearings, it minimizes thermal impedance while maintaining consistent airflow performance over long durations. The aerodynamic impeller design optimizes static pressure capabilities, making it an ideal solution for systems demanding continuous operation under rigorous environmental conditions where failure is not an option.

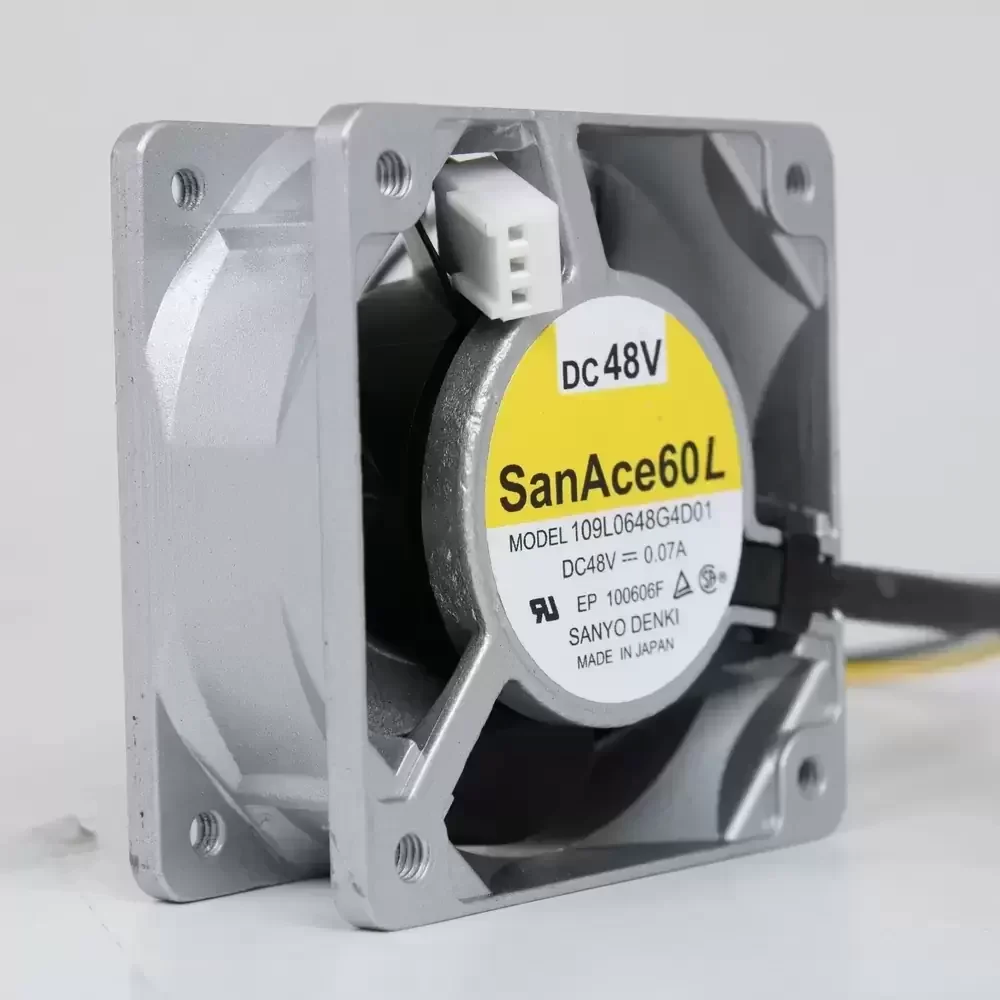

Model Number: 109L0648G4D01
Brand: Sanyo Denki
Series: San Ace 60L (Long Life)
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 40.8 – 55.2 VDC
Rated Current: 0.07 A
Power Input: 3.36 W
Rated Speed: 4600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 20.5 CFM (0.58 m³/min)
Max. Static Pressure: 4.7 mmH₂O (46.1 Pa / 0.185 inH₂O)
Dimensions: 60x60x25mm
Weight: 130 g
Life Expectancy: 100,000 Hours (L90 at 60°C)
Frame Material: Aluminum
Impeller Material: Plastic (UL94V-1)
Noise Level: 32 dB(A)
Operating Temperature: -10 to +70°C
Storage Temperature: -30 to +70°C
Sensor Type: Locked Rotor Sensor
Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Insulation Resistance: 10MΩ or more at 500 VDC
Termination: Lead Wires (Red +, Black -, Yellow Sensor)
Designed for critical infrastructure, the 109L0648G4D01 excels in environments where maintenance access is limited and reliability is paramount. Common deployments include telecommunications equipment, server rack cooling, and industrial power supply units. The robust aluminum frame of the 109L0648G4D01 ensures stability in high-vibration settings such as CNC machinery and factory automation control panels, providing consistent thermal management for sensitive electronic components.
