Description

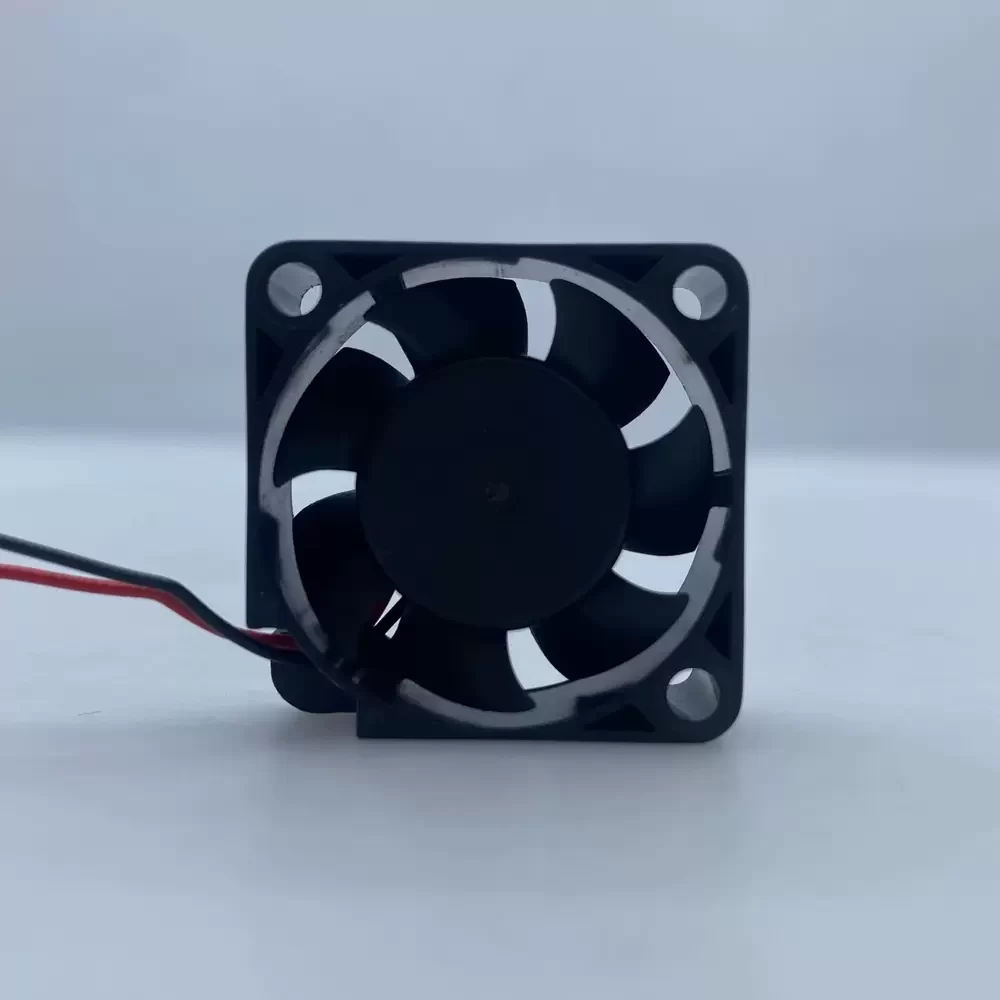

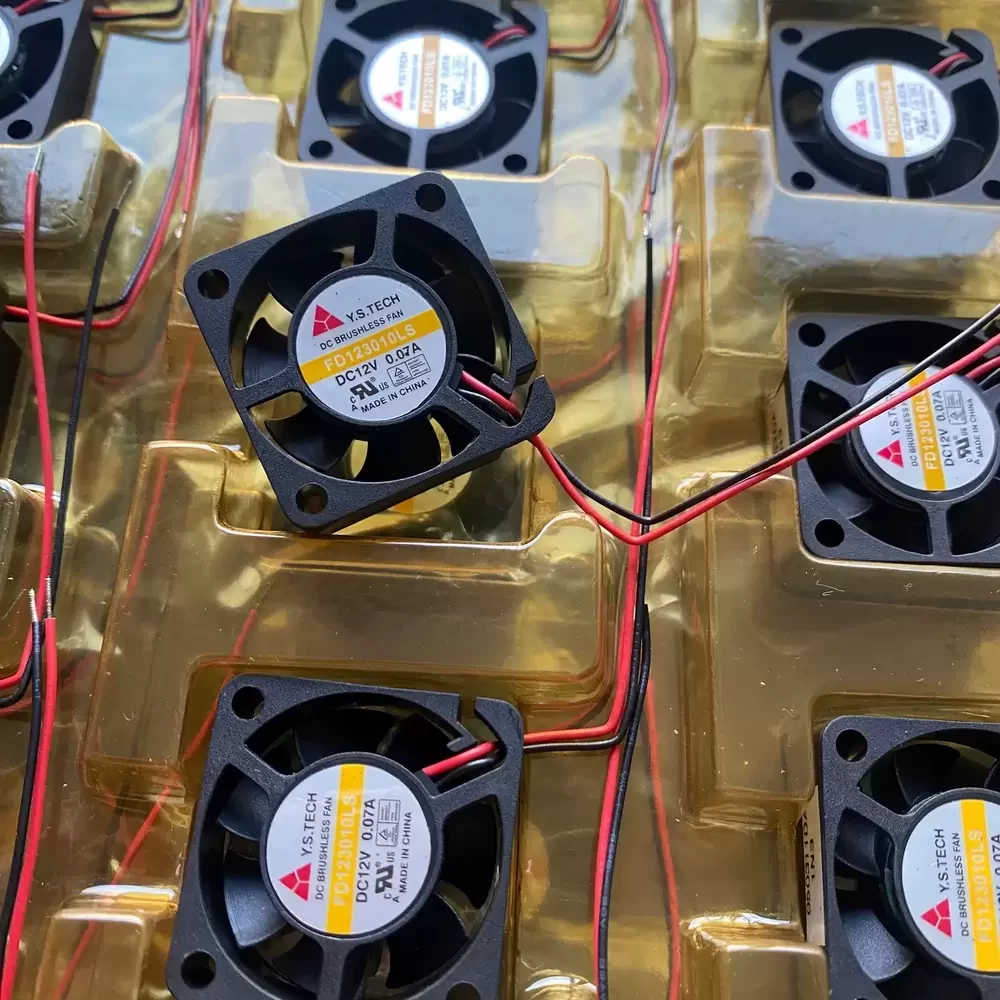

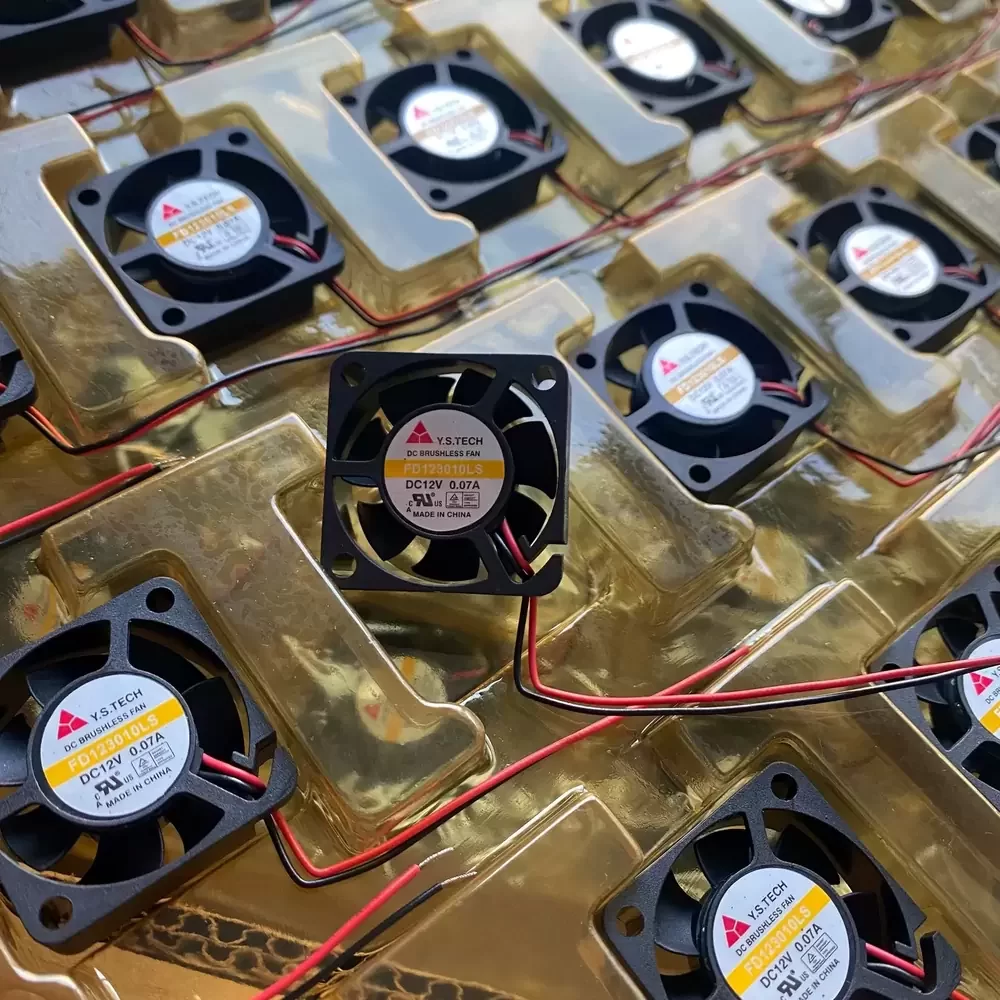

The Y.S.TECH FD123010LS is a compact Axial Fan designed for precision thermal management in space-constrained industrial environments. Engineered with a sintered sleeve bearing architecture, this unit optimizes rotational stability while minimizing acoustic resonance during operation. The 12VDC motor utilizes advanced electromagnetic design to deliver consistent airflow with low power consumption (0.07A), ensuring efficient heat dissipation. Constructed with high-rigidity PBT materials, the frame offers superior structural integrity and thermal impedance resistance, making it suitable for continuous duty in sensitive electronic assemblies.
Model Number: FD123010LS
Brand: Y.S.TECH
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.07 A
Power: 0.84 W
Rated Speed: 8000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 3.50 CFM (5.94 m³/h / 0.09 m³/min)
Max. Static Pressure: 2.50 mmH₂O (24.5 Pa / 0.10 inH₂O)
Dimensions: 30 x 30 x 10 mm
Weight: 8.0 g
Life Expectancy: 30,000 Hours @ 40°C
Noise Level: 24.0 dB(A)
Termination: 2-Wire Lead
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Mounting Orientation: Any
The FD123010LS is specifically engineered for high-density electronic enclosures where internal clearance is minimal yet thermal reliability is critical. Common deployment scenarios include cooling chipsets in industrial control units, ventilating compact server rack components, and maintaining optimal operating temperatures in medical diagnostic equipment. The FD123010LS provides essential airflow to prevent thermal throttling in embedded systems and network switches, ensuring longevity and performance stability in 24/7 operational environments.
