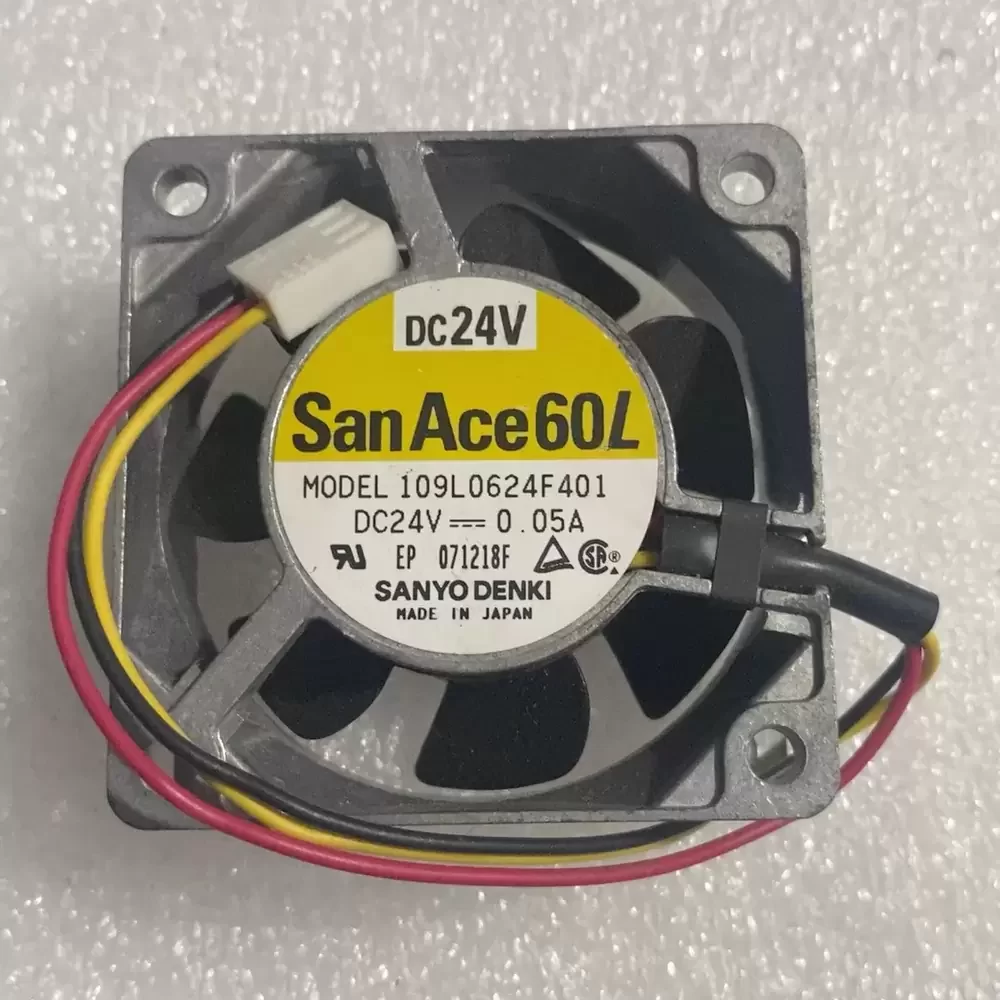

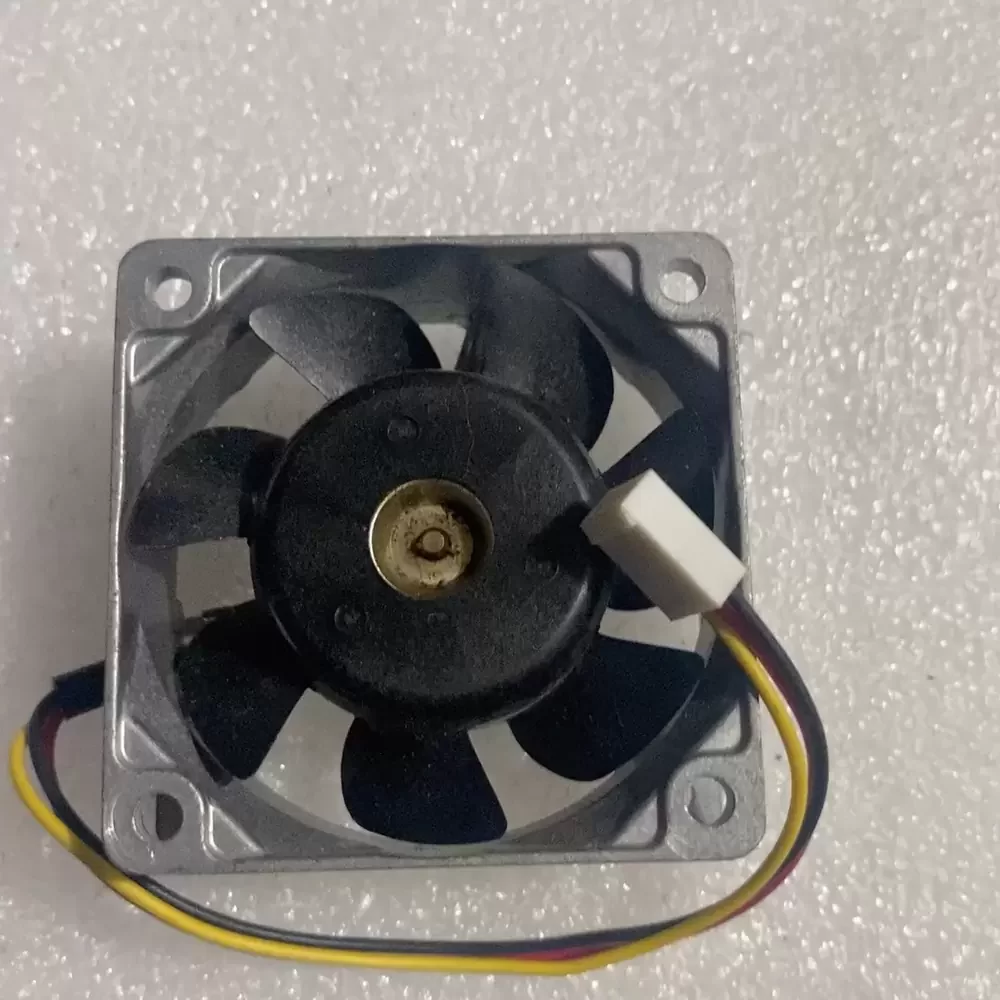

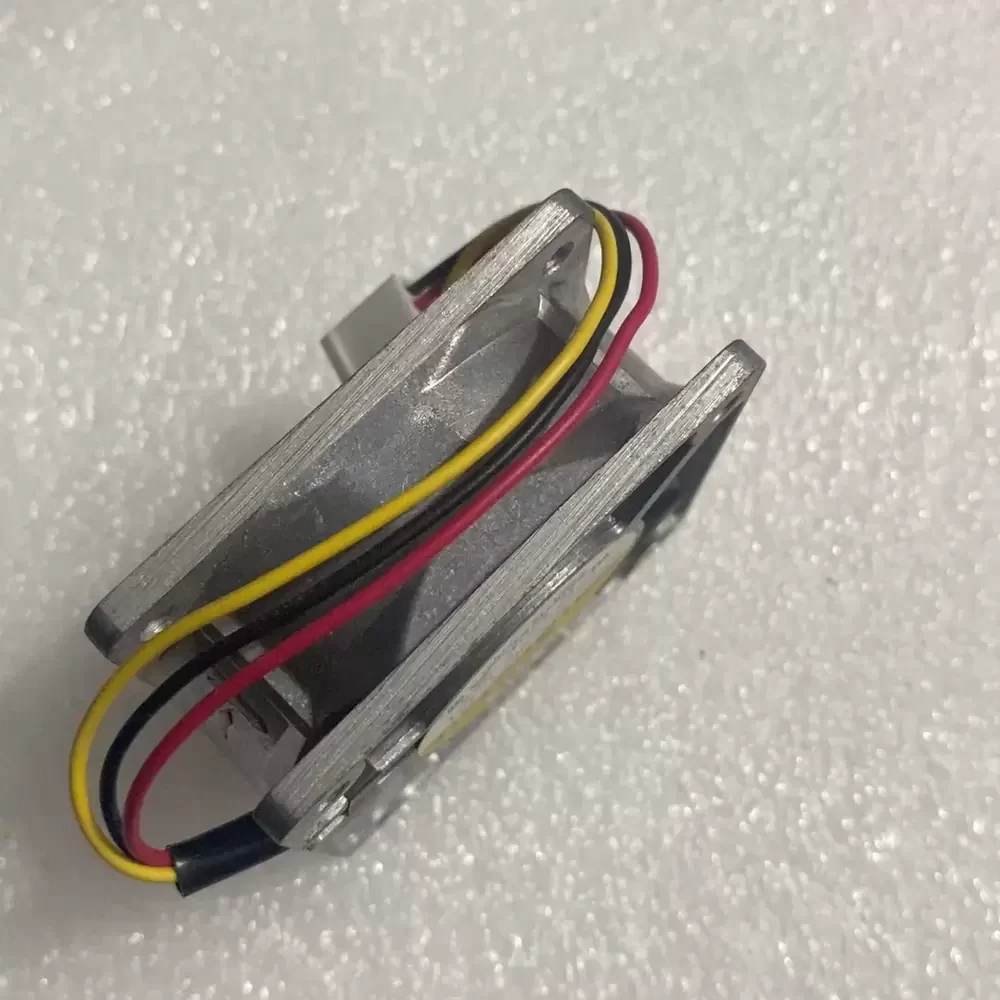

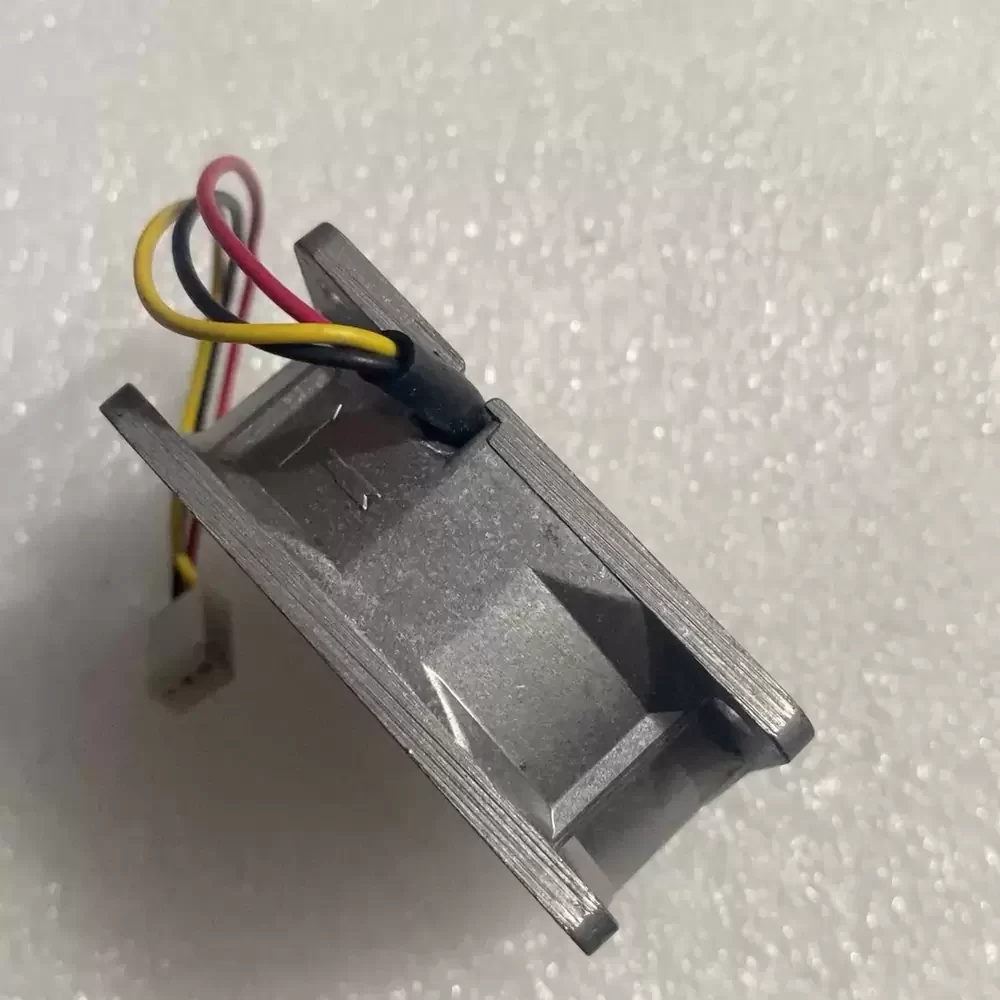

109L0624F401 Sanyo Denki 24VDC 1.2W 60x60x25mm Axial Fan

Description

Sanyo Denki 109L0624F401 is a high-performance axial cooling fan measuring 60 x 60 x 25 mm with a nominal operating voltage of 24 VDC and a power consumption of 1.2 W. The unit features a robust aluminum frame paired with a UL 94V-0 rated plastic impeller, supported by a precision dual ball bearing system for extended operational longevity. It delivers a maximum airflow of 0.44 m³/min (15.5 CFM) and a static pressure of 29.4 Pa at a rated speed of 3200 RPM. The electrical interface consists of a 3-wire lead system incorporating a pulse sensor for tachometer output, while maintaining a low acoustic profile of 24 dB(A).

109L0624F401 Specifications
Model: 109L0624F401
Brand: Sanyo Denki
Series: San Ace 60L (Long Life)
Frame Size: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 to 27.6 VDC
Rated Current: 0.05 A
Rated Input: 1.2 W
Rated Speed: 3200 RPM
Max Airflow: 15.5 CFM
Max Airflow: 0.44 m³/min
Max Static Pressure: 0.118 inH2O
Max Static Pressure: 29.4 Pa
Sound Pressure Level: 24 dB(A)
Operating Temperature: -20 to +70 °C
Expected Life: 100,000 hours at 60 °C
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Lead Wire: 3-wire (Red, Black, Yellow)
Sensor Type: Pulse Sensor (Tachometer)
Mass: 100 g

109L0624F401 Applications
Primary applications include integration into industrial power supply units, telecommunications rack systems, and CNC control cabinets requiring high-reliability thermal management. Deployed within medical diagnostic equipment, server enclosures, and automated factory controllers where long-term continuous operation is critical.
