Description

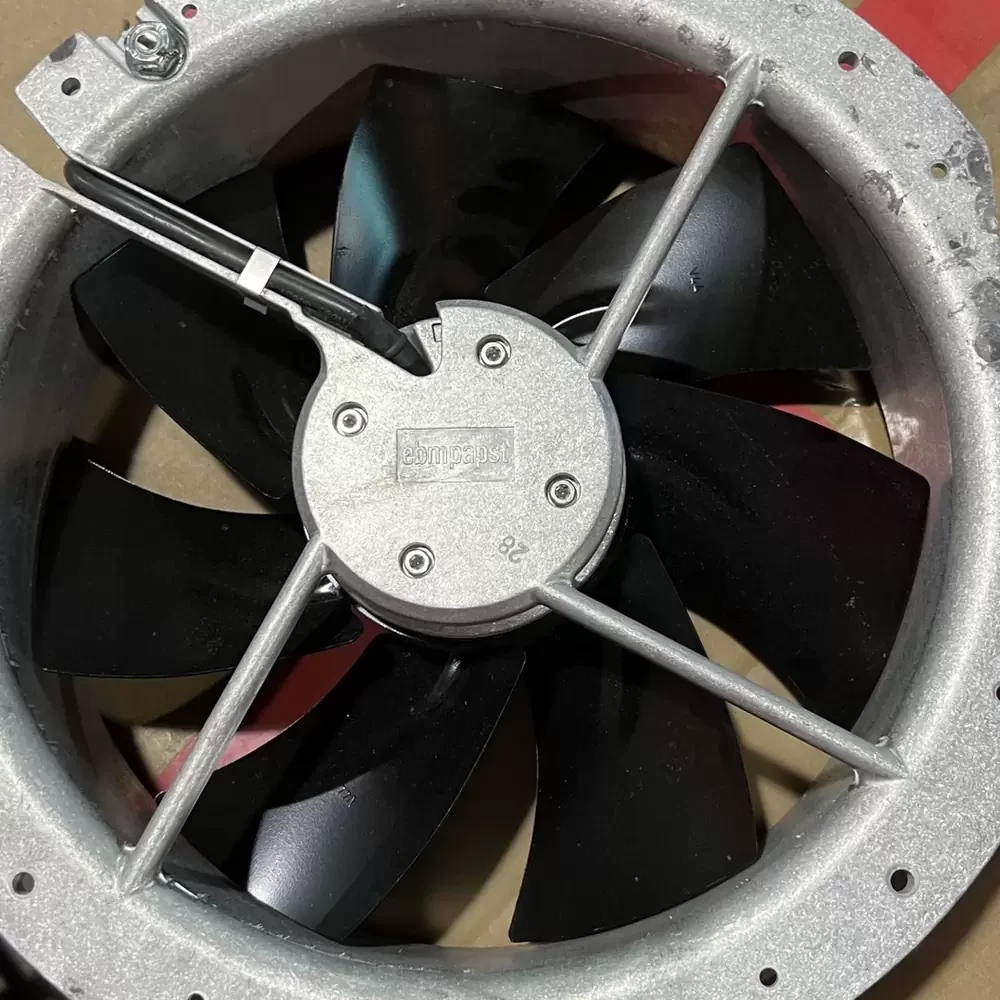

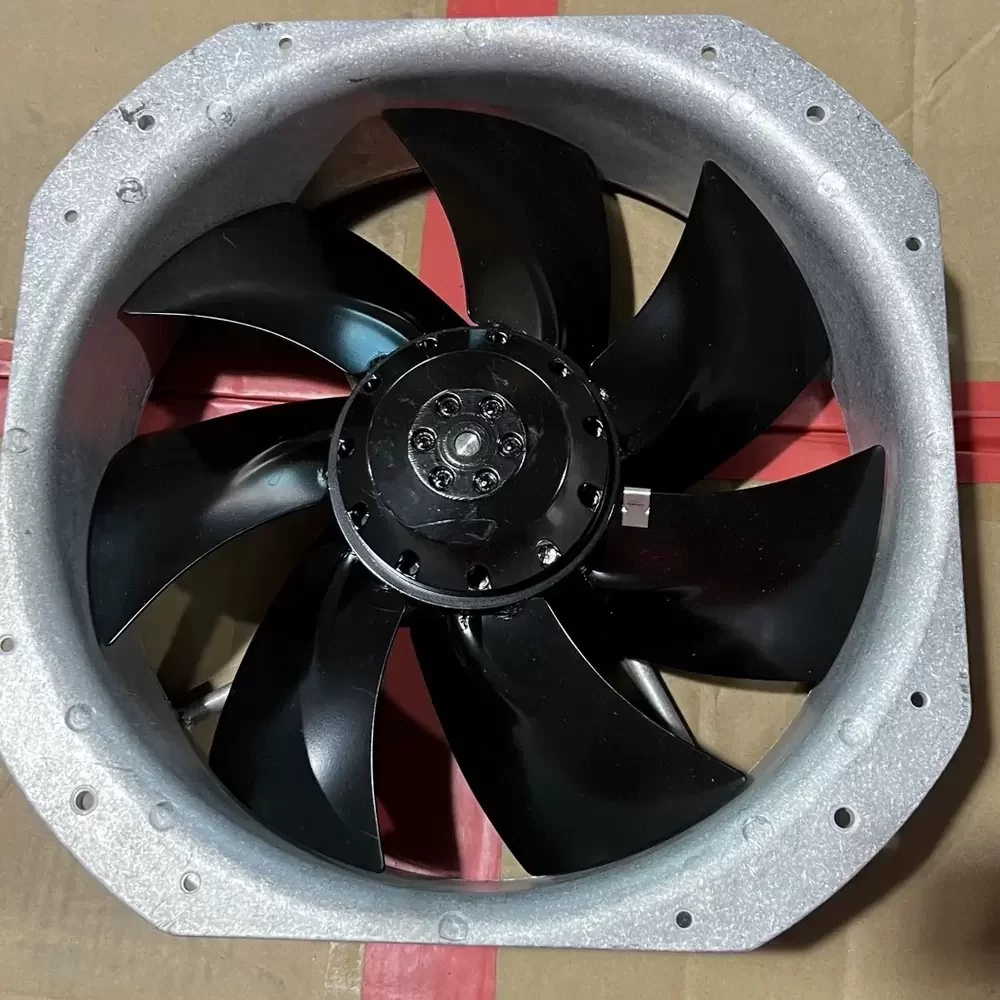

The ebmpapst W2E250-HL06-01 is a robust AC axial fan engineered for demanding industrial thermal management and high-static pressure applications. Utilizing the advanced M2E068-CF external rotor motor technology, this unit delivers consistent aerodynamic performance with optimized structural rigidity. The fan features a durable die-cast aluminum housing and a sheet steel impeller, ensuring mechanical stability under high thermal stress and continuous operation. Designed with precision maintenance-free ball bearings, it minimizes frictional losses while maintaining a low thermal impedance profile. The unit operates efficiently across dual frequencies (50/60Hz), providing reliable air movement for critical cooling applications requiring IP44 ingress protection and Class B insulation standards.
Model Number: W2E250-HL06-01
Brand: ebmpapst
Product Type: AC Axial Fan
Motor Type: M2E068-CF External Rotor
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.56 A (50Hz) / 0.83 A (60Hz)
Power Consumption: 127 W (50Hz) / 195 W (60Hz)
Rated Speed: 2550 RPM (50Hz) / 2700 RPM (60Hz)
Max. Air Flow: 1097 CFM (1865 m³/h / 31.08 m³/min)
Max. Static Pressure: 11.22 mmH₂O (110 Pa / 0.44 inH₂O)
Bearing Type: Ball Bearing
Dimensions: 280 x 280 x 80 mm
Impeller Diameter: 250 mm
Weight: 2.8 kg
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel, Coated in Black
Ingress Protection: IP44
Insulation Class: Class B
Motor Protection: Thermal Overload Protector (TOP)
Operating Temperature: -25°C to +60°C
Mounting Orientation: Any

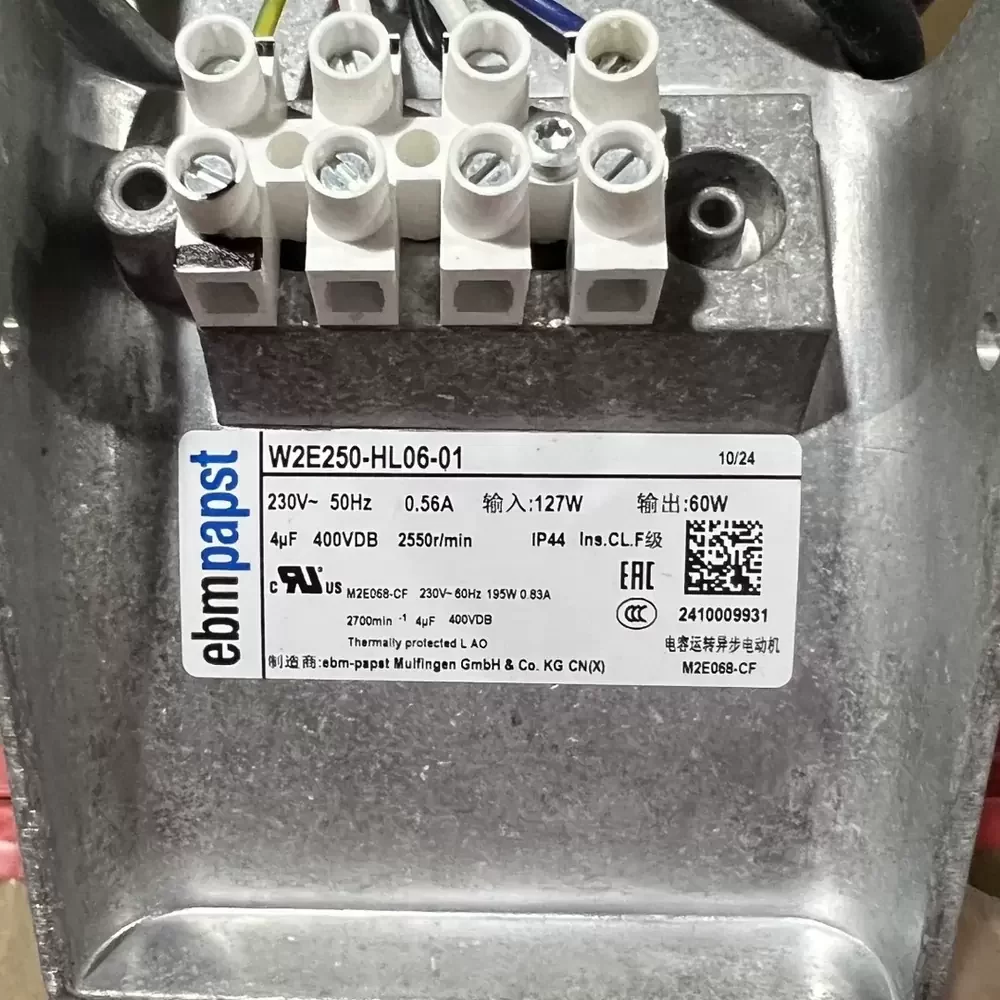

Electrical Connection: Terminal Block
Capacitor: 4 µF / 400 VDB (Required)
Life Expectancy: 40,000 Hours (at 40°C)
Compliance: CE, CCC, VDE
This high-capacity cooling solution is widely utilized in industrial automation and power electronics sectors. The W2E250-HL06-01 is frequently integrated into large-scale control cabinets, variable frequency drive (VFD) cooling systems, and photovoltaic inverters where efficient heat dissipation is critical. Additionally, the W2E250-HL06-01 serves as a primary ventilation component in welding machines, transformer cooling arrays, and server room air handling units, ensuring operational stability in continuous-duty environments.
