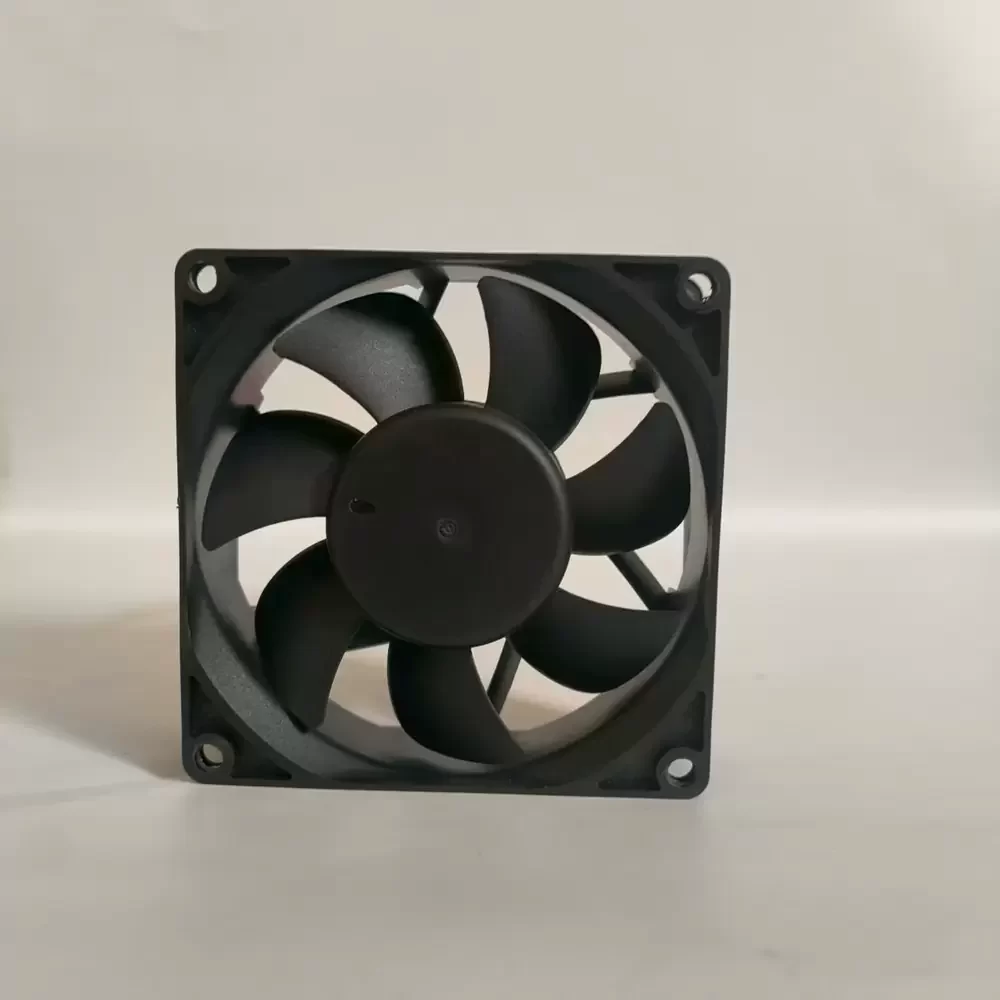

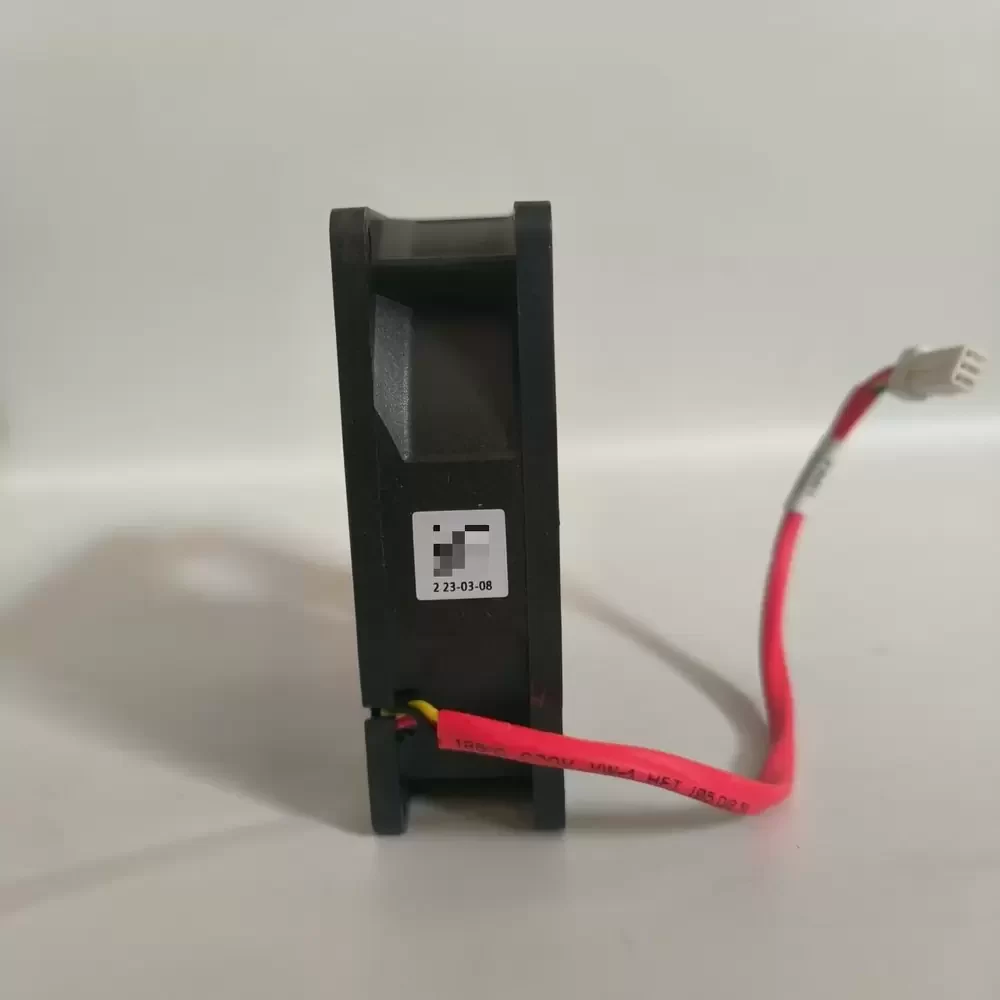

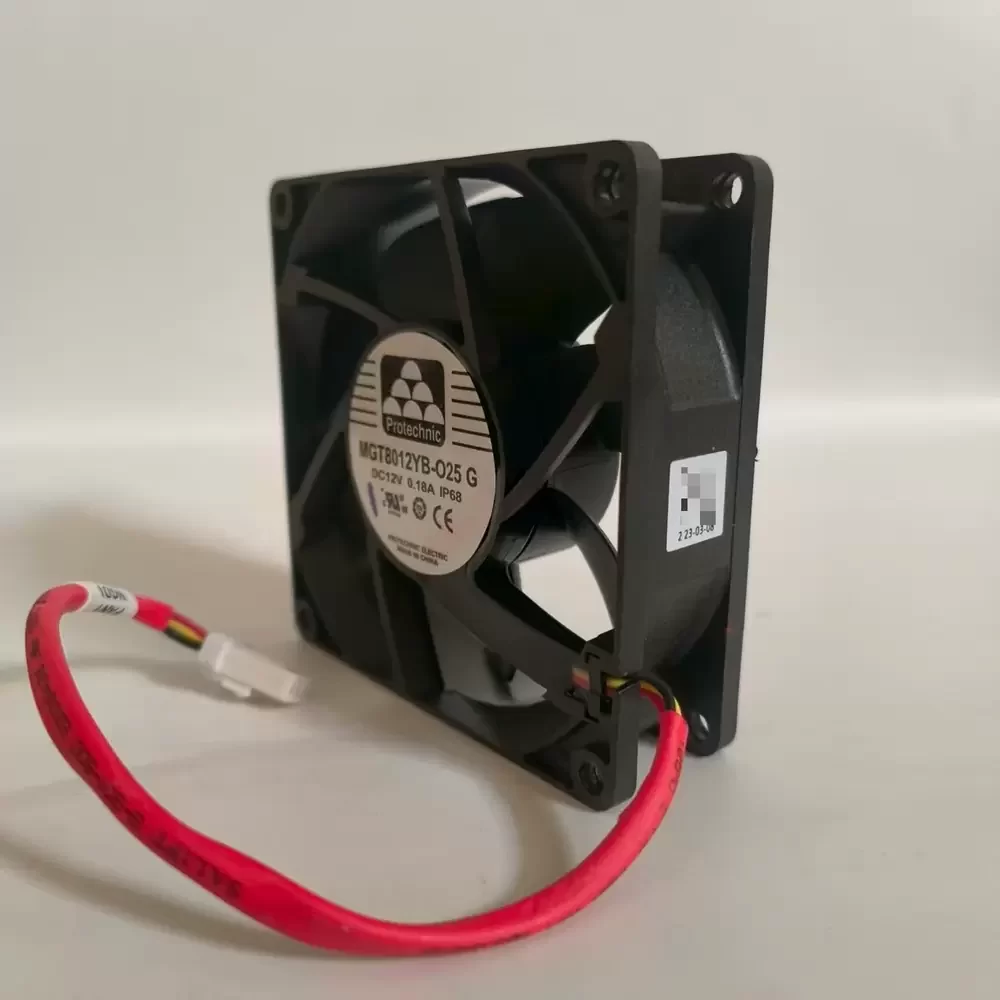

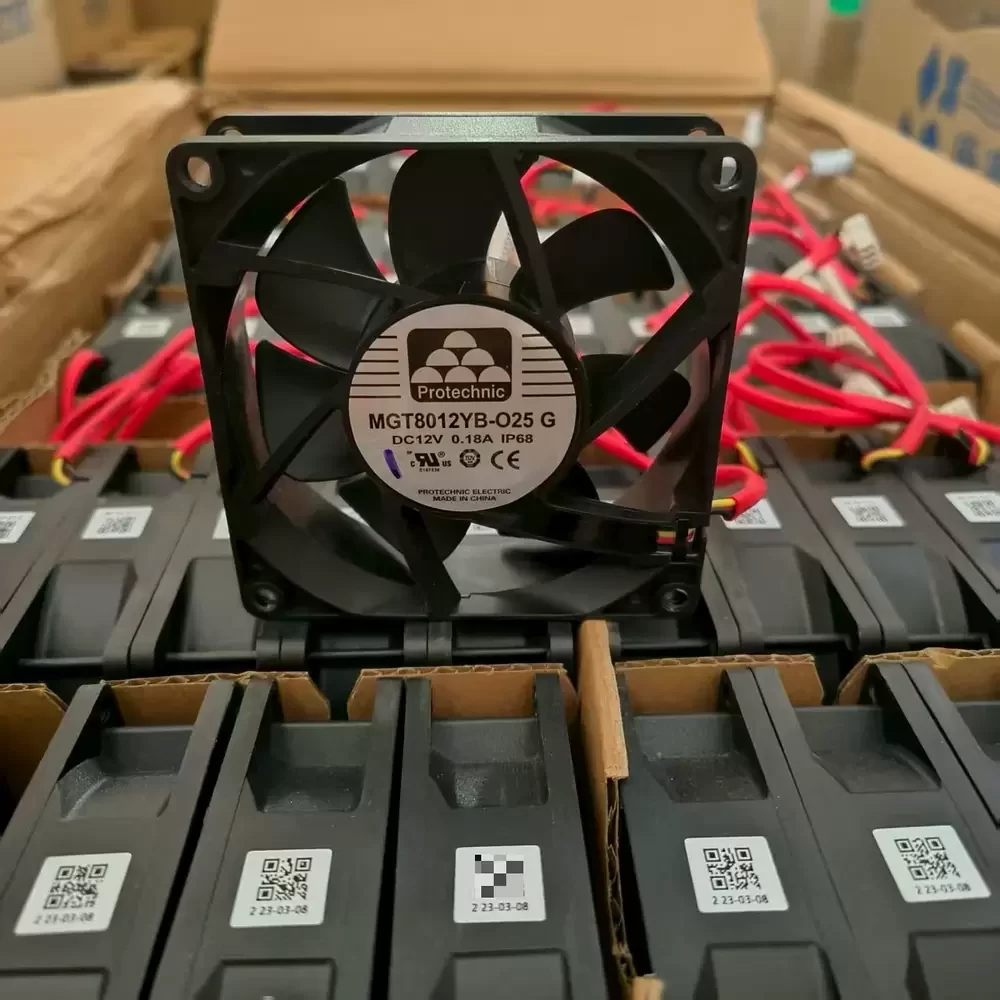

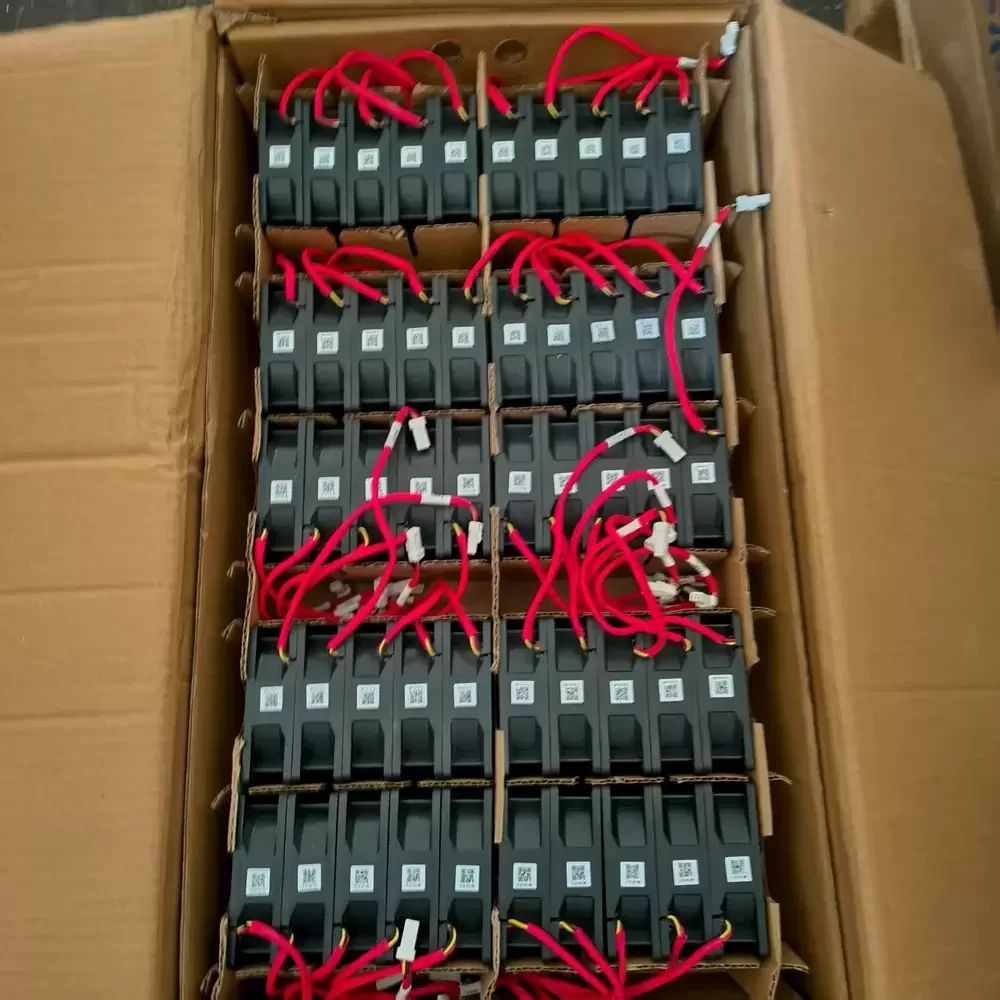

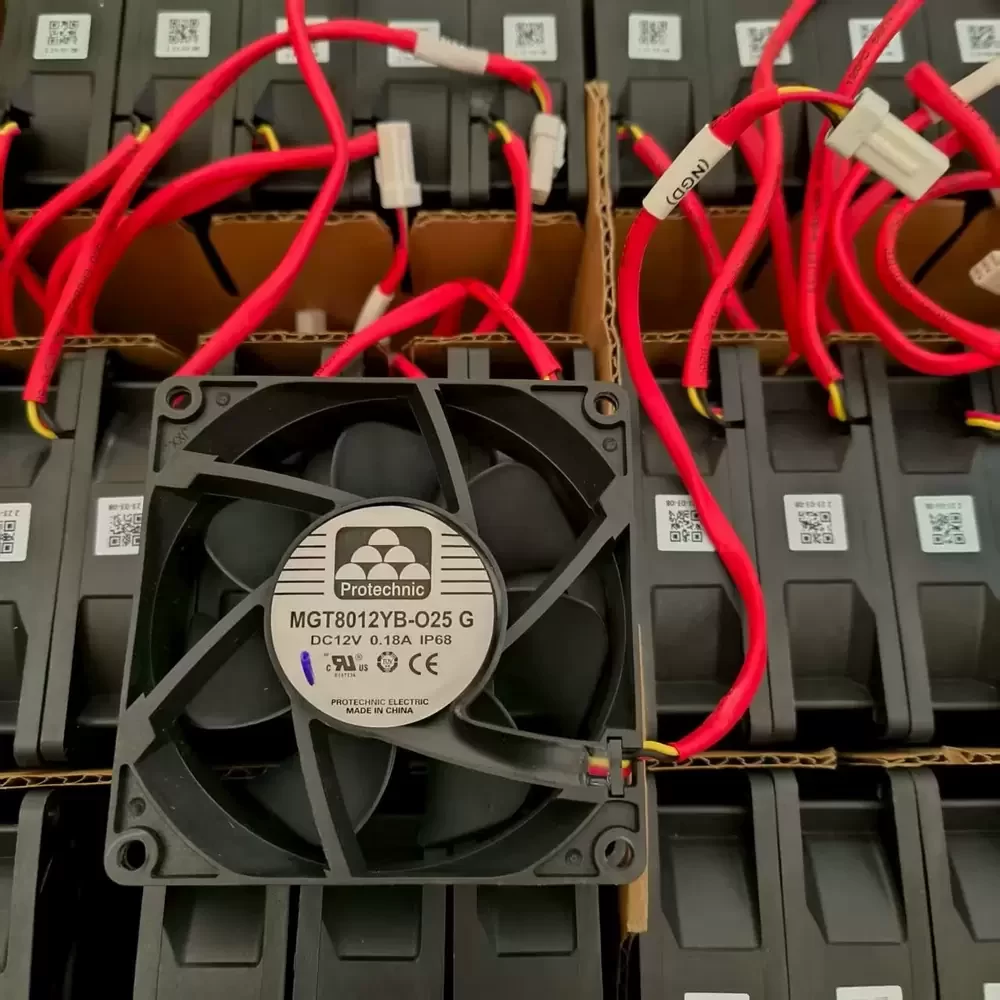

MGT8012YB-O25G Protechnic 12VDC 80x80x25mm IP68 Axial Fan

Description

Protechnic MGT8012YB-O25G is an 80 x 80 x 25 mm axial cooling fan operating at 12 VDC with a 0.18 A current rating and IP 68 ingress protection. The unit features a dual ball bearing system and a PBT plastic housing and impeller rated to UL 94 V-0 flammability standards. It delivers a rotational speed of 3200 RPM, generating an airflow of 38.5 CFM and a static pressure of 4.2 mmH2O. The electrical interface consists of two lead wires, and the internal motor is brushless DC with polarity protection.

MGT8012YB-O25G Specifications
Model: MGT8012YB-O25G
Brand: Protechnic Electric
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.8 VDC
Rated Current: 0.18 A
Input Power: 2.16 W
Rated Speed: 3200 RPM
Maximum Airflow: 38.5 CFM
Static Pressure: 4.2 mmH2O
Noise Level: 32 dBA
Bearing Type: Dual Ball Bearing
Ingress Protection: IP 68
Frame Material: PBT Plastic (UL 94 V-0)
Impeller Material: PBT Plastic (UL 94 V-0)
Termination: 2-Wire Lead
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 75 g
Life Expectancy: 70,000 Hours at 40 °C

MGT8012YB-O25G Applications
Primary applications include integration into industrial control cabinets, outdoor telecommunications enclosures, and server rack thermal management systems. Deployed within CNC machine tool electronics, medical diagnostic equipment, and ruggedized power supply units requiring high-level moisture and dust resistance.
