MGT7012YR-O25 Protechnic 70x70x25mm 12VDC 0.39A Axial Fan

Description

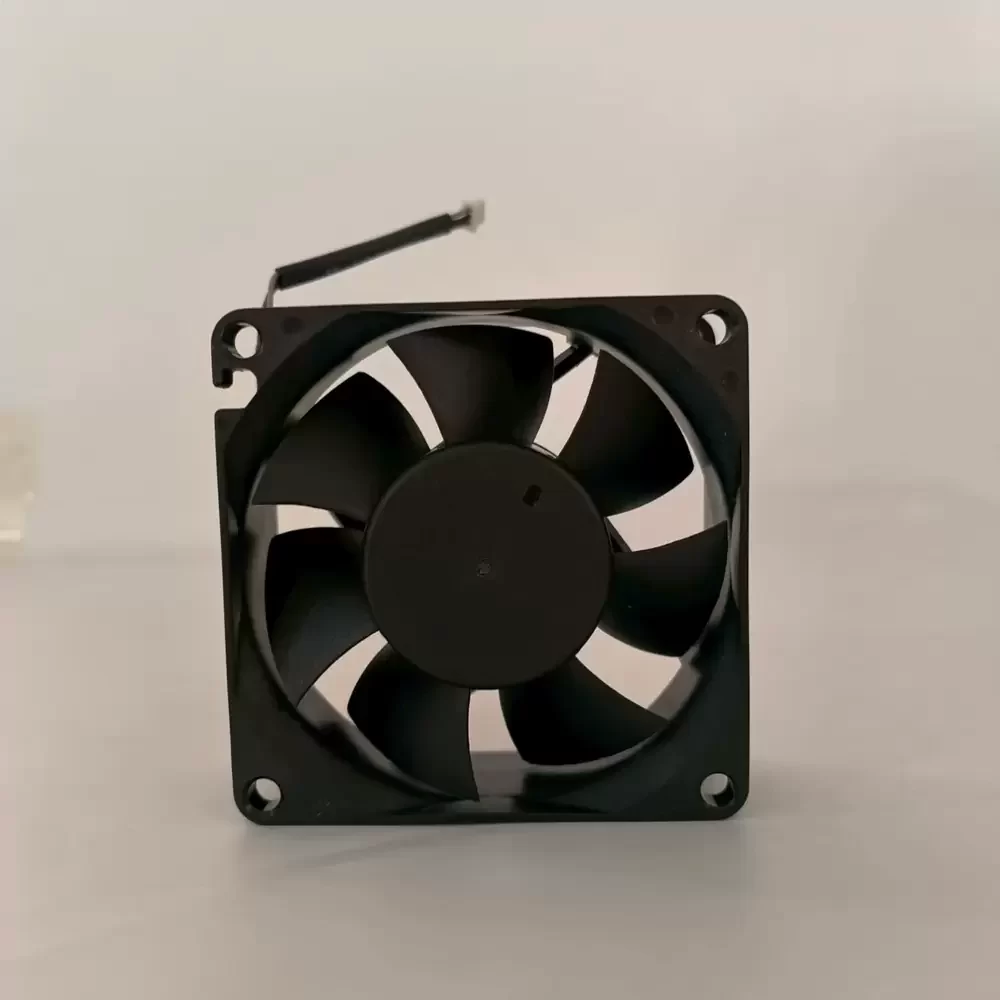

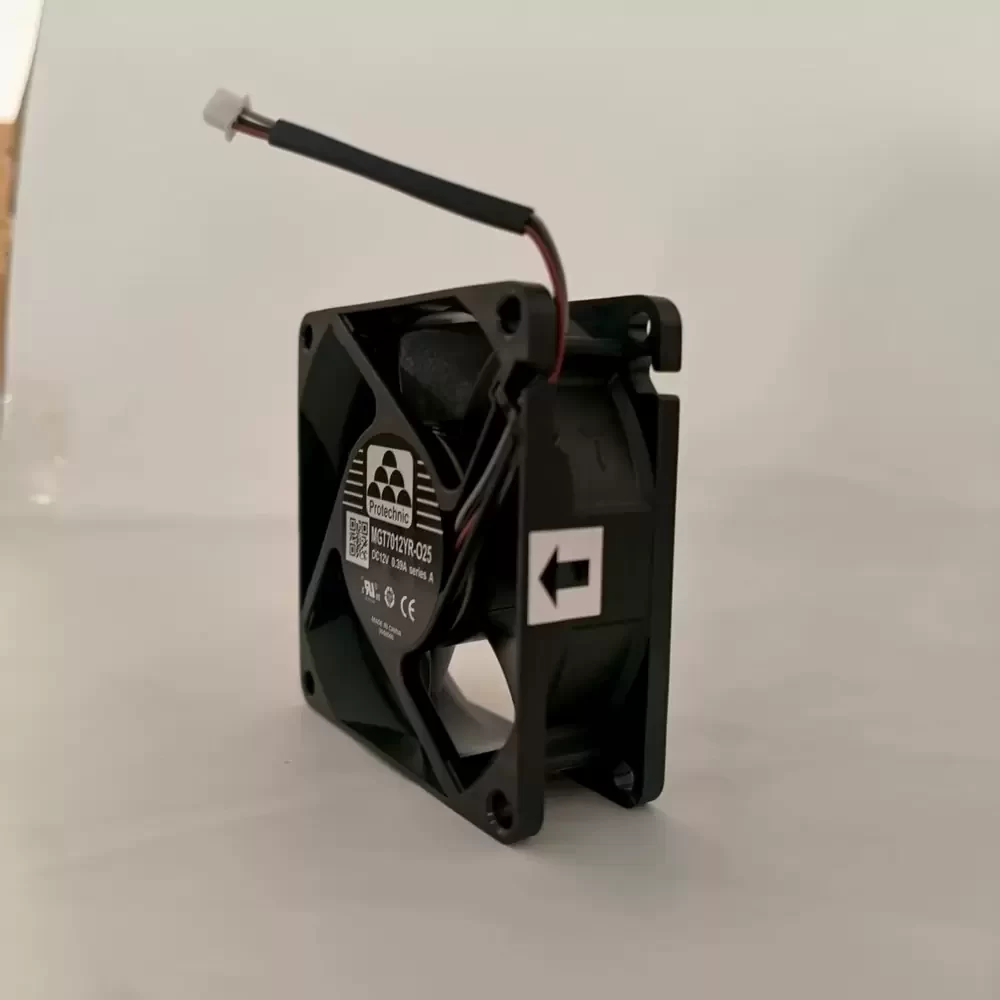

Protechnic MGT7012YR-O25 70 x 70 x 25 mm, 12 VDC, 0.39 A, 4600 RPM axial cooling fan is engineered with a high-density PBT thermoplastic frame and impeller. The unit features a specialized hydraulic bearing system that facilitates high-velocity rotation while maintaining a noise threshold of 43 dBA. It is equipped with a 3-wire electrical interface for power delivery and tachometer signal monitoring, ensuring consistent thermal regulation in space-constrained environments.

MGT7012YR-O25 Specifications
Model: MGT7012YR-O25
Brand: Protechnic (Magic)
Category: Axial Cooling Fan
Dimensions: 70 x 70 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.2 to 13.8 VDC
Rated Current: 0.39 A
Input Power: 4.68 W
Rated Speed: 4600 RPM
Maximum Airflow: 42.5 CFM
Static Pressure: 5.2 mmH2O
Noise Level: 43 dBA
Bearing Type: Hydraulic Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 3-wire Lead
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Expected Life: 50,000 hours at 40 °C
Weight: 75 g

MGT7012YR-O25 Applications
Primary applications include integration into industrial PC (IPC) chassis, server rack enclosures, and telecommunications switching power supplies. Deployed within CNC controller cabinets and medical diagnostic equipment for localized thermal management of high-density circuit boards.
