Description

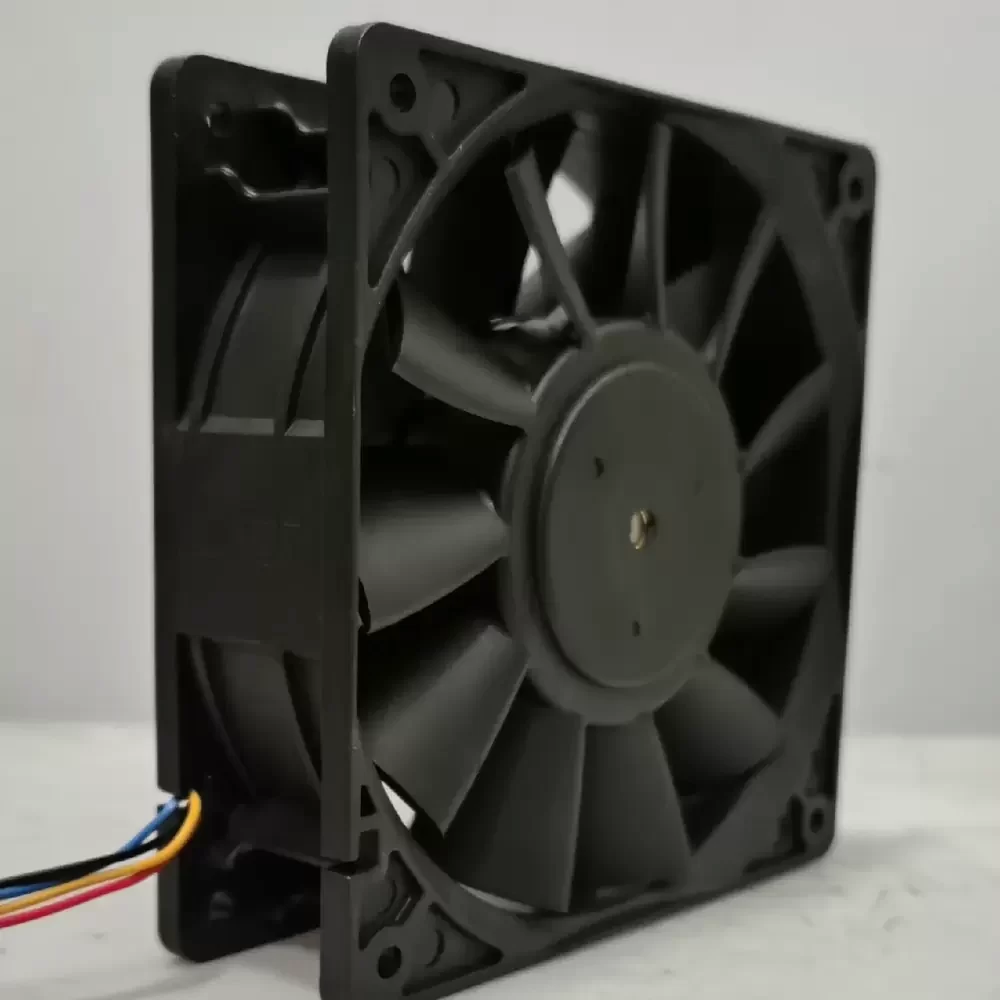

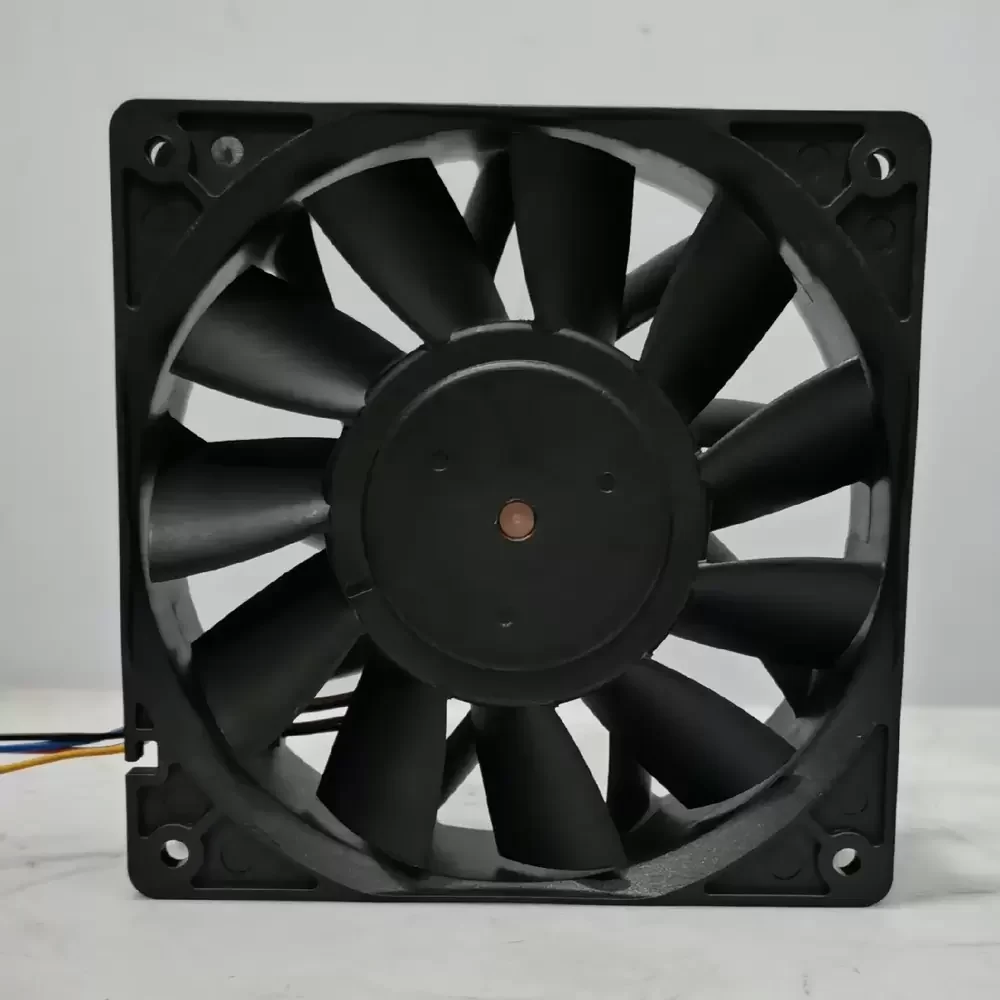

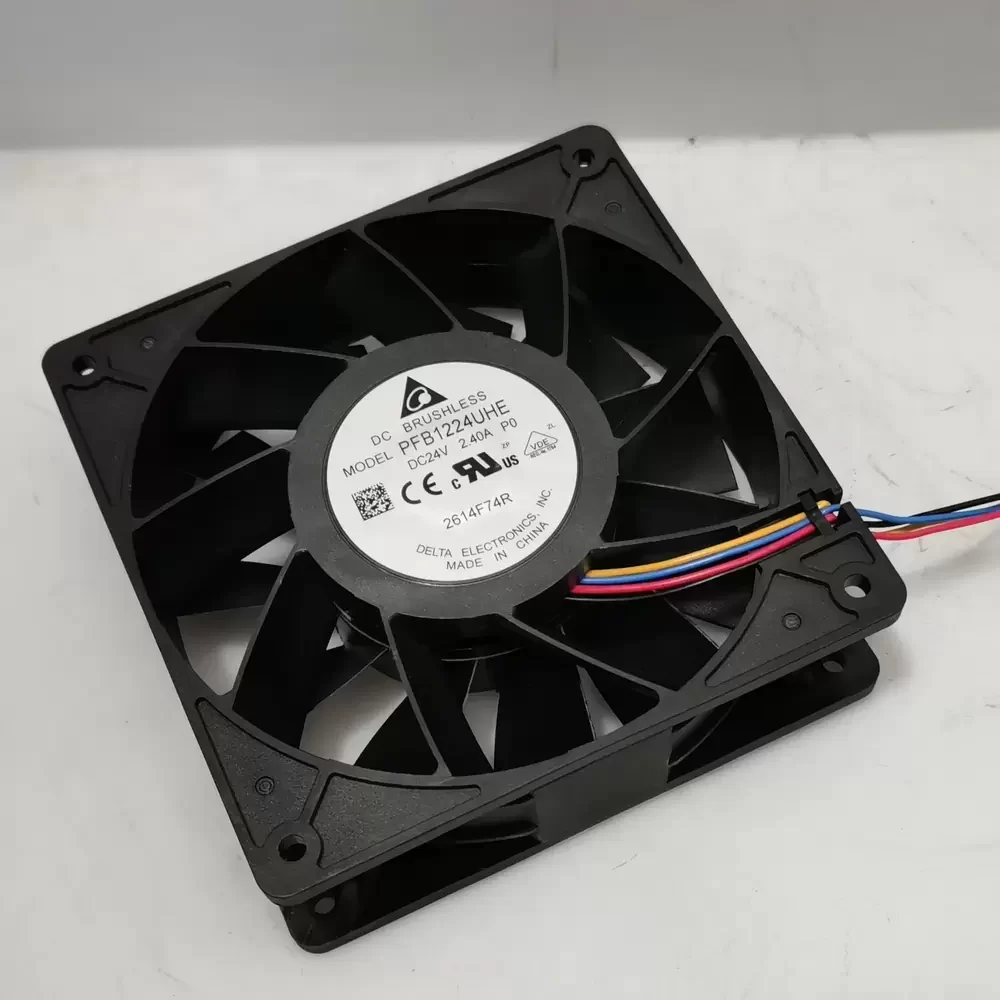

The Delta PFB1224UHE-P0 is a high-performance DC Axial Fan engineered for critical thermal management in industrial environments. Utilizing advanced DC motor technology and a precision Two Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency, significantly reducing thermal impedance within high-density enclosures. Its robust frame construction provides superior structural rigidity, making it ideal for applications requiring high static pressure and reliable heat dissipation.
Model Number: PFB1224UHE-P0
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 2.40 A
Input Power: 57.60 W
Rated Speed: 5500 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 252.85 CFM (429.6 m³/h / 7.16 m³/min)
Max. Static Pressure: 35.877 mmH₂O (351.8 Pa / 1.412 inH₂O)
Dimensions: 120x120x38mm
Weight: 380 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Ingress Protection: IP51
Noise Level: 66.5 dB-A
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: 4-Wire Leads
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +70°C
Safety Protection: Locked Rotor Protection, Polarity Protection
The PFB1224UHE-P0 is specifically designed for high-impedance systems such as variable frequency drives (VFDs), industrial inverters, and high-density server racks. Its high static pressure capabilities allow the PFB1224UHE-P0 to effectively force air through tightly packed components in telecommunications equipment and precision CNC machinery, ensuring optimal operating temperatures are maintained in demanding environments.
