Description

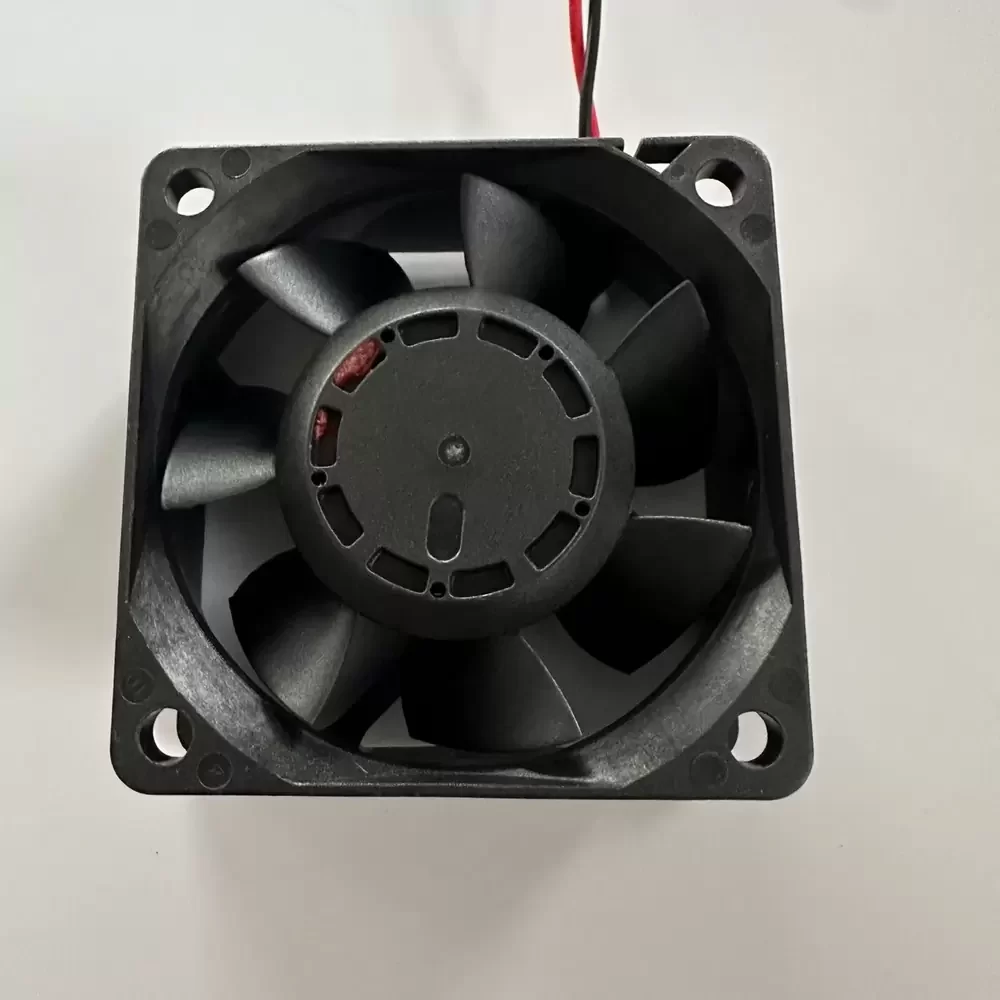

The AVC DATA0625B2L-036 is a DC Axial Fan engineered for precision thermal management in high-density electronic environments. Utilizing a brushless DC motor architecture, this unit minimizes thermal impedance while maximizing airflow efficiency through its optimized impeller geometry. The dual ball bearing system ensures long-term structural rigidity and operational stability under continuous duty cycles. Designed with a focus on aerodynamic performance, the DATA0625B2L-036 provides a reliable cooling solution for sensitive components, balancing static pressure and noise levels effectively. Its robust construction and high-grade materials ensure durability in demanding industrial applications where consistent airflow is critical for system longevity.
Model Number: DATA0625B2L-036
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.32A
Power: 3.84W
Rated Speed: 3500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 22.5 CFM (38.2 m³/h / 0.64 m³/min)
Max. Static Pressure: 3.8 mmH₂O (37.2 Pa / 0.15 inH₂O)
Dimensions: 60x60x25mm
Weight: 60g
Life Expectancy: 70,000 Hours at 40C
Noise Level: 32 dBA
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, TUV, CE
The AVC DATA0625B2L-036 is ideally suited for integration into server rack enclosures and telecommunications equipment where space is constrained but thermal demands are high. In industrial automation, the DATA0625B2L-036 provides essential cooling for power supply units and CNC control cabinets, preventing overheating of critical logic boards. Its reliable performance also makes it a preferred choice for medical diagnostic devices and network switches that require consistent, long-term operation without maintenance intervention.
