Description

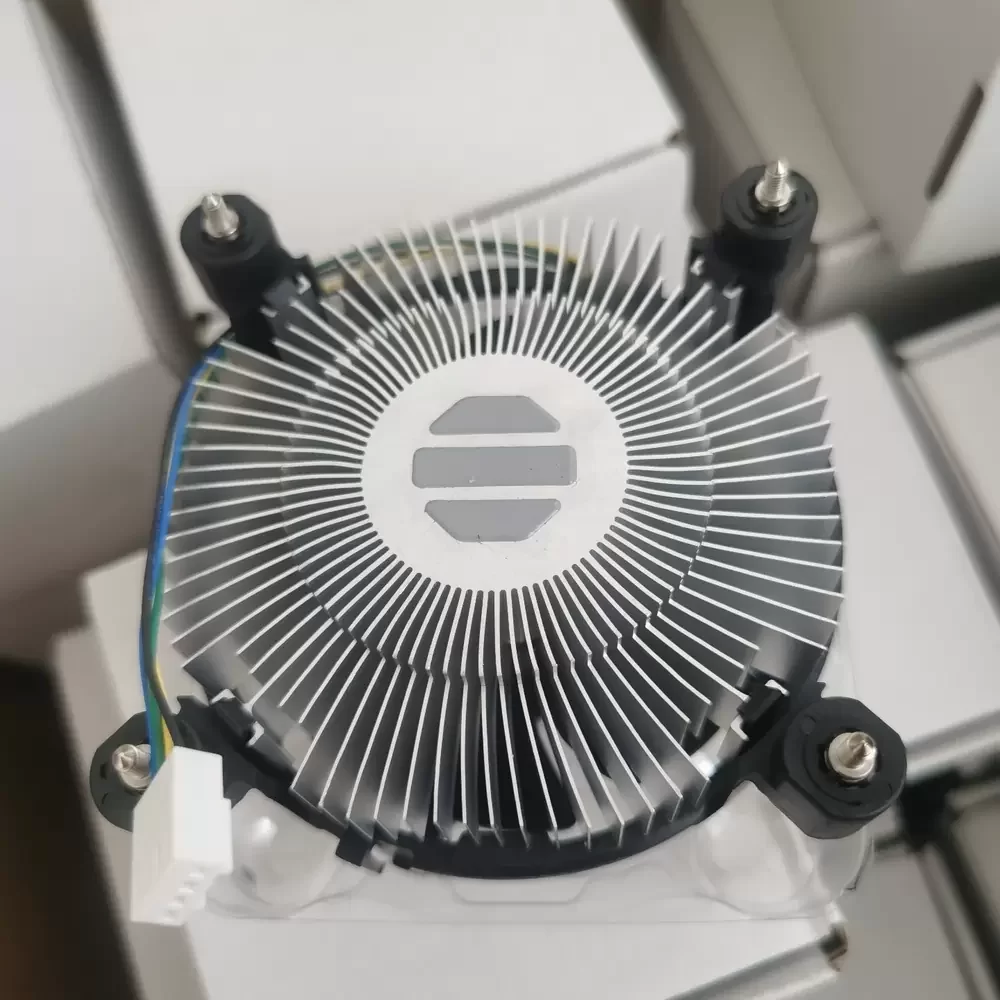

The Delta AUC0912D-DB55 is a high-performance DC brushless axial fan assembly integrated with an aluminum heatsink, specifically engineered for thermal management of 95W and 87W TDP processors. Operating at a rated 12VDC with a 0.60A current draw, this unit features a 4-wire PWM interface for precise speed control ranging from 1200 to 2800 RPM. It delivers a maximum airflow of 45 CFM while maintaining a low acoustic profile of 26 dBA, utilizing a Superflo bearing system for extended operational reliability and a thermal resistance rating of 0.356 °C/W.
AUC0912D-DB55 Specifications
Model Number: AUC0912D-DB55
Brand: Delta Electronics, Inc.
Product Category: CPU Cooler / DC Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 10.8 – 13.2VDC
Rated Current: 0.60A
Input Power: 7.2W
Speed: 1200 – 2800 RPM (PWM Controlled)
Maximum Airflow: 45 CFM
Static Pressure: 0.157 in H2O
Noise Level: 26 dBA
Bearing Type: Superflo
Dimensions (Fan): 92 x 92 x 25 mm
Dimensions (Total Assembly): 90 x 90 x 65 mm
Heatsink Material: Aluminum
Weight: 252 g
Termination: 4-wire, 4-pin connector (PWM)
Thermal Resistance: 0.356 °C/W
Clipping Force: 15.9 Kgf
CPU Compatibility: Intel LGA1150, LGA1151, LGA1155, LGA1156
Thermal Design Power (TDP) Support: 87W – 95W
Certifications: UL, VDE, CE, RoHS
AUC0912D-DB55 Applications
Active thermal dissipation for Intel LGA115x socket desktop processors, industrial workstations, and 2U rackmount server chassis requiring high-density aluminum fin cooling and PWM-regulated airflow.
