Description

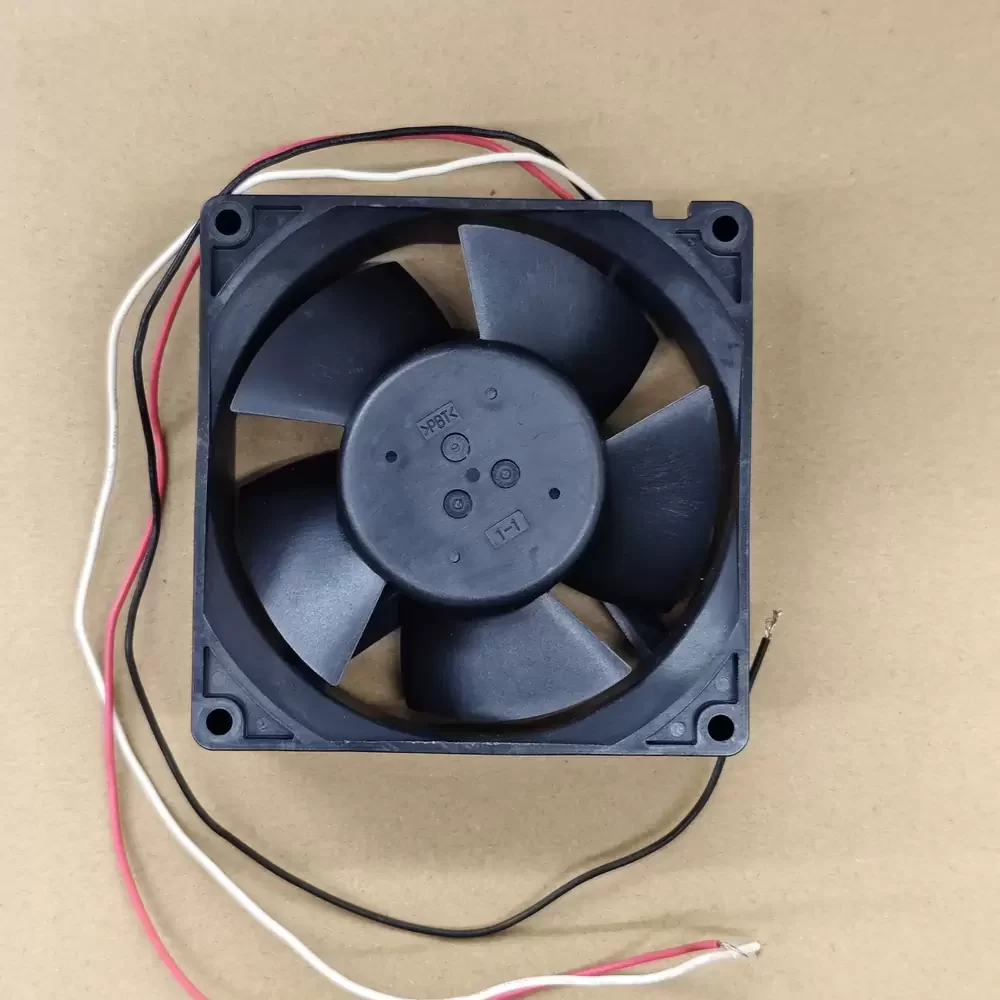

The NMB 09232VE-24R-CTS-0 is a high-performance industrial axial fan engineered for extreme environmental resilience and high-density thermal management. Operating at a nominal 24VDC with a 0.65A current draw, this unit delivers a potent 105.94CFM airflow at a static pressure of 275Pa. It features a robust stainless steel ball bearing system and is rated for IP68/IP69K ingress protection, ensuring reliable operation in presence of high-pressure wash-downs and dust. The 7000RPM rotational speed is optimized for maximum heat dissipation in compact 92mm footprints.
09232VE-24R-CTS-0 Specifications
Model Number: 09232VE-24R-CTS-0
Brand: NMB Technologies (MinebeaMitsumi)
Product Category: DC Axial Fans
Rated Voltage: 24VDC
Operating Voltage Range: 14.0V to 26.4VDC
Rated Current: 0.65A
Rated Input Power: 15.6W
Rated Speed: 7000 RPM
Maximum Air Flow: 105.94 CFM (2.97 m³/min)
Maximum Static Pressure: 275 Pa (1.10 in H2O)
Noise Level: 59.0 dB
Bearing Type: Stainless Steel Ball Bearing
Frame Size: 92mm x 92mm
Thickness: 32mm
Weight: 190g
Termination: 3-Wire Leads (Red: +, Black: -, White: Sensor)
Sensor Type: Tachometer / Frequency Generator
Ingress Protection: IP68 / IP69K
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C (L10)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Approvals: UL, CSA, VDE, CE, RoHS Compliant
09232VE-24R-CTS-0 Applications
Mandatory thermal management for 1U/2U high-density servers, switch-mode power supplies (SMPS), and industrial automation controllers. Engineered for harsh environment cooling in food processing equipment, outdoor telecom enclosures, and high-pressure wash-down machinery.
