PIA120G12H-P06-AB Foxconn 12VDC 4.50A 120mm PWM Cooling Fan

Description

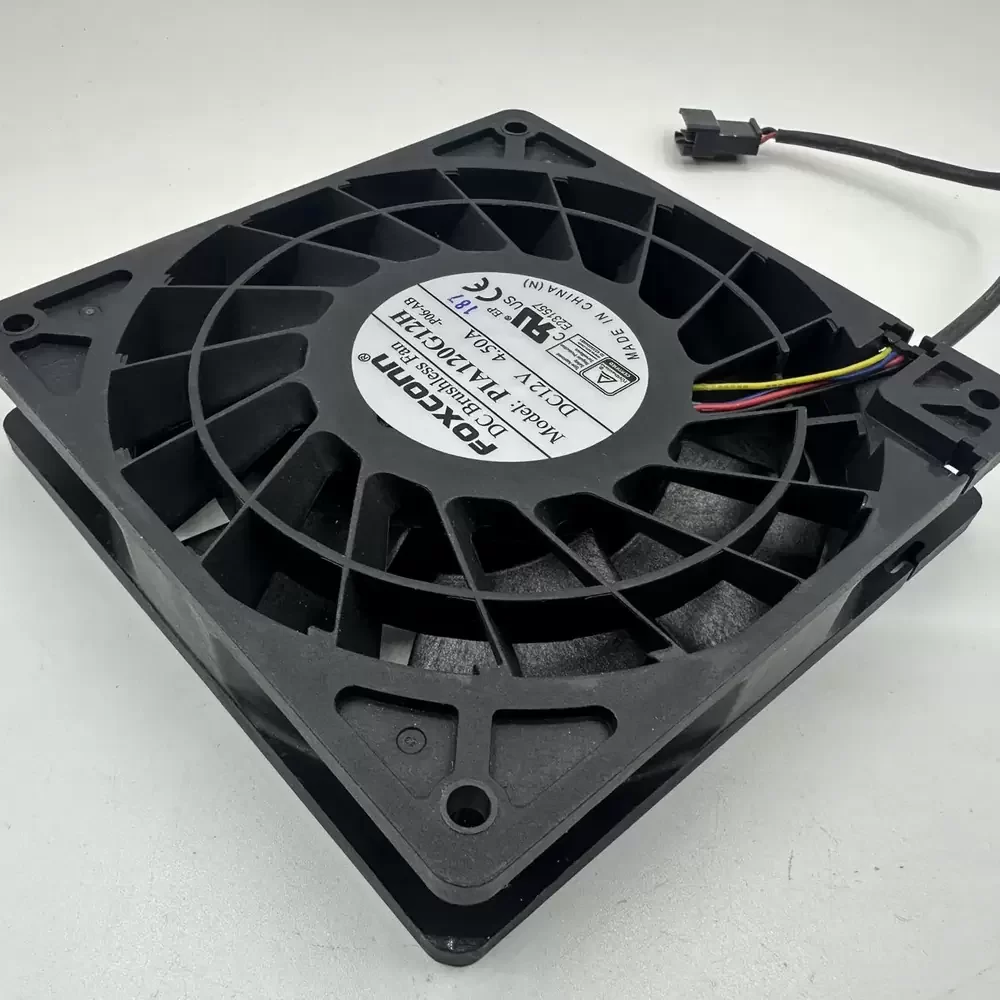

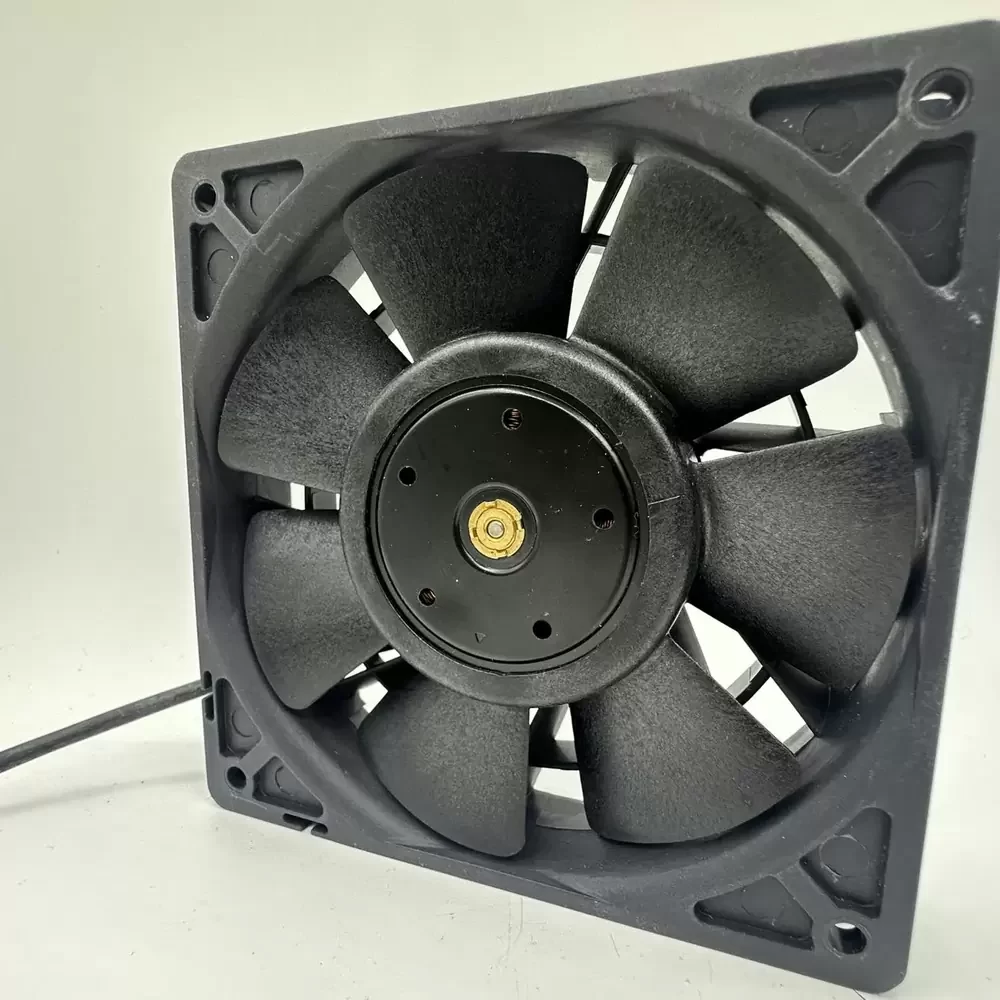

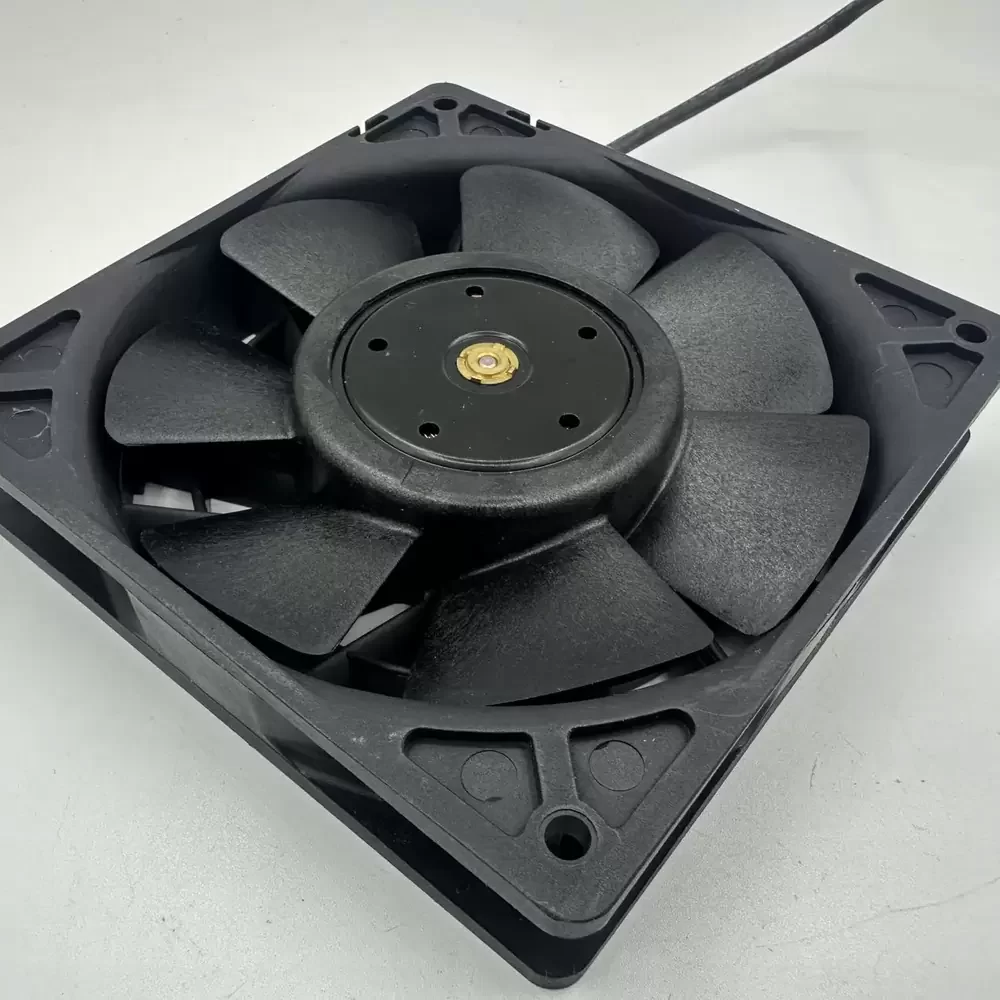

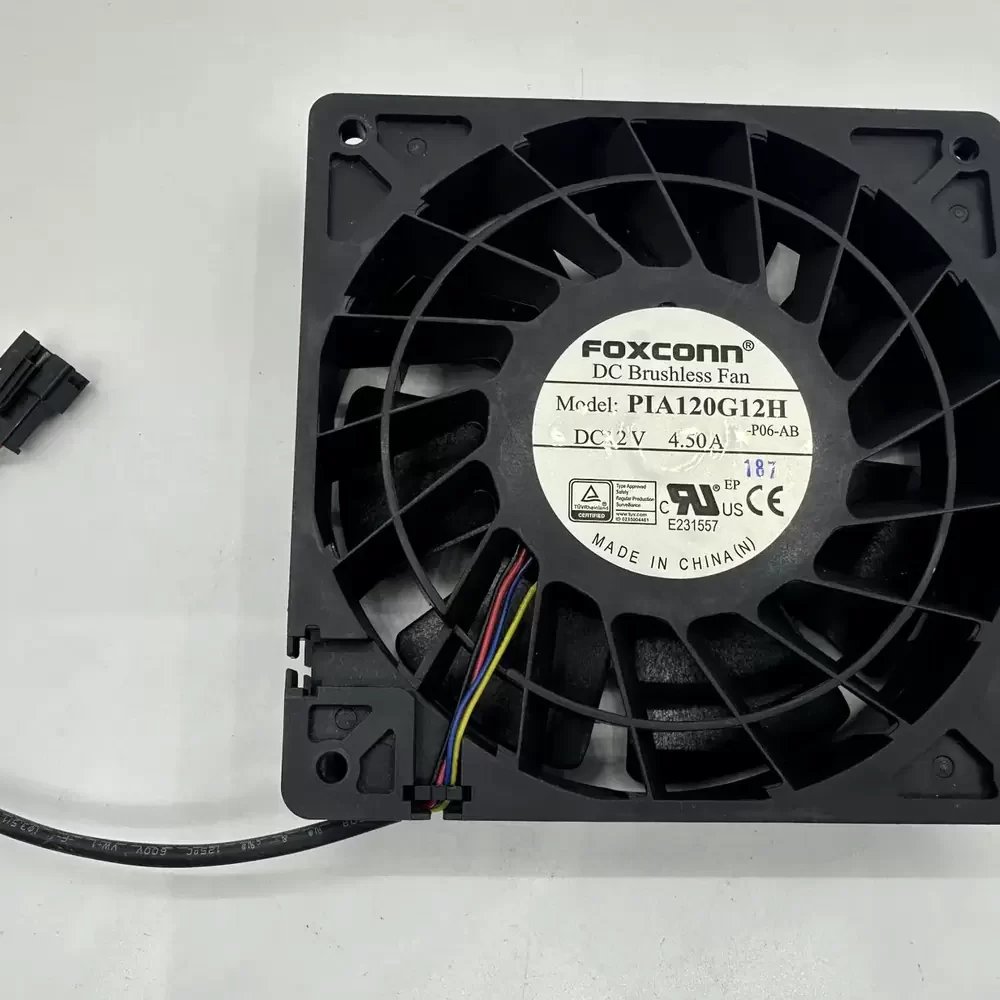

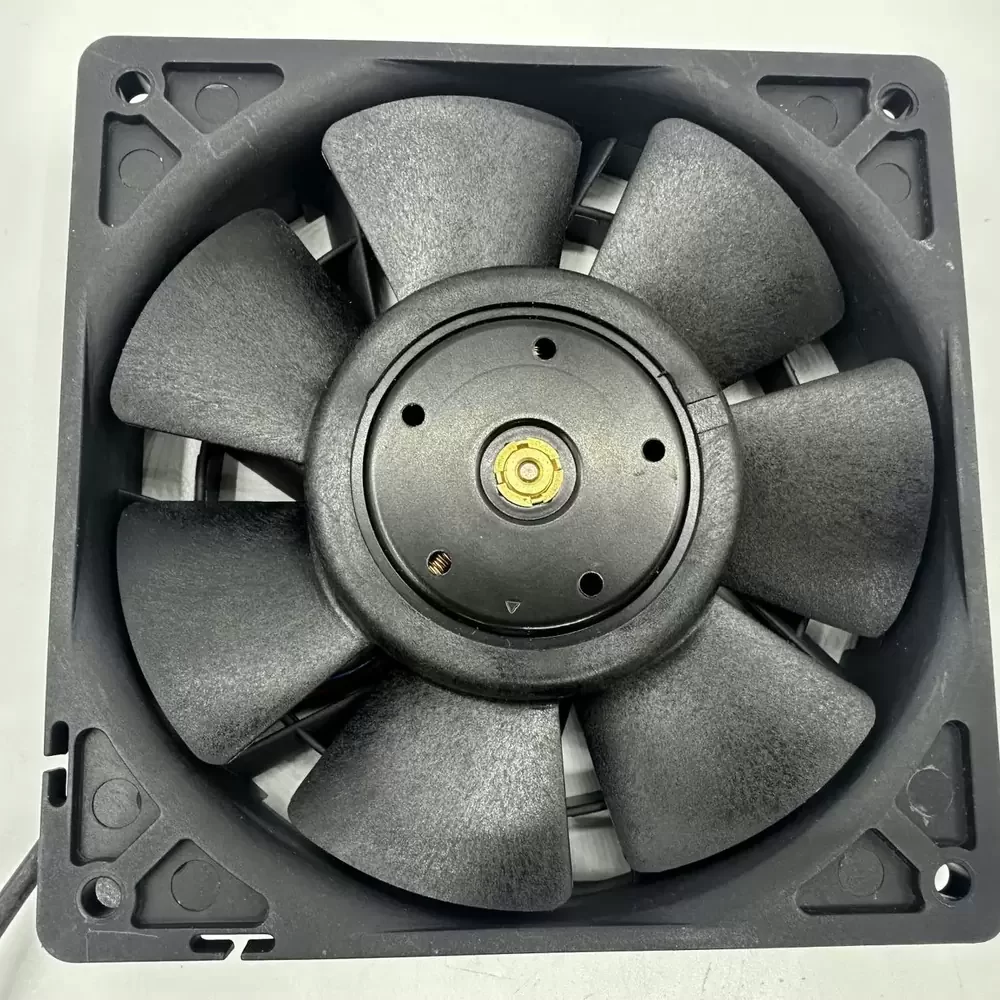

Foxconn PIA120G12H-P06-AB 120 x 120 x 25 mm 12 VDC 4.50 A 54 W high-performance axial fan. The unit is constructed with a UL 94V-0 rated PBT plastic frame and impeller, utilizing a dual ball bearing system for extended operational life. It features a 4-pin PWM interface for dynamic speed control and a 7-blade high-velocity impeller design. The brushless DC motor provides high static pressure and airflow through a 4-wire lead configuration.

PIA120G12H-P06-AB Specifications
Model: PIA120G12H-P06-AB
Brand: Foxconn
Category: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 4.50 A
Rated Power: 54 W
Rated Speed: 6000 RPM
Maximum Airflow: 210 CFM
Maximum Static Pressure: 32.5 mmH2O
Acoustic Noise: 68.5 dB(A)
Bearing Type: Dual Ball Bearing
Interface: 4-pin PWM
Wire Length: 16.5 cm
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C
Life Expectancy: 70,000 hours at 40 °C
Safety Certifications: UL, TUV, CE, RoHS

PIA120G12H-P06-AB Applications
Primary applications include integration into high-density server chassis, enterprise networking switches, and industrial rack-mount power supplies. Deployed within high-performance computing (HPC) clusters and telecommunications base stations for critical thermal management of high-wattage processors and power modules.
